PV300 300W solar panel user manual

Features

· QUIET GENERATOR & ECO-FRIENDLY CLEAN POWER: Build up your Portable-Solar-Generator System together with Pecron portable power station (sold separately). Ideally suited for outdoor life and even unexpected power outages.
· HIGH CONVERSION EFFICIENCY SOLAR GENERATOR: High conversion efficiency up to 23.5%, turn more sunlight into clean energy and perform better than conventional panels in hot weather.

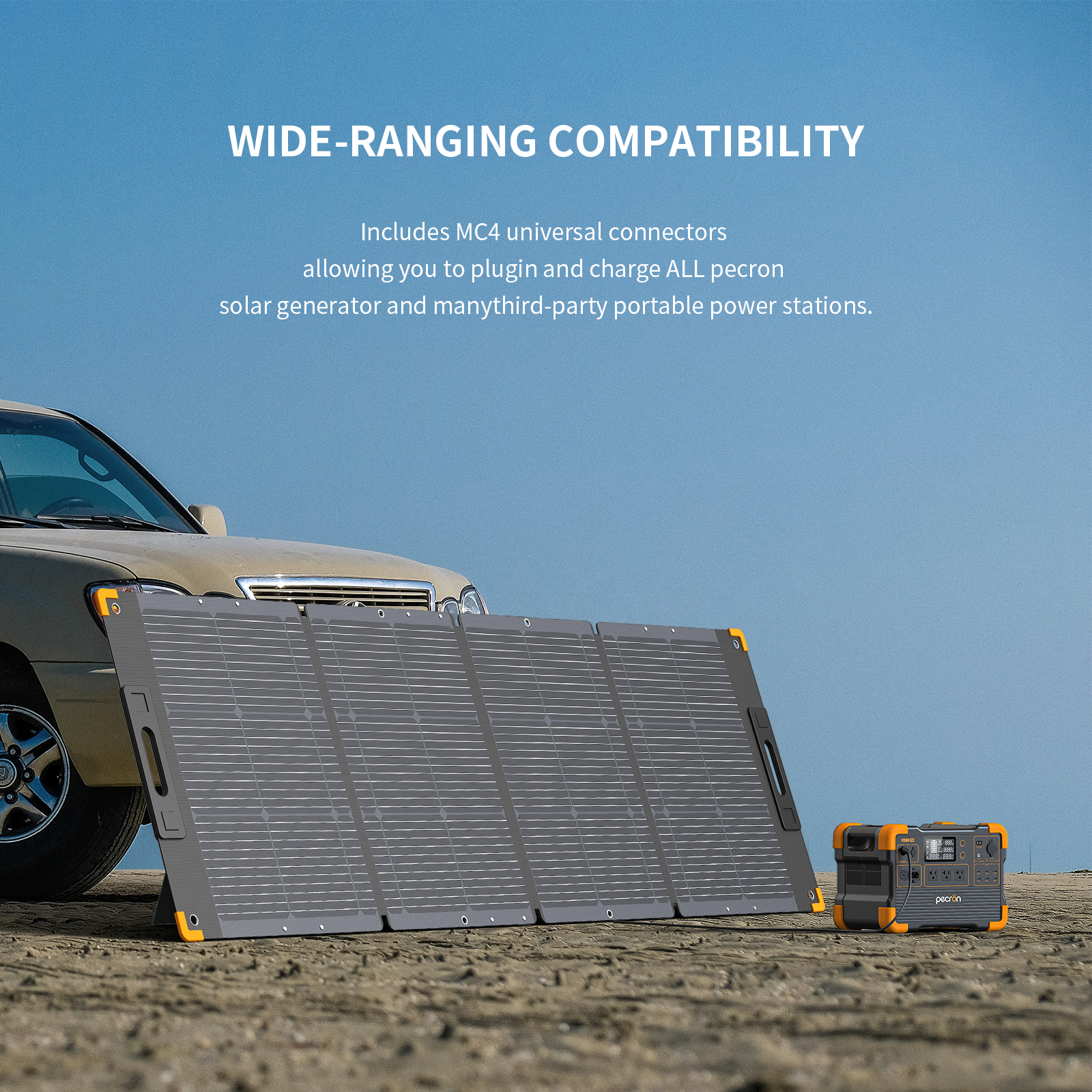

· UNIVERSAL SOLAR CHARGER: Equipped with universal MC4 connectors that can connect easily to most solar compatible devices.
· Lightweight & Sleek Design: Weight only 8.97KG, super-thin, folds easily and in turn doesn't take up a lot of space. The foldable design makes it easy to transport and conveniently fits in the trunk of your car or any storage space.

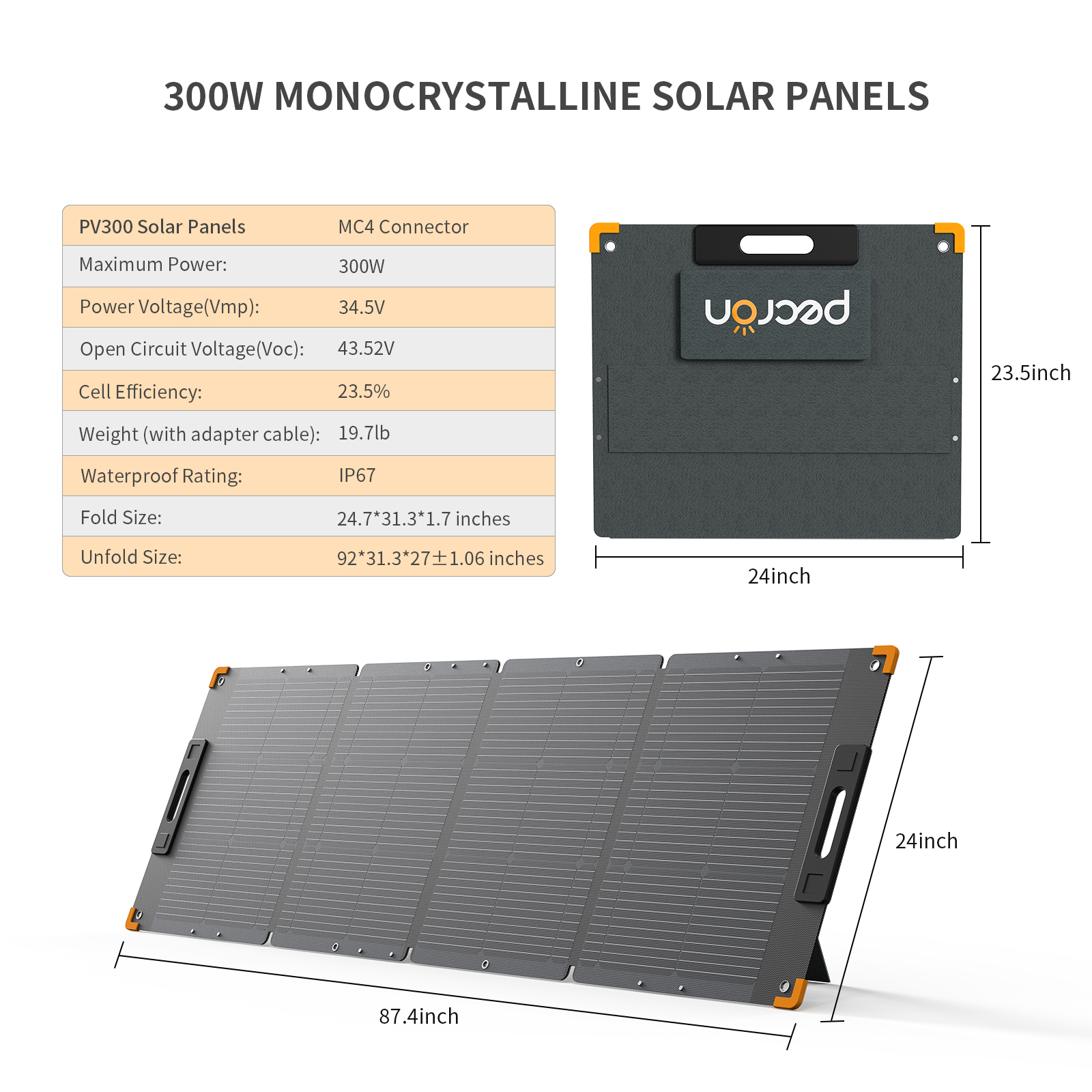

Specifications

PV300: 4-Fold 300W 33V Solar Panel
Cell Type: Monocrystalline
Maximum Power: 300W+5%
Power Voltage(Vmp): 34.5V+5%
Working Current(lmp): 8.69A+5%

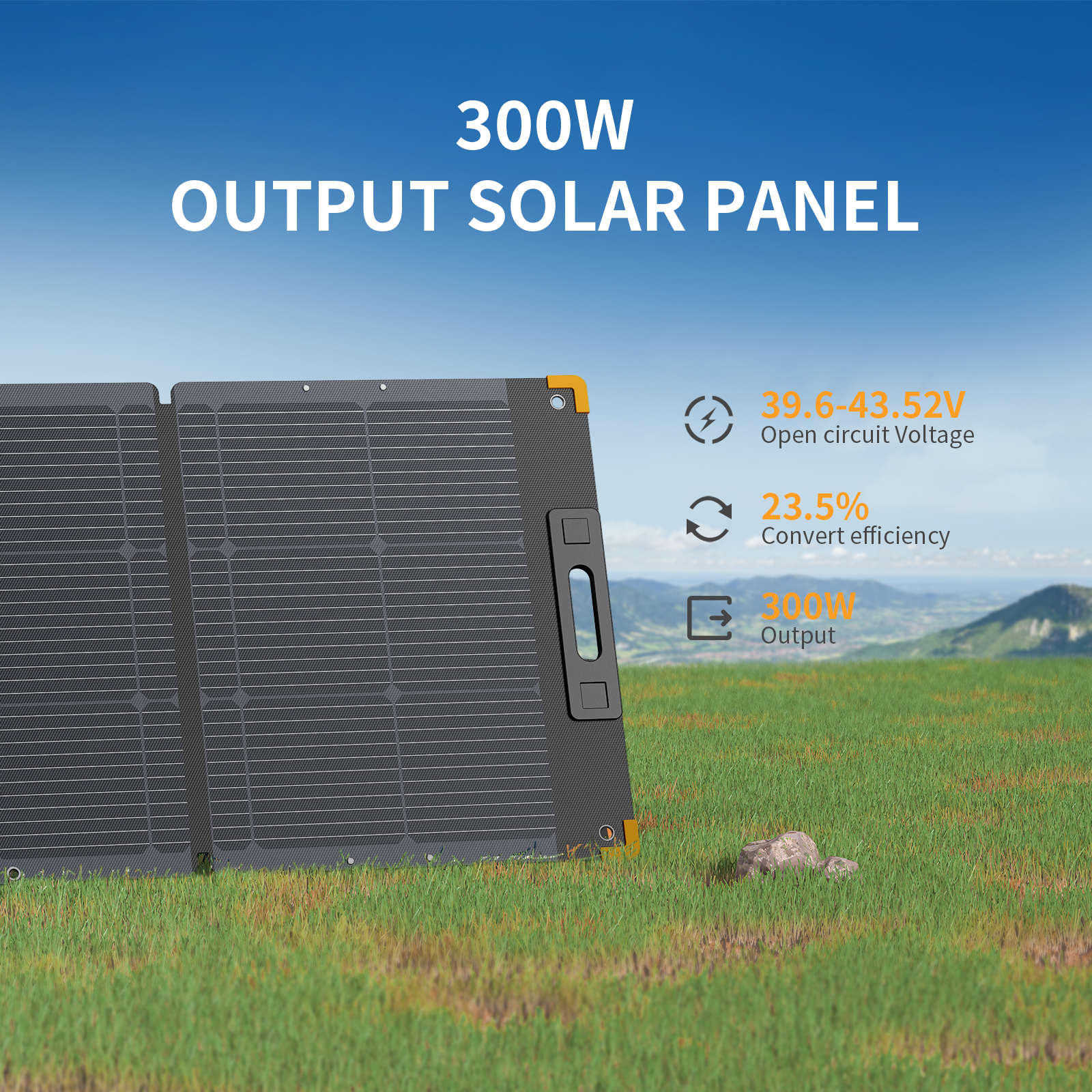

Open Circuit Voltage(Voc): 43.52V+5%
Short Circuit Current(lsc): 9.56A+5%
Cell Efficiency: 23.5%
Operating Temperature: -20°C~+60°C
Ingress Protection(lP) Rating: IP67
Fold Size: 627*794*42+1mm
Unfold Size: 2338*794*27+1mm
Solar panel weight (with adapter cable): About 8.97kg
Standard Test Conditions: 1000W/m?(92.9W/ft2),AM1.5, 25°C(77°F)

Store method

When the solar panels are not in use, please store them upright,
don't stack heavy and sharp objects on them, so as not to damage the solar panels. and avoid placing them in places with standing water.
