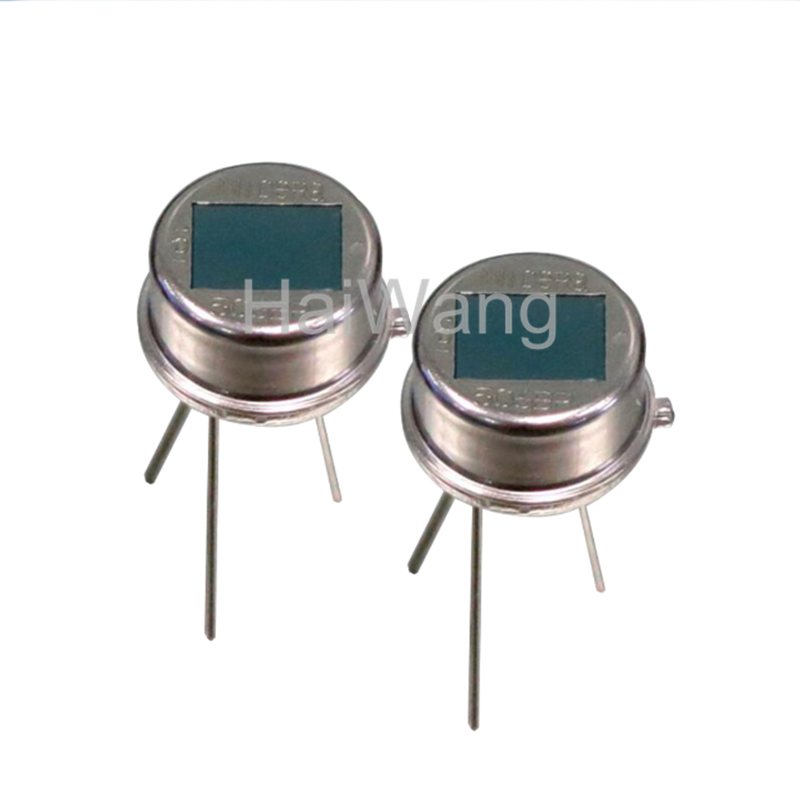

PIR Sensor
Production Lead Time:
3 day(s)
Model No.:
KP506B
Brand:
NICERA
Description
Contact Supplier
Description
- Type of sensor
- Twin element
- Physical configuration
- Package to-5 metal can
- see figure a
- Element size 2.0×1.0 mm
- Lead configuration see figure b,c
- electrical characteristics (at 25±5℃)
- Circuit configuration see figure d
- Operation voltage 2.2～15 v dc (drain-ground)
- (rs：47kω)
- Source voltage 0.4～1.1 v (vd=10v, rs=47kω)
- Signal output min 2.5 vp-p (source-ground)
- (black body 420k；chopper
- Frequency 1hz：measurement
- amp. 0.3～3.0hz、 72.5db(at 1hz))
- See figure f
- Balance output max 20％ (source-ground)
- (black body 420k；chopper
- Frequency 1hz：measurement
- Amp. 0.3～3.0hz、 72.5db(at 1hz))
- See figure g
- Noise output max 200 mv (source-ground)
- (measurement amp. 0.3～3.0hz、
- 72.5db(at 1hz))
- See figure H
