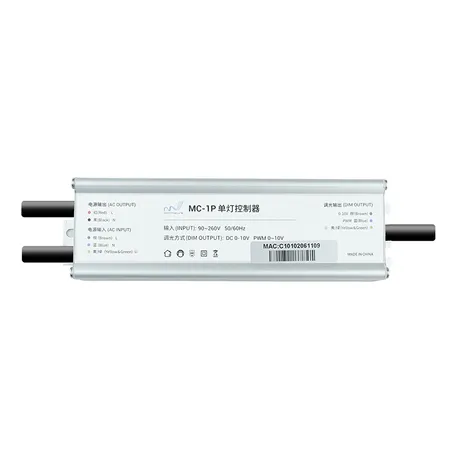

A lamp controller linked with an LED driver, communicates by High-Speed Power Line Communication (HPLC). Remotely turn ON/OFF, dimming (0-10V/PWM), data collection, 90-264VAC, 2W, IP66, lightning protection.

Features:

- Industrial-grade Quality: Aluminum alloy shell, compact in size, with an IP66 protection rating, and the maximum load is 400W.

- Remote Control: Built-in PLC Communication Module, supporting remote switching, dimming (0-10V / PWM), configuration, and OTA upgrades.

- Failure Detection & Safety Protection: Supports active protection functions such as overcurrent and overload and can actively provide warnings and report faults.

- Precise Measurement: Precise data collecting such as current, voltage, power, energy consumption, and temperature, with an error rate of less than 2‰.

- Application Scenarios: Municipal Road lighting, tunnel lighting, and industrial lighting.

Key Parameters:

* Communication based on PLC (Power Line Carrier Communication)

* Dimming: PWM / 0~10V

* Operating voltage: 90-264VAC

* Frequency: 50-60Hz

* Static power: < 2W

* Output current: 0-8A±2%

* Load power rating: ≤400W

* Operating temperature: -40°C~+85°C

* Industrial packaging protection: IP66

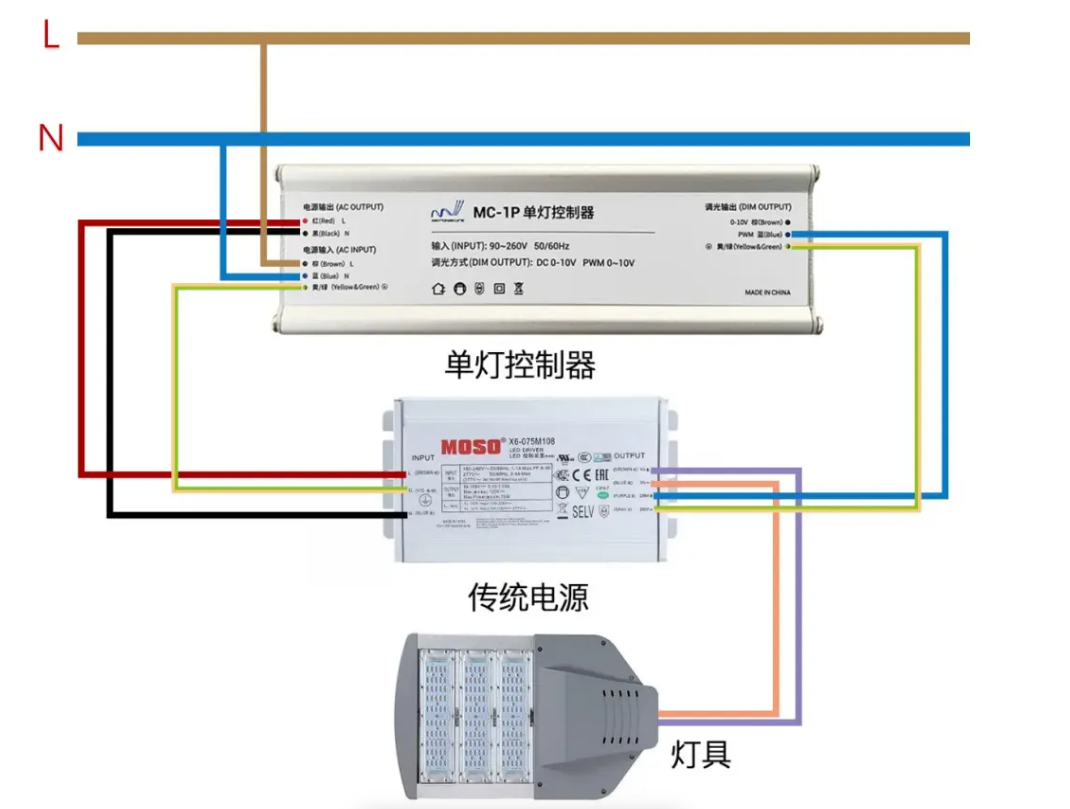

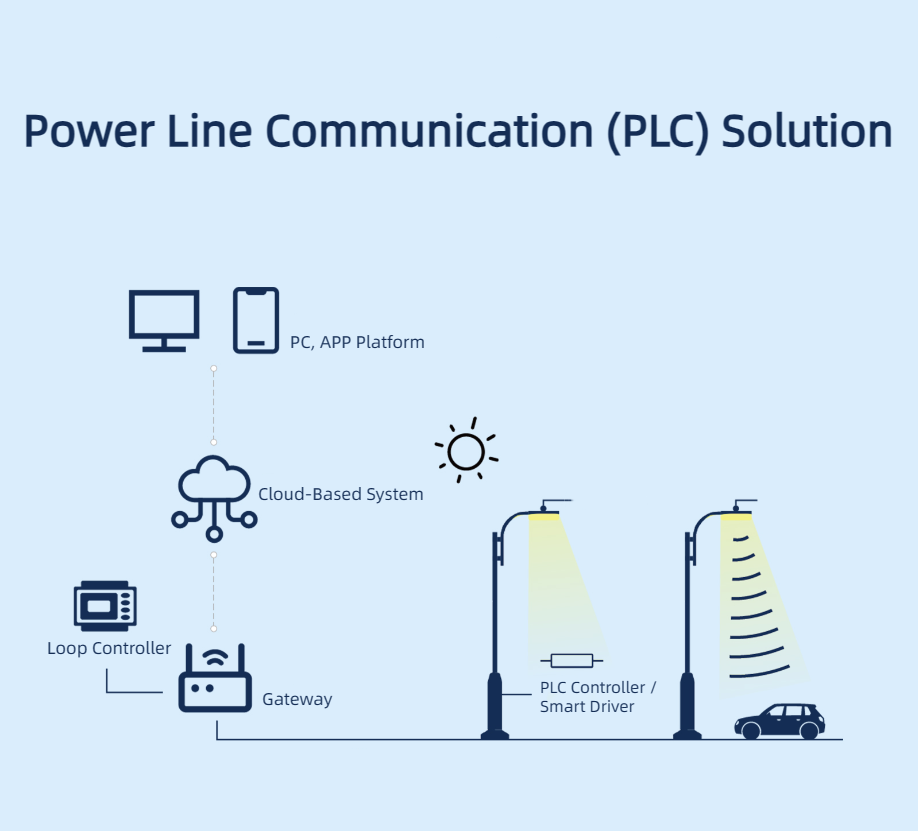

PLC Single Light Controller can be used with gateway/traditional power supply/streetlight to achieve the role of remote monitoring, control and management of the street lighting network, and ultimately achieve the purpose of energy saving, cost reduction and efficiency increase.
