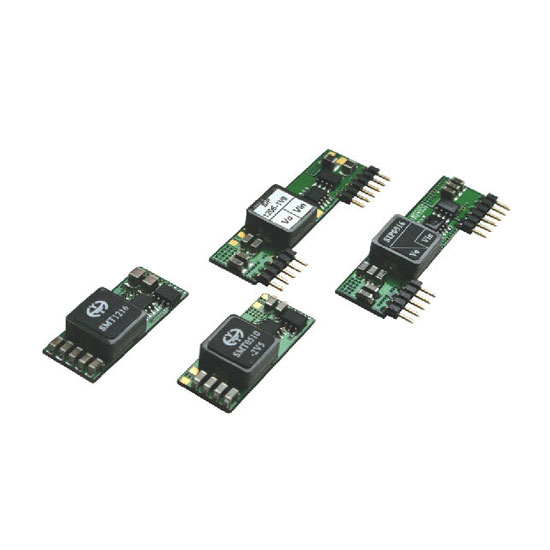

POL DC Converter
Production Lead Time:
28 day(s)
Model No.:
SIP, SMT-SERIES
Brand:
YHT
Size:
33.0 x 13.5 x 8.30mm
Port:
Beijing
Minimum Order Quantity:
100 piece(s)
Description
Contact Supplier
Description
This POL DC converter comes with a non-insolated structure. It is finely assembled with high-quality components for excellent performance. This item is made under strict QC to promise quality you can rely on.
- Input voltage: 3 to 5.5 or 10 to 14V DC.
- Output voltage: 0.75, 1.0, 1.2, 1.5, 1.8, 2.0, 2.5, 3.3 and 5V DC.
- Set point accuracy: ±2.
- Full resistive load trim: minimum: 0.75V and maximum 3.63V.
- Remote sense compensation: 0.5V.
- Line regulation: ±0.5 (full resistive load).
- Load regulation: ±0.5% (from no load to full load).
- Turn-on delay time: 2ms (full resistive load).
- Rise time: 1.5m (from 0.1 to 0.9 x V).
- Load transient voltage: 160mV.
- Setting time: 50μ seconds.
- Ripple and noise: 50mVp-p, 20MHz bandwidth.
- Maximum capacitive load: 5,000μF.
- Minimum ESR: more than 10mΩ.
- Switching frequency: 300kHz.
- Bell core TR: 332, 25°C.
- Operating case temperature: -40 to 85°C.
- Short-circuit protection: 10mΩ.
- MTBF: 5 x 106 hours.
- Certification: TUV (SIP-series) and RoHS.
- Warranty: 5 years.
