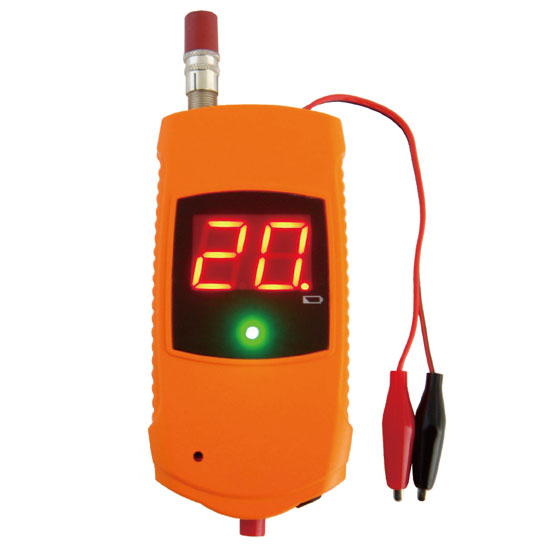

PT-20 20 Way Coaxial Cable Mapper
Share this page
Production Lead Time:
40 day(s)
Model No.:
PT-20
Brand:
SPACELAB
Colour:
Orange
Description
Contact Supplier
Description
  • PT-20 20-way coaxial cable mapper.
  • The PT-20 is designed to quickly wire map up to 20 speaker, coax, or security/alarm cables at a time.
  • The LED displays the unique number of the remote identifier attached to the other end of the cable run.
  • If it detects a short, the LED displays “SH”.
  • When voltage is detected, “lightning bolts” appear.
  • To conserve battery life, the unit powers down automatically if the connection is not removed in approximately 2.5 minutes.
  • Release the power button to conclude the testing session.
Features:
  • Wire map up to 20 audio, coax, or security/alarm cable runs at a time.
  • High intensity LED display readable in any lighting environment.
  • Push-on button operation.
  • Power-on light indicator.
  • Low battery indicator.
  • Voltage detection and warning.
  • A short circuit is detected, “SH” is displayed.
  • Alligator clip and F-connector contacts.
  • Maximum cable length for testing: 4000 Ft.
  • Maximum DC cable resistance: 100 Ohms.
  • Battery: 3pcs 3V CR2302 batteries.
  • Included 20 serial-number terminators.
  • Included coax to alligator clip adapter.
