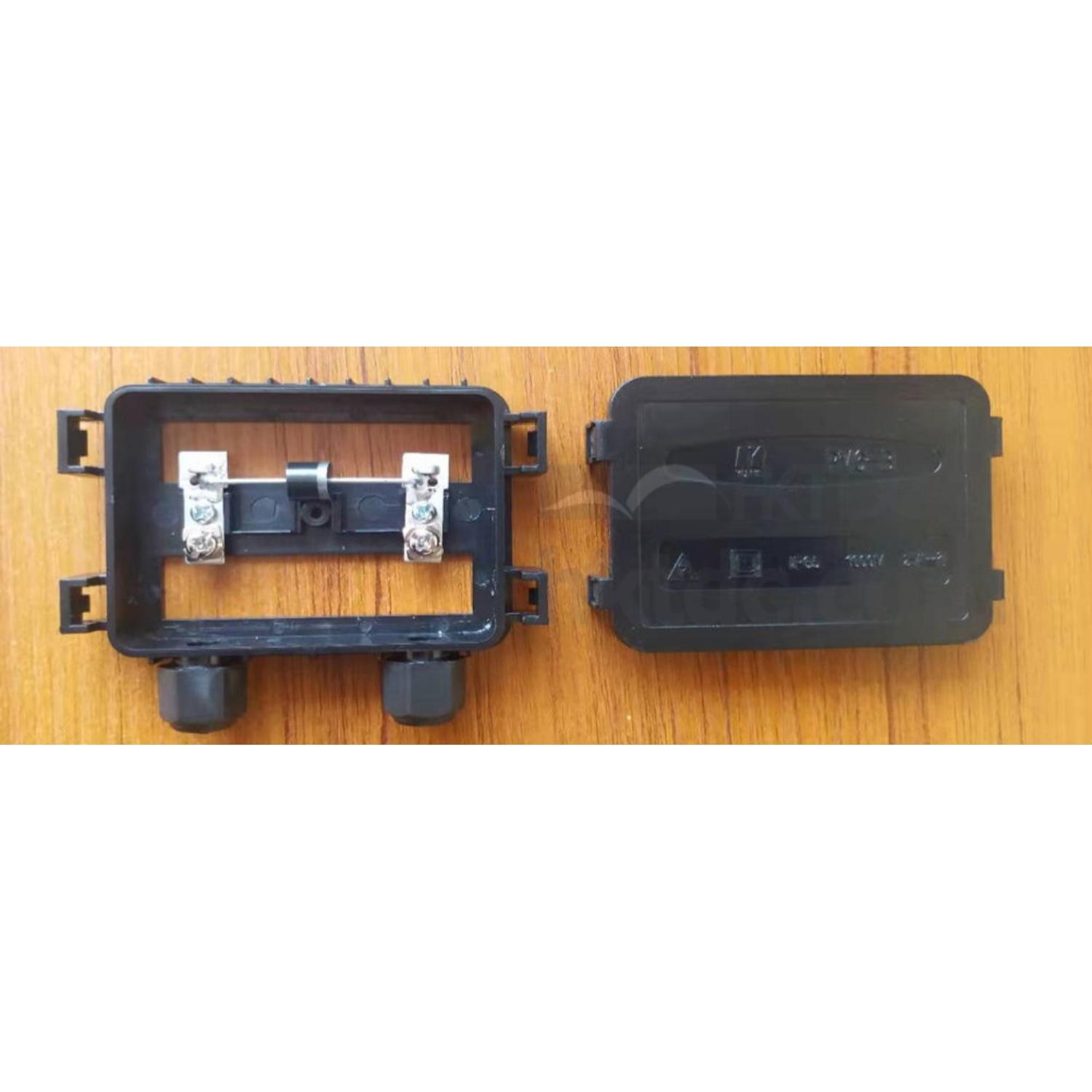

PV6-B Photovoltaic Module Junction Box
Size:
98mm x 65mm x 19.5mm
Type:
Junction Box
Protection Level:
IP65
Description
Contact Supplier
Description
- Application level A as defined by IEC61730-1;
- Junction box rated current 8A/10A;
- Diode rated current 10A/15A;
- Diode cut-off temperature 125 degree Centigrade/175 degree Centigrade/200 degree Centigrade;
- Rated voltage 1000V DC;
- Diode reverse voltage VR>=35V;
- IP 65 as defined by EN60529;
- Flame retardant V-0/5VA as defined by EN60695-11-10;
- The minimum ambient temperature is -40 degree Centigrade（-40 Fahrenheit);
- Maximum ambient temperature +85 degree Centigrade(185 Fahrenheit);
- Continuous operating temperature +110 degree Centigrade(230 Fahrenheit);
- Product appearance: 98mm x 65mm x 19.5mm.
