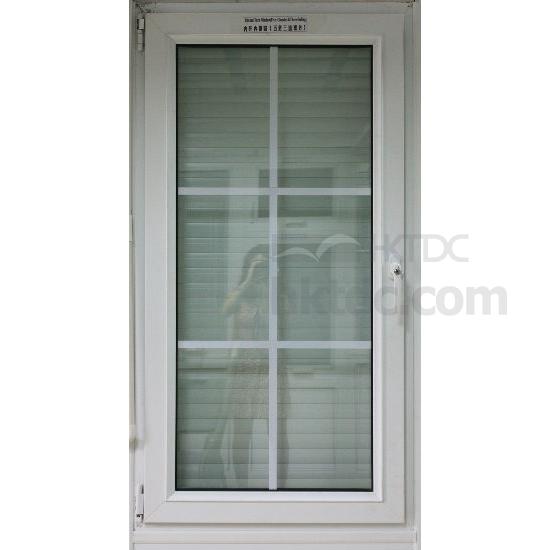

Product Details:

Window dimension range:550mm<W<850mm, 700mm<H<1600mm;

Available  PVC brand: Conch/ Kinpeng / Rehau / Dimex / Koemmerling / Veka which is three-chamber and five-chambe;

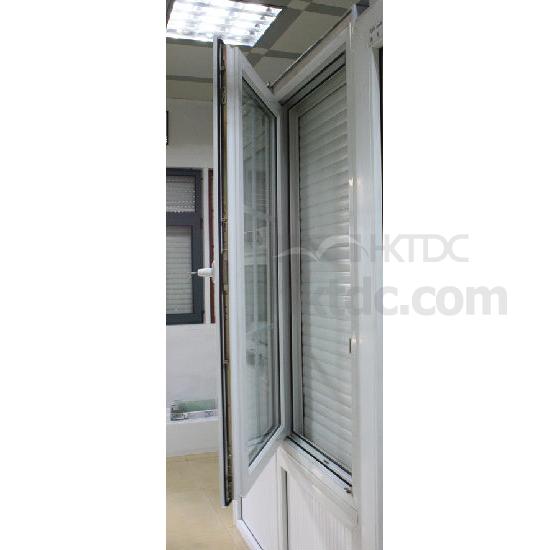

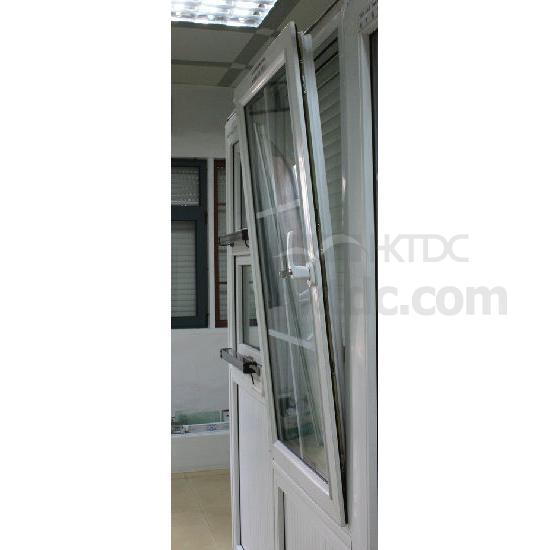

Hardware: tilt and turn window hardware system+handle with driving lock;Screen: folding screen, rolling-up screen and fixed Aluminum alloy edge screen

Glass: glass thickness range from 4mm to 30mm for three-chamber profile; 5mm to 37mm for five-chamber profile. PVC/aluminium grids are available between insulated glass as decoration.

Tech. Specification

Acoustical insulation: 36 Db
K-value of window: 1. 80 w/ m2. K
Wind resistance: 5000 Pa
Air permeability: 0. 1 m 3 /h. M
Watertightness: 500 Pa


Packing and Delivery

1) Package: hardpaper+ film package. Wooden case can be made for special care delivery. We can make other packings according to customer requests.

2) Delivery detail: usually 25 working days for a 20 feet container.

Scope of service

1) Free technique consulting , project design and estimates before sales.
2) Commitment of at least three years quality warranty.
