Phono Vacuum Tube Preamplifier
Production Lead Time:
21 day(s)
Model No.:
UTHC
Brand:
SYBASONIC
Colour:
Black
Size:
9.3 x 11.0 x 4.8 cm
Port:
Hong Kong
Type of Payment:
T/T
Minimum Order Quantity:
100 piece
Package:
Yes
Customised:
Yes
Type:
Mini Amplifier
Channels:
2
Description
Contact Supplier
Description

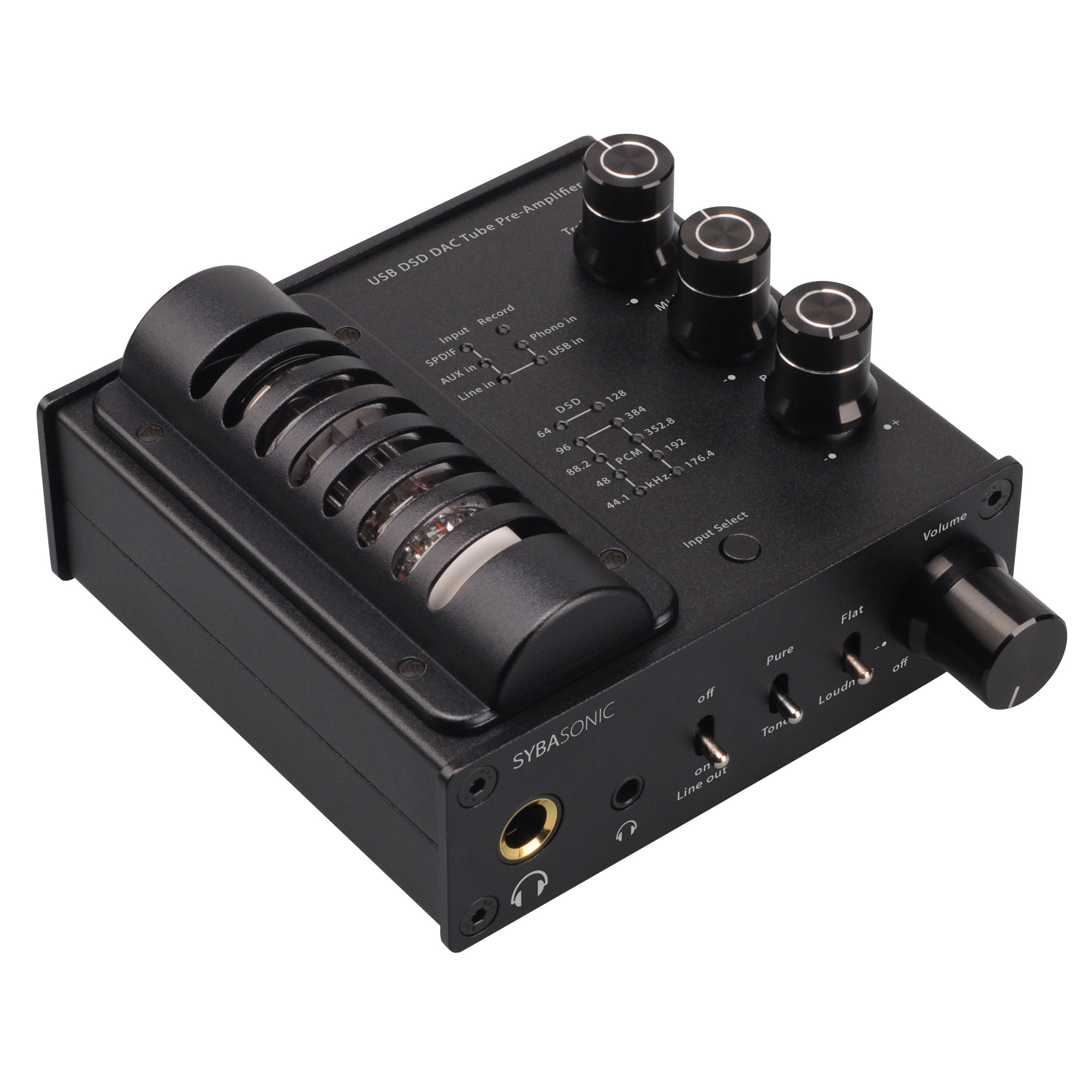

Phono Vacuum Tube Preamplifier USB DSD 128 DAC with Tri-tone Equalizer
- Support digital lossless music with DSD and PCM encoded streaming by USB input
- DSD playback:
- Supports sampling rate at 2.8 and 5.6MHz playback
- Supports DSD native or DoP
- PCM playback
- Supports sampling rate at a maximum of 384K 32-bit playback
- DSD playback:
- Support most common digital audio format
- Uncompress:
- WAV, AIFF, PCM, etc
- Lossless music:
- WAV, FLAC, DFF, DSF, ALAC, etc
- Lossy music:
- MP3, OGG, WMA, AAC, etc
- Uncompress:
- Chipset:
- Main control and decode IC: Savitech Bravo SA9227
- Audio CODEC: ESS ES9018K2M
- USB Digital Audio interface
- Complies with USB2.0 High Speed (480Mbps) specification in Micro-B connection form factor
- Support USB Audio Class v1.0 and v2.0 specification

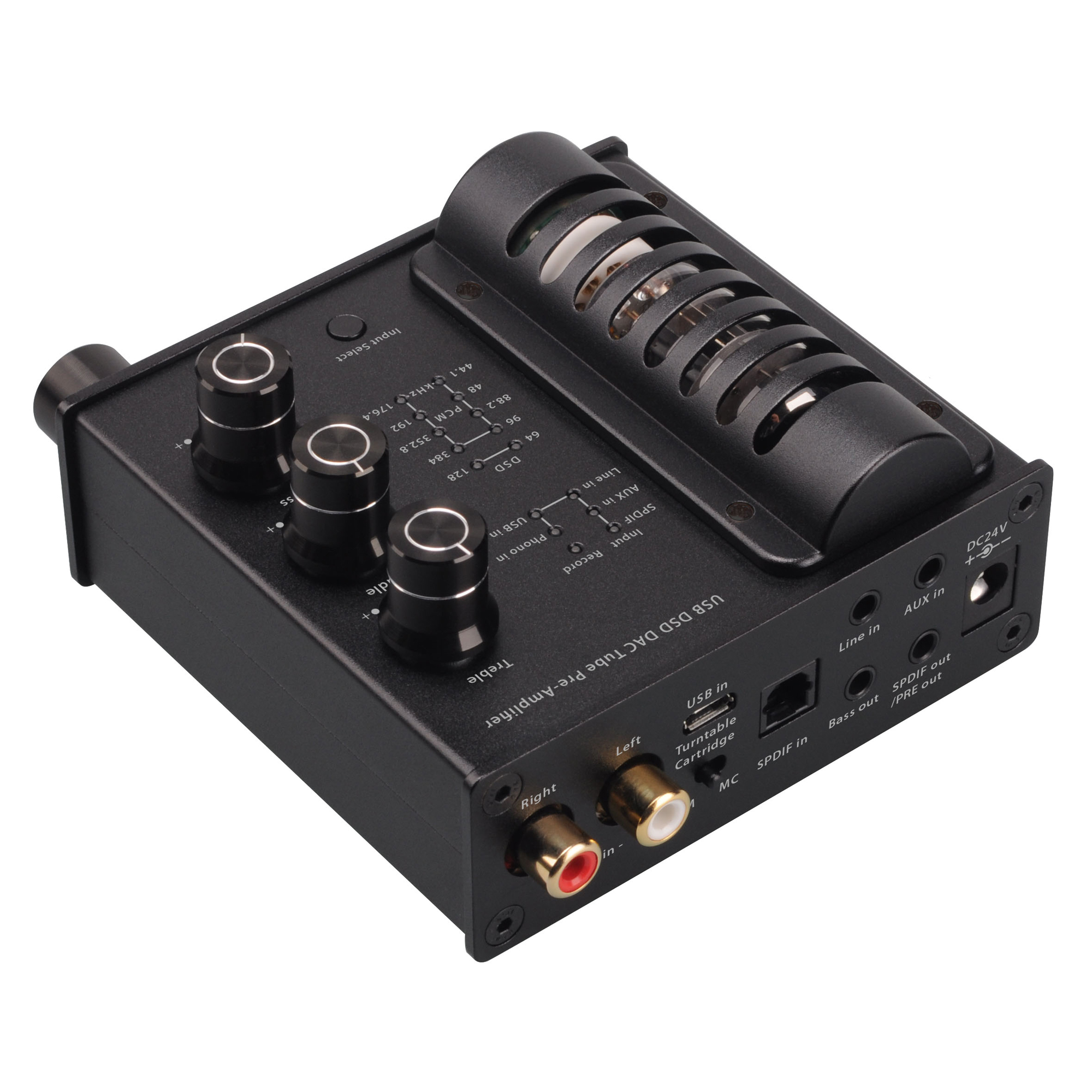

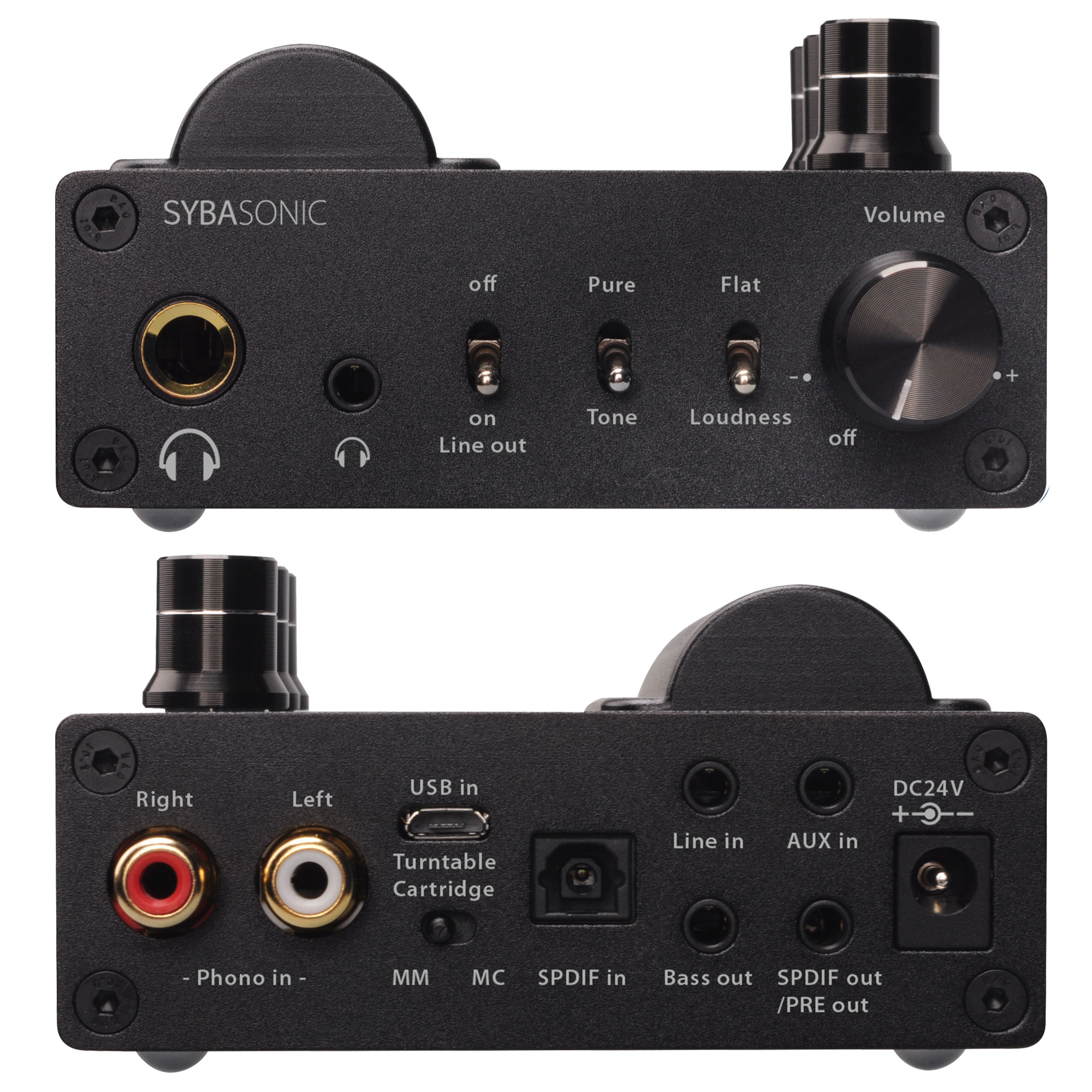

- Audio Input:
- Phono in: Direct input from Vinyl Record Turntable Player with MM or MC cartridge
- USB in: Digital music stream from computer or mobile phone
- Line in: 3.5mm stereo music input
- AUX in: 3.5mm stereo music input
- S/PDIF: Optical digital music input
- Audio Output:
- S/DIF out / PRE out
- Shared output port for optical digital output or 3.5mm stereo output to a power amplifier or active speakers
- Bass out
- 3.5mm stereo output with BASS enhanced
- Stereo headphone output
- Support 6.3 and 3.5mm stereo jack
- Headphone driving capable of 16 - 600ohm internal impedance
- S/DIF out / PRE out

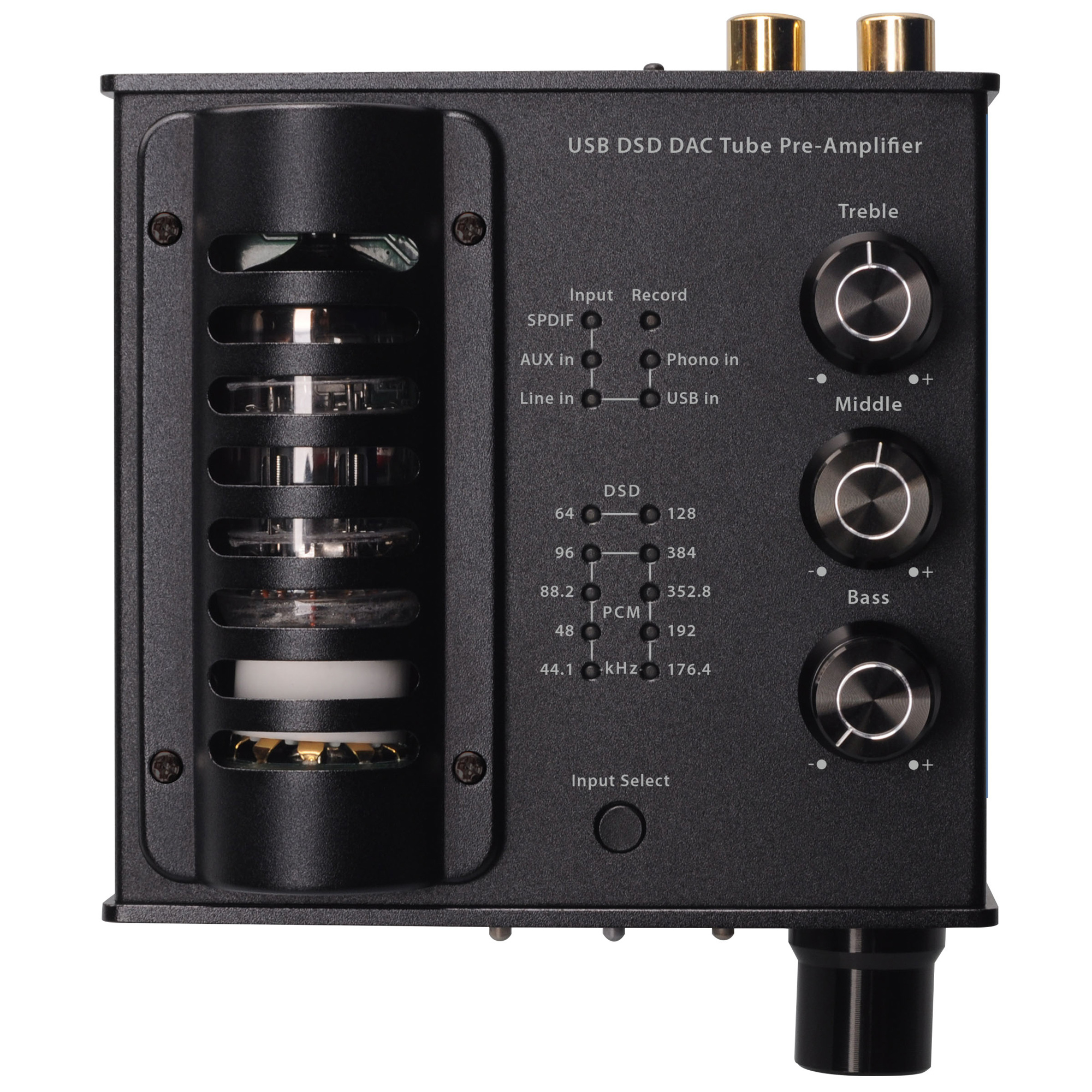

- Tri-Tone Controller:
- Treble
- Control Range: 3KHz-20KHz
- Trim Range: -12dB to +12dB
- Center Freq: 18KHz
- Middle
- Control Range: 200Hz-4KHz
- Trim Range: -10dB to +10dB
- Center Freq: 1KHz
- Bass
- Control Range: 20-250Hz
- Trim Range: -14dB to +14dB
- Center Freq: 20Hz
- Treble
- Maximum output power bypassing Tone Control @ 1KHz:
- 3.5mm Headphone Jack
- Loading 16 ohm: 125mW
- Loading 32 ohm: 118mW
- 6.3mm Headphone Jack
- Loading 32 ohm: 390mW
- Loading 62 ohm: 290mW
- 3.5mm Headphone Jack
- Signal to Noice Ratio(SNR): around 97dB
- Total Harmonic Distortion Ratio(THD+N): less than 0.001%
- Stereo Crosstalk: -80dB
- Black stylish aluminium alloy housing
- Power Supply: 48W 24VDC 2.0Amp
