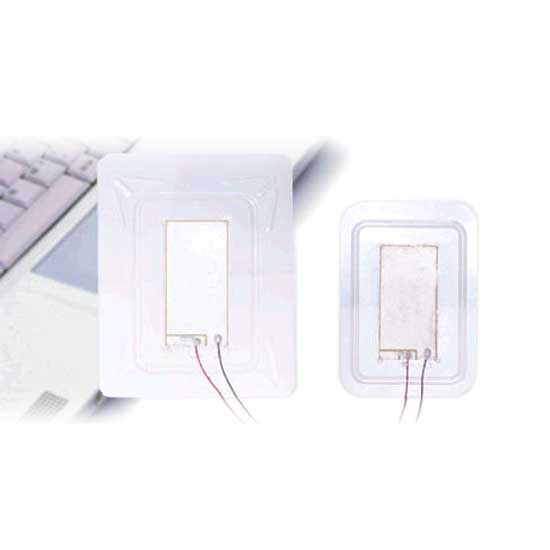

Piezoelectric Speaker
Model No.:
ABAT1428
Brand:
ABAT
Size:
0.5-0.6mm
Description
Contact Supplier
Description
This flat and slim piezoelectric speaker is an essential component for LCD TVs, mobile phones, headphones, PDAs, etc. It boasts top sound quality and a high sound pressure level. The reliable speaker is waterproof and heat resistant.
- Ideal for flat and narrow spaces.
- Lightweight design.
- Energy saving product.
- Application: LCD TV/mobile phone/2.1CH & 5.1CH headphone/PDA/E-book/GPS/digital camera/VCR/PSP/ mini elegant 3C products, etc.
- High-quality sound and sound pressure level (SPL).
- Lightweight less than 1g.
- Ultra slim: 0.5mm-0.6mm.
- Power Saving: less than 1.5mW.
- Waterproof, heat-resistant.
- Operating voltage: 3.5V-5V.
- No magnetic interference problem, saving antimagnetic costs.
- Easy assembling on LCD TVs, mobile phones, headphones, PDAs, E-books, GPSs and other 3C products.
- Outstanding music and vocal reproduction.
- Rated frequency range: 200Hz to 20kHz.
- Sound pressure level: 101.4dB±-5.0dB.
- Resonant frequency: 600Hz±20%.
- Capacitance: 1.0uF±-20%.
- Maximum sinusoidal voltage: 5.0Vrms.
- Operating temperature range: -20 to +70 degree Celsius.
- Storage temperature: -30 to 85 degree Celsius.
