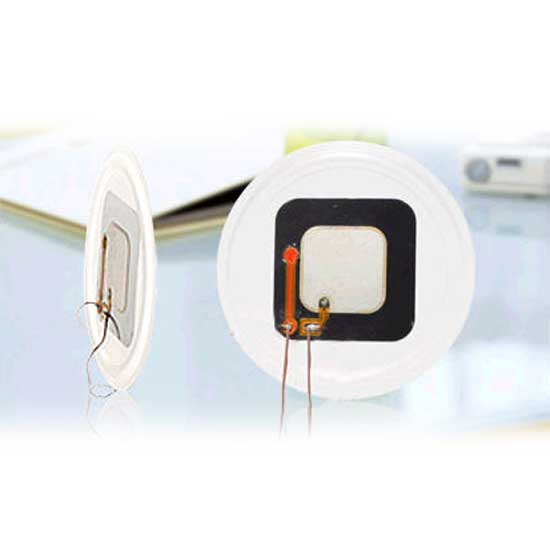

Piezoelectric Speaker
Model No.:
ABAT1818 series
Brand:
ABAT
Description
Contact Supplier
Description
This is a piezoelectric speaker that is made with a waterproof and heat-resistant structure. With an ergonomic design, it can be easily assembled on your headphone. This piezoelectric speaker can offer outstanding music and vocal reproduction performance.
- Ideal for flat, lightweight, energy saving products.
- 2.0-CH, 2.1-CH & 5.1-CH headphone.
- High-quality sound and sound pressure level (SPL).
- Light weight less than 1g.
- Ultra slim: size 0.5-0.6mm.
- Power saving: less than 1.5mW.
- Operating voltage: 3.5-5V.
- No magnetic interference problem, saving antimagnetic cost.
- Easy assembling on headphone.
- Rated frequency range: 200Hz-20KHz.
- Sound pressure level: 97.6±5.0dB.
- Resonant frequency: 1,150Hz±20%.
- Capacitance: 0.85uF±20%.
- Maximum sinusoidal voltage: 5.0Vrms
- Operating temperature range: -20-70℃.
- Storage temperature range: -30-85℃.
