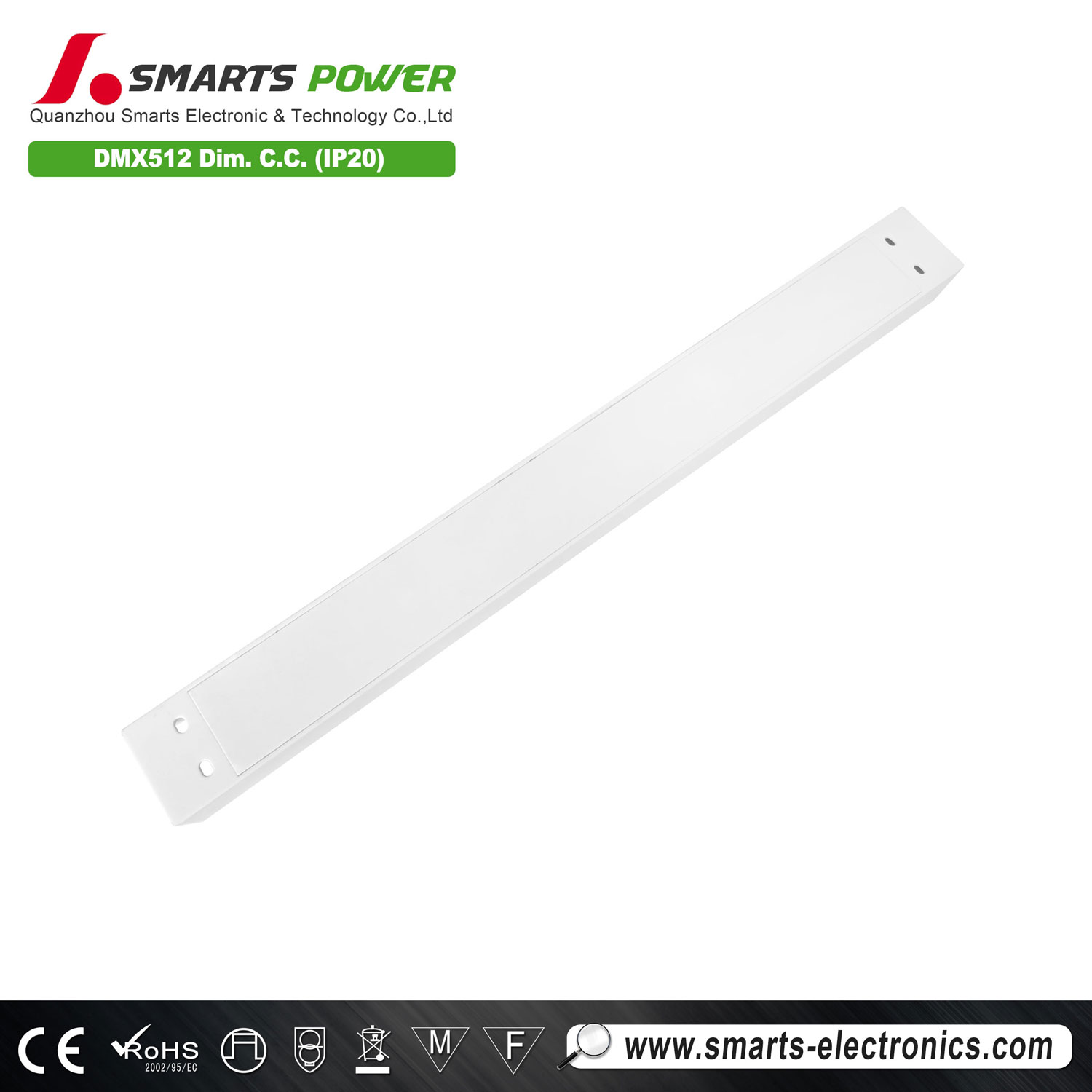

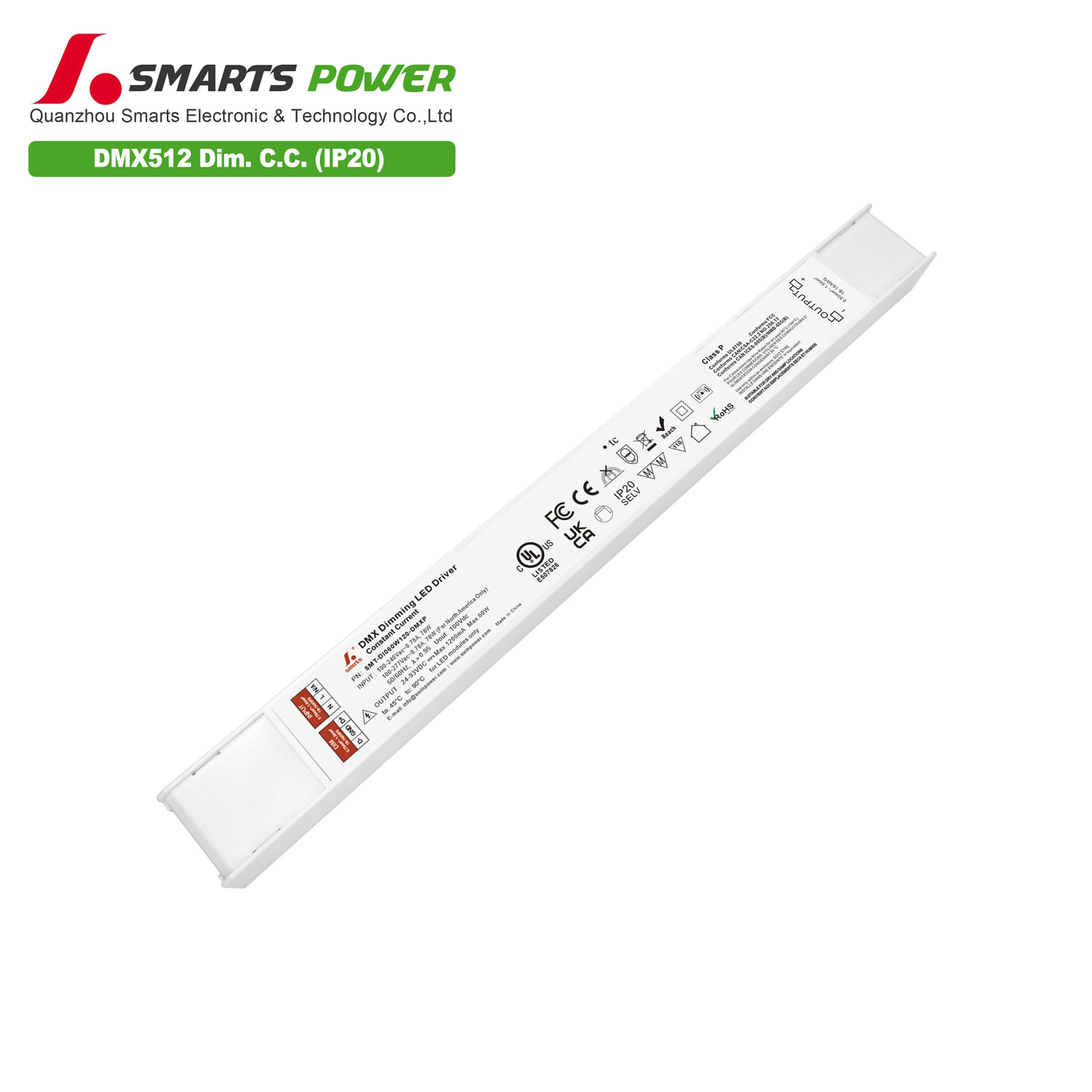

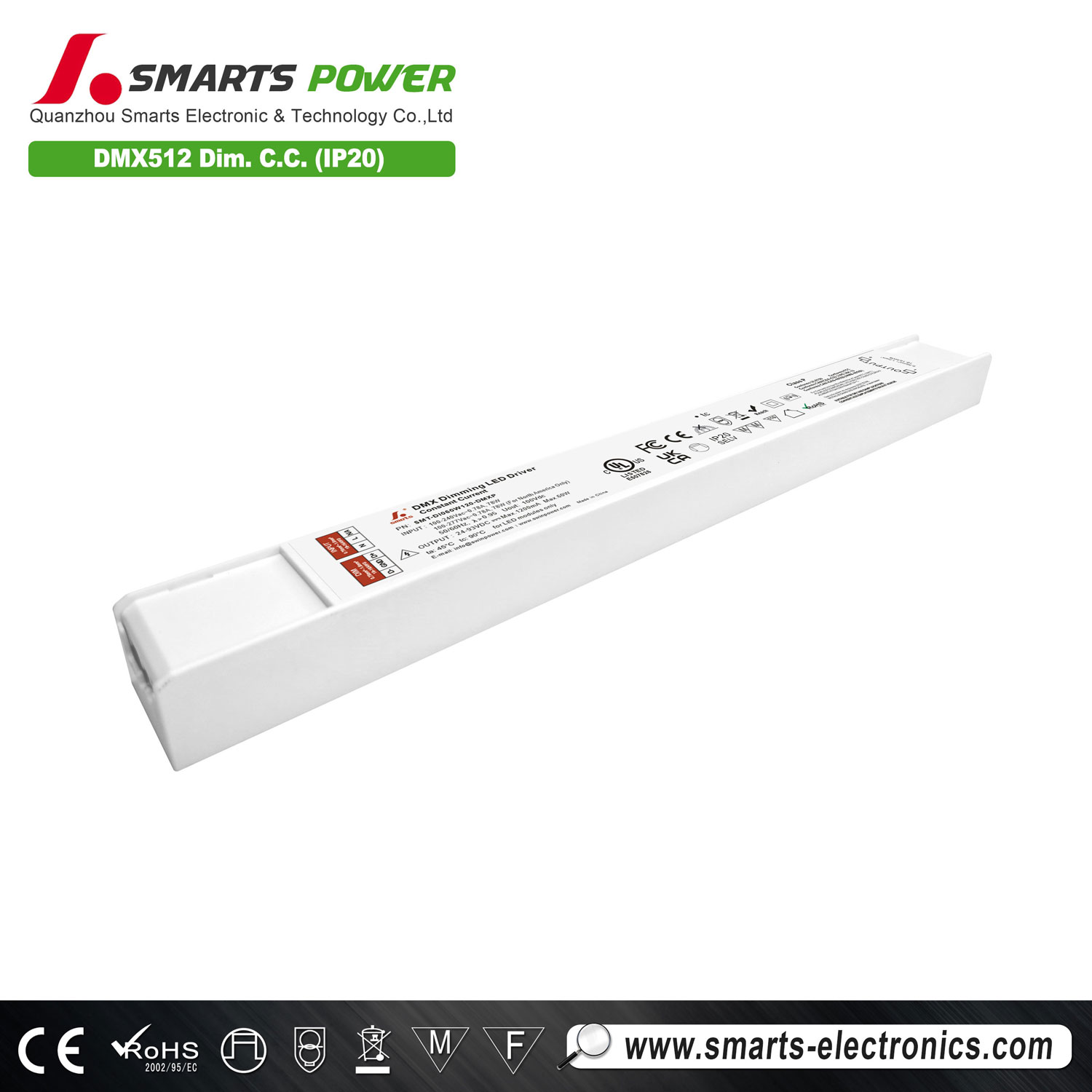

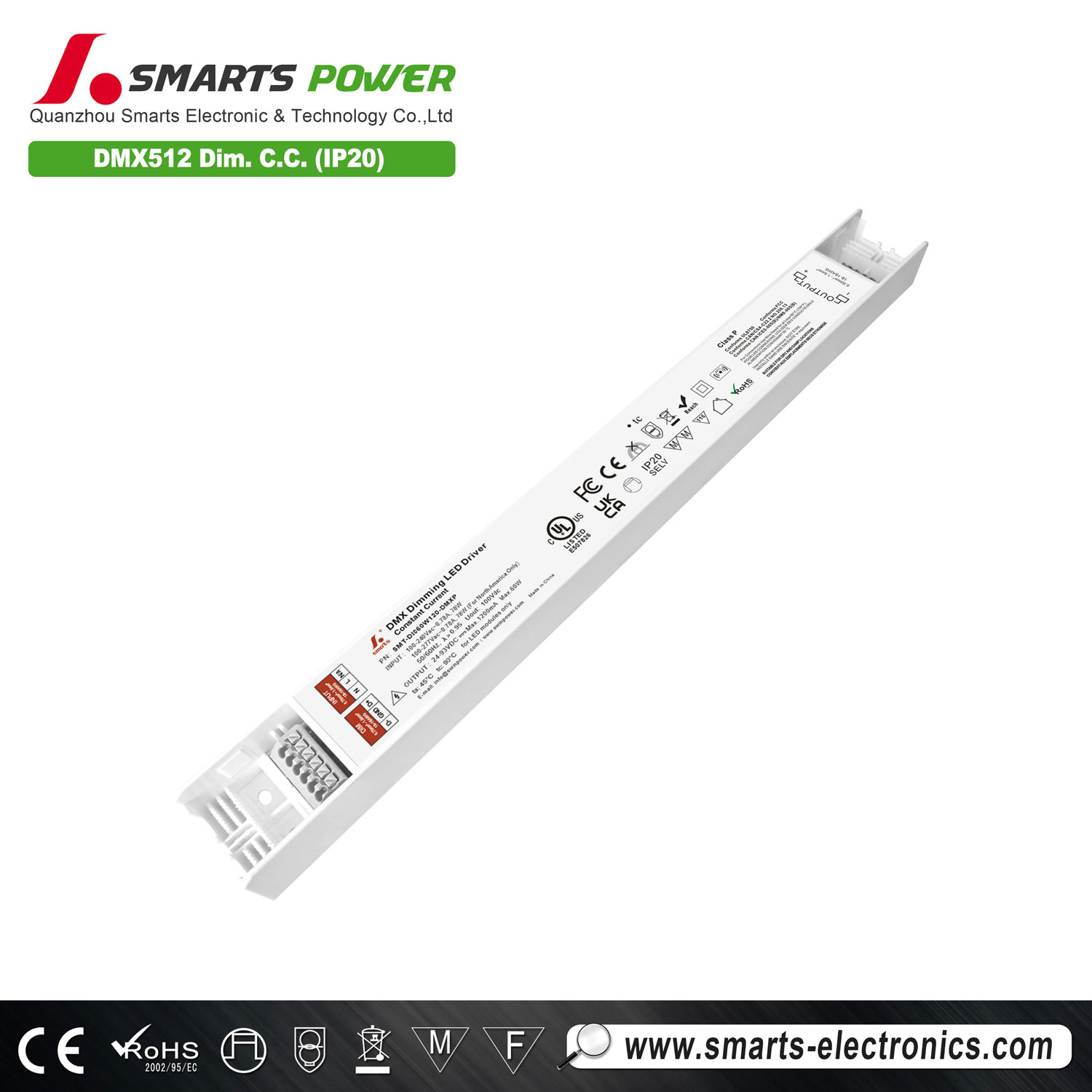

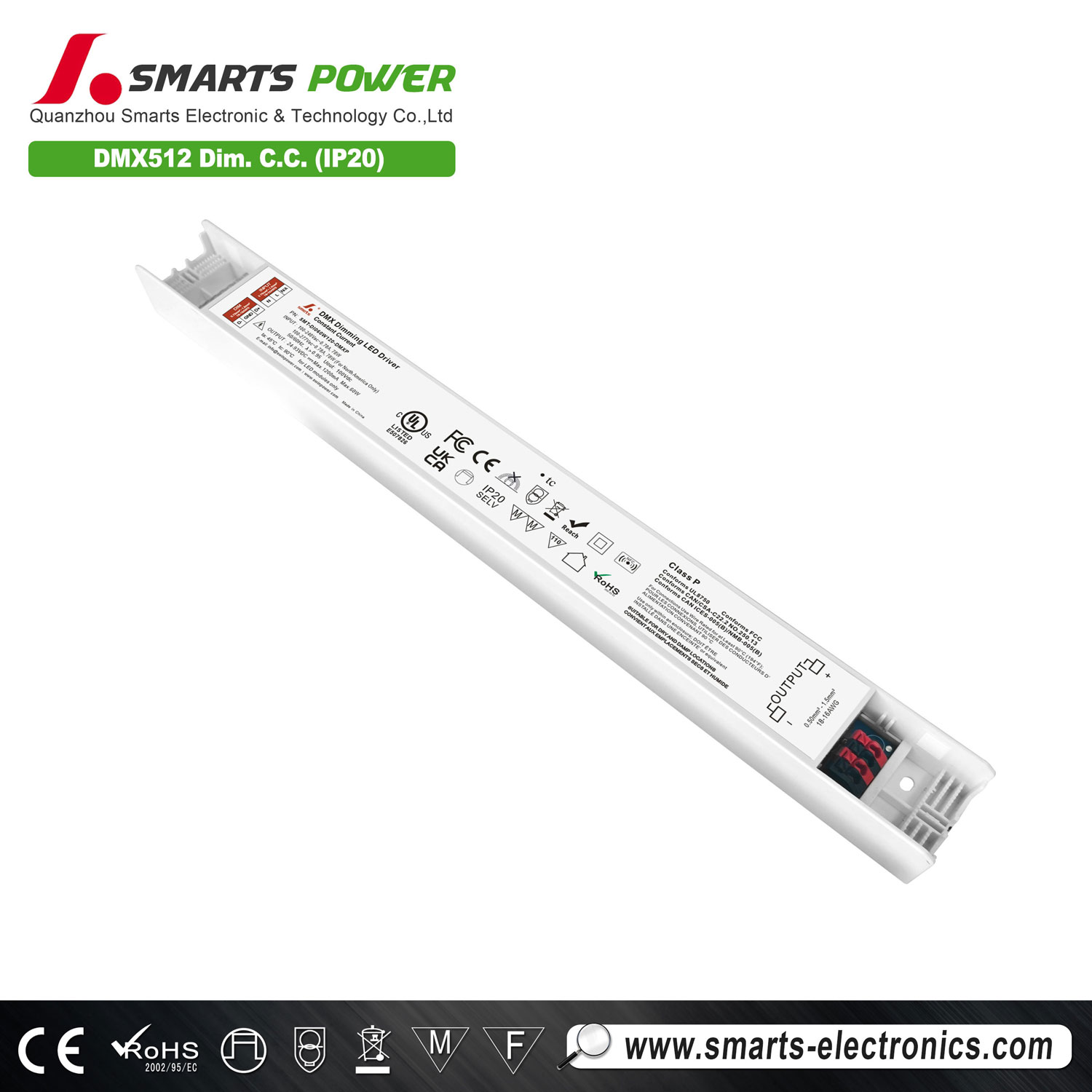

Plastic case Constant Current Led Transformer 60w 1200mA DMX Dimming Led Driver for Light

Output:

Constant Current

PFC design:

Built-in active PFC function

Efficiency:

Up to 86.5%

Protections:

Open circuit/short circuit/over temperature/over load

Heat dissipation:

Cooling by free air convection

Waterproof performance:

IP20(EU); for dry and damp locations(US)

Design features:

DMX signal-end isolation,Driver parameters can be adjusted by NFC APP.

Dimming function:

DMX dimming, RDM dimming, flicker free

Application:

Suitable for the application of LED lighting

Others:

High efficiency, small size, high power factor, low THD

Description

Contact Supplier

Model		SMT-DI060W120-DMXP-T
Certificate		UL/FCC/CE /ClassP/Class2/TYPE HL/SELV/ RoHS / Reach/ENEC/ICES/UKCA
Output	Rated current	120mA-1200mA
	DC Voltage	24V-93V
	No-load voltage	98Vmax
	Voltage Tolerance	Output current ± 10mA for ≤ 300mA, ± 20mA for ≥ 300mA, and ± 30mA for ≥ 1000mA
	Rated power	60Wmax
	Line Regulation	<0.5%
	Load Regulation	<0.5%
Input	Voltage Range	100-277VAC
	Frequency Range	50/60Hz
	Power Factor (Typ.)	PF≥0.94
	No load power (Max)	<1.5W
	Standby power (Max)	<0.5W
	THD(Typ.) @ full load	≤15%
	Efficiency @ full load	≥88%@120VAC 60Hz ≥89%@230VAC 50HZ ≥89%@277VAC 60HZ
	AC Current (Max.)	0.75A
	Inrush Current (Typ.)	28.7A, 204us@50%Ipeak@120V 55.2A, 98us@50%Ipeak@230V
	Inrush Current (Typ.)	66.0A, 220us@50%Ipeak@2770V
	Leakage current	<0.5mA
Protection	Short Circuit	Hiccup mode, recovers automatically after fault condition is removed
	Over voltage	Hiccup or constant power mode, reboots automatically after fault condition is removed
	Over temperature	Ambient temp. over 55 ± 5℃, output current will be reduced to 50%;
		Ambient temp.Over 45 ± 5℃,recovers automatically.
		Ambient temp.over 75 ± 5℃, output current will be reduced to 0%;
		Ambient temp.Over 45 ± 5℃,recovers automatically.
Environment	Working TEMP	-40~+60℃ (see below derating curve)
	Working Humidity	20 -90%RH non-condensing
	Storage TEM.,Humidity	-40 - +80℃,10 - 95% RH
	TEMP.coefficient	±0.03%/℃(0 - 50℃)
	Vibration	10~500Hz, 2G 12min./1 cycle, period for 72min. each along X,Y,Z axes
Safety & EMC	Safety standards	EN61347-1 EN61347-2-13(EU) & UL8750 (US)
	Withstand voltage	I/P-O/P:3.75KVAC (EU) & I/P-O/P:1.8KVAC (US)
	Strobe test standard	IEEE 1789 Flicker free
	lightning surge	DM:2KV
	Isolation resistance	I/P-O/P:100MΩ / 500VDC / 25℃ / 70%RH
	EMC Emission	EN55015 EN61000-3-2,3(EU) & FCC Part15 Subpart B; ANSI C63.4:2014(US)
Others	Net Weight	0.38KG
	Net Weight	0.38KG
	Dimension	3143021.7mm (LWH)
	Packing	355270195mm 20pcs /CTN
Notes	1. All parameters NOT specially mentioned are measured at rated load and 25℃of ambient temperature.
	2. To extend the driver's using life, please reduce the loading at lower input voltage .
	3. LED driver Meets the harmonic emissions requirements of ANSI C82.77-10.

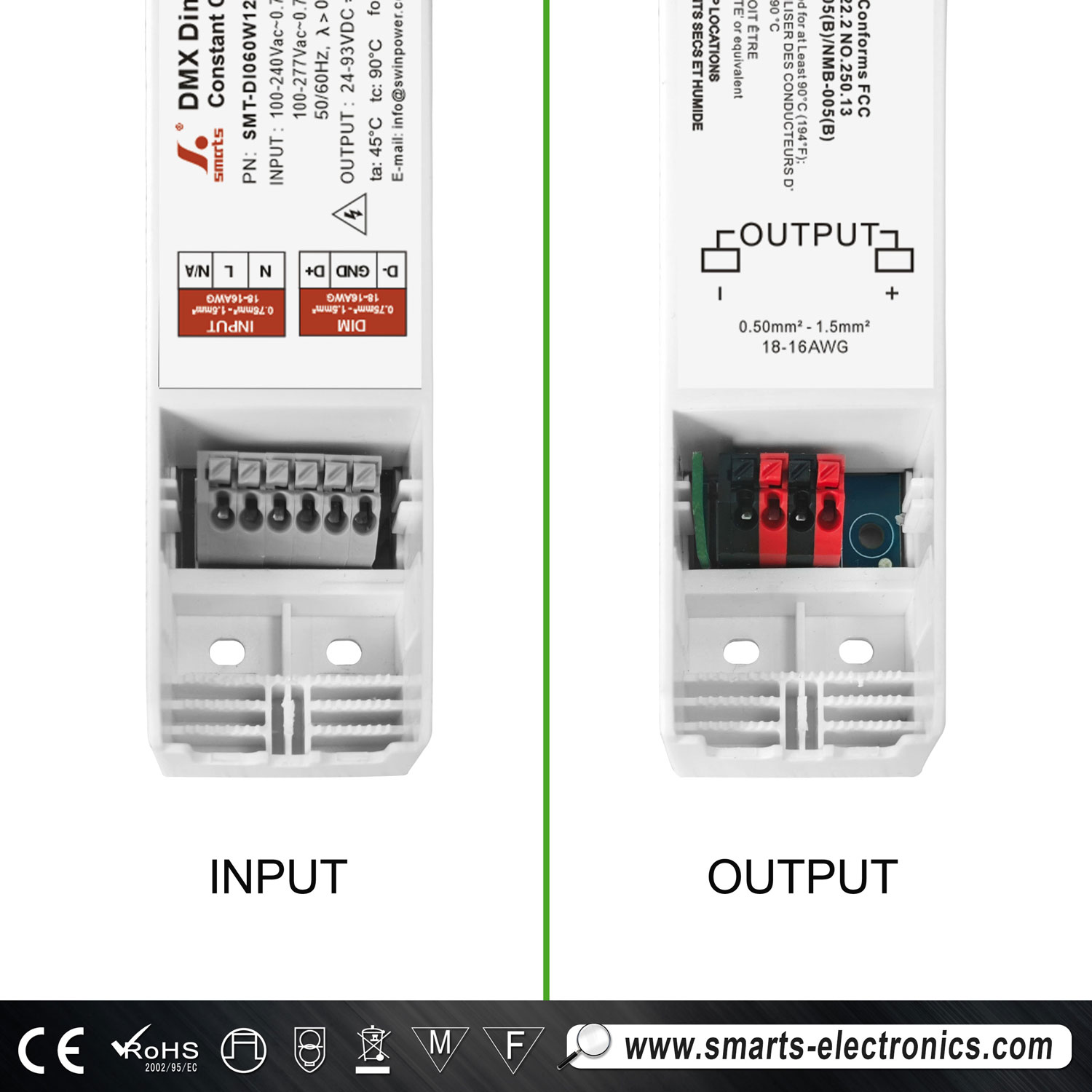

	4. Dimming electrical circuit:
	Notice: This control circuit is isolated,but didn't evaluate Class 2.
	Please refer to the installation manual to connect the dimmer.
	CAUTlON: More than one power supply present.
	ATTENTION: presence de plusieurs alimentations électriques.
