Pogo Pin Connector
Production Lead Time:
7 day(s)
Brand:
Top-Link
Colour:
Golden
Minimum Order Quantity:
1,000 piece(s)
Description
Contact Supplier
Description

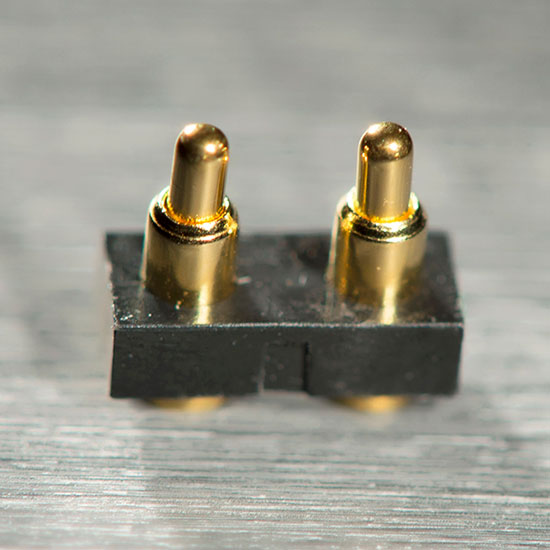

This is a pogo pin connector coming with a golden finish. It is designed for testing electrical requirements in a variety of applications. They provide a reliable means to test in bare or loaded printed circuit boards.
- Spring loaded connector.
- Material: (body) brass, (plunger) brass, (spring) stainless steel wire.
- Plating: (body) min. 0.1um gold plating over min. 1.4um nickel plating, (plunger) min. 0.4um gold plating over min. 1.4um nickel plating.
- Durability: 10,000 cycle min.
- Contact resistance: 30mOhm max.
- Voltage rating: 36V DC max.
- RoHS compliant.
- Packaging: (bulk) aluminum foil bag, (reel) diameter 330mm.
- Carrier tape: 12, 16, 24, 32, 44mm.
- Various dimensions available.
- Customized pogo pin available.
- Send us your specific requirements or drawing for our evaluation.
- Highlights: low profile, fine pitch, heavy-loaded current, high durability.
