• Output Power:1W/5W
• Frequency Range: 136-174MHz/400-480MHz
• 16 Memory Channels
• Scan
• PC Software Programmable and Wire Copy
• VOX Function
• CTCSS/DCS
• Monitor, Reverse Frequency
• Power Saving Function, Low Power Warning
• High/Low Power Selective
• Alarm Alert
• FM Radio (87.5-108MHz)
• Chinese and English Voice Prompt
• Whispering Function
• Busy Channel Lock
• Transmitter Time-out Timer(TOT)
• Side Key Assignment
• 0-9 Grades Squelch Level Setting
• Calling Remind
• 1500mAH Li-ion Battery

Technical parameters:

• Frequency range: 136-174MHz/400-480MHz
• Channel no.: 16.
• Operating temperature: -20-60°C.
• Frequency stability: ±2.5ppm.
• Antenna: high gain antenna.
• Antenna impedance: 50Ω.
• Operating voltage: DC 7.4V.
• Battery: 1500mAh (Li-ion).
• Mode of operation: simple or semi-duplex.
• Weight: 210g (with antenna & battery).
• Dimensions: 105 x 56 x 31mm (L x W x H, without antenna).

Transmitter:

• Output power: 1W/5W
• Modulation mode: F3E.
• Maximum deviation: ≤5kHz.
• Remain wave radiation: <-60dB.
• Transmitting current: ≤1000mA.

Receiver:

• RF sensitivity: <0.25μV (12dB).
• Squelch sensitivity: <0.20μV.
• Inter-modulation anti jamming: 50dB.
• Rated audio power output: 500mW.
• Receiving current: ≤100mA.
• Squelch standby current: 20mA.

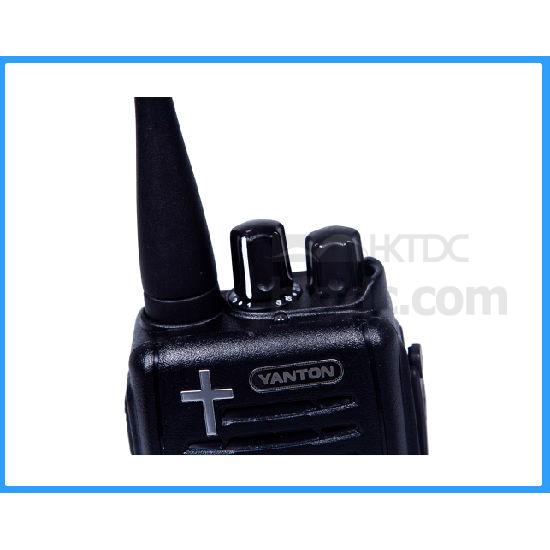

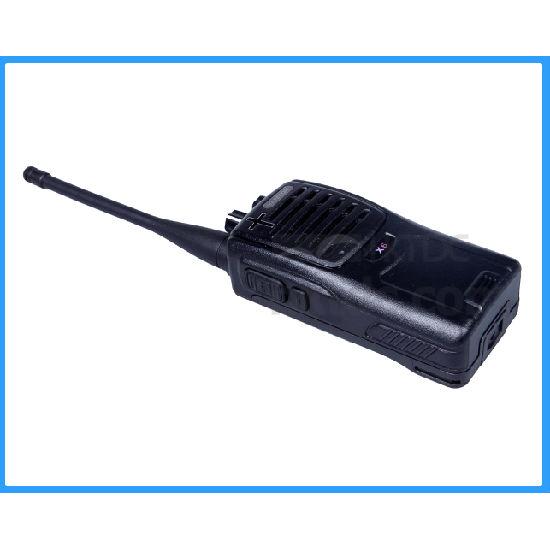

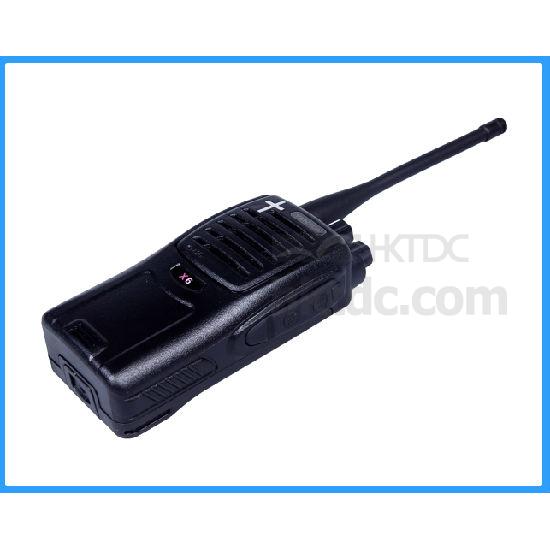

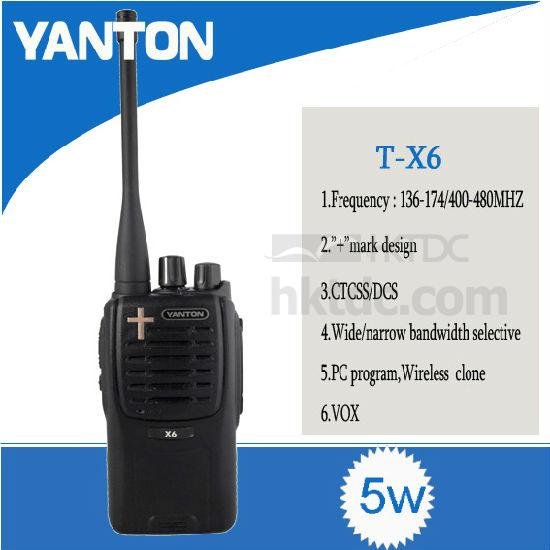

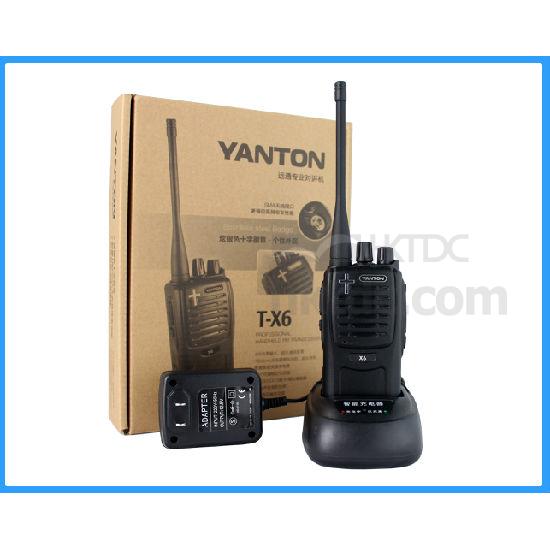

If you are interested in our Yanton T-X6 police communication equipment, please contact us as soon as possible. We will reply to your inquiry within 24 hours.
