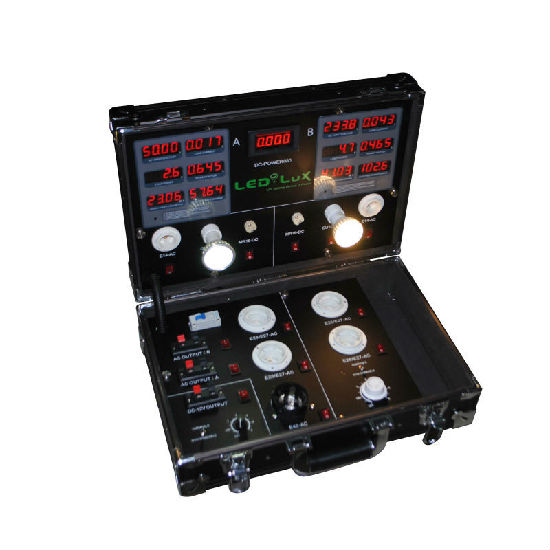

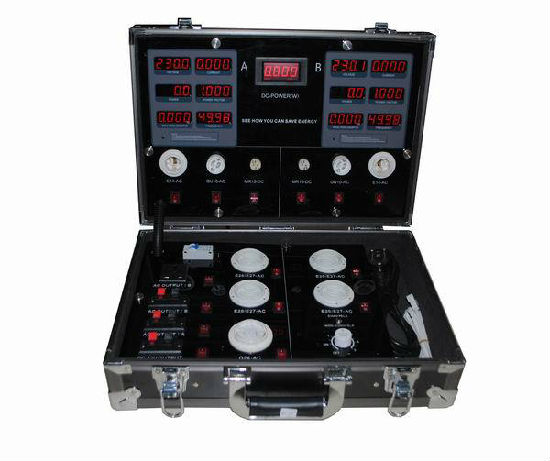

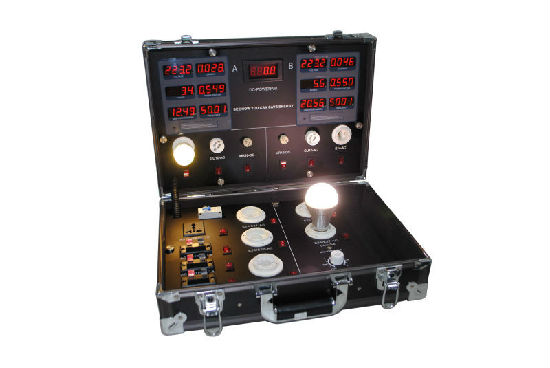

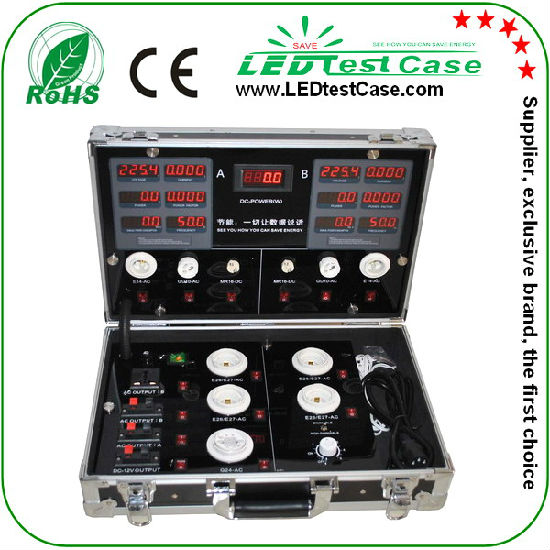

Popular LED Test Case With Digital Meter To Show The Parameters
Production Lead Time:
10 day(s)
Model No.:
LTC-4228-13P
Brand:
Led test case
Colour:
black
Size:
42*28*13
Port:
Shenzhen
Type of Payment:
T/T
Minimum Order Quantity:
1
Description
Contact Supplier
Description

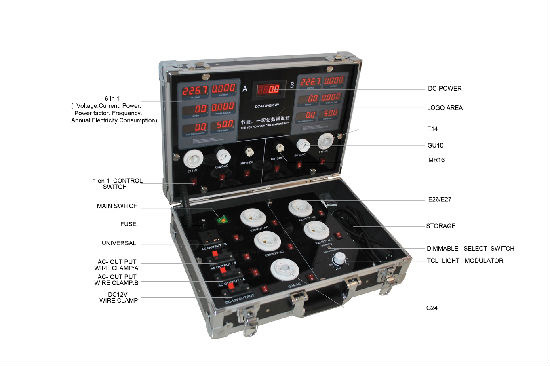

Function and feature
Test and demo led products,Available for AC and DC
1. with good aluminum plates to protect the cabinet frame, the corner of the carton using stainless steel edge to anti-hit and to be firm extremely.
2. Each loads were controlled by one switch.
Specification
1. The case internal circuit: strictly distinguish for AC and DC; AC socket (- AC) interface, can test the electric parameters as follows: voltage, current, power, power factor, annual power consumption (10 hours /per day ) and frequency
2. DC part of the parameter display: DC lamp holder (- DC) interface, data display on the DC POWER , such as MR16. Dc voltage in the box internal is transformed into 12 v output to light sit interface.
3. Parameters for voltage, current, power, power factor, annual current consumption
4. Dimmable,
5. three wire clamps (2 PCS AC output and DC 12 output) and one AC output universal socket.
It’s convenient for external power source. Every lamp socket has a unique switch and mark,
which is convenient for identification and control.
6.One storehouse is for small things; 3 foundation plates are to protect the case; a pull rode is
convenient for moving.
Meter( function part)
AC and DC multi-function meter instruction
Index parameters AC Alternating current DC Direct current Precision Resolution
Voltage measuring range 0.2~300VAC 0.2~400VDC ±(0.2%reading+0.1V) 0.01V
Current measuring range 1mA~5000mA 1mA~5000mA ±(0.2%reading+0.1mA) 1mA
Power measuring range 0.1~1500W 0.1~2000W ±(0.2%reading+0.1w) 0.01w
Power factor measuring range 0~1.000 No power factor ±0.005 0.001
Frequency test range ±0.01Hz No frequence ±0.01Hz 0.01Hz
Power supply 86~265VAC 50/60H 110~370VDC -- ---
The ambient temperature： -20~+55℃ Isolation voltage： 1500VAC，1 Minute Anti surge 2kV
Static interference 8kV Flow capacity： Continuous current 10A，Short-current 50A，1 second Anti burst interference 2kV
Packaging and shipping
Packing: Paper Cartons，with EPE foam holders inside，suitable for international transportation.
Product size: 42*28*13 (Unit: cm)
CTN size: 46*38*15
Net weight: 3.5KG
Gross Weight: 5KG
Volume weight: 46*38*15/5000
Servise and Certificate
Our products guarantee 3 years
Passed CE and ROSH
Test and demo led products,Available for AC and DC
1. with good aluminum plates to protect the cabinet frame, the corner of the carton using stainless steel edge to anti-hit and to be firm extremely.
2. Each loads were controlled by one switch.
Specification
1. The case internal circuit: strictly distinguish for AC and DC; AC socket (- AC) interface, can test the electric parameters as follows: voltage, current, power, power factor, annual power consumption (10 hours /per day ) and frequency
2. DC part of the parameter display: DC lamp holder (- DC) interface, data display on the DC POWER , such as MR16. Dc voltage in the box internal is transformed into 12 v output to light sit interface.
3. Parameters for voltage, current, power, power factor, annual current consumption
4. Dimmable,
5. three wire clamps (2 PCS AC output and DC 12 output) and one AC output universal socket.
It’s convenient for external power source. Every lamp socket has a unique switch and mark,
which is convenient for identification and control.
6.One storehouse is for small things; 3 foundation plates are to protect the case; a pull rode is
convenient for moving.
Meter( function part)
AC and DC multi-function meter instruction
Index parameters AC Alternating current DC Direct current Precision Resolution
Voltage measuring range 0.2~300VAC 0.2~400VDC ±(0.2%reading+0.1V) 0.01V
Current measuring range 1mA~5000mA 1mA~5000mA ±(0.2%reading+0.1mA) 1mA
Power measuring range 0.1~1500W 0.1~2000W ±(0.2%reading+0.1w) 0.01w
Power factor measuring range 0~1.000 No power factor ±0.005 0.001
Frequency test range ±0.01Hz No frequence ±0.01Hz 0.01Hz
Power supply 86~265VAC 50/60H 110~370VDC -- ---
The ambient temperature： -20~+55℃ Isolation voltage： 1500VAC，1 Minute Anti surge 2kV
Static interference 8kV Flow capacity： Continuous current 10A，Short-current 50A，1 second Anti burst interference 2kV
Packaging and shipping
Packing: Paper Cartons，with EPE foam holders inside，suitable for international transportation.
Product size: 42*28*13 (Unit: cm)
CTN size: 46*38*15
Net weight: 3.5KG
Gross Weight: 5KG
Volume weight: 46*38*15/5000
Servise and Certificate
Our products guarantee 3 years
Passed CE and ROSH
