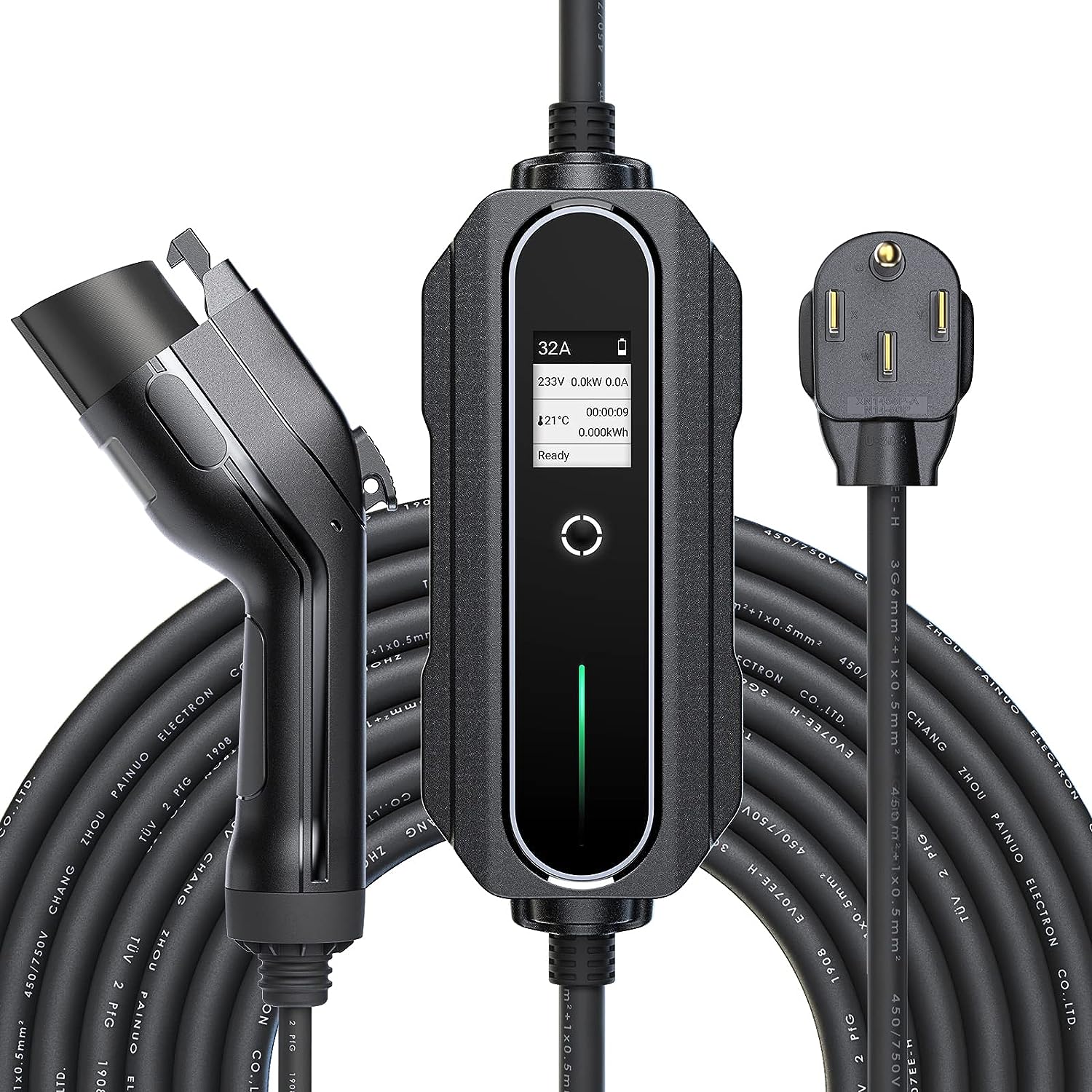

Portable EV Charging Cable
US $89.00 - US $141.00
Production Lead Time:
25 day(s)
Shipping Method:
By sea
Mode:
KD-SP2-AC2.0-16A/32A KD-IP2-AC2.0-16A/32A
Plug Type:

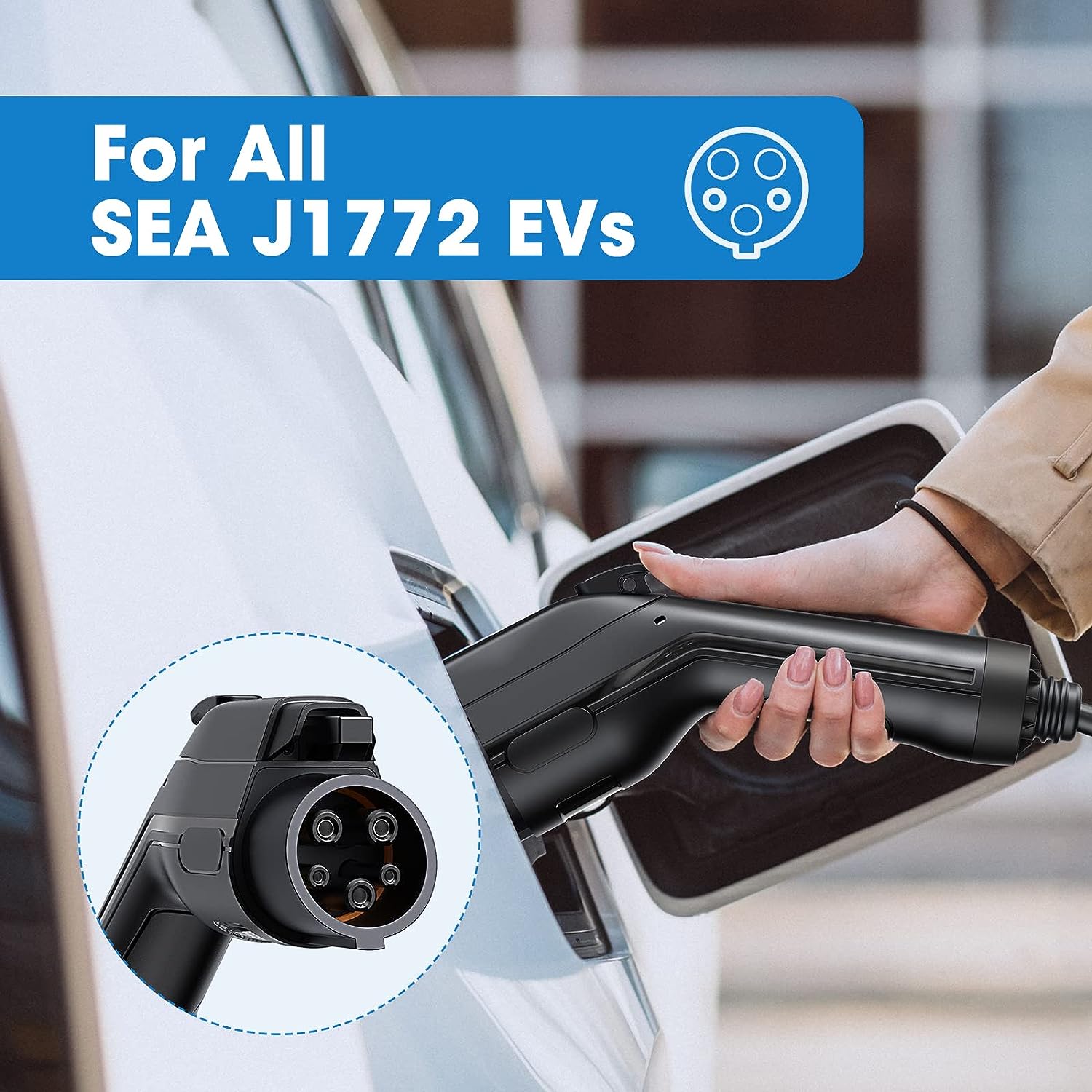

Type 1, Type 2
Max Current:
16A, 32A
Adjustable Currents:
8A, 10A, 13A, 16A, 20A, 24A, 32A
Optional Fixed Currents:
8A, 10A, 13A, 16A, 20A, 24A, 32A
Power:
3.5-7kW
Cable Length:
Customized
Working Voltage:
220V/240V
Anti-UV:
Yes
Working Temperature :
-30℃~+50℃
Protection Level:
IP65
Shell Material:
Thermoplastics
Cable Jacket:
TPE/TPU
Certification:
TUV, CE, CB, UKCA, UL
Portection:

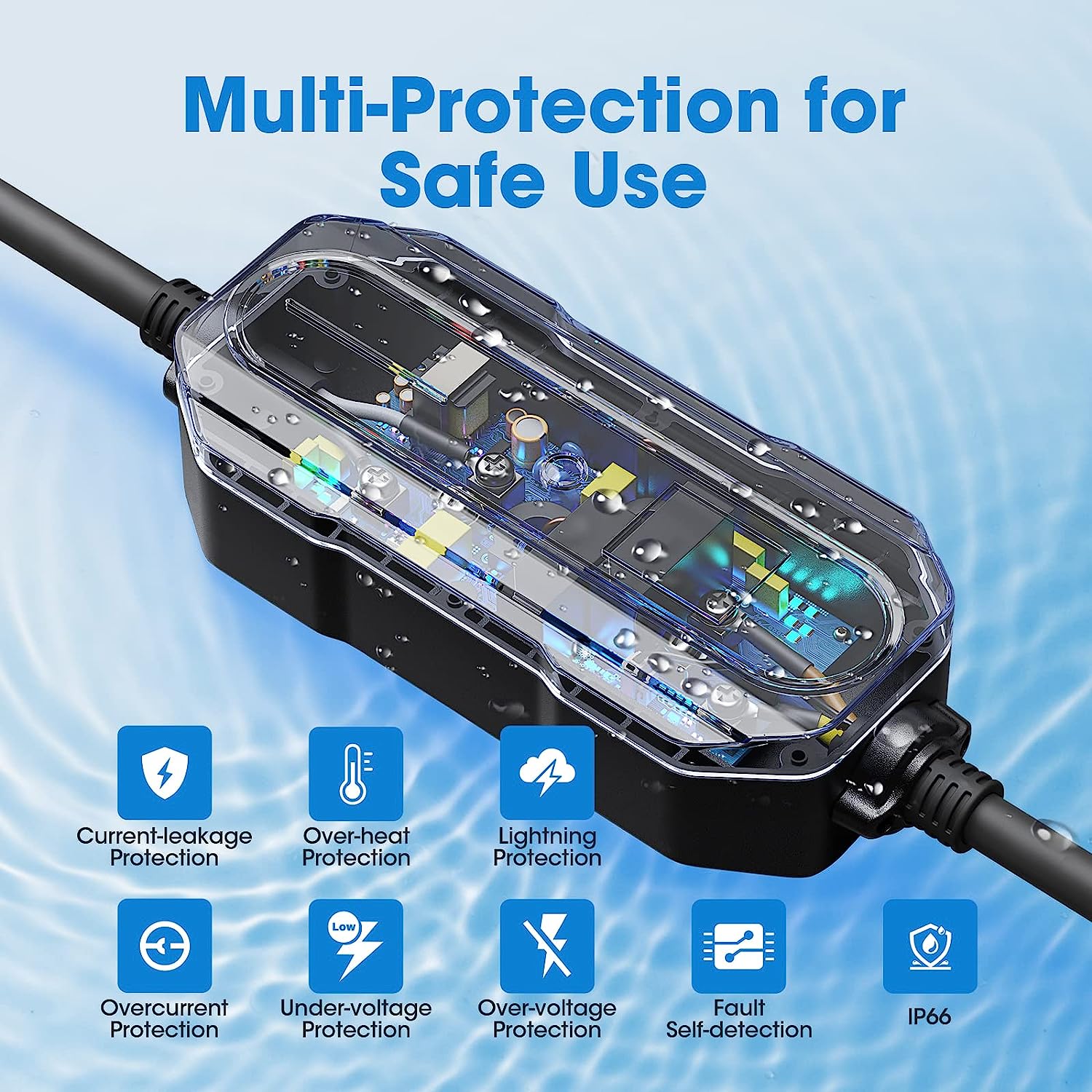

Protection against leakage, overheating, lightning, overcurrent, undervoltage and overvoltage, automatic power off in an emergency, and CP fault detection
Standards:
IEC61851.1-2017, IEC62196.2-2016, EN61851.1-2001, EN6185121-2001, EN6185122-2001, IEC61851.1-2017, IEC62196.2-2016, IEC62752-2018, SAEJ1772-2017, UL2231-2
Description
Contact Supplier
Description
Application
Villas, Underground garage, Ground parking spaces and any other places where there is a home socket inlet.
Temperature Monitoring
The working temperature of the charger is monitored all the time. Once the temperature exceeds the max allowed value, the charger will stop working immediately. When the temperature returns to normal, the charging system will automatically re-work.
Automatic Fault Repair
The smart chip can automatically repair charging faults to ensure the stable operation of the product.
Product Certification
TUV, CE, CB, UKCA, UL
Robust Housing
The shell is made of PC which is sturdy and reliable and can bear the impact of a 1.5T auto without any damage.
Smart Charging
It can set the charging time when you start to charge.
OTA (optional)
OTA remote software upgrade is optional.
