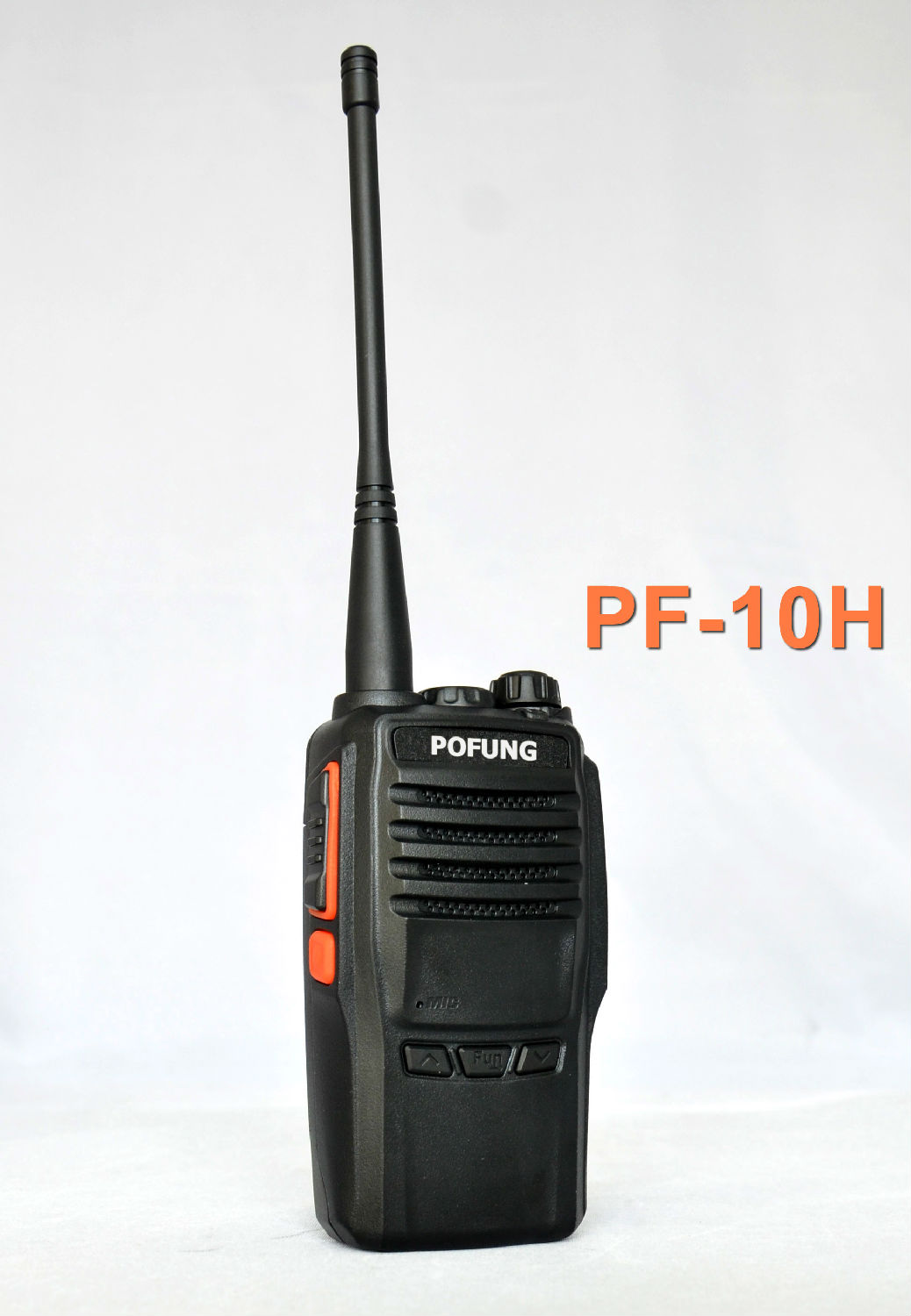

Portable Transceiver
Production Lead Time:
30 day(s)
Model No.:
PF-10H
Colour:
Black
Type of Payment:
TT
Storage Channel:
16
Frequency Range:
VHF / UHF
Talk Range:
2~15km
Description
Contact Supplier
Description
- Anti-wrestling, Great structure design
- 10Watts power output
- Flash Torch
- 12.5KHz/25KHz channel spacing selectable
- High/Low Power Switchable
- Monitor
- Auto Battery Save
- Low Battery Alert
- Busy Channel Lockout
- VOX
- CTCSS-50/CDCSS-105, standard & nonstandard CTCSS codes available
- TOT (Time-out timer)
- Ending Sound Silence
- Squelch Level 0-9 Adjustable
- Priority Channel Scan
- Different Frequency Function
- PC Programmable
General
- Frequency Range : 136-174MHz / 400-470MHz / 450-520MHz
- Channel No. : 16
- Channel Spacing : 12.5/25KHz
- Voltage : 7.5V
- Battery : 1800mAh(Li-Ion)
- Frequency Stabilization : ±2.5ppm
- Operating Temperature Range : -20°C~+55°C
- Antenna Impedance : 50Ω
- Gross Weight (including antenna, battery) : 280g
- Distances : 2～15km
- RF Power Output : 10W
- Modulation Type : F3E
- Spurious and Harmonic : ≤ -60dB
- Residual Radiation : ≤ -40dB
- Modulation Distortion : ≤5%
- Maximum Frequency Deviation : ±5KHz
- Sensitivity : ≤0.2µV
- Modulation Band : ±5KHz
- Adjacent Channel Selectivity : ≥60dB
- Inter-modulation Anti-interference : ≥60dB
- Spurious Response Rejection : ≥60dB
- Rated Audio Output Power : ≥500mW
- Rated Audio Distortion : ≤5%
