Portable iBeacon
Share this page
Model No.:
iB001N
Colour:
White, Black, Blue, Yellow, Red, Green
Size:
27 x 7.6mm
Port:
Shenzhen
Description
Contact Supplier
Description

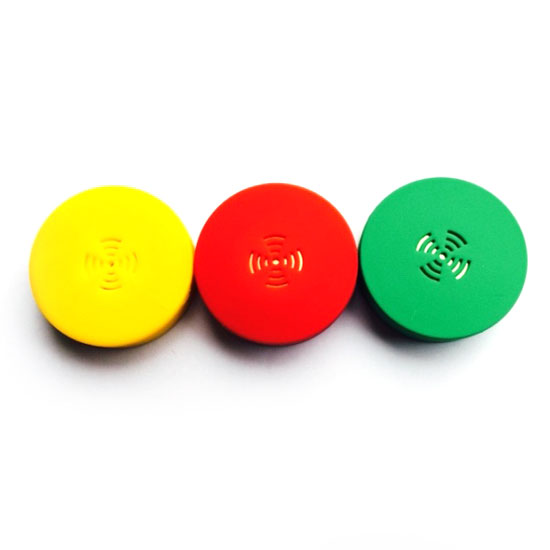

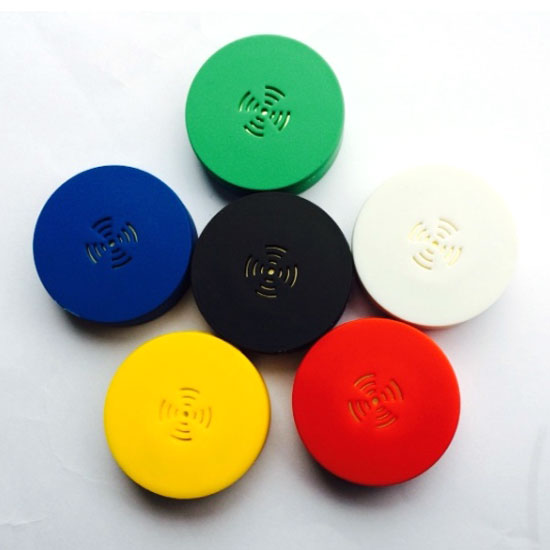

iBeacon is an indoor positioning system described by Apple Inc. as a low-powered and low-cost transmitter. Its transmitting distance is as far as 40m in open air. This item comes in 6 different colors for you to choose from.
  • Application: iOS7.0/8.0 with tool apps and Android OS with SDK.
  • Function: iBeacon to broadcast information and advertisement.
  • Bluetooth 4.0.
  • Chipset: N51822 256kB.
  • MCU: ARM.
  • Memory (RAM): 16kB.
  • Bluetooth range: 40m in open air.
  • Battery type: CR2032.
  • Operating voltage: 1.8-3.6V.
  • TX power: -20 to +4dBm in 4dB steps.
  • TX power: -30dBm Whisper mode.
  • Working current: 3.6μA standby average and 21μA normal average
  • Certifications: FCC/CE/MFI/RoHS.
  • Side pins for debugging: VCC, GND, SWDCLK, and SWDIO.
  • Working time: 12 months based on broadcasting rate of 1s.
  • Weight: 15g.
  • Supply ability: 10,000 pieces per week.
