• Adapter Shell Size: 78 x 45 x 30mm (3.07" x 1.77" x 1.18").
• Casing: GV18W (UL.CCC.VDE.KETI are available).
• Input voltage: AC100-240V
• Output voltage: DC 5V, 7.5V, 9V, 12V, 15V, 24V
• Compatible DC plug: 3.5 x 1.35, 4.0 x 1.7, 5.5 x 2.1, 5.5 x 2.5, 6.5 x 3.0, 3.5 stereo and some special plugs.

Technical Data:

• Features:
  • Super mini size and easy portable.
  • Light & convenient plug in.
  • LED indication, newest IC, non-load power consumption less than 0.3W, stable performance.
• Application:
  • Digital camera.
  • CD-ROM HUB ADSL AP.
  • Communication terminals.
  • Tester machine.
  • Any portable device or machine.

Input / Output Specifications:

• Input Voltage: AC 100 - 240V,50/60Hz.
• Range Voltage: AC 90 - 264V,47/63Hz.
• Output Power: 18W.
• Output Voltage: 5 V -24V.
• Over Voltage Protection: 120%min.
• Over Current Protection: 120%min.
• Short Protection: Auto recovery.
• Load Regulation: ± 5%.

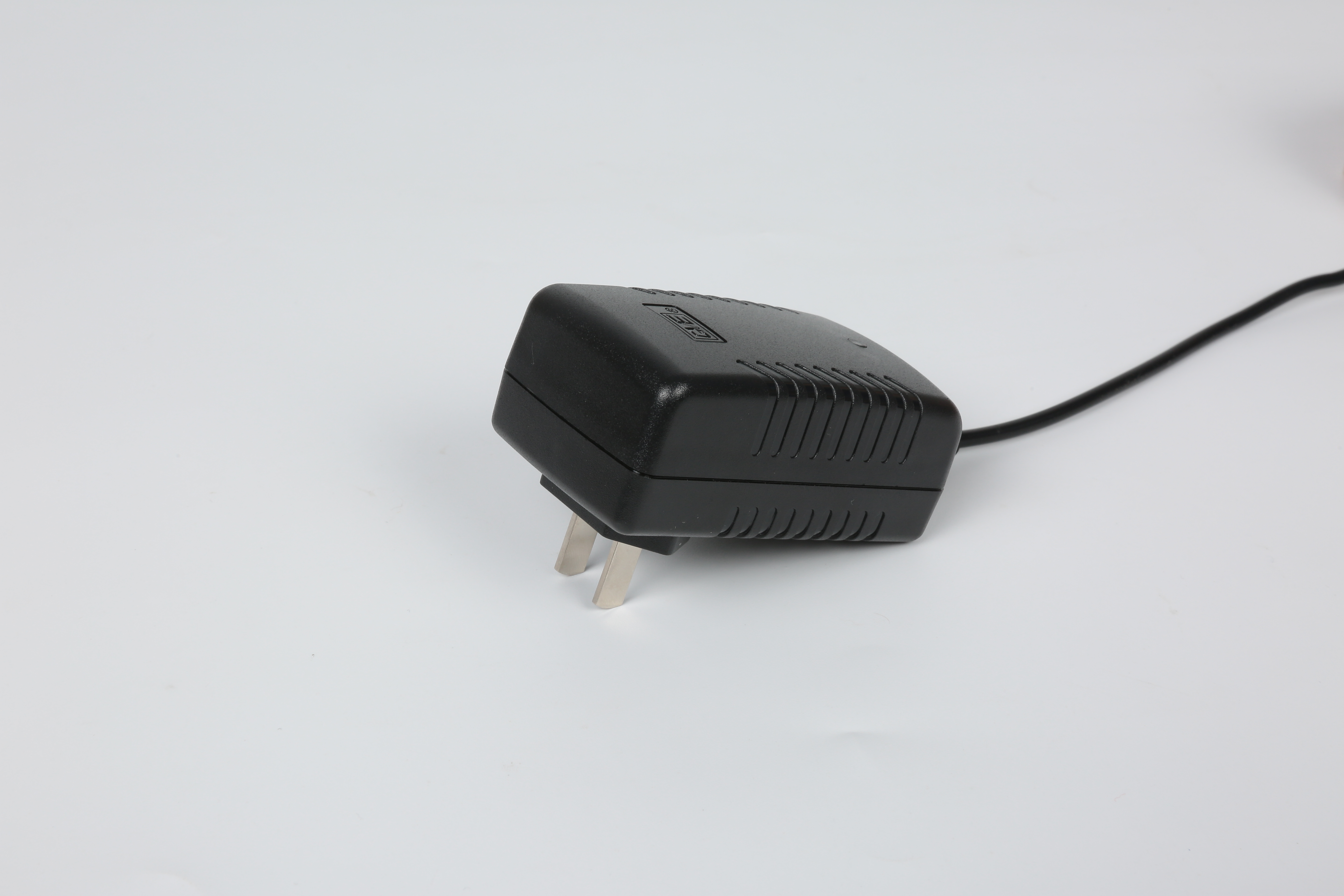

DC12V1.5A Power Adapter with Europe Standard
Environmental specification:

• Operating Temperature: 0 - 40℃.
• Storage Temperature: -20 - 85℃.
• Operating Relative Humidity: 5 - 95%RH.

Safety Specification:

• UL / CUL PSE GS BS CE CB FCC SAA CCC BSMI C-TICK.
