Power Entry Module Filters
Production Lead Time:
14 day(s)
Model No.:
PE8400-10-01
Brand:
EMCPIONEER
Package:
Yes
Customised:
Yes
Type:
EMC Filter - Electromagnetic Compatible Filter
Installation Type:
screw mounting
Transfer Function:
Low Pass
Description
Contact Supplier
Description

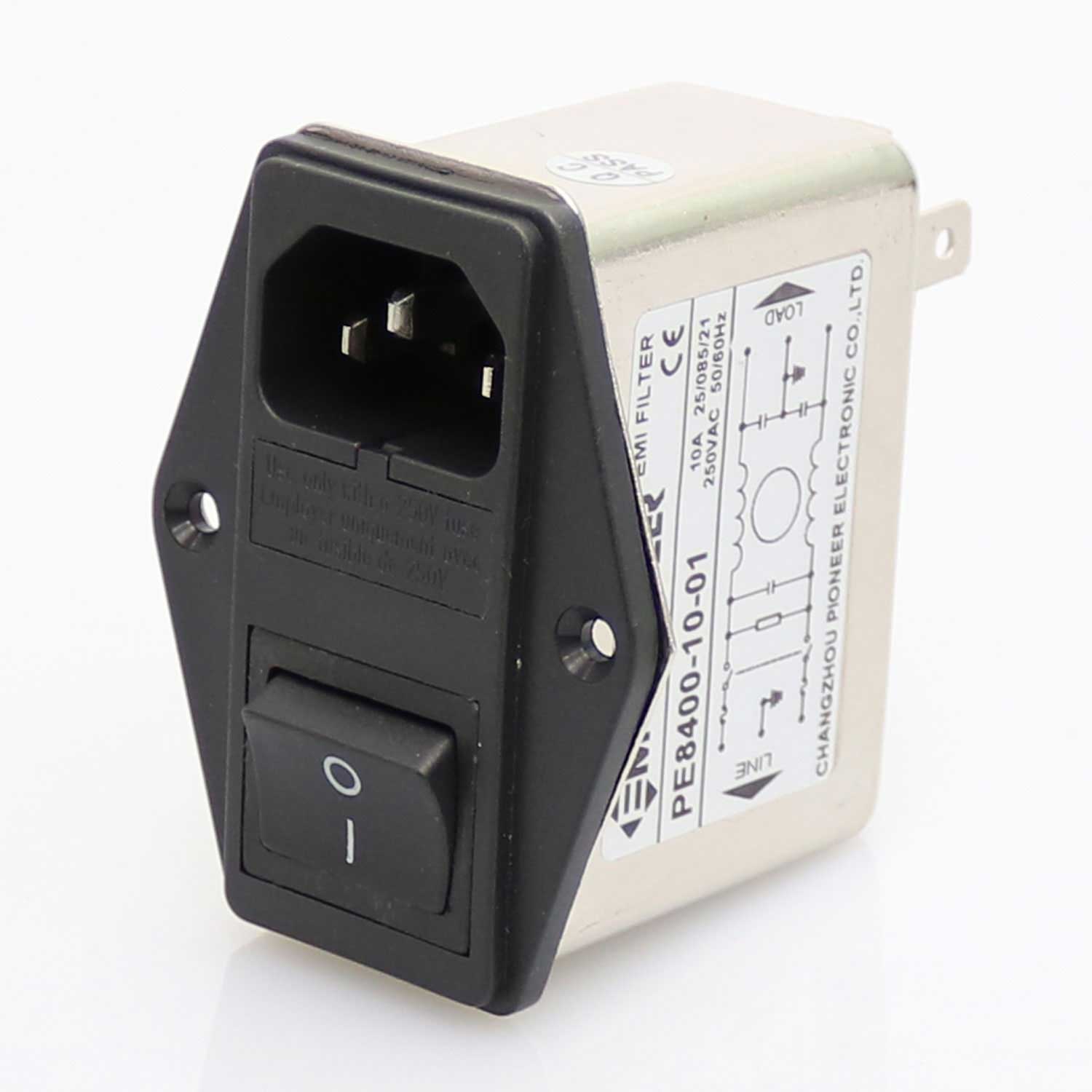

Power Entry Module Filters with Fuses Holder and on/off Switch
- The PE 8400 Series Power Entry Module Filters with Double Fuses Holder and on/off Switch
- Specification : Rated Voltage: 120/250 VAC Rated Current: 1A
- ~10A Operating Frequency: 50/60Hz Temperature Range: HPF 25/085/21 Test Voltage ( 1min ): Line to Ground: 2000 VAC Line to Line: 1450 VDC Description : The PE 8400 power entry module combines an IEC inlet, a mains filter with single or dualfuse holder and a 2-pole rocker switch in a small form factor. High conducted attenuation performance,based on chokes with high satur ation resistance and excellent thermal behavior. Rated currents up to 10A Rear/front or snap-in mounting.
- Single or dual-fuse holder,available for fuses Ø5 x 20mm 2-pole rocker switch. Optional medical version (B type) Snap-in versions (S type) Custom-specific versions are available on request. Typical Applications : Single-phase power supplies, switch-mode power supplies Test and measurement equipment Portable electrical and electronic equipment Consumer goods EDP and office equipment Medical equipment
