Power Entry Noise Low Pass Filter
Brand:
changzhou pioneer
Colour:
Silver, White
Package:
Yes
Customised:
Yes
Type:
EMI Filter - Electromagnetic Interference Filter
Nominal Center Frequency:
50/60Hz
Insertion Loss:
30-100dB
Installation Type:
Insert
Transfer Function:
Low Pass
Description
Contact Supplier
Description

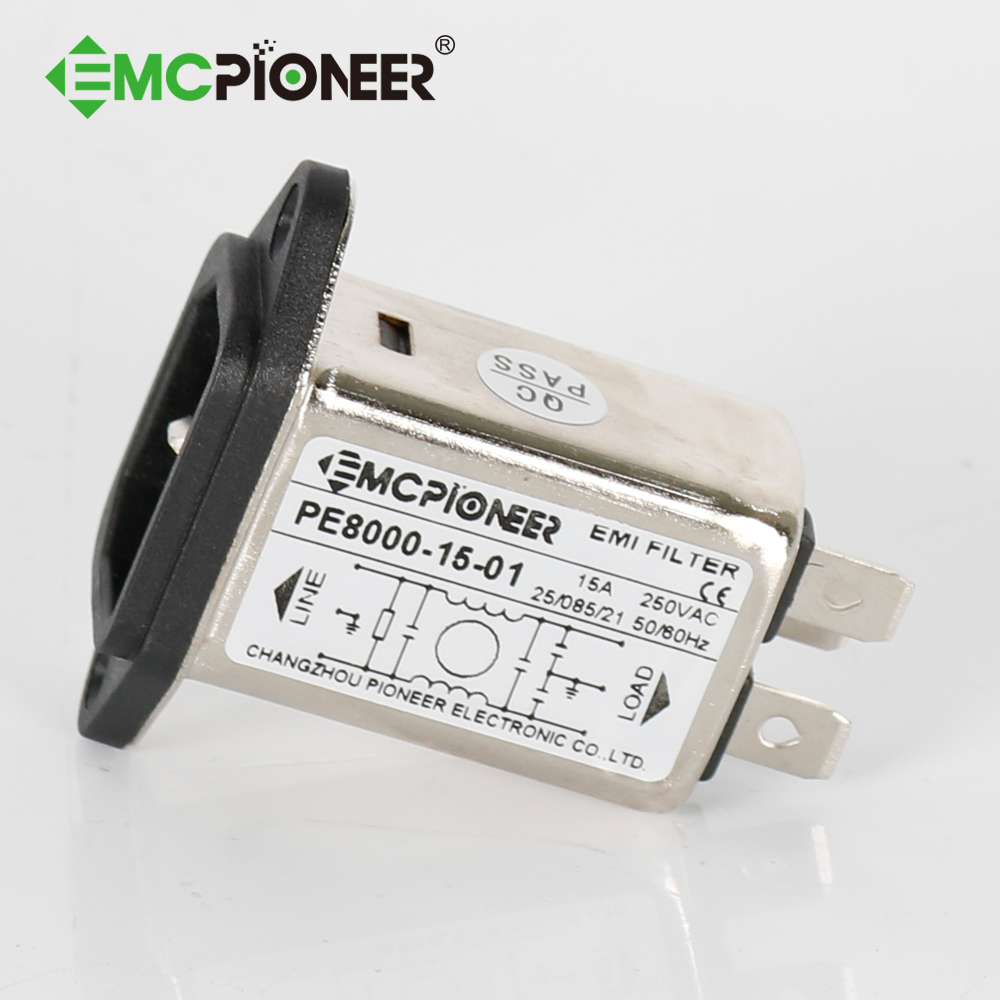

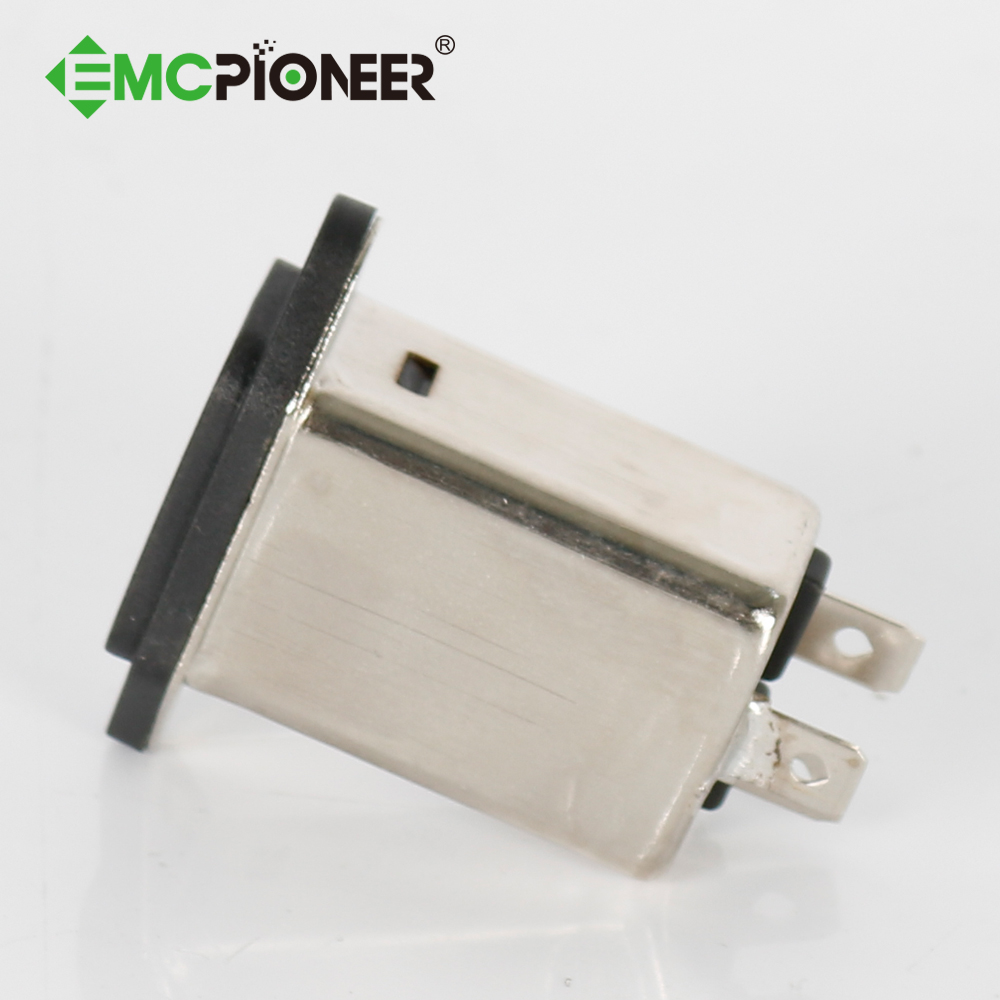

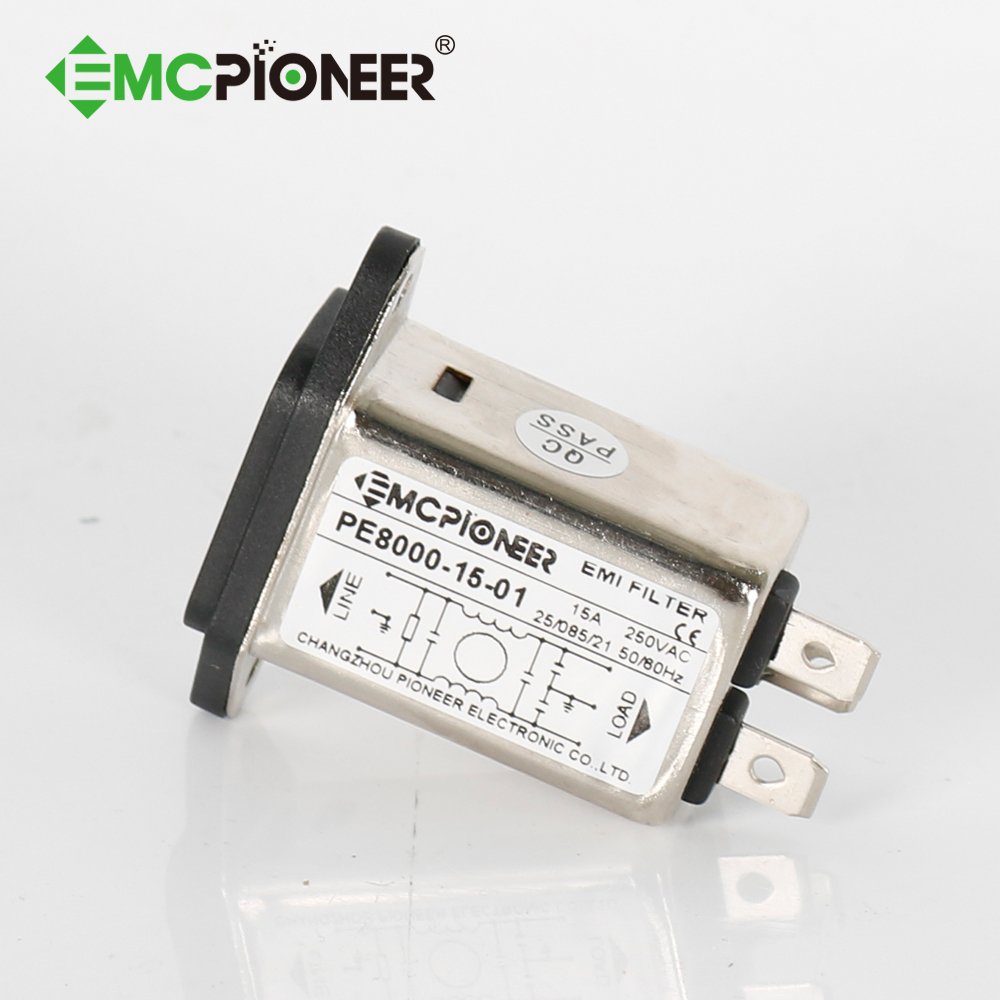

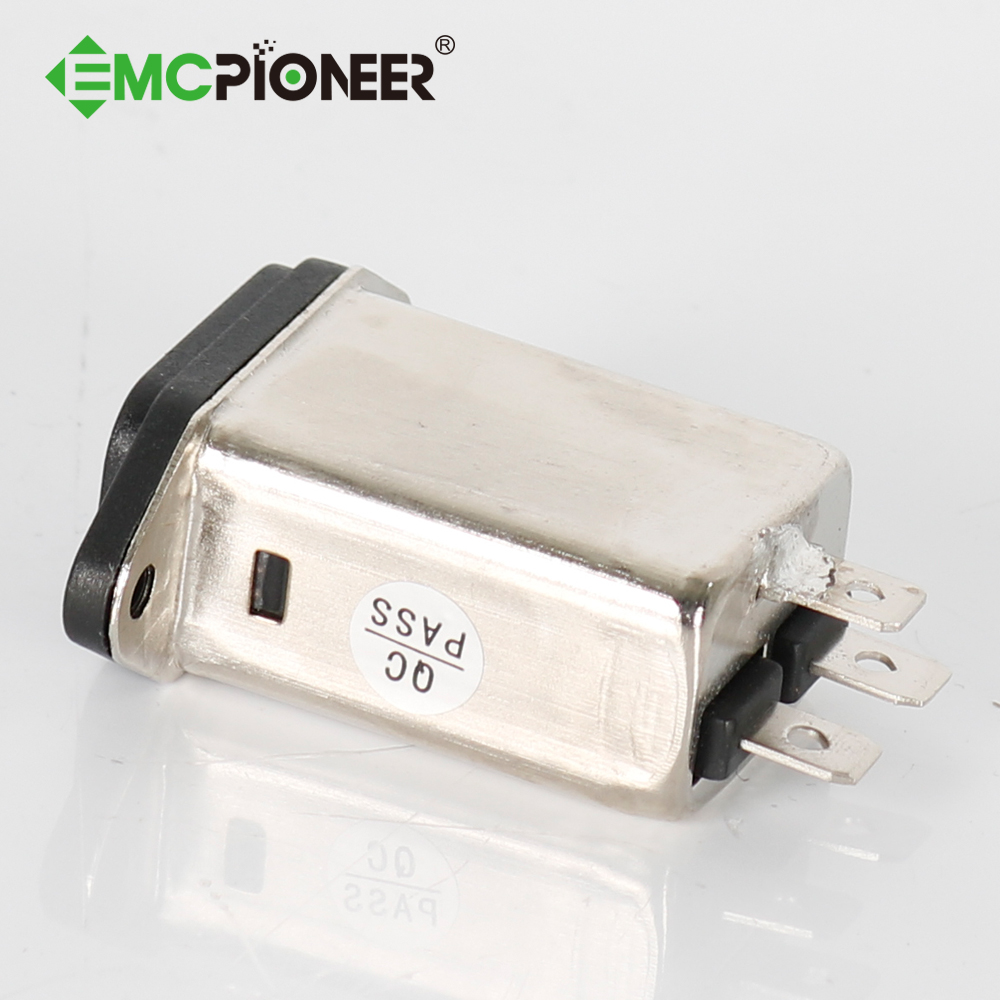

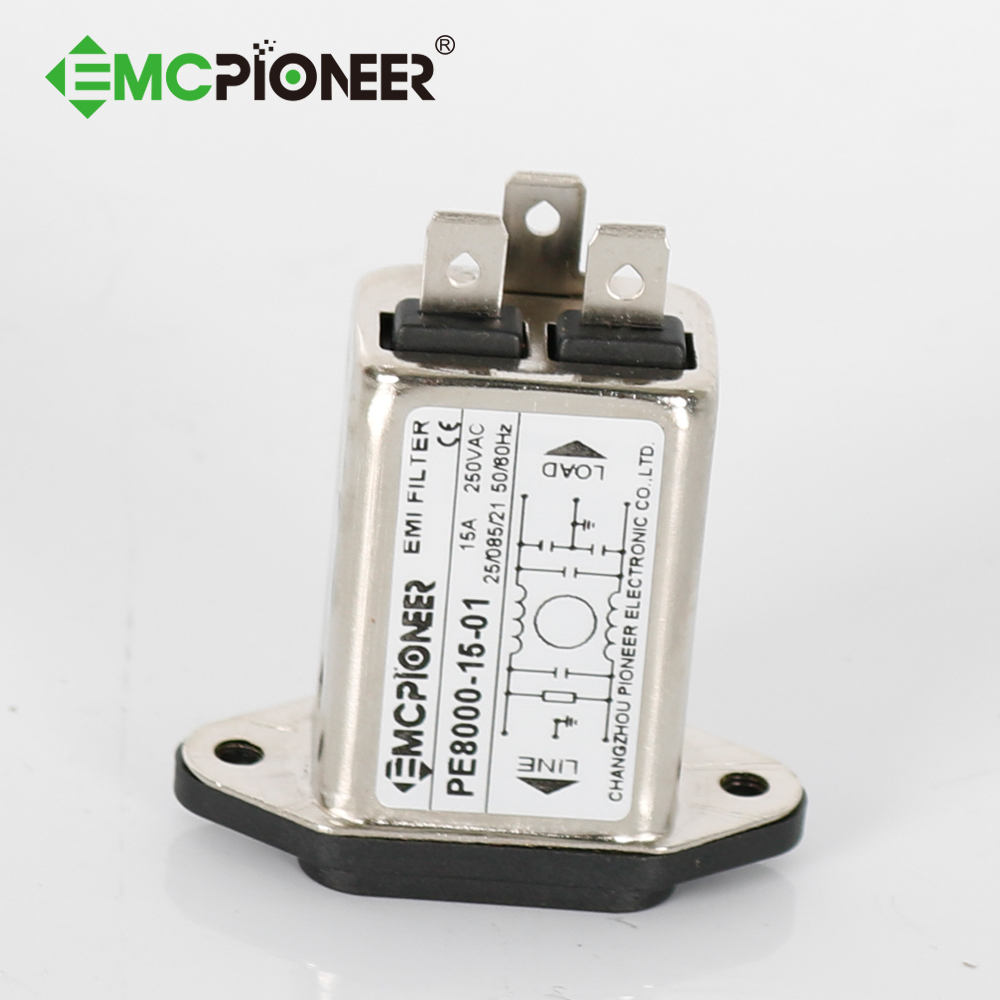

- EMI EMC power entry noise IEC Inlet low pass filter
- Description
- Compact unit, light weight, low price, easy to install
- Rear/front or snap-in mounting.(S and S1 type)
- High quality components ensure the safety and reliability of filters
- Optional medical versions(B type)comply with the requirements of IEC/EN60601-1 for creepage and clearance, leakage current and high potential testing
- Wide mounting flanges available
- Typical Application：
- Single-phase power supplies, switch-mode power supplies
- Small to medium-sized machines and household equipment
- Portable electrical and electronic equipment
- Test and measurement equipment
- Medical equipment
- Specification：
- Rated Voltage：120/250VAC
- Rated Current：1A~10A
- Operating Frequency：50/60Hz
- Temperature range：HPF 25/085/21
- Test Voltage(1 min)：
- Line to Ground :2000VAC
- Line to Line :1450VDC
