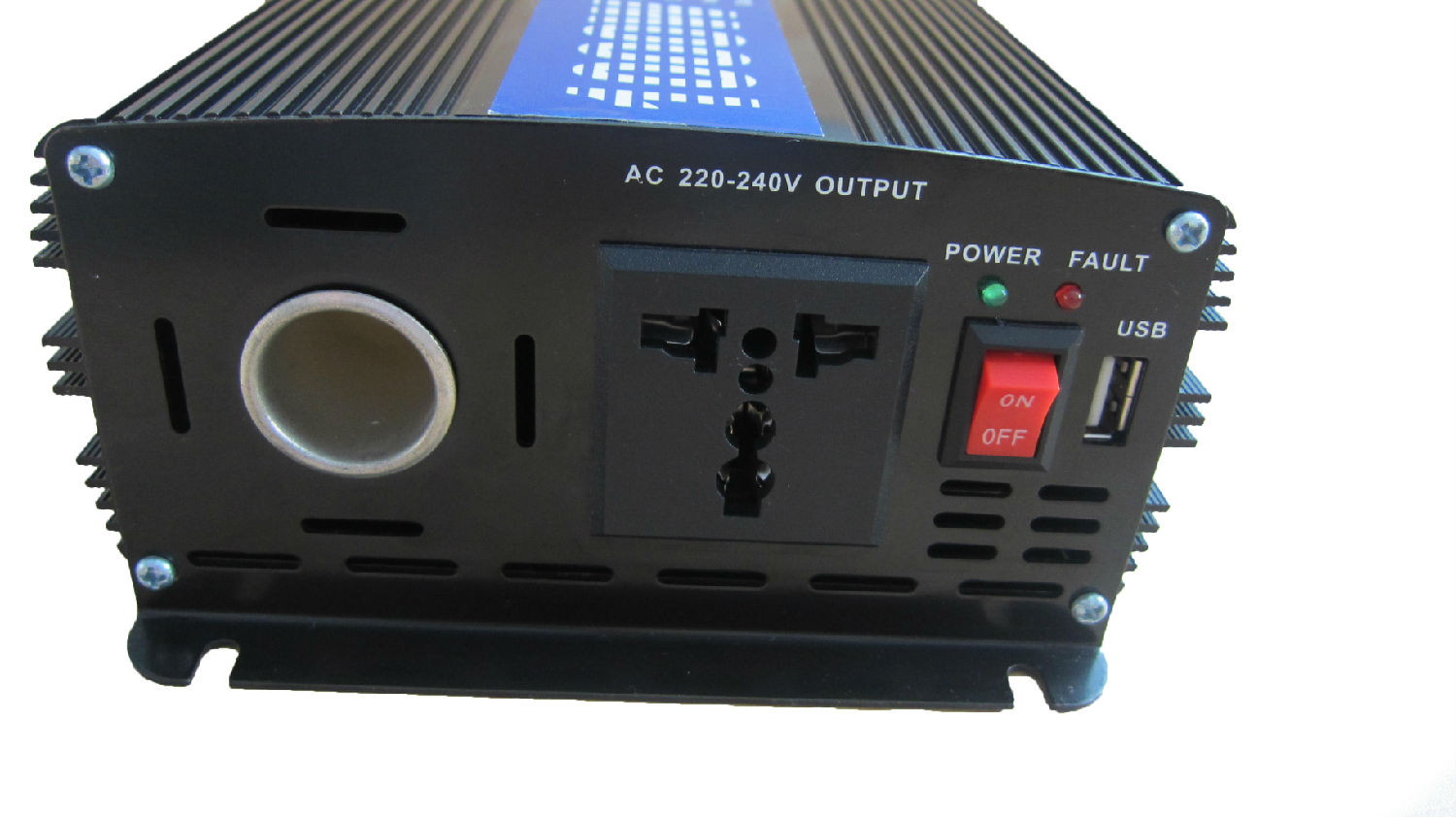

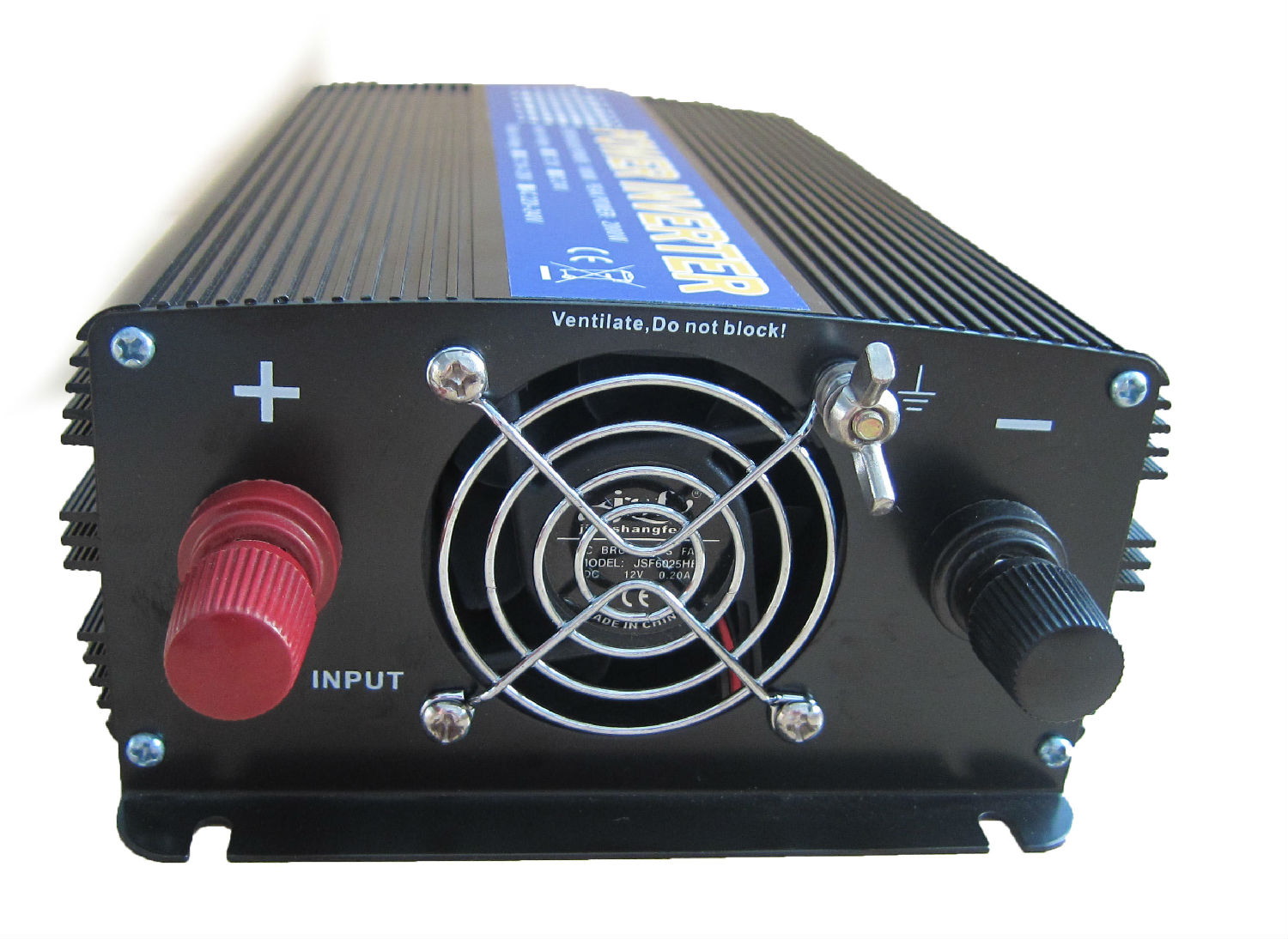

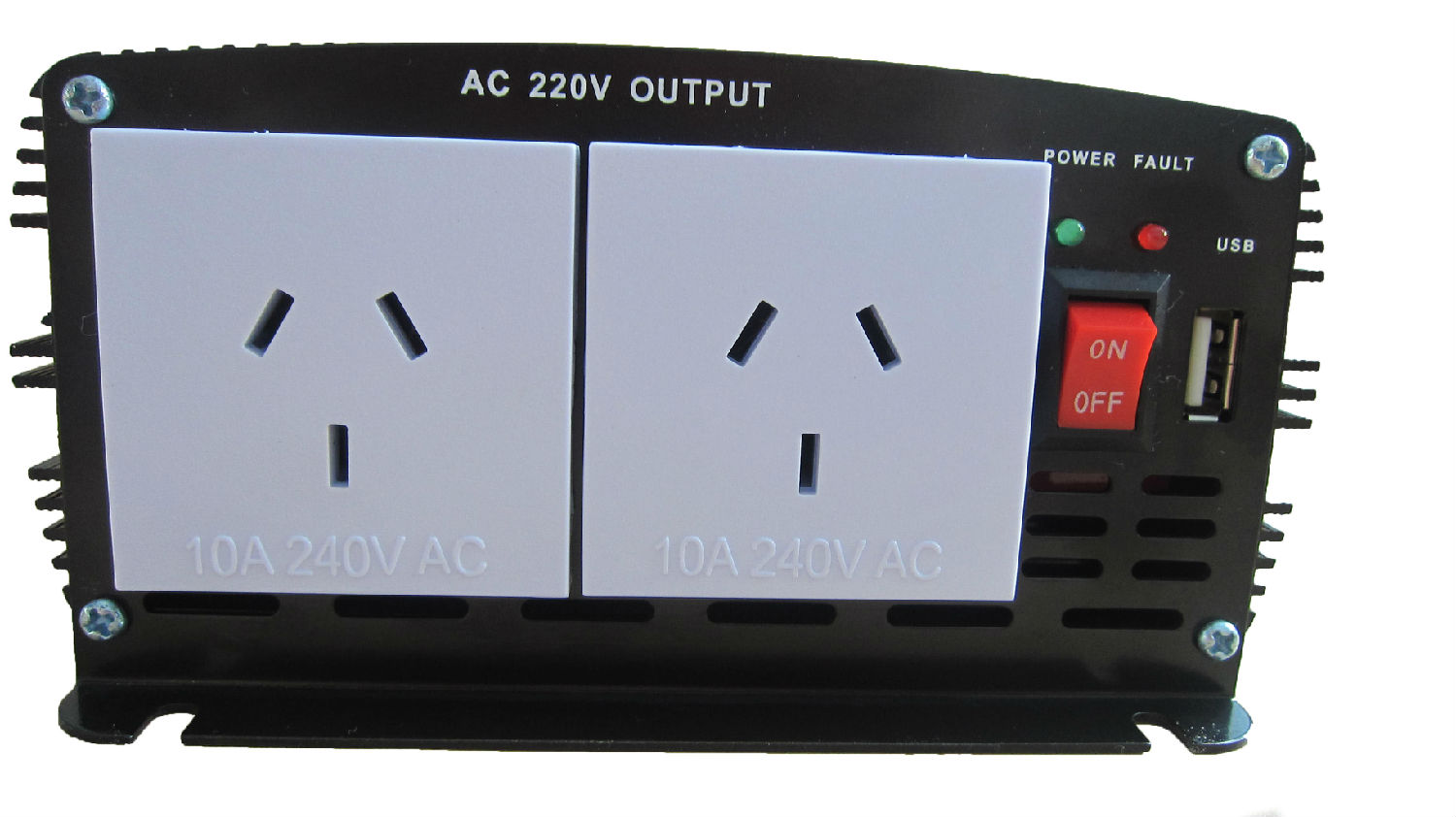

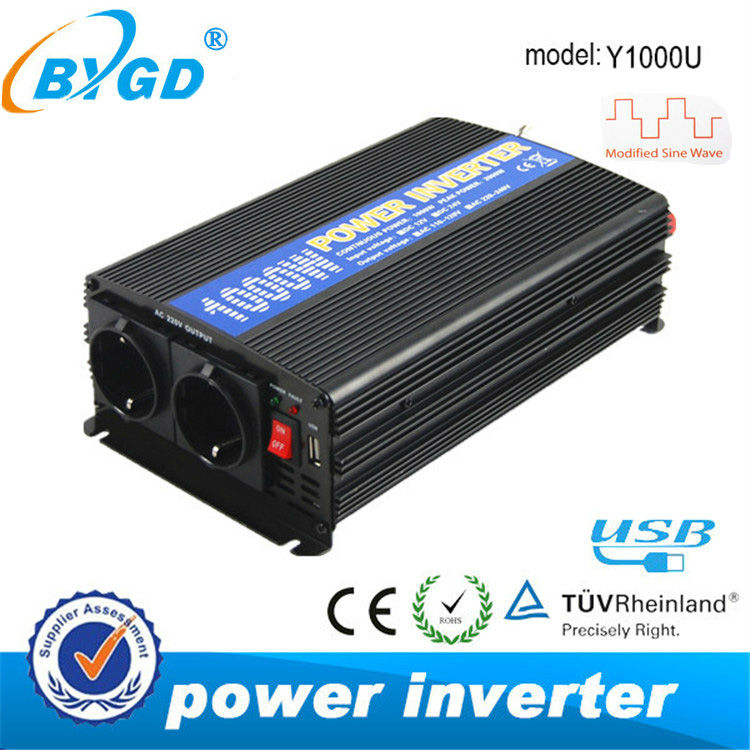

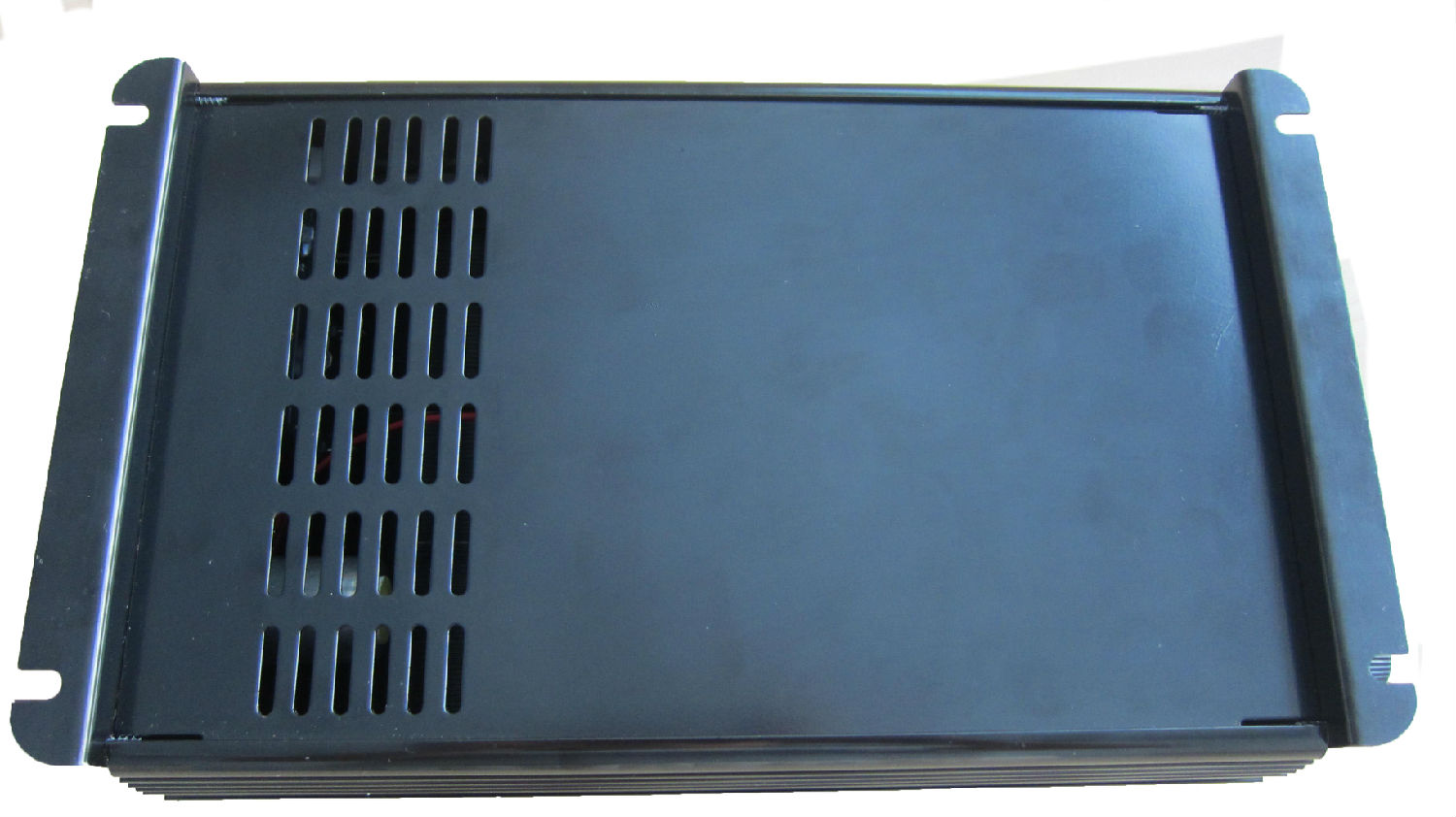

Power Inverter High Frequency 1000w DC To AC Inverter
Production Lead Time:
15 day(s)
Model No.:
Y1000U
Brand:
OEM/BYGD
Colour:
Black
Size:
255*165*70mm
Port:
Ningbo/Shanghai
Type of Payment:
TT, Paypal, Western Union
Minimum Order Quantity:
200pcs
Customised:
Yes
Weight:
2.3kg
Output Voltage:
110V/220V
Input Voltage:
12V/24V
Output Frequency:
50/60HZ
Output Power:
1000W
Output Current:
1000W/12V
Output Type:
Single
Package:
Yes
Description
Contact Supplier
Description
Features:
·Small size , light weight and potable
·Easy to use and high efficiency
·Green LED indicates power on,Red LED indicates wrong
·Input & output isolation
·Muti-protection function
·USB output port: 5V 500mA
· Built-in Cooling Fan
Continuous power: 1000W
Peak power: 2000W
Input voltage: DC12V /24V
Output voltage: AC220V-240V/AC100V-120V
Frequency: 50HZ,55HZ,60HZ
USB Output: DC 5V 500mA
Oupt waveform: Modified sine wave
Protection Specification: OverLoad,ShortCircuit,OverTemperature,OverVoltage, Low voltage
Mode: PWM
1 continue power 1000W
2 rated voltage 12.8V-13.2V
3 work voltage 11V-15V
4 No-load current
(with the rated voltage ) <0.3A
5 USB output current 500MA Max
6 No-load output voltage
(with the rated voltage ) 220V-240V
7 output voltage(12V-14V) with
regulating load(10W-500W) 210V-240V
8 Fanstart work when load is 60W-160W
9 frequcncy 60/50Hz±3Hz
10 over voltage cut off voltage
(no-load) 15.5V±0.5VDC
11over voltage alarm voltage
(no-load) 10.5V±0.3VDC
12low voltage turn off voltage
(no-load) 9.5V±0.3VDC
13recover voltage after turn off
(no-load) 12V±0.3VDC
·Easy to use and high efficiency
·Green LED indicates power on,Red LED indicates wrong
·Input & output isolation
·Muti-protection function
·USB output port: 5V 500mA
· Built-in Cooling Fan
Continuous power: 1000W
Peak power: 2000W
Input voltage: DC12V /24V
Output voltage: AC220V-240V/AC100V-120V
Frequency: 50HZ,55HZ,60HZ
USB Output: DC 5V 500mA
Oupt waveform: Modified sine wave
Protection Specification: OverLoad,ShortCircuit,OverTemperature,OverVoltage, Low voltage
Mode: PWM
1 continue power 1000W
2 rated voltage 12.8V-13.2V
3 work voltage 11V-15V
4 No-load current
(with the rated voltage ) <0.3A
5 USB output current 500MA Max
6 No-load output voltage
(with the rated voltage ) 220V-240V
7 output voltage(12V-14V) with
regulating load(10W-500W) 210V-240V
8 Fanstart work when load is 60W-160W
9 frequcncy 60/50Hz±3Hz
10 over voltage cut off voltage
(no-load) 15.5V±0.5VDC
11over voltage alarm voltage
(no-load) 10.5V±0.3VDC
12low voltage turn off voltage
(no-load) 9.5V±0.3VDC
13recover voltage after turn off
(no-load) 12V±0.3VDC
