Power Line Carrier PLC Module for Smart Street Light Industrial Lighting Parking Lot Lighting MicroNature MN-L80A Module
US $6.10 - US $9.40
Production Lead Time:
15 day(s)
Shipping Method:
Depending on the situation
Application:
Concentrator gateway, three-phase gateway.
Brand:
MicroNature
Model No.:
MP-6500
Size:
L*W*H: 92.8mm*63.8mm*26.1mm
Weight:
20g
Customised:
Yes
Material:
mixed material
Feature:
Supports UART/PWM/GPIO/SPI/ADC/I2C
Applicable Products:
Concentrator gateway, three-phase gateway.
Description
Contact Supplier
Description
Product Description

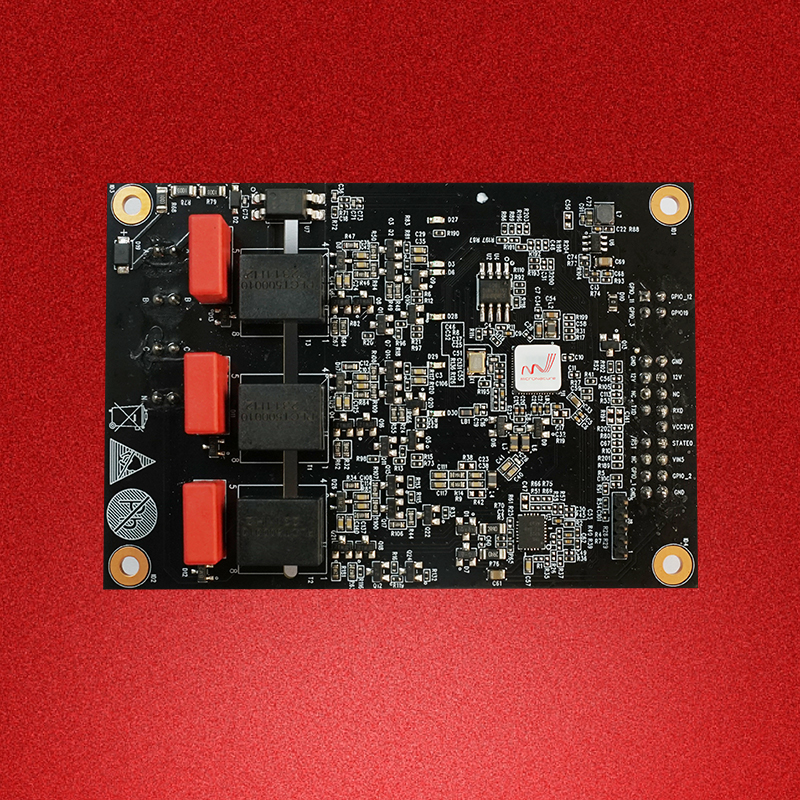

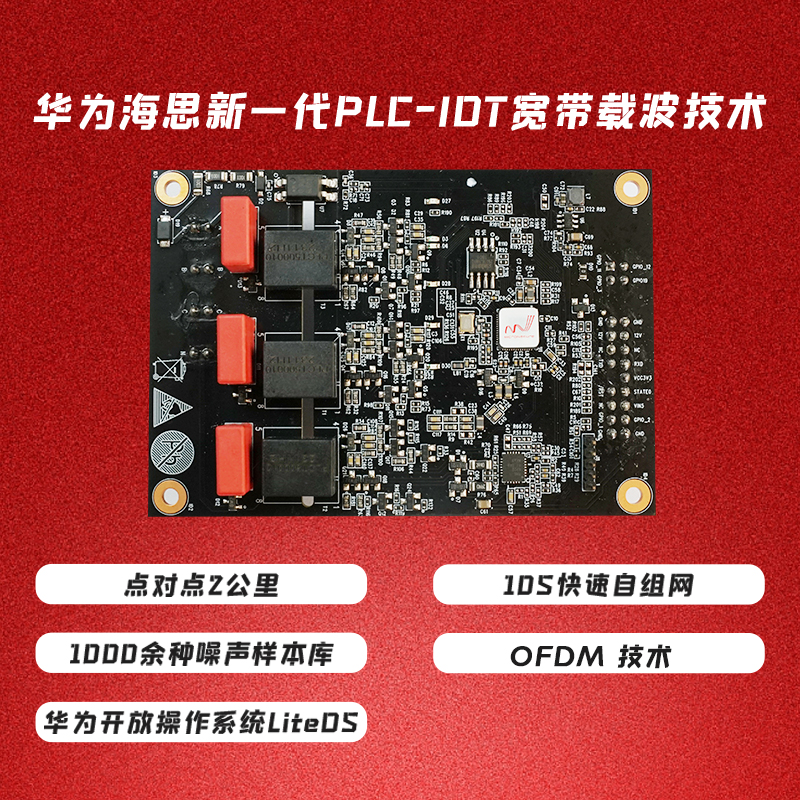

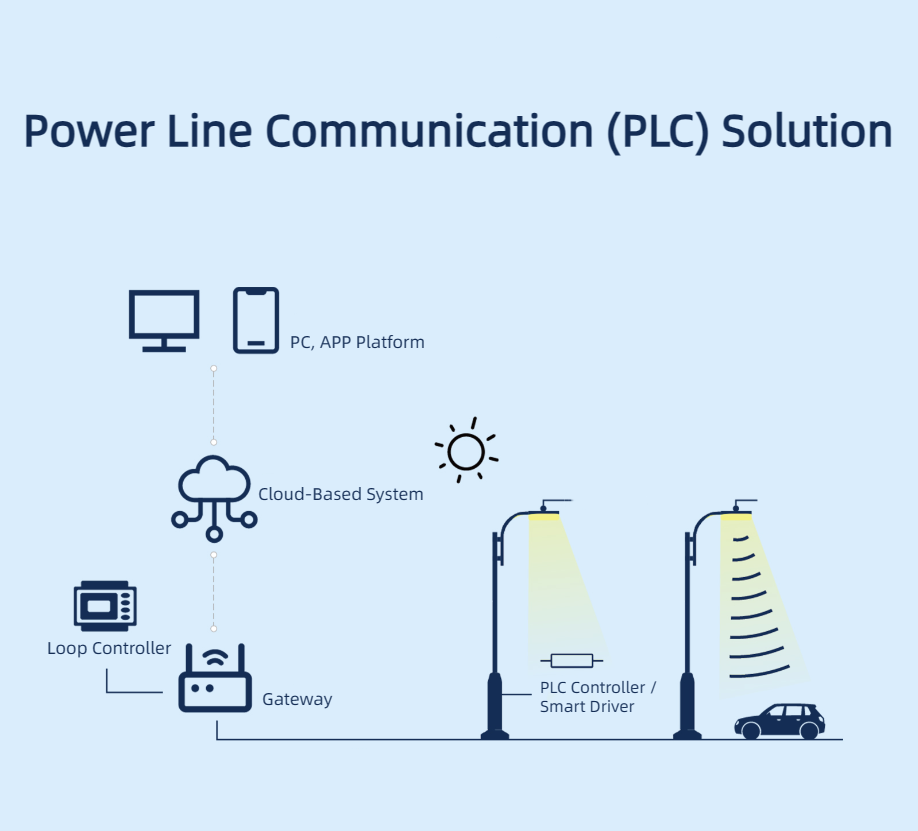

MP-6500 PLC Module is a fully integrated Power Line Communication (PLC) communication module with ultra-compact size, compact structure, and simple wiring. It can be widely used in various PLC instant communication applications, such as smart street lighting, smart homes, smart parking, central air conditioning, and ubiquitous power Internet of Things (IoT) terminal devices.

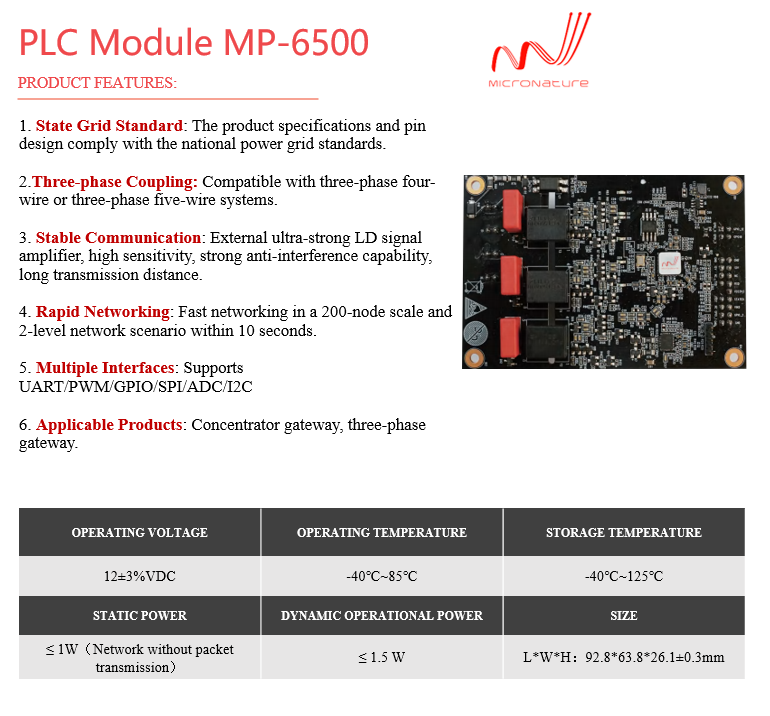

Features
- State Grid Standard: The product specifications and pin design comply with the national power grid standards.
- Three-phase Coupling: Compatible with three-phase four-wire or three-phase five-wire systems.
- Stable Communication: External ultra-strong LD signal amplifier, high sensitivity, strong anti-interference capability, long transmission distance.
- Rapid Networking: Fast networking in a 200-node scale and 2-level network scenario within 10 seconds.
- Multiple Interfaces: Supports UART/PWM/GPIO/SPI/ADC/I2C
- Applicable Products: Concentrator gateway, three-phase gateway.
The module size and interface of MP-6500 PLC Module comply with the State Grid QGDW 1375.2-2019 standard.

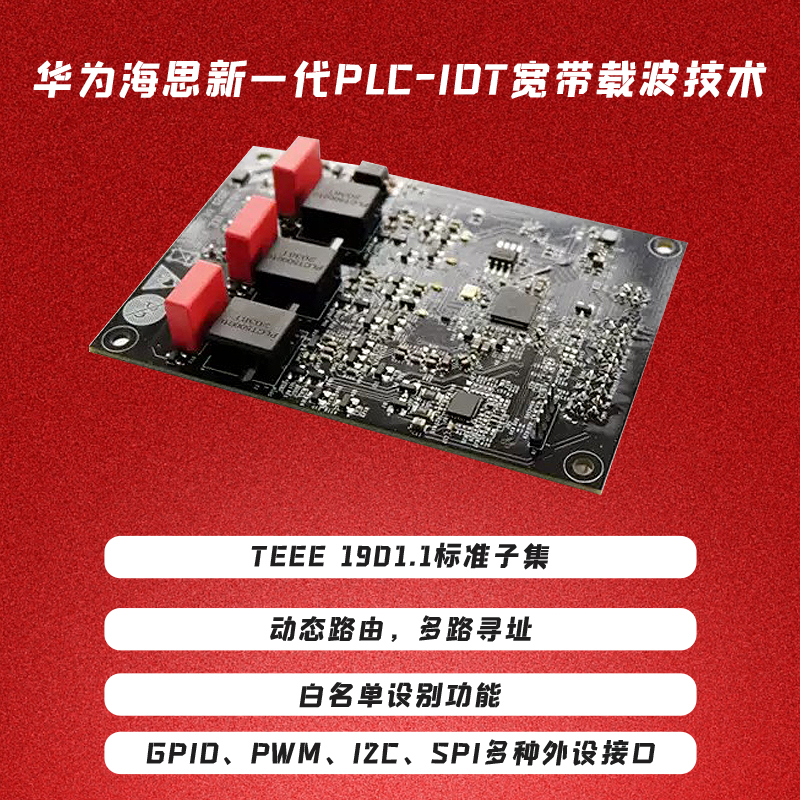

MP-6500 PLC Module is based on the Hi3921EV100 chip, which integrates high-speed/low-speed multi-mode power line carrier communication modem and ARM Cortex-M3 processor. The Hi3921EV100 chip supports P1901.1 and supports OFDM/FSK modulation.
The onboard external Line-Driver improves the transmission signal strength to meet customers' long-distance requirements.
MP-6500 PLC Module is equipped with the LiteOS open-source operating system for the Internet of Things, providing a more open development environment and a faster, more secure operating system.
| Module Name |
| MP-6500 |
| Main IC |
| Hi3921EV100 |
| Main Interfaces |
| PLC, UART |
| Communication Method |
| Power line carrier communication, supports. P1901.1, supports OFDM/FSK modulation. |
| Size |
| L*W*H: 92.8mm*63.8mm*26.1mm |
| Static Power |
| ≤0.10W (no packet transmission during networking) |
| Operating Voltage |
| 12VDC ±3% |
| Operating Temperature |
| -40°C to +85°C |
| Storage Temperature |
| -40°C to +125°C |
Shenzhen MicroNature Innovation Technology Co., Ltd. is a national high-tech enterprise specializing in PLC-IoT smart industrial lighting solutions. The company integrates design, research and development, manufacturing, and marketing. We have leading High Speed Power Line Communication (HPLC) technology, an open SAAS platform, well-established smart hardware system and abundant experience in industrial-grade smart lighting solutions such as Municipal Road lighting, tunnel lighting, and factory lighting...
If you are interested in our products, please feel free to contact us. We look forward to hearing from you.
