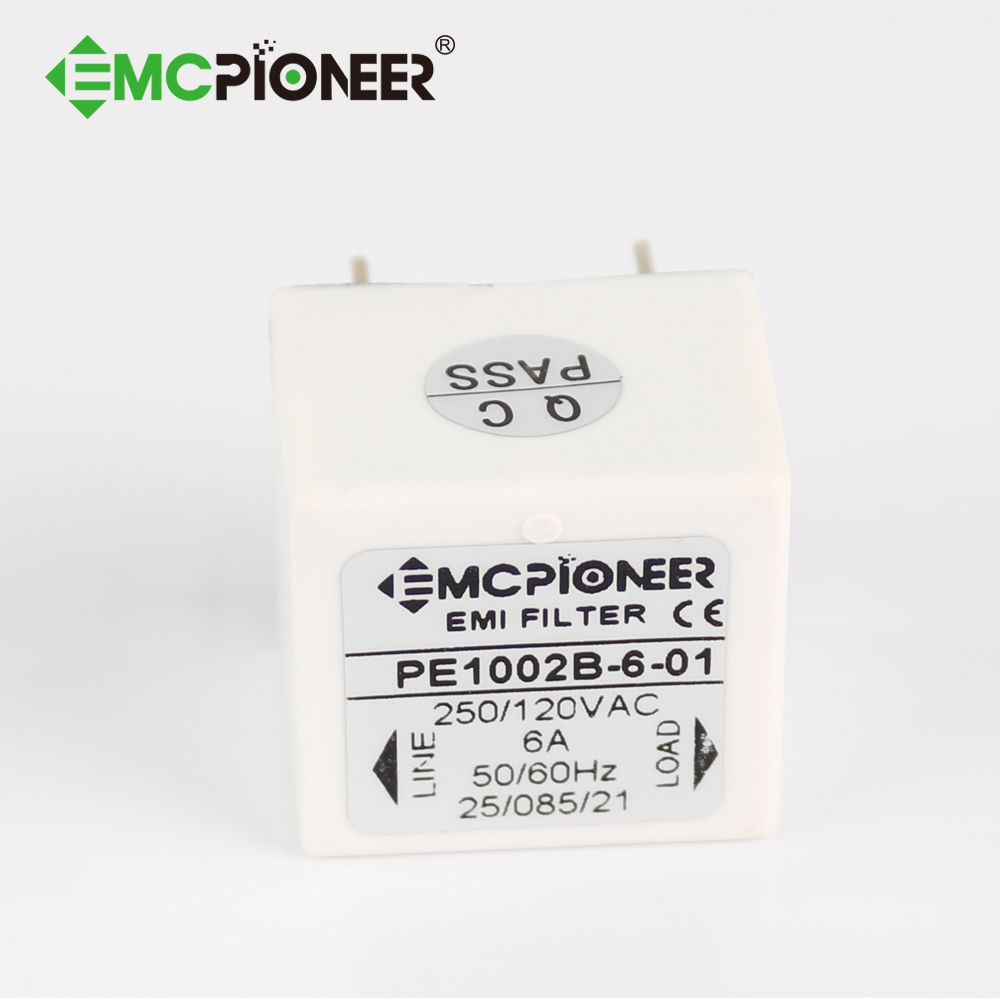

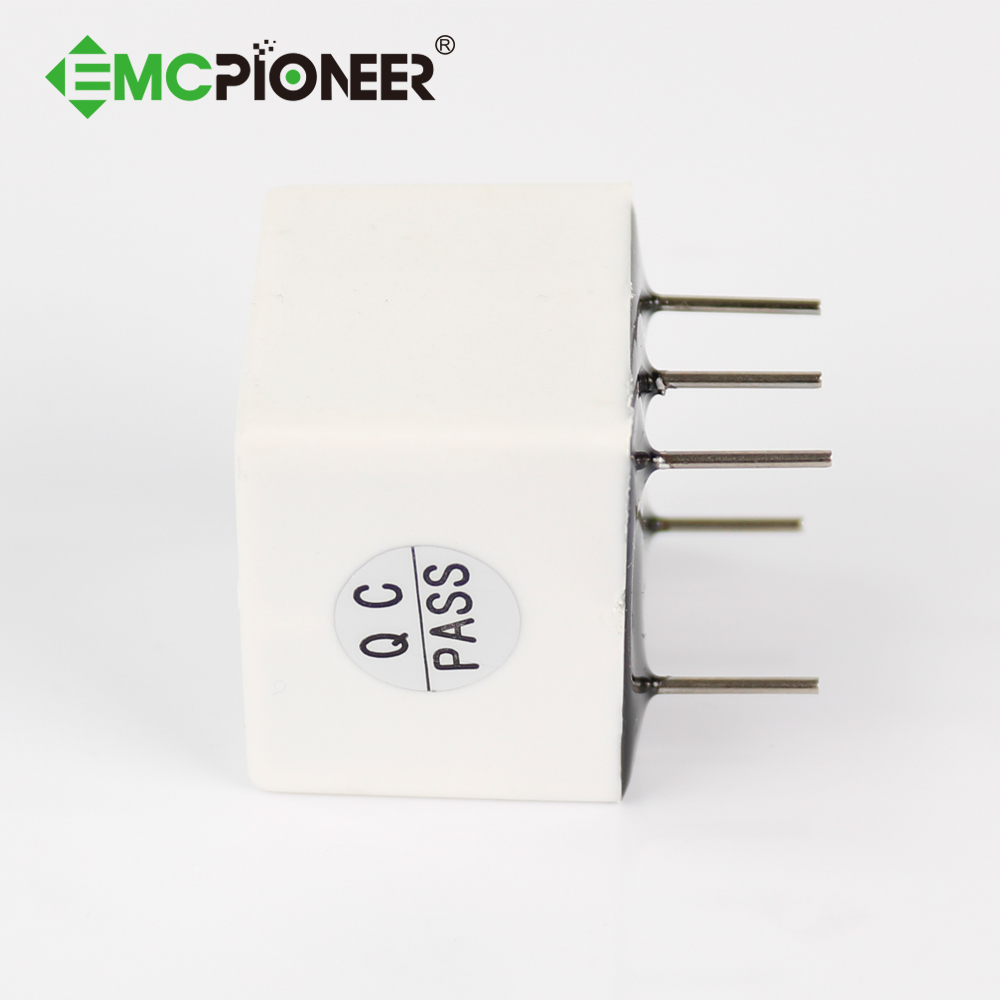

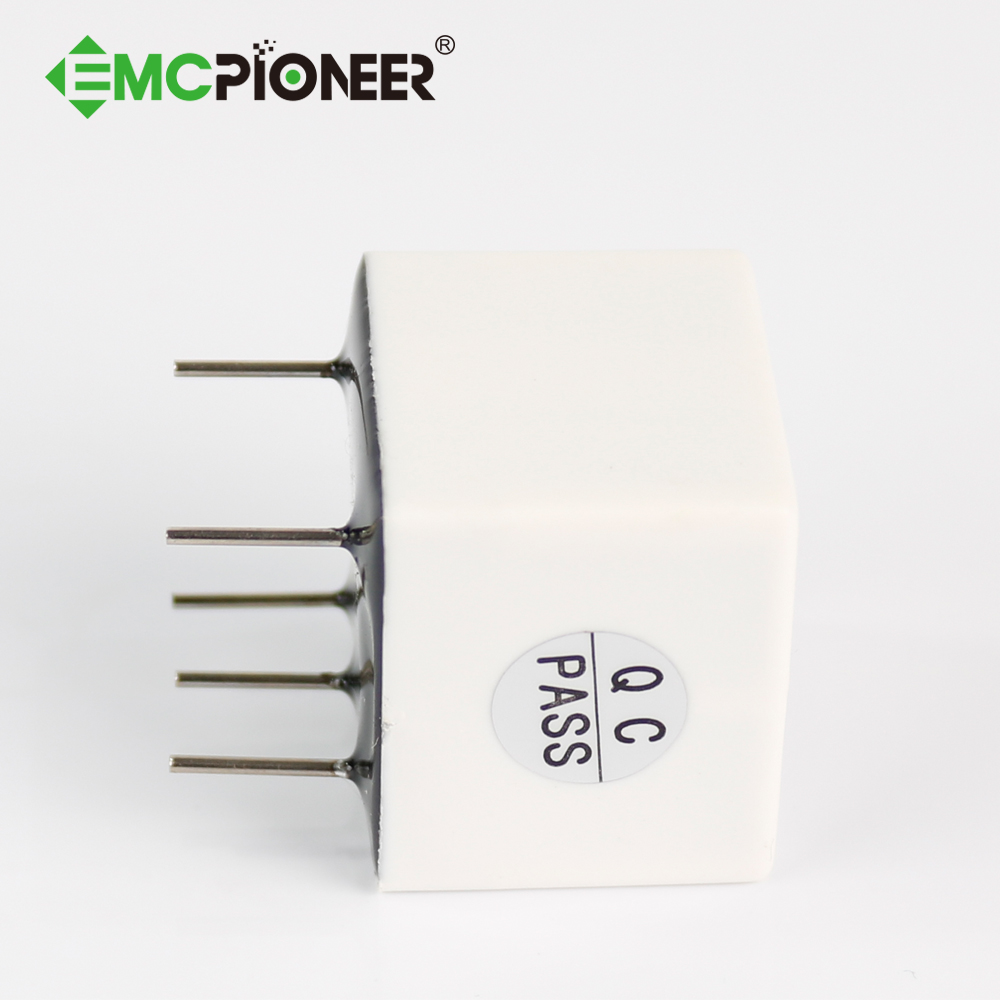

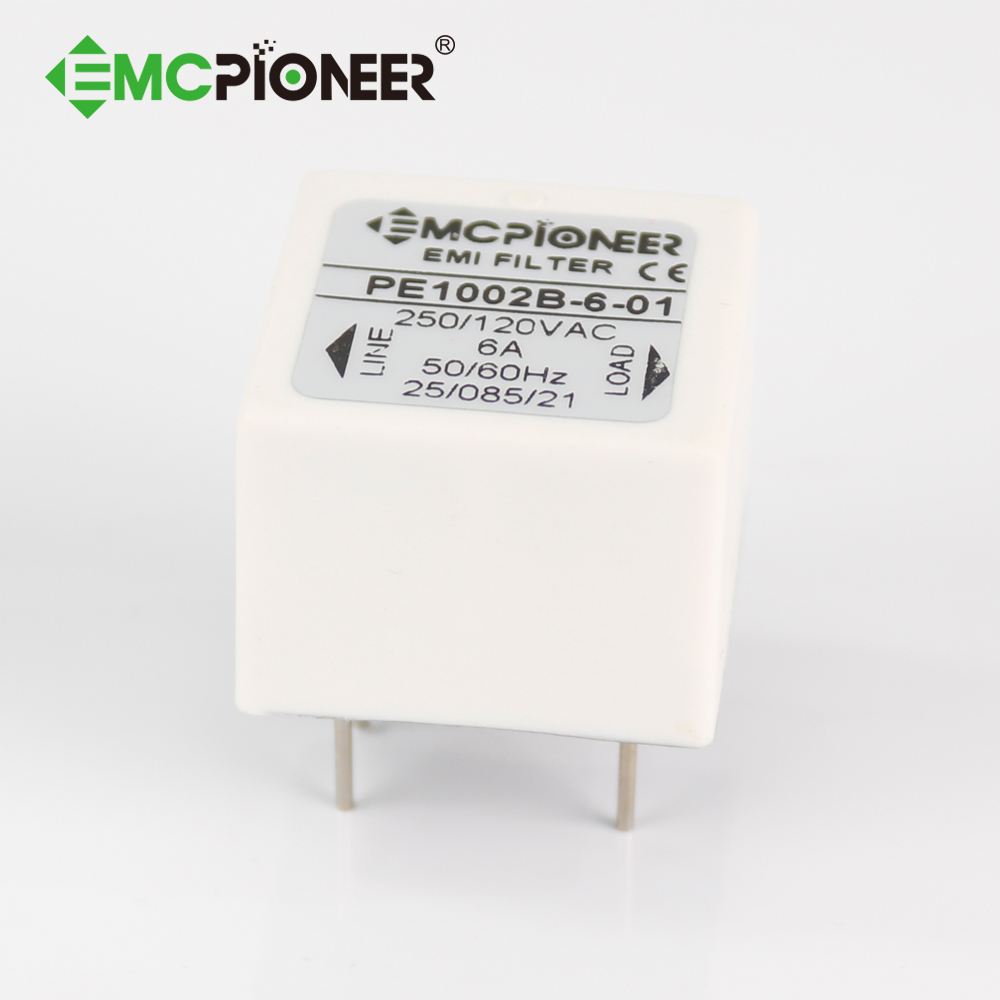

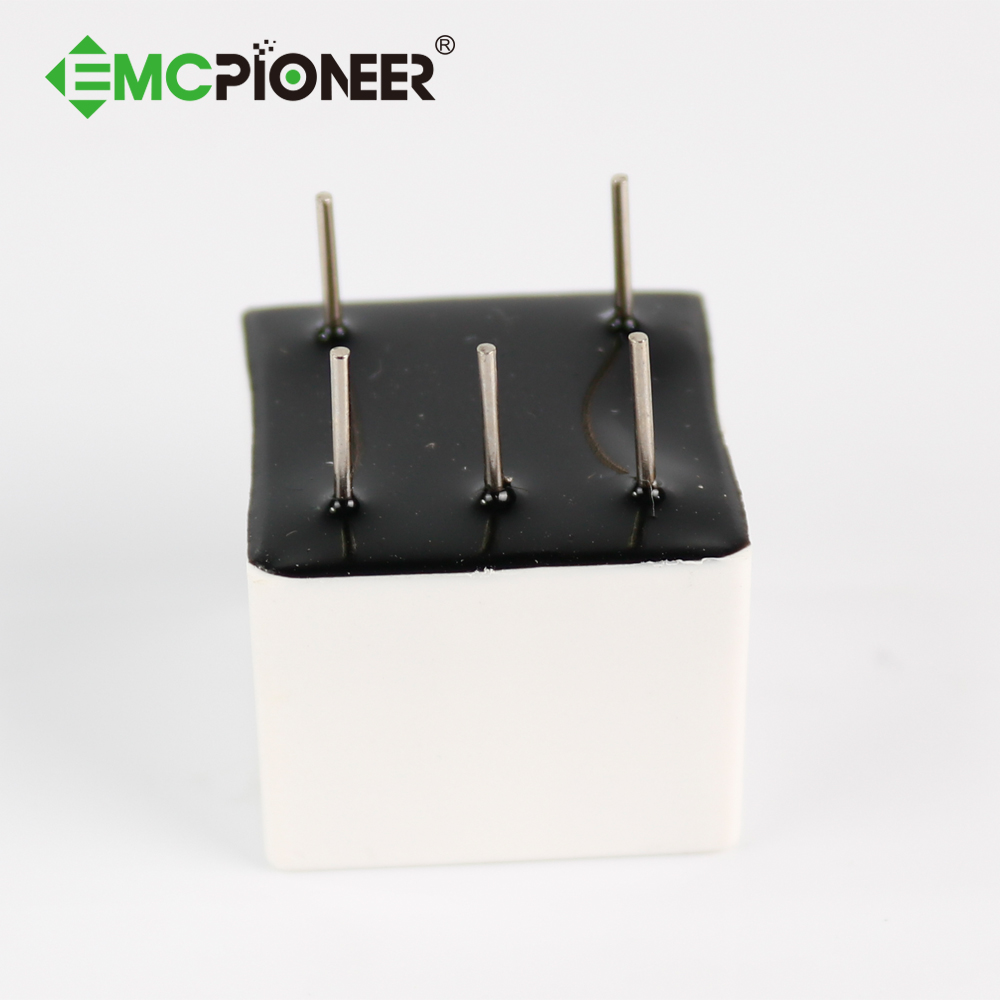

Power Line Filter for PCB
Share this page
Brand:
changzhou pioneer
Colour:
Silver, White
Package:
Yes
Customised:
Yes
Type:
EMC Filter - Electromagnetic Compatible Filter
Nominal Center Frequency:
50/60HZ
Insertion Loss:
100DB
Installation Type:
Insert
Description
Contact Supplier
Description
  • High quality electric black plastic passive pin power line filter for pcb
  • PCB PIN EMI Filter Description
1.The PE1000 PCB filters is a single-phase filters designed for easy and fast PCB-mounting.
2.Rated currents from 0.5 to 10A.
3.Compact unit, light weight ,PCB through hole mounting.
4.High quality components ensure the safety and reliability of filters.
5.Optional metal or plastic housing.
6.Customized acceptable.
7.Optional DC version(D type).
  • PPIN PCB Mounting EMI Filter Application:
  • Single-phase power supplies ,swiych-mode power supplies.
  • Small to medium-sized machines and household equipment.
  • Electrical and electronic equipment.
  • Test and measurement equipment.
  • PIN PCB EMI FILTER Specification:
  • Rated Voltage:120/250VAC
  • Rated current:1A-6A
  • Operating Frequency:DC-60Hz
  • Temperature range:HPF25/085/21
  • Test Voltage(1min):Line to Ground 2000VAC
  • Line to Line:1450VDC
