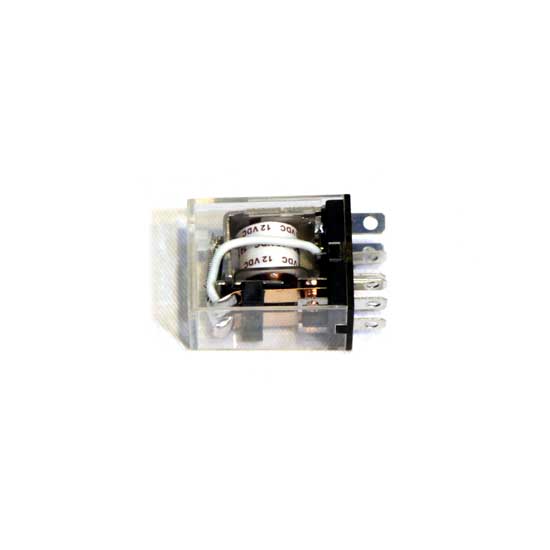

Power Relay
Production Lead Time:
14 day(s)
Model No.:
VP13
Size:
(L x W x H) 28 x 21.5 x 35mm
Port:
Baoji
Minimum Order Quantity:
1,000 piece(s)
Description
Contact Supplier
Description
This power relay comes with a 15A switching capability for fulfilling your needs. It can withstand 1.5kV dielectric strength between the coil and contacts. There are various terminals and sockets available for your selection.
- Contact form: 1C, 2C and 3C.
- Contact material: AgCdO.
- Max. rated switching current (resistive load): 15A (1C), 10A (2C, 3C).
- Max. switching voltage: 250V AC/30V DC.
- Max. switching power: 3,750VA/450W.
- 1C 15A 250V AC/30V DC.
- 2C 3C 10A 250V AC/30V DC.
