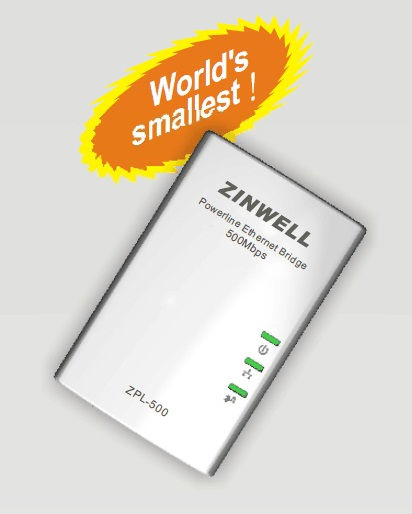

Powerline Ethernet Bridge
Model No.:
ZPL-500
Description
Contact Supplier
Description
- RJ‐45 port: 1 port.
- PHY rate: 500Mbps.
- Max data Rate: TCP: 250Mbps, UDP: 260Mbps.
- Frequency band: 2 to 28MHz, 30 to 50MHz, 50 to 68MHz.
- Access methods: TDMA and priority‐based CSMA/CA channel access schemes.
- Modulation: supports OFDM 4096/1024/256/64/16/8‐QAM, QPSK, BPSK and ROBO.
- Distance: AC wire: up to 300 meters.
- LAN standard: 1000 BASE‐T, 100 BASE‐TX, 10 BASE‐T, IEEE 802.3u.
- PLC standard: IEEE 1901/HomePlug AV compliant.
- Computer OS: OS independent.
- Max. Dev in a network group: 8.
- IGMP: support for IPv4/IGMP v1, v2, v3 snooping.
- Support for IPv6 and MLD v1, v2 snooping.
- Encryption: 128‐bit AES Link Encryption with key management.
- LEDs: power (green), PLC Link/activity (green), Ethernet link/activity (green).
- Temperature: operating: 0~40℃; storage: ‐20~60℃.
- Relative humidity: operating: 10~85% non‐condensing, storage: 5~90% non-condensing.
- Power source: 100~240V AC, 50/60Hz.
- Power consumption: full load: (110 VAC) = 3.3 W; (220 VAC) = 3.8W; (240 VAC) = 4.2W.
- Standby mode: less than 1.0 W @110, 220, 240 VAC in.
- Certification CE, CE‐LVD, FCC Class B, RoHS.
