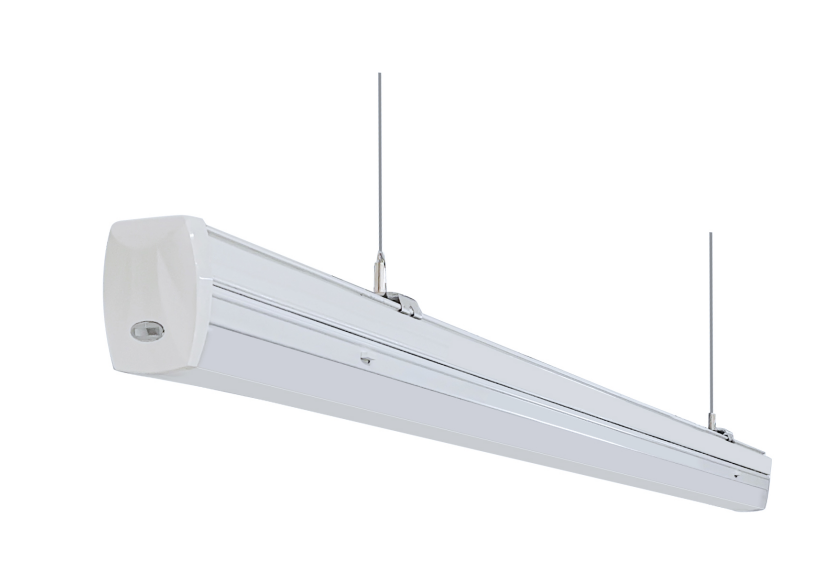

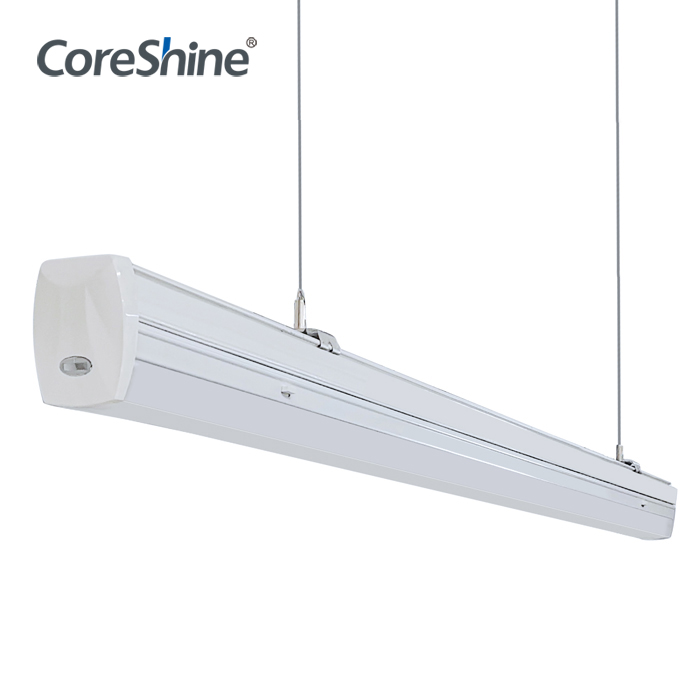

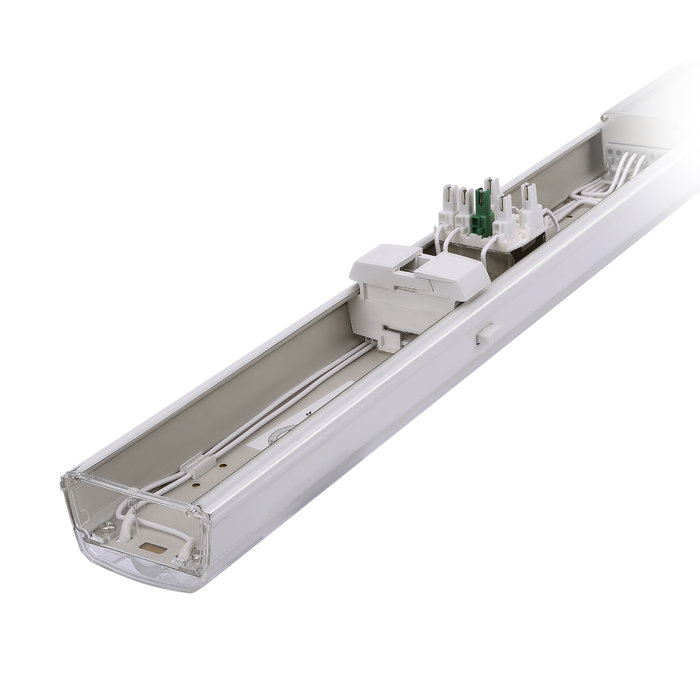

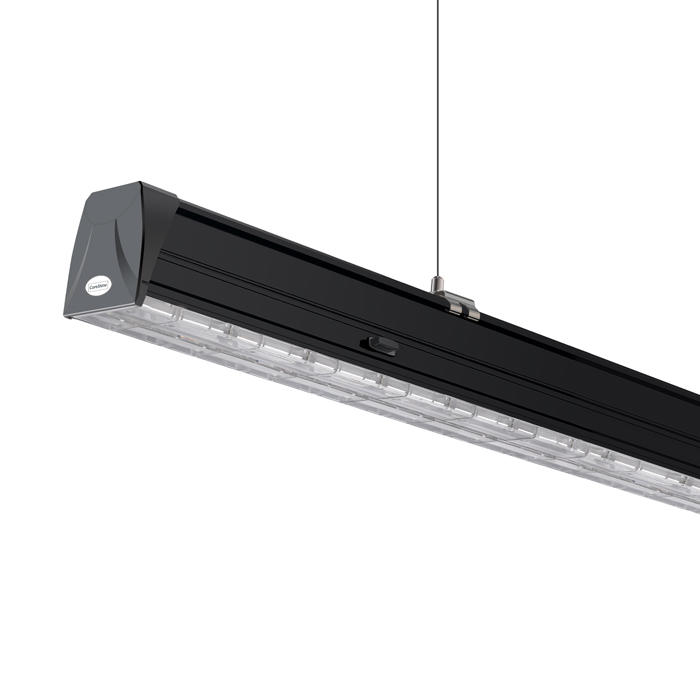

Pre-wired Continuous connection fast installation 180lm/w LED linear trunking light system
US $20.00 - US $40.00
Production Lead Time:
8 day(s)
Shipping Method:
DHL/UPS/FEDEX/TNT and other
Brand:
CoreShine
Model No.:
CFL-1570-X1X2-X3WH
Material:

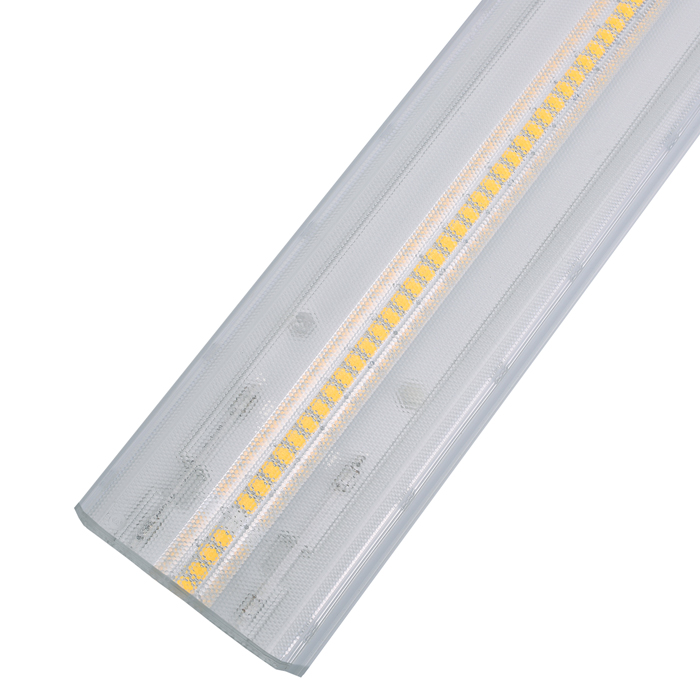

Steel+ PMMA lens/PC cover
Light Source:
LED
Size:
1200mm, 1500mm, 2400mm

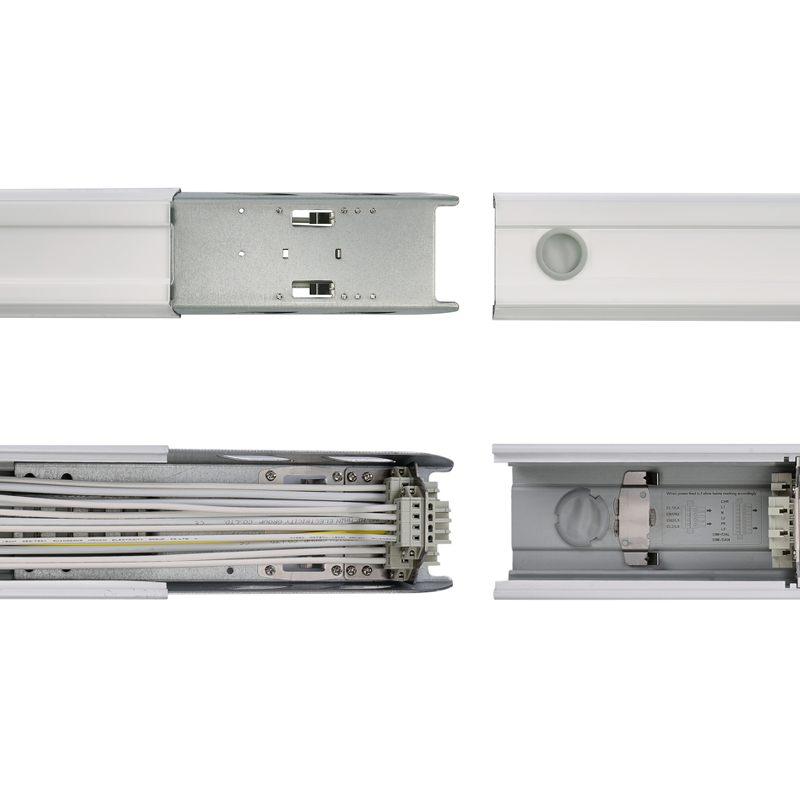

Trunk Rail Length:
600mm, 1200mm, 1500mm, 2400mm, 3000mm
CRI (Ra>):
80/90/85/95
UGR:
<19
Beam angle:
25°;60°;90°;120°; Asymmetric; Double Asymmetric
CCT:
2700K/3000K/3500K/4000K/5000K/5700K/6500K
PF:
>0.95
THD:
<15%
Input Voltage(V):
AC220-240VAC

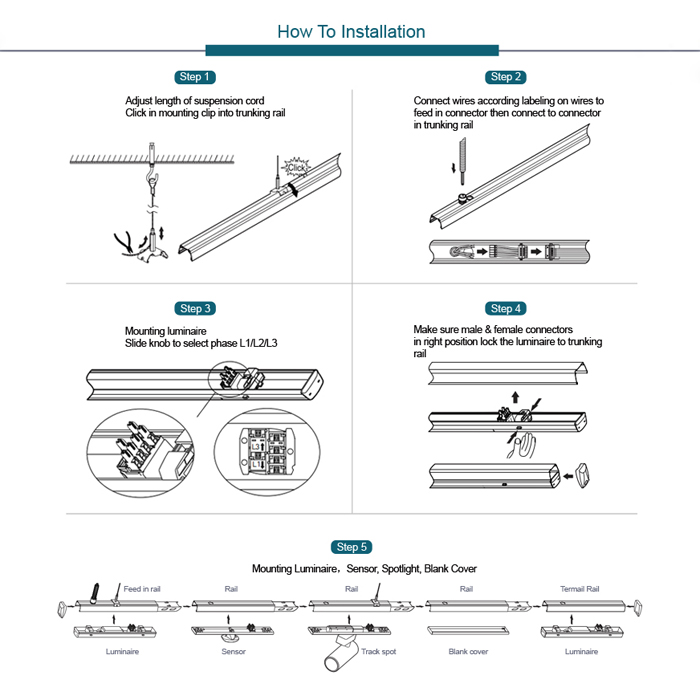

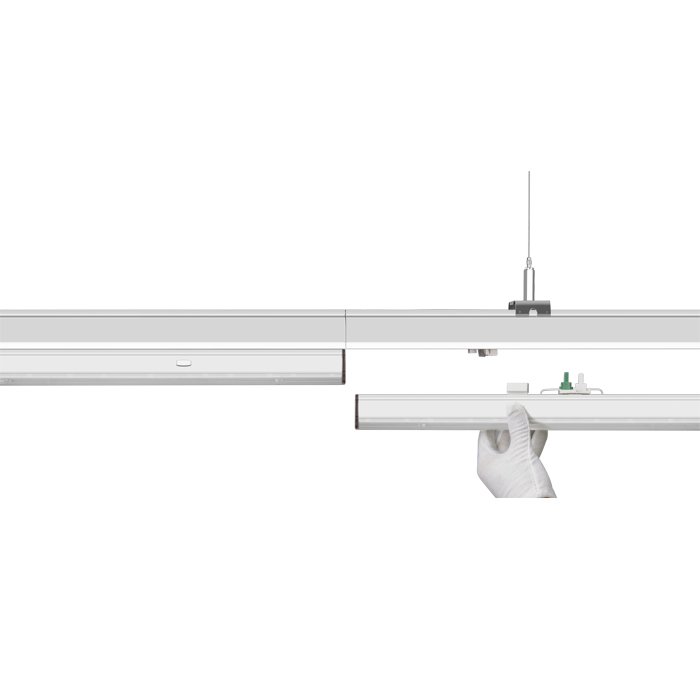

Installation Method:
Chain, Cord, Rod, Surface mounted
Lumen:
3600lm-28800lm

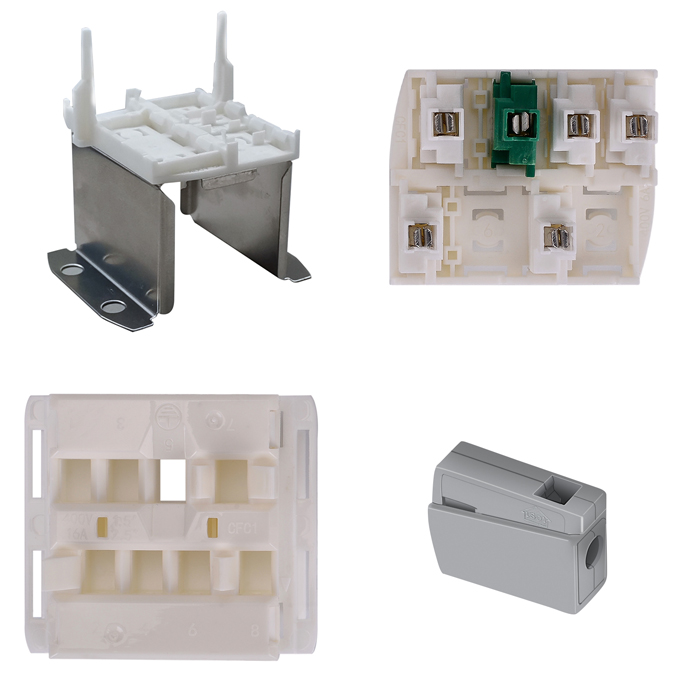

Connector:
L/T/X Node Connector can be choose
Is Dimmable:
Yes
Dimming:
DALI, 1-10V, DIMswitch
Driver:
Coreshine/Rubycon
Led Chip:
Ebright/Samsung
Color:
White, Black
Light Color:
Warm White, White, Cold White
IP Rating:
IP20
Light Efficiency:
180lm/w
Power:
20-35W/35-50W/55-70W/70-100W/110-160W
Function:

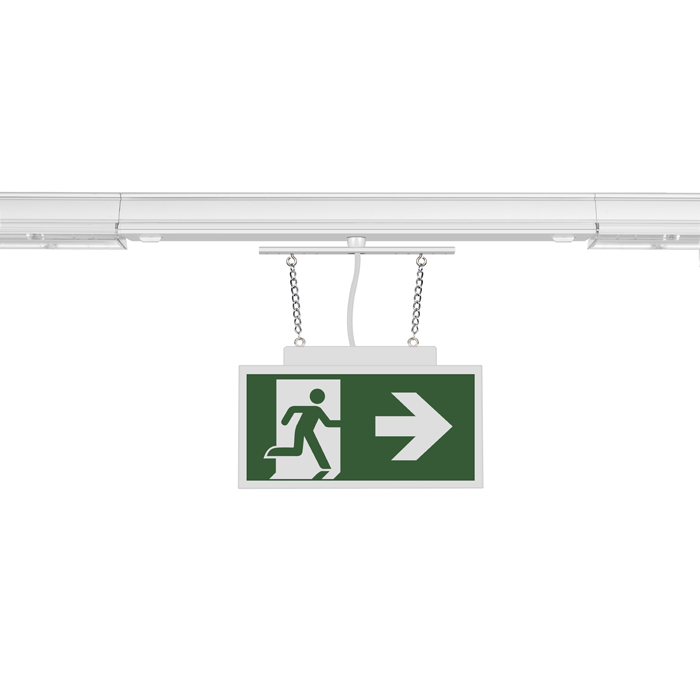

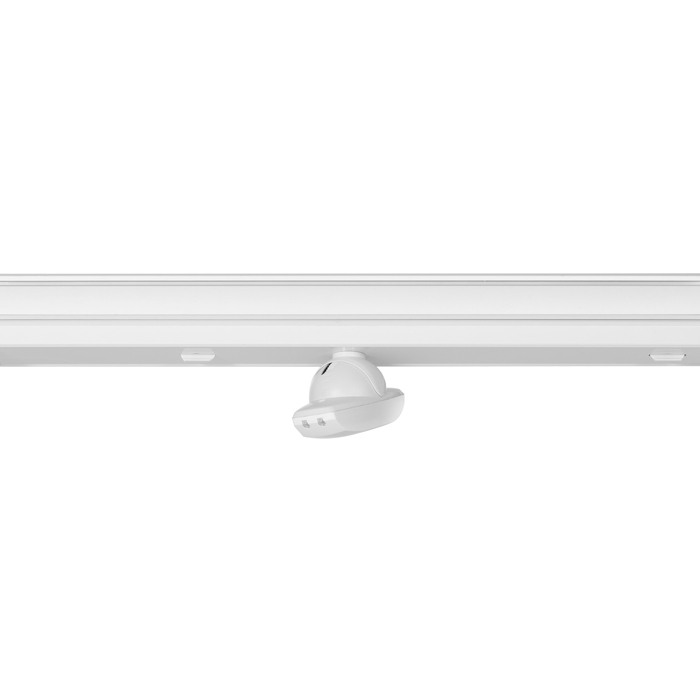

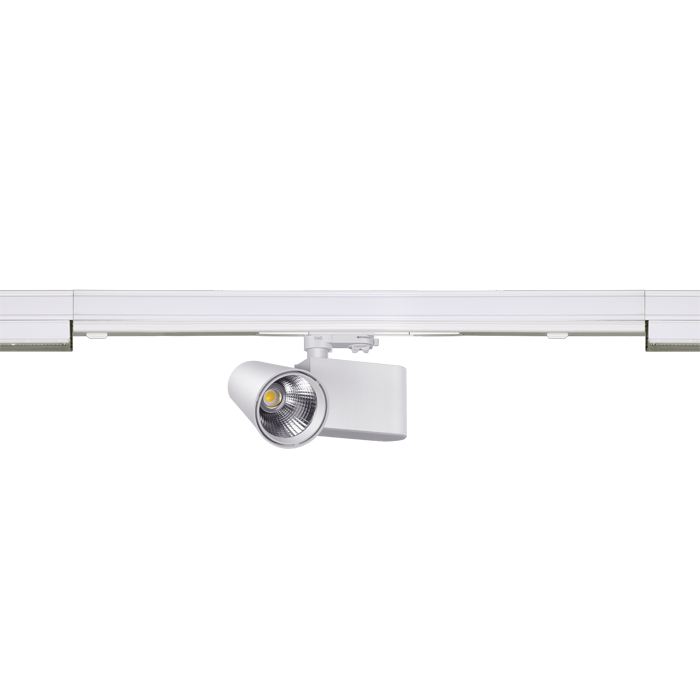

Dimmable(DALI/1-10V), Emergency, Sensor, Track Spot Light
Wires:
5/8/12 core
Working Temperature(℃):
-20 - 50 ℃
Warranty:
5 years
Lifespan (hours):
70000
Certifications:
CE/CB/ETL/DTC/SAA/FCC/GS/UL
Application:

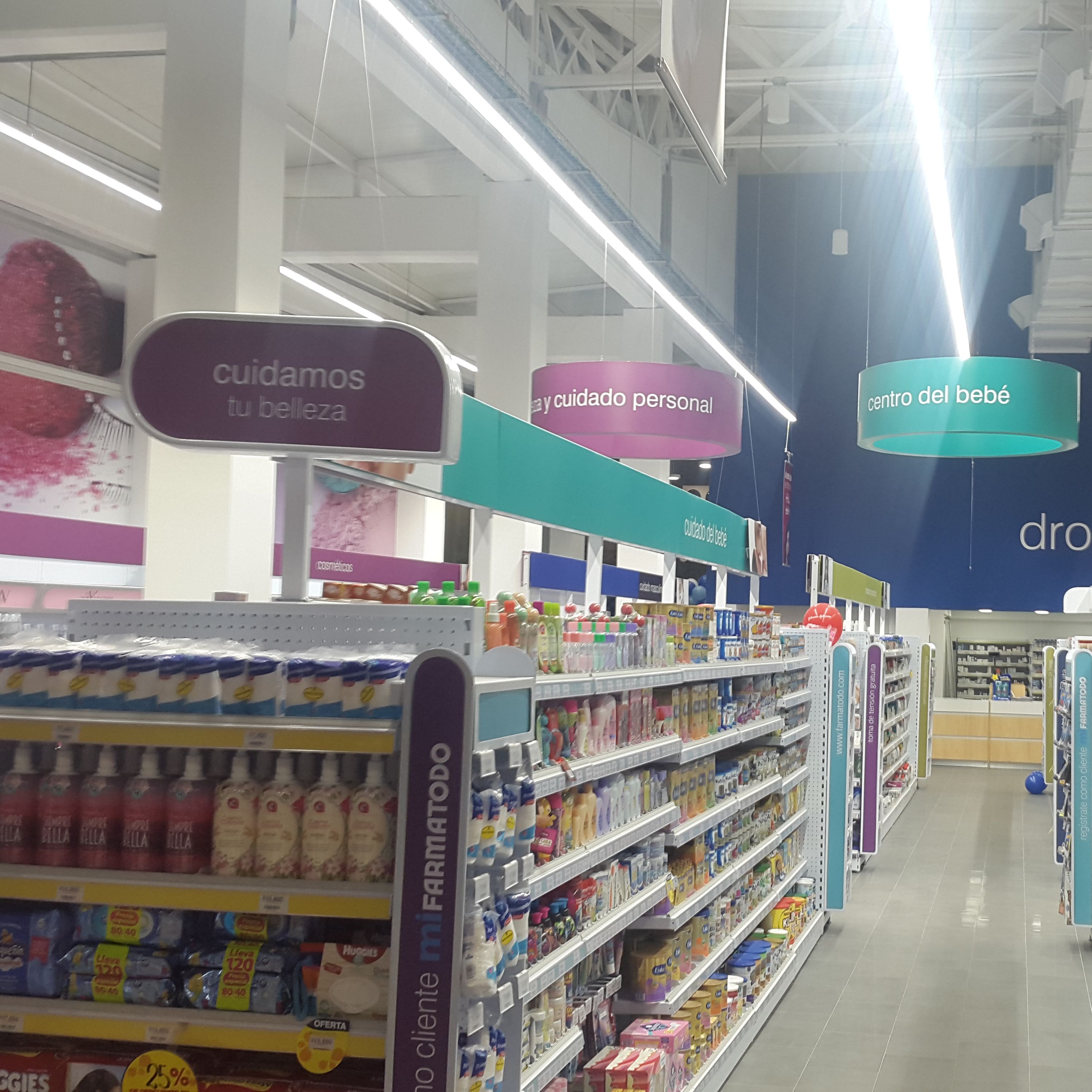

Supermarket, Warehouse, Workshop, Office, Car Parking Industrial etc.
Customised:
Yes
Packing:

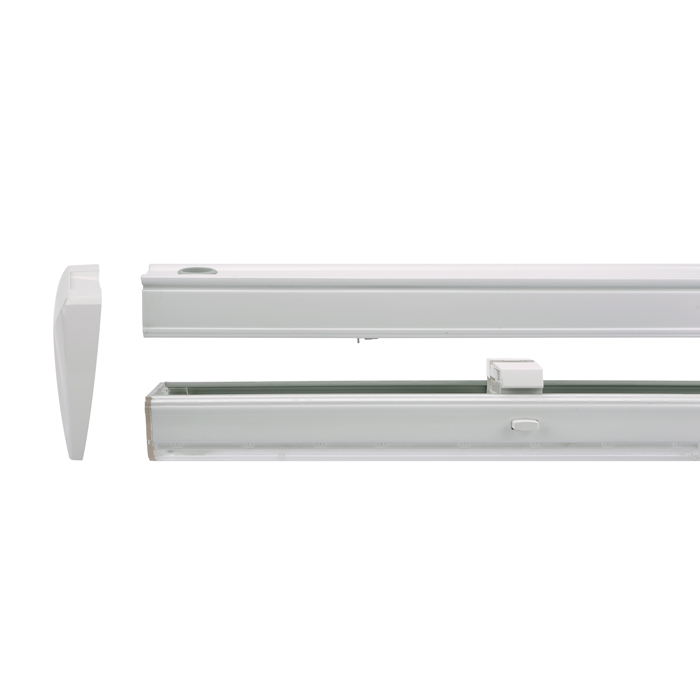

Luminaire and Trunking rail are packed separately
Description
Certification & Document
Contact Supplier
Description
Product Details
Coreshine S-LINE Led Linear Lighting System is an energy-efficient, low maintenance cost, and better alternative to traditional linear fluorescent in a variety of industrial, commercial, and light assembly applications.
- Cost-effective light-line solution for industrial, commercial, and other applications
- Good quality of light with high lumen output to meet different requirements
- Easy to install, reducing time, labor, packaging waste, and complexity
- Flexible solution
Length | Power | Lumen | Code No. |
|---|---|---|---|
1200mm | 30/35/40/45W | 8325lm | CFL-1245-X1X2-X3WH |
1200mm | 48/52/56/60W | 11100lm | CFL-1260-X1X2-X3WH |
1500mm | 20/25/30/35W | 7000lm | CFL-1535-X1X2-X3WH |
1500mm | 35/40/45/50W | 10000lm | CFL-1550-X1X2-X3WH |
1500mm | 55/60/65/70W | 14000lm | CFL-1570-X1X2-X3WH |
1500mm | 70/80/90/100W | 20000lm | CFL-15100-X1X2-X3WH |
2400mm | 40/50/60/70W | 14000lm | CFL-2470-X1X2-X3WH |
2400mm | 70/80...120W | 24000lm | CFL-24120-X1X2-X3WH |
2400mm | 110/120...160W | 32000lm | CFL-24160-X1X2-X3WH |
Return of Investment Comparison
We did a comparison test between Coreshine S-line and LED tube in the 300m² of warehouse
| 300 sq.m | |||
|---|---|---|---|
| Unite | S-line | LED Tube | |
| Lighting Effect | lm/w | 200 | 100 |
| Qty of Luminaire | set | 480 | 960 |
| Total Power Consumption | KW | 25 | 48 |
| Unite Price of Electric | CNY/KWH | 1.5 | |
| Light Time | Hour/Day | 1.2 | |
| Electric bill /day | CNY | 432.00 | 864.00 |
| Electric bill / month | CNY | 12,960.00 | 25,920.00 |
| Electric bill / year | CNY | 155,520.00 | 311,040.00 |
| Save the cost per year | CNY | 155,520.00 | |
According to the simulation, the purchase cost will payback within 2 years
Why Choose Coreshine
CoreShine was founded in 2005 as one of the first LED lighting manufacturers in Shenzhen. In the beginning, we produced a variety of products like many other manufacturers, such as tubes, bulbs, 2G11 LED products to replace the traditional lighting.
- Established in 2005
- Located in Shenzhen
- Number of employees 200 staffs
- 13,000 square meter 9 floors of workshop + 1 floor of office
- Complete Industry Layout: R&D, Production, Marketing
- Our Goal: To be World Leader of Linear Lighting System
Coreshine will continue to work in this product area and strive to become the absolute leader in the industry of the LED Linear trunking system in China.
R&D
- Our R&D team has 9 engineers in the field of Electronics, Software, Mechanical, and Structure engineering.
- Their average industry experience is more than 10 years.
Production
- More than 95% of our accessories are made by ourselves.
- We have 156 production staff, and 60% of them have 3-5 years of lighting experience.
- All our employees have professional training before going to work, and only 100% passed of the employees can be hired.
QC
- Our QC department consists of 11 people, all of them are very experienced in this field.
- They will do all the finished product testing with 10% for each order, according to the strict inspection standards and instructions. Like Integrating Sphere test and so on.
