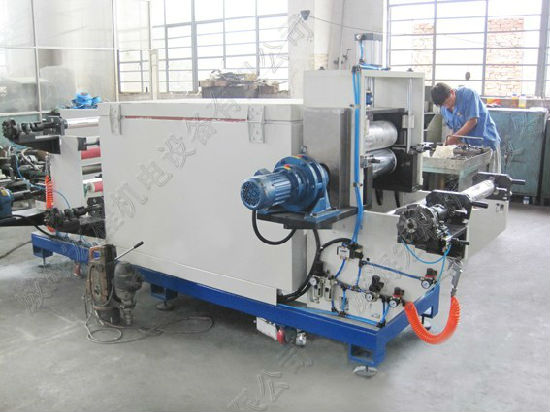

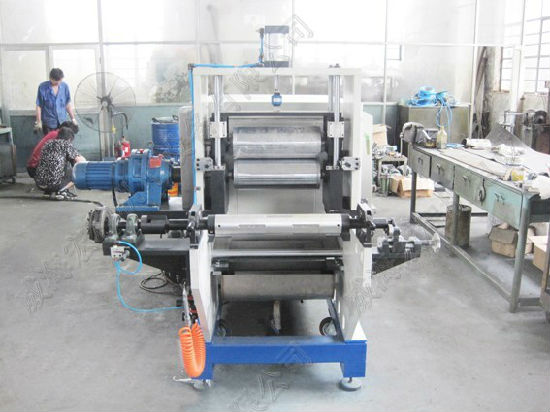

Prepreg Machine
Model No.:
300-type
Description
Contact Supplier
Description
Solvent-method prepreg machine is mainly used for presoaking all kinds of fabric into resins with thermosetting property like epoxy resin, phenolic resin and so on, and drying the soaked fabric making, thus making prepregs.
I. Device working environment
1、Temperature：16℃～26℃；
2、Humidity：≤65%；
3、Power supply：380V±10%，50Hz，Three-phase five-wire；
4、Air supply pressure：0.6MPa～0.8MPa 。
II. The key technical indexes of devices:
1、Device size：about 2m×1.5m×1.5m (L×W×H)；
2、Prepreg maximum width：300mm
3、Prepreg resin content：±3%
4、Device operating speed：0～5 m/min
5、Production speed：0～1 m/min
6、Heat treatment box temperature：60～150℃,≤±5℃ procedure control
7、Resin type：solvent epoxy phenolic resin
8、Resin viscosity：the highest 80000 CP（room temperature）
9、Device power supply：380V±10%，50Hz，Three-phase five-wire；
10、Device total power：12KW
11、Device total weight：about 1.5t
12、Colour：ice grey（custom-made）
I. Device working environment
1、Temperature：16℃～26℃；
2、Humidity：≤65%；
3、Power supply：380V±10%，50Hz，Three-phase five-wire；
4、Air supply pressure：0.6MPa～0.8MPa 。
II. The key technical indexes of devices:
1、Device size：about 2m×1.5m×1.5m (L×W×H)；
2、Prepreg maximum width：300mm
3、Prepreg resin content：±3%
4、Device operating speed：0～5 m/min
5、Production speed：0～1 m/min
6、Heat treatment box temperature：60～150℃,≤±5℃ procedure control
7、Resin type：solvent epoxy phenolic resin
8、Resin viscosity：the highest 80000 CP（room temperature）
9、Device power supply：380V±10%，50Hz，Three-phase five-wire；
10、Device total power：12KW
11、Device total weight：about 1.5t
12、Colour：ice grey（custom-made）
