Pro Trunk Frosted Cover ( New Installation)

US $30.00 - US $80.00

Production Lead Time:

30 day(s)

Shipping Method:

by sea

Model No.:

DWTF540

Input Voltage:

AC200-240V, 50/60HZ

Power:

40W

LED Source:

SMD2835

Color Temp:

3000K/4000K/5700K

CRI:

Ra>80

Power Factor:

>0.9

IP Rate:

IP40

Optional:

0-10V dimming, Dali dimming

MOQ:

300PCS

Certificate:

CE,RoHS,CB,SAA

Warranty Time:

5 Years

Payment Terms:

T/T

Supply Ability:

7000pcs per month

Description

Contact Supplier

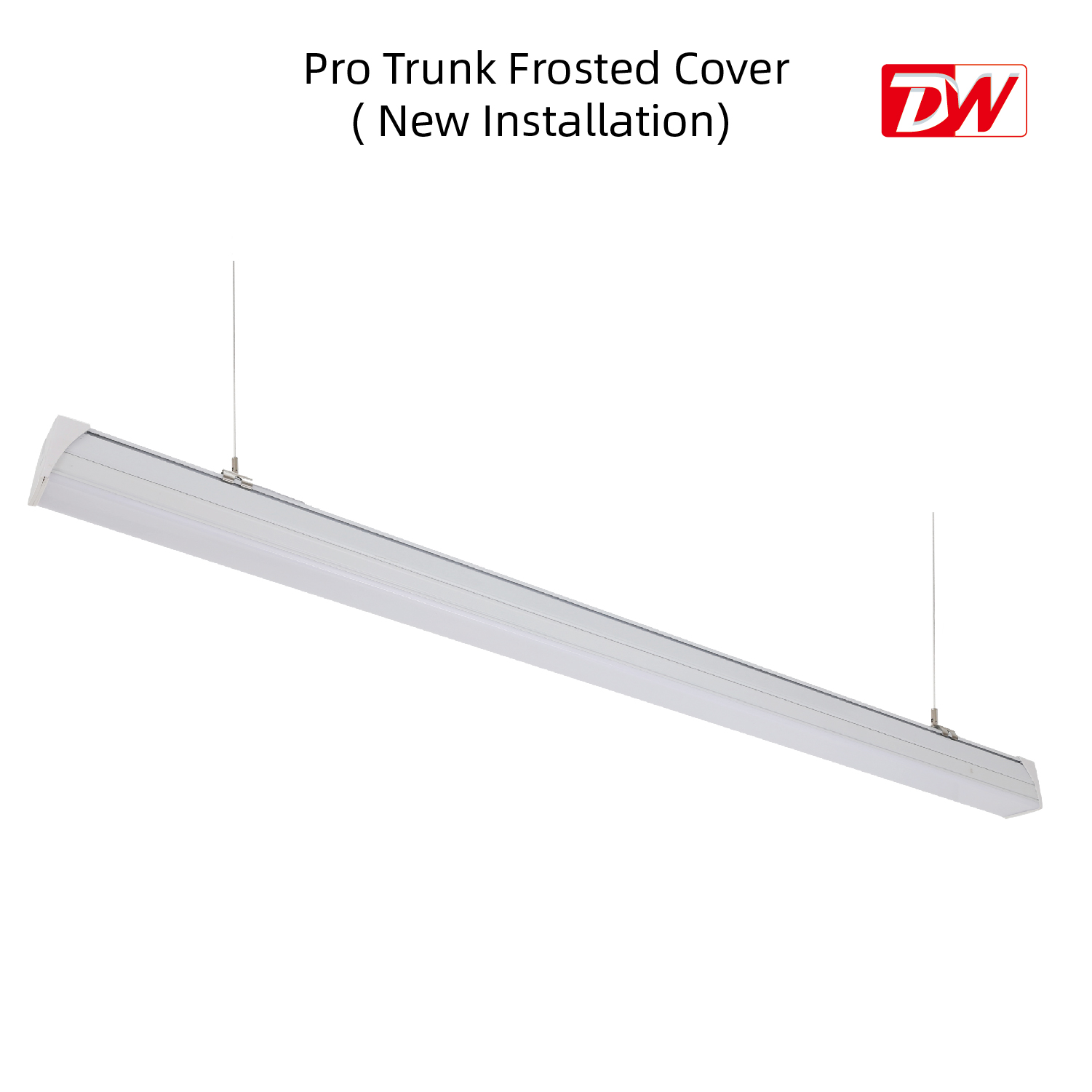

Pro Trunk Frosted Cover ( New Installation)

Thanks for choosing DW pro trunk for new installation version linear series. DW pro trunk for new installation linear ilight, which is easy and quick continous installation without any tools by the clips integrated inside. Different length of module anf rail is available. DW pro trunk version for new installation is a good choice for you.

◈ ADVANTAGE

Easy and quick continous installation without any tools by the clips integrated inside;

120lm/W , 145lm/W;

Frosted LED module cover;

1-10V dimming, Dali control optional;

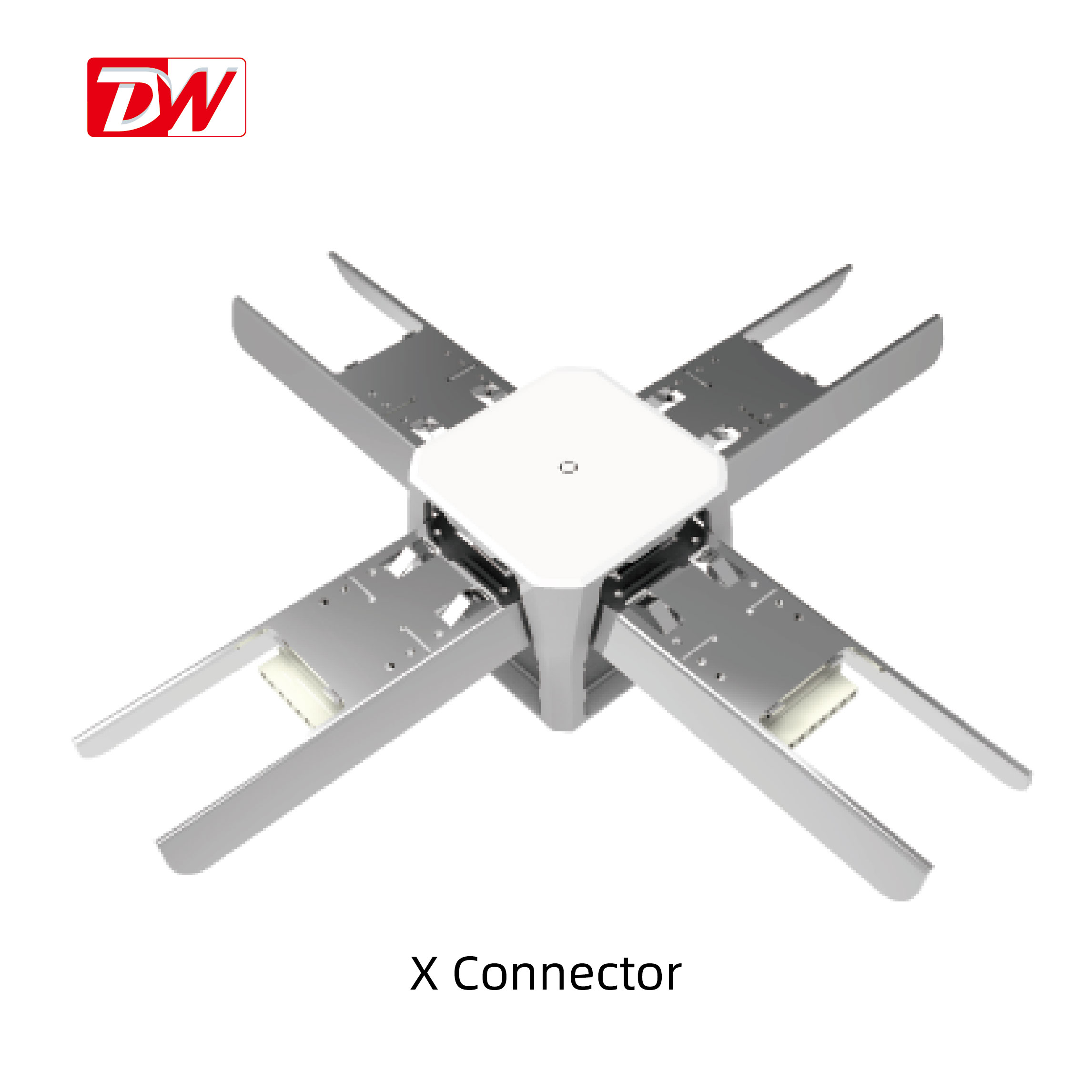

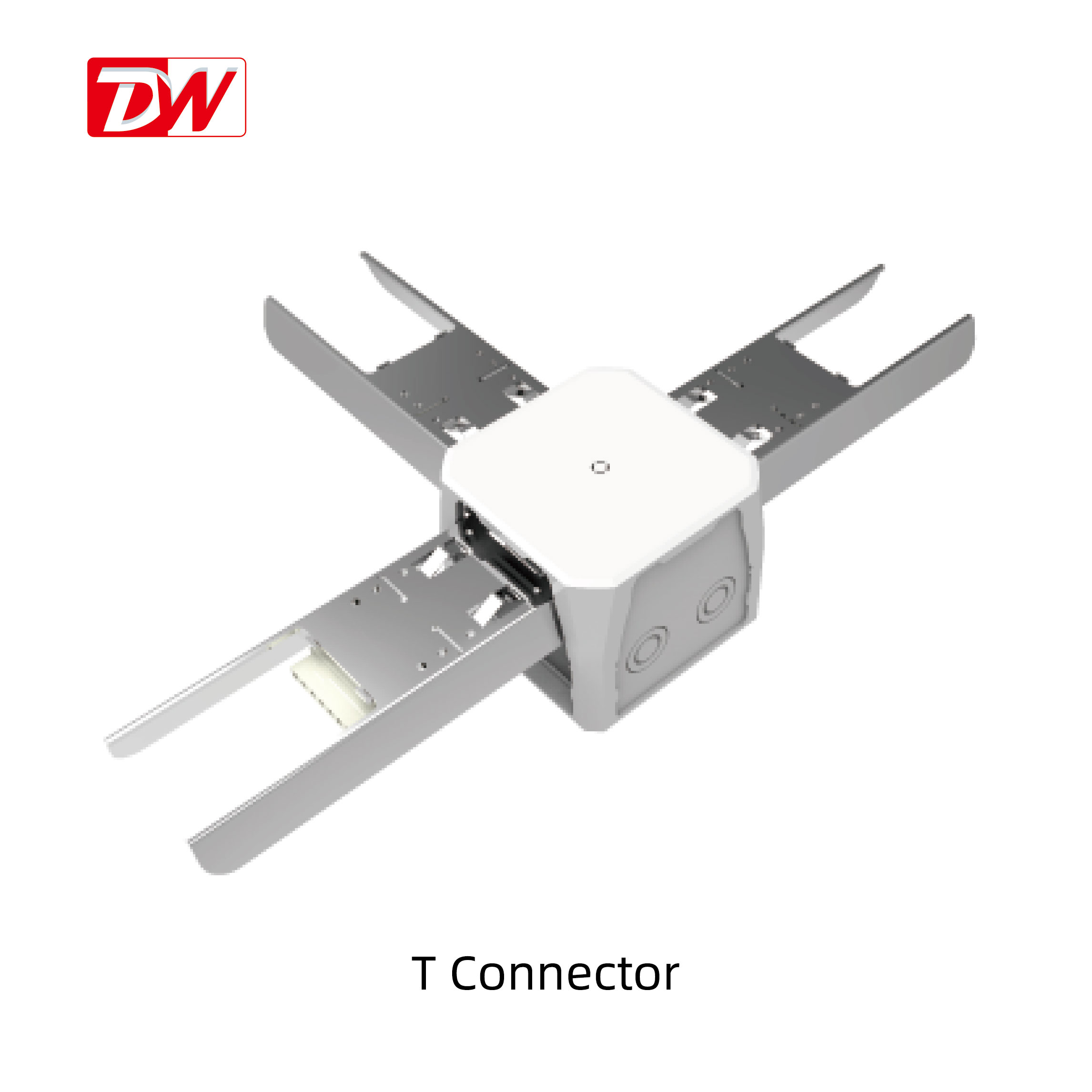

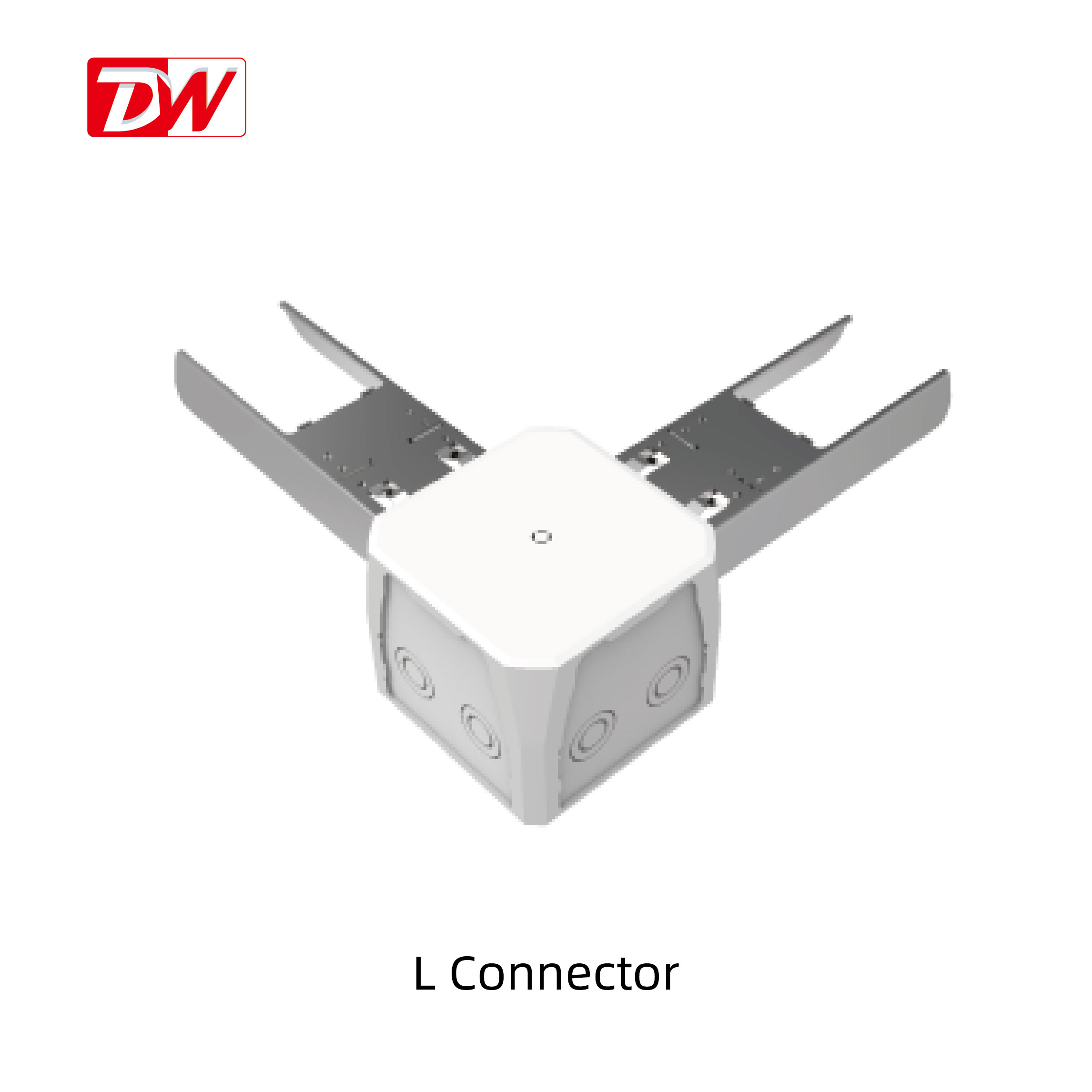

X,L,T shape Node connector available;

White coated aluminum housing and silver color optional; 􀀞􀀓Different length of module and rail is available;

Sensor functional optional;

◈ TECHNICAL DATA SHEET

Pro Trunk Frosted Cover Version for New Installation
Material	Aluminum profile+PMMA
Colour scheme	White coated aluminium housing/silver color
Installation type	Rotatory knob or holding clamp
Model	DWT535/ DWT535 XB	DWT560/ DWT560 XB	DWT570/ DWT570 XB
Dimensions( Length x Breadth x Height)	1436 x70 x72mm	1436 x70 x72mm	1436 x70 x72mm
Weight	Approx.2.8 kg	Approx.2.8 kg	Approx.2.8 kg
Protection type	IP40
Illuminant properties
Illuminant Type	LED-Moduls with Mid-Power-LEDs
Optical System	Wide,Narrow,wide,Flat and double Asymmetric light distribution
Luminous Flux	4990lm~5600lm	7700lm~8800lm		9800lm~11200lm
Luminous Output	140lm/w ~160lm/w
Colour Temperature	3,000K /4,000K / 5,000K /6,000K
Colour Rendering Index(Ra)	> 80
Dimming( Power control)	With / without DALI
Lifetime at (ta)30°	50,000 h
Electronic Properties
Power Rating	24W	40 W		40 W	60W
Protection class	SKI
Operating voltage	AC 180 - 240V (AC100-277V)
Frequency	50 / 60 Hz
Installation Requirements
Application areas	Halls,warehouses,manufacturing facilities,sales premises
Specific Installation	Rail- Light System
Installation height	3 to 20m
Permissible ambient temperature (ta) 30°	-25℃to +35℃
Other properties
Certification	CE / TUV / SAA
Connection with circuit breaker (B16)	200 Pcs	120 Pcs		100 Pcs	80 Pcs
Special features

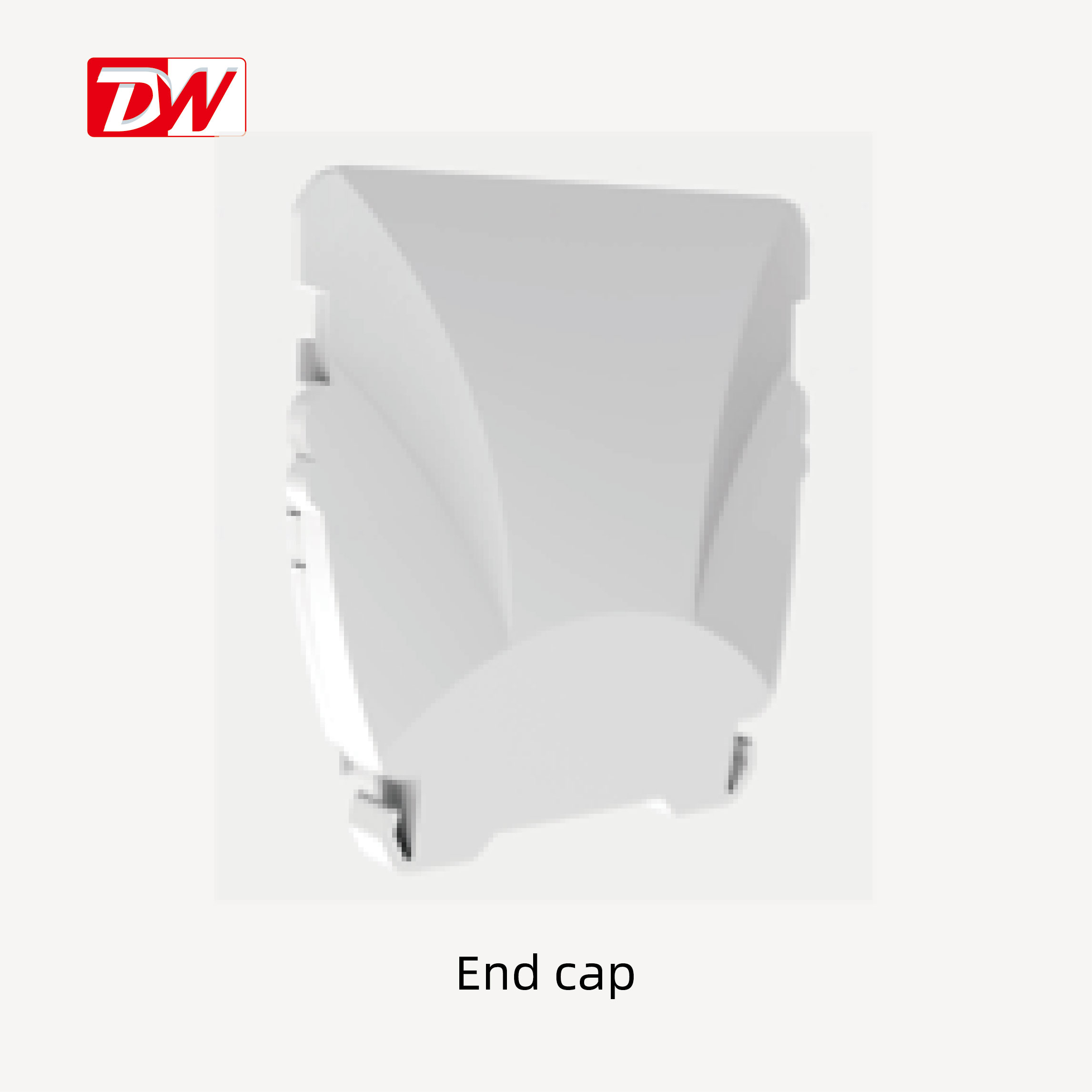

End cover	IP20

◈ SPECIFICATION

Efficiency	Model No.	Wattage	Luminous flux	CRI	LED	Dimension
140lm/W~160lm/W	DWTF535X	35W	4200lm	80Ra	SMD2835	1436X70X76mm
	DWTF535X	35W	4200lm	80Ra	SMD2835	1436X70X76mm
	DWTF560X	55W	6600lm	80Ra	SMD2835	1436X70X76mm
	DWTF570X	70W	8400lm	80Ra	SMD2835	1436X70X76mm
	DWTF535XB	35W	5100lm	80Ra	SMD2835	1436X70X76mm
	DWTF560XB	55W	8000lm	80Ra	SMD2835	1436X70X76mm
	DWTF570XB	70W	10000lm	80Ra	SMD2835	1436X70X76mm
