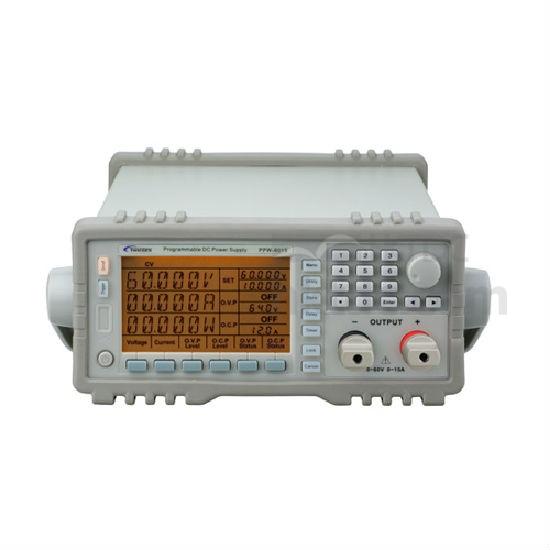

Programmable Switching DC Power Supply 20V/30A 30V/20A 60V/10A 80V/8A 15V/60A 20V/30A 60V/15A 80V/11

Model No.:

PPW-2030, PPW-3010, PPW-3020, PPW-6010, PPW-8008, PPW-1560, PPW-2045, PPW-3030, PPW- 6015, PPW-8011

Brand:

TWINTEX

Colour:

White

Port:

SHENZHEN

Type of Payment:

L/C, T/T

Minimum Order Quantity:

1 piece

Specific Features:

Benchtop Power Supply / Bench Power Supply, Programmable Power Supply

Package:

Yes

Customised:

Yes

Output Voltage:

15V, 20V, 30V, 60V

Output Power:

600W, 900W

Output Current:

8A, 10A, 11A, 15A, 20A, 30A, 60A

Description

Contact Supplier

High accuracy, high resolution
Over load, over voltage, over current, over temperature and reverse polarity protections
CV and CC operations, auto CV and CC switch
4.3-inch backlit Segment LCD display
High speed rotary dial and keypad input
Built-in beeper alarm
Panel lock and output ON/OFF function
List mode function, 100 sets save & recall for voltage, current and time setups, easy use in auto test
Displays load resistance, with low resistance measurement function
Remote sense function
Standard RS-232 interface, optional USB device interface
Optional 0-5V analog control interface
Supports SCPI commands, support Labview
