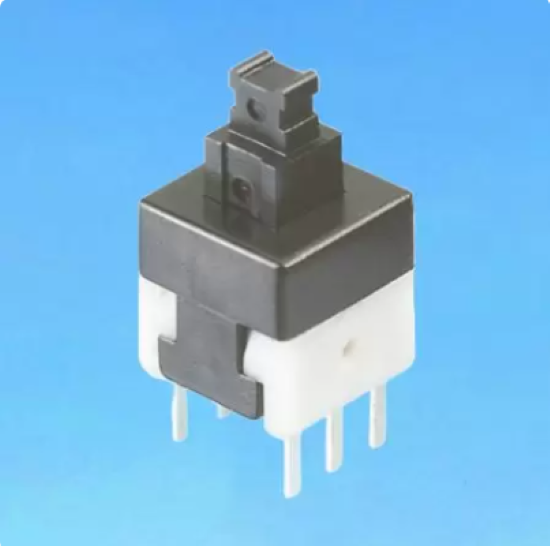

Push Switch 8.0 x.8.0

This pushbutton switch comes with dimension 8 x 8 mm has non-lock and lock with click sound models. This switch is perfect for Solar equipment, Electric bicycle and Vehicle electronics.

Features

• Click type, with lock and no lock
• Configuration: DPDT
• Rating: DC 30V 0.1A

Specification

• Insulation Resistance: >100mΩ DC250V
• With Voltage: AC250V 1 minute
• Contact Resistance: <50mΩ
• Soldering Temper: 250°C max. 3 sec
• Mechanical Life: 100,000 cycles
• Electrical Life: 10,000 cycles
• Ambient Temper. Used: -20°C to 65°C
• Ambient Humidity Used: <85% RH
• Operation Force: 160 ± 80g

•


• Application

  • Solar equipment
  • Electric Bicycle
  • Vehicle electronics
