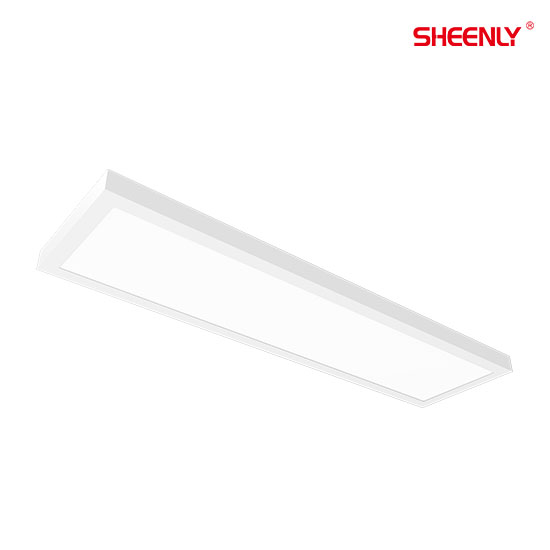

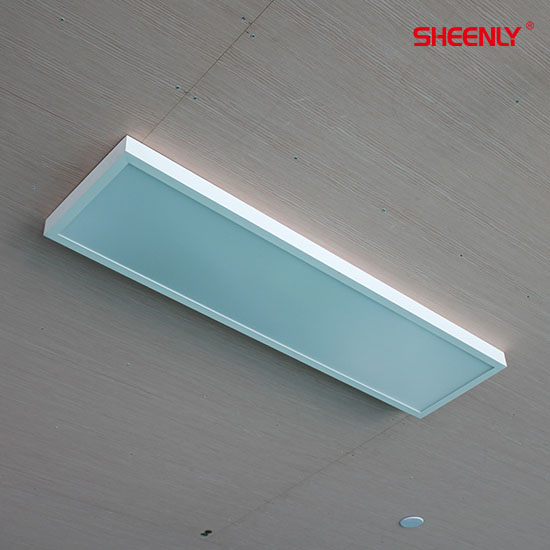

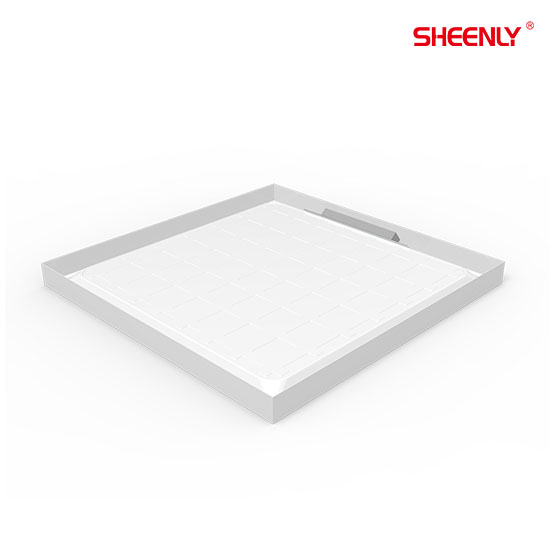

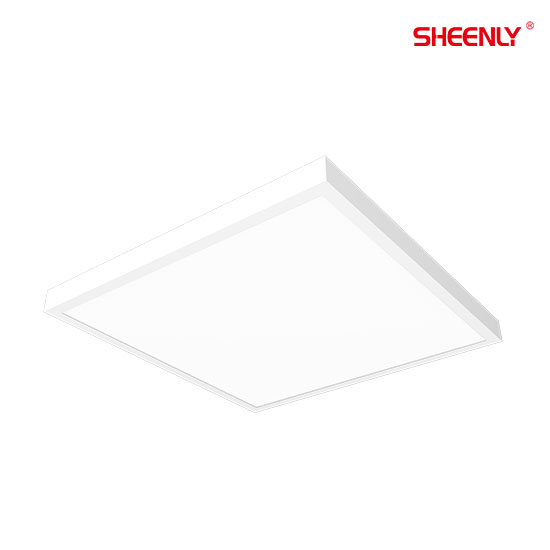

QUADRO REFIT/ECO Surface Mounted Luminaire
Production Lead Time:
30 day(s)
Brand:
sheenly
Size:
625x625x43mm, 325x1250x43mm, 325x1550x43mm
Customised:
Yes
Material:
extruded aluminum profile
Lighting Style:
Modern
Including Bulbs:
Yes
Description
Contact Supplier
Description
Tailor-made for refurbishment jobs for surface mounted luminaires. The innovative mounting mechanism, and special sizes facilitate fast change of luminaires from old to new, and cleverly cover the old paint mark left over by the old luminaires, best options for replacing or refurbishing old T5/T8 Louvre fixtures!
- Minimalist and timeless design
- Innovative installation mechanism to facilitate fast and secure installation
- Supports either Opal or Prismatic diffusors for different light distribution
- Variants are available in different sizes, suitable for ceiling, wall and pendent mount
- The new luminaire housing formation technology provides the possibility for size tailoring
- Robust and versatile for a wide range of applications, a rich list of customizing are optional
Product | Part Number | Power（W） | Color | Lumen Output | RA> | Beam | Dimension |
Quadro ECO Backlit Surface Mounted Luminaire | SL-PAN-35W-XW-S60-D | 35W | WW: 3000K | 4900 | 80 | 120° | 625*625*48 |
SL-PAN-35W-XW-S312-E | 35W | 4900 | 325*1225*48 | ||||
SL-PAN-40W-XW-S315-E | 40W | 6000 | 325*1525*48 | ||||
Quadro ECO Backlit Surface Mounted Luminaire | SL-PAN-35W-XW-S60-D-S | 35W | WW: 3000K | 4900 | 80 | 120° | 625*625*48 |
SL-PAN-35W-XW-S312-E-S | 35W | 4900 | 325*1225*48 | ||||
SL-PAN-40W-XW-S315-E-S | 40W | 6000 | 325*1525*48 |
Product | Part Number | Power（W） | Color | Lumen Output | RA> | Beam | Dimension |
Quadro Refit Surface Mounted Luminaire | SL-PAN-35W-XW-S60-R | 35W | WW: 3000K | 4400 | 80 | 90° | 625*625*43 |
SL-PAN-40W-XW-S312-R | 40W | 5000 | 325*1250*43 | ||||
SL-PAN-50W-XW-S315-R | 50W | 6250 | 325*1550*43 | ||||
Quadro Refit Surface Mounted Luminaire | SL-PAN-35W-XW-S60-SI | 35W | WW: 3000K | 4400 | 80 | 90° | 625*625*43 |
SL-PAN-40W-XW-S312-SI | 40W | 5000 | 325*1250*43 | ||||
SL-PAN-50W-XW-S315-SI | 50W | 6250 | 325*1550*43 |
