QUADRO UD up down Luminaires
Production Lead Time:
30 day(s)
Brand:
sheenly
Feature:
Halo Effect 10%Up 90% Down
Material:
Aluminum housing
Is Dimmable:
Yes
Customised:
Yes
Lighting Style:
Modern
Size:
305*305*78/405*405*78/605*605*78/805*805*78/305*1205*78/305*1505*78 mm
Description
Contact Supplier
Description

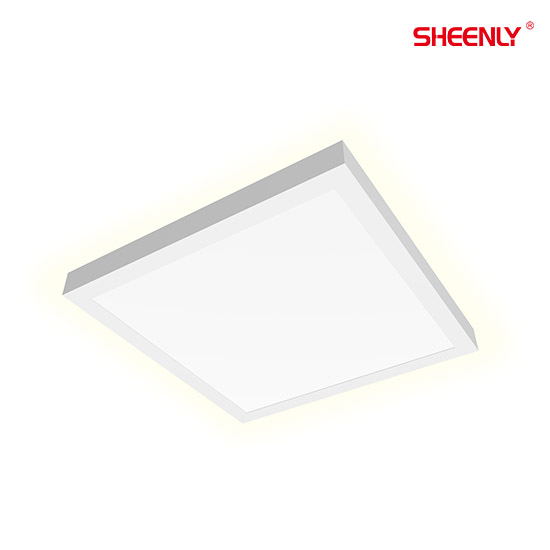

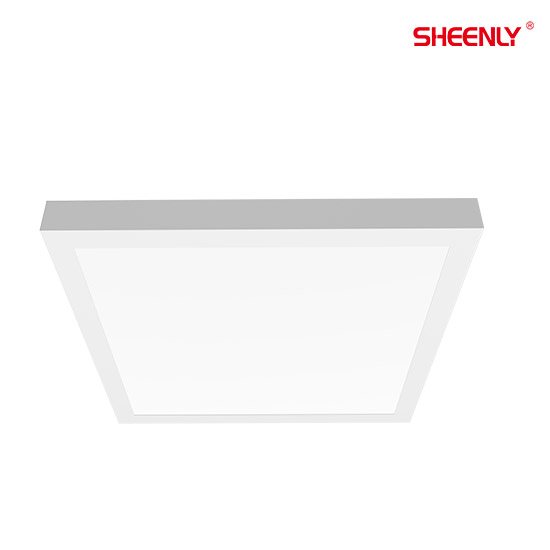

Quadro UD Evolvement from the Quadro family, Quadro UD is able to fulfill surface, pendent and wall mounted applications. The Quadro UD has a timelessly trendy appearance, and delivers intense touch of build quality.

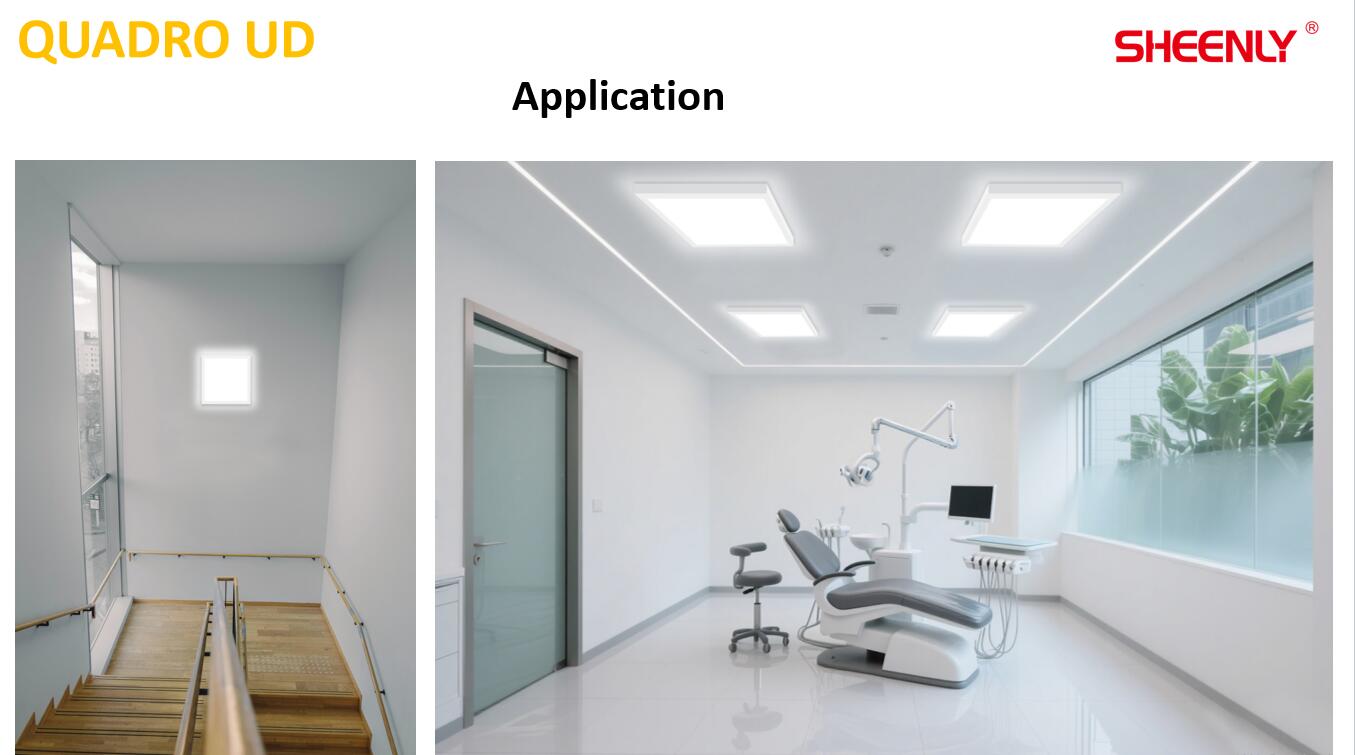

Quadro UD illuminates the front side as well as the back side by creating the so called Halo Effect. This feature can instantly enhance the vibe of any space. It provides outstanding homogeneity on the lighting surface, and further more thanks to the latest engineered optics for low glare, the Quadro UD is fit for core office areas, as well as all other public open spaces such as administration, shops, restaurant and so on.
Main Features:
- Stunning Design: A memorable, timeless aesthetic with an ultra-slim profile.
- Superior Visual Comfort: UGR <19 and market-leading uniformity

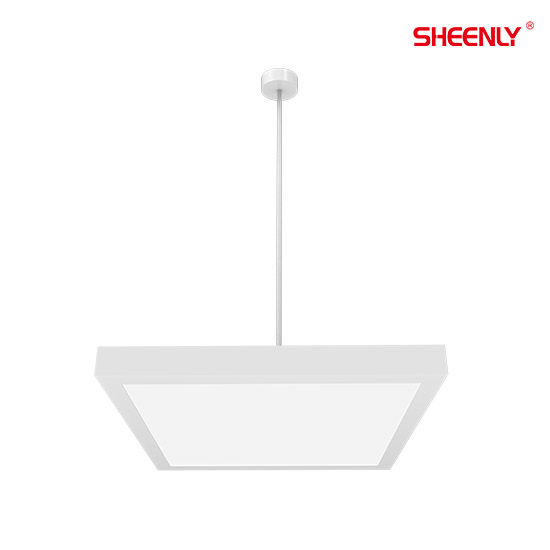

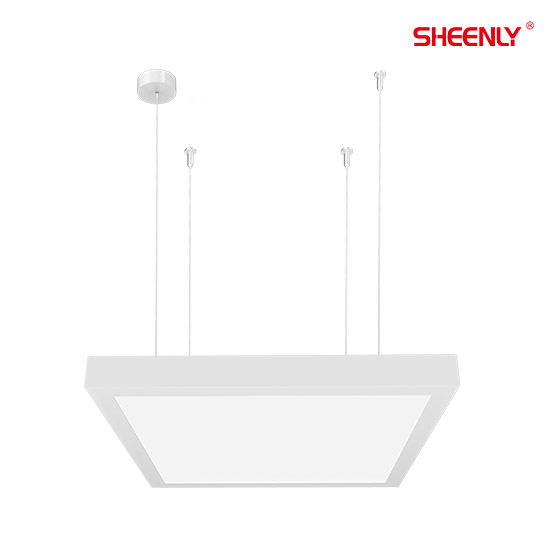

- Unlimited Application: Multiple installation methods: surface, pendant, wall, or pole mount.
- Effortless Installation & Service: Designed for quick, one-person operation.
- Fully Integrated Smart Control: Built-in sensor, DALI, and switchable options with independent front/back gear control.
- Cohesive System: Available in multiple dimensions and pairs perfectly with the RONDO and QUADRO families for a unified solution.
Product | Part Number | Power（W） | Color | Lumen Output (lm) | RA> | Beam | Dimension [mm] |
Quadro UD Square Surface Mounted Luminaire 15%Up 85% Down | SL-PAN-18W-XW-AE | UP: 4-8W | WW: 3000K NW: 4000K DW: 5000K PW: 5700K | UP: 200-400lm | 80 | 90° | 305*305*78 |
SL-PAN-25W-XW-BE | UP:6-12W | UP: 360-720lm | 405*405*78 | ||||
SL-PAN-35W-XW-DE | UP:12-18W | UP:720-1080lm | 605*605*78 | ||||
SL-PAN-50W-XW-XE | UP: 16-30W | UP:1200-2100lm | 605*605*78 | ||||
SL-PAN-100W-XW-YE | UP: 28-40W | UP:2200-3200lm | 805*805*78 | ||||
SL-PAN-35W-XW-BM | UP:12-18W | UP:720-1080lm | 305*1205*78 | ||||
SL-PAN-42W-XW-CM | UP:12-18W | UP:720-1080lm | 305*1505*78 |
Product | Part Number | Power（W） | Color | Lumen Output (lm) | RA> | Beam | Dimension [mm] |
Quadro UD Square Surface Mounted Luminaire 15%Up 85% Down CCT Switchable | SL-PAN-18W-XW-AE-S | UP: 4-8W | CCT Switchable | UP: 200-400lm | 80 | 90° | 305*305*78 |
SL-PAN-25W-XW-BE-S | UP:6-12W | UP: 360-720lm | 405*405*78 | ||||
SL-PAN-35W-XW-DE-S | UP:12-18W | UP:720-1080lm | 605*605*78 | ||||
SL-PAN-50W-XW-XE-S | UP: 16-30W | UP:1200-2100lm | 605*605*78 | ||||
SL-PAN-100W-XW-YE-S | UP: 28-40W | UP:2200-3200lm | 805*805*78 | ||||
SL-PAN-35W-XW-BM-S | UP:12-18W | UP:720-1080lm | 305*1205*78 | ||||
SL-PAN-42W-XW-CM-S | UP:12-18W | UP:720-1080lm | 305*1505*78 |
