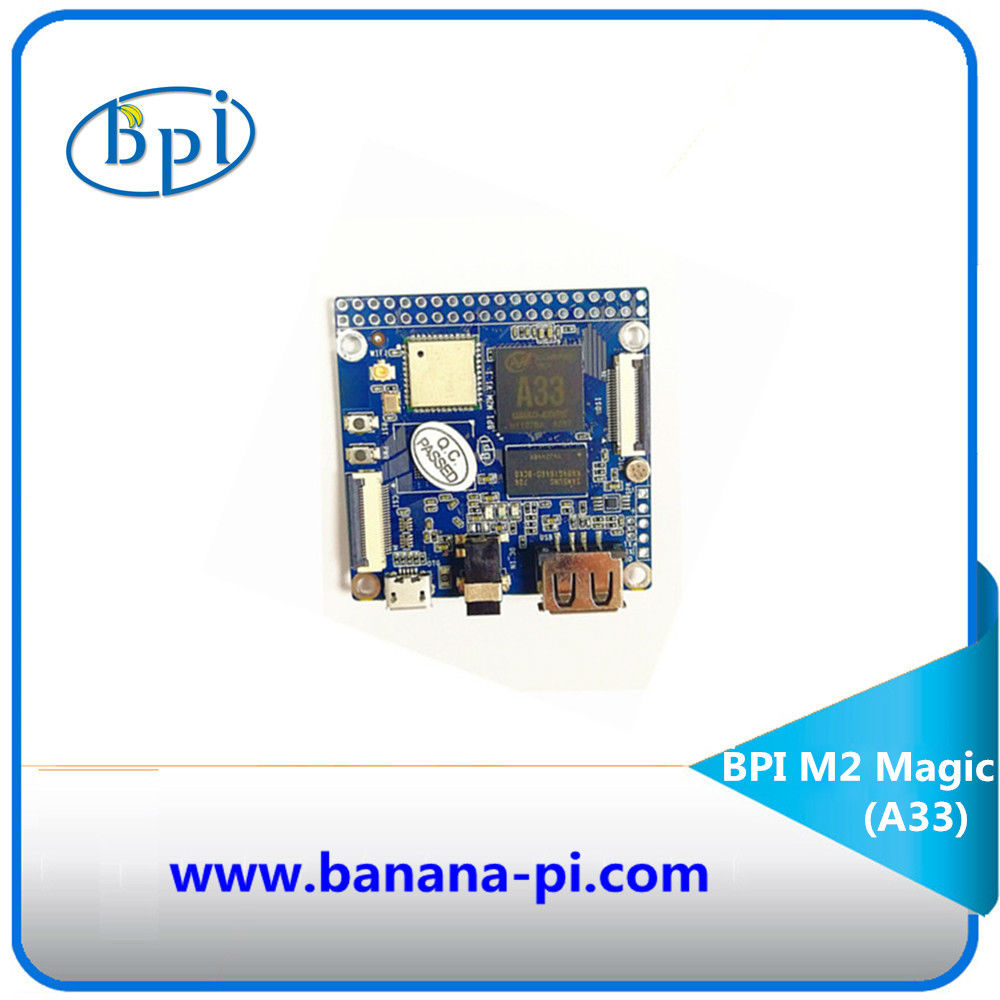

Quad Core Banana Pi M2 magic with A33 chip development board

Production Lead Time:

1 - 30 day(s)

Model No.:

BPI-M2M

Brand:

Sinovoip

Size:

51mm×51mm

Port:

Shenzhen, China

Type of Payment:

PayPal, T/T, Western Union

Minimum Order Quantity:

Place of Origin:

Mainland China

Operating Temperature:

-15℃ to 65℃

Package:

Yes

Customised:

Yes

Supply Voltage:

Description

Contact Supplier

Quad Core Banana Pi M2 magic with A33 chip development board
M2M Specifications

CPU Allwinner A33,Quad-code ARM Cortex-A7，also support R16 design
GPU Mali 400 MP2
Memory 512MB DDR3 (shared with GPU)
Storage Support MicroSD (TF) card, eMMC 8G optional (option：16/32/64G)
WiFi Wifi 802.11 b/g/n 2.4GHz (AP6212)
Bluetooth BT4.0 (AP6212)
Video In CSI
Video Out MIPI Display Serial Interface (DSI) interface(4 data lanes)
Audio Out 3.5 mm Jack
Audio In On board microphone
Power Source 5V 2A DC port
USB Ports 1x USB 2.0 host, 1x USB 2.0 OTG
Buttons Reset button, Power button
GPIO 40 Pins Header, 28×GPIO, some of which can be used for specific functions including UART, I2C, SPI, PWM.
LED Red, Green, Blue
OS Android and Linux etc.OS
Dimensions 51 mm × 51mm
Weight 40g
