Quartz Crystal
Production Lead Time:
5 day(s)
Model No.:
HC-49S
Brand:
JFR
Colour:
Silver
Size:
L11.4 x W4.8 x H3.5 mm
Port:
Yantian, Shenzhen
Type of Payment:
T/T, PayPal, L/C, Western Union
Minimum Order Quantity:
1,000 piece(s)
Package:
Yes
Customised:
Yes
Description
Contact Supplier
Description

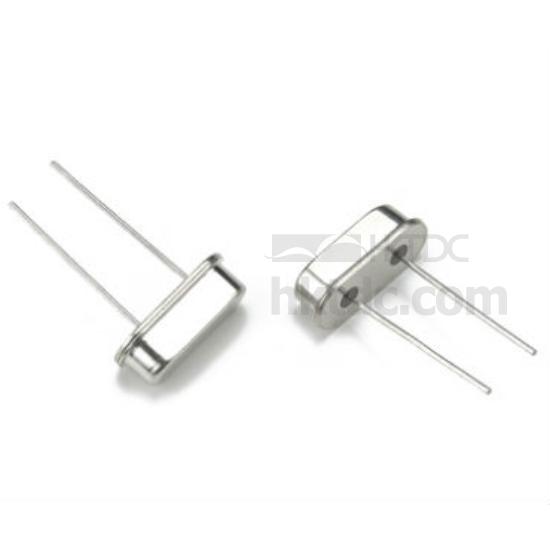

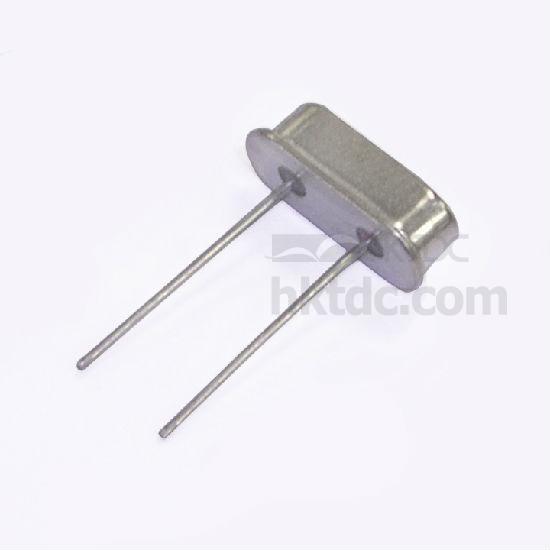

JFR Quartz Crystal Model HC-49S Specification
Feature
Standard height 3.5mm, the part is compact at about
one-fourth of the HC-49/U package
A resistance weld completely sealed type
Good stability and high reliability
Copes with high density mounting and is the optimum
for mass production
Specifications
Frequency range:3.000MHz to 100.000MHz
Frequency tolerance:±30PPM at 25±2℃ (Typical), or specify
Operating temperature range:-20℃--+70℃ (Typical), -10℃ ~ +60℃,-40℃ ~ +85℃, or specify
Storage temperature range:-40℃--+85℃
Aging(25℃):±3ppm/year
Load capacitance(CL):Series, 16pF, 20pF, 30pF, or specify
Insulation resistance:More than 500MΩ AT DC100V
Feature
Standard height 3.5mm, the part is compact at about
one-fourth of the HC-49/U package
A resistance weld completely sealed type
Good stability and high reliability
Copes with high density mounting and is the optimum
for mass production
Specifications
Frequency range:3.000MHz to 100.000MHz
Frequency tolerance:±30PPM at 25±2℃ (Typical), or specify
Operating temperature range:-20℃--+70℃ (Typical), -10℃ ~ +60℃,-40℃ ~ +85℃, or specify
Storage temperature range:-40℃--+85℃
Aging(25℃):±3ppm/year
Load capacitance(CL):Series, 16pF, 20pF, 30pF, or specify
Insulation resistance:More than 500MΩ AT DC100V
