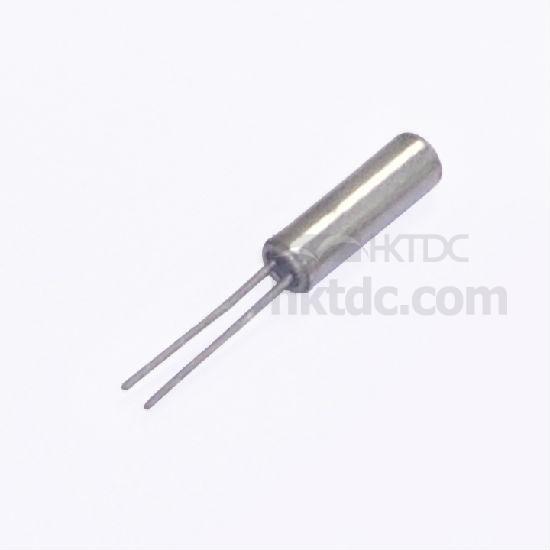

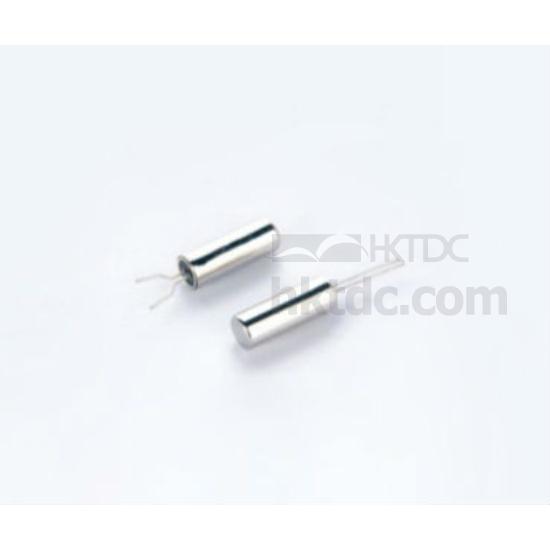

Quartz Crystal
Production Lead Time:
5 day(s)
Model No.:
2 X 6 mm Tuning Fork
Brand:
JFR
Colour:
Silver
Size:
6.3 X ΦO2.1 mm
Port:
Yantian, Shenzhen
Type of Payment:
T/T, L/C, Paypal, Western Union
Minimum Order Quantity:
1,000 piece(s)
Package:
Yes
Customised:
Yes
Frequency Tolerance:
±10ppm
Operating Temperature:
-10℃- +60℃
Nominal Frequency:
30KHZ to 200KHZ
Load Capacitance:
6.0PF ~ 12.5PF
Description
Contact Supplier
Description
Features
1.Wide frequency range
2.High shock tolerance.
Small size
4.Reliable frequency stability
5.Pb-free and RoHS/green compliant
Specifications
Frequency range:30KHZ to 200KHZ
Frequency tolerance:±10ppm to Maximum
Q-factor:50000 maximum
Operating temperature range:-10℃- +60℃
Storage temperatuere range:-40℃- +85℃
Aging(25℃):±5ppm/year maximum
Shunt capaliance:1.0PF typical;2.0PF maximum
Drive level:1uW typical
Insulation resistance（Rs）：500Megao hms Minimum at D.C100
Load capacitance(CL):suggested by customers
1.Wide frequency range
2.High shock tolerance.
Small size
4.Reliable frequency stability
5.Pb-free and RoHS/green compliant
Specifications
Frequency range:30KHZ to 200KHZ
Frequency tolerance:±10ppm to Maximum
Q-factor:50000 maximum
Operating temperature range:-10℃- +60℃
Storage temperatuere range:-40℃- +85℃
Aging(25℃):±5ppm/year maximum
Shunt capaliance:1.0PF typical;2.0PF maximum
Drive level:1uW typical
Insulation resistance（Rs）：500Megao hms Minimum at D.C100
Load capacitance(CL):suggested by customers
