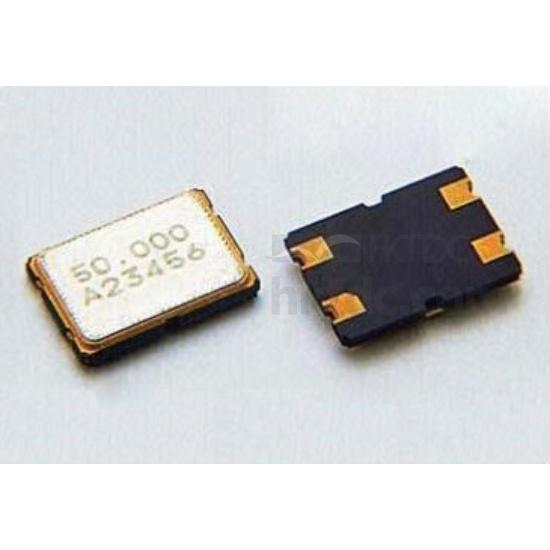

Quartz Crystal
Production Lead Time:
5 day(s)
Model No.:

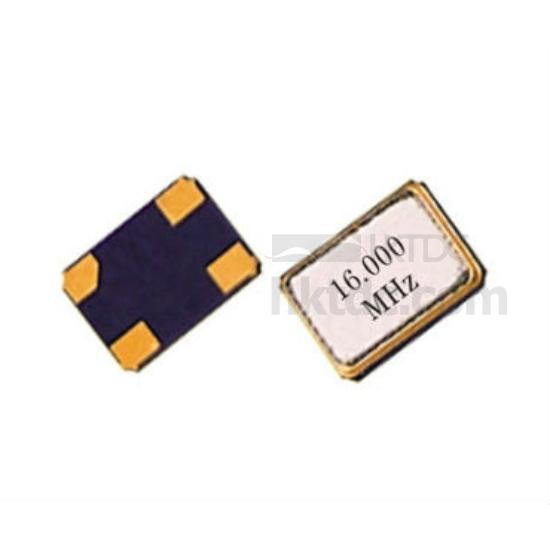

SMD 3225 Crystal
Brand:
JFR
Colour:
Black + Yellow
Size:
3.2 X 2.5 X 1.0 mm
Port:
Yantian, Shenzhen
Type of Payment:
T/T, L/C, Paypal, Western Union
Minimum Order Quantity:
1,000 piece(s)
Package:
Yes
Customised:
Yes
Installation Type:
Surface Mount
Frequency Tolerance:
±30ppm
Operating Temperature:
-10℃- +60℃
Nominal Frequency:
1MHz to 106.25MHz
Supply Voltage:
3.3V (1.8V, 2.5V)
Load Capacitance:
20 PF
Description
Contact Supplier
Description
Feature
Uitra thin,thickness 1.0mm
Leadiess. type
High precision characteristic covering up high frequency range.
Automatic mounting
Emboss taping specification.
Suitable for reflow soldering
Available on tape and reel ,1000pcs per reel
Specifications
Frequency range:12MHz to 48MHz
Frequency tolerance:±30ppm
Operating temperature range:-10 °C to + 60 °C
Storage temperatuere range:-40 °C to +85 °C
Aging(25℃):±3ppm/year
Shunt capaliance:5.0 pF Max
Drive level:10μW
Load capacitance(CL):20pF
Uitra thin,thickness 1.0mm
Leadiess. type
High precision characteristic covering up high frequency range.
Automatic mounting
Emboss taping specification.
Suitable for reflow soldering
Available on tape and reel ,1000pcs per reel
Specifications
Frequency range:12MHz to 48MHz
Frequency tolerance:±30ppm
Operating temperature range:-10 °C to + 60 °C
Storage temperatuere range:-40 °C to +85 °C
Aging(25℃):±3ppm/year
Shunt capaliance:5.0 pF Max
Drive level:10μW
Load capacitance(CL):20pF
