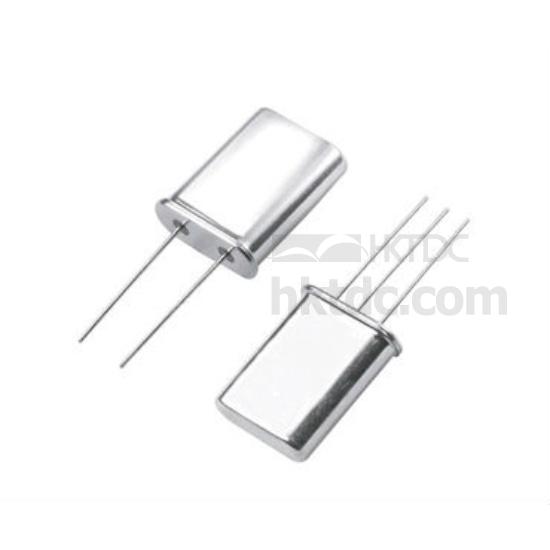

Quartz Crystal
Production Lead Time:
5 day(s)
Model No.:
HC-49U
Brand:
JFR
Colour:
Silver

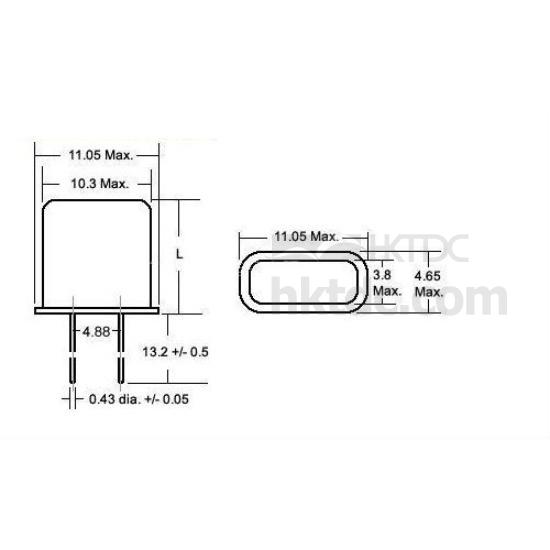

Size:
13.2 X 11.5 mm
Port:
Yantian, Shenzhen
Type of Payment:
T/T, L/C, Paypal, Western Union
Minimum Order Quantity:
1000
Package:
Yes
Customised:
Yes
Frequency Tolerance:
+/- 10 PPM
Operating Temperature:
-40℃- +85℃
Nominal Frequency:
1.84320 to 100MHZ
Supply Voltage:
3.3V (1.8V, 2.5V)
Load Capacitance:
6.0PF ~ 12.5PF
Description
Contact Supplier
Description
Feature
1.The tight frequency stability
2.Resistance weld completely sealed type
3.Resistance weld sealed
4.low cost
5.Versatile
6.Pb-free and RoHS/green compliant
Specifications
1.The tight frequency stability
2.Resistance weld completely sealed type
3.Resistance weld sealed
4.low cost
5.Versatile
6.Pb-free and RoHS/green compliant
Specifications
- Frequency range:1.84320 to 100MHZ
- Frequency tolerance:±10ppm to ±100ppm
- Frequency drift:±10ppm to ±100ppm
- Operating temperature range:-10℃- +60℃ to -40℃- +85℃
- Storage temperatuere range:-40℃- +85℃ / -85℃- +125℃
- Aging(25℃):±5ppm/year maximum
- Shunt capaliance:7pF maximum
- Drive level:100uW typical
- Insulation resistance（Rs): 500Megao hms Minimum at D.C100
- Load capacitance(CL):suggested by customers
