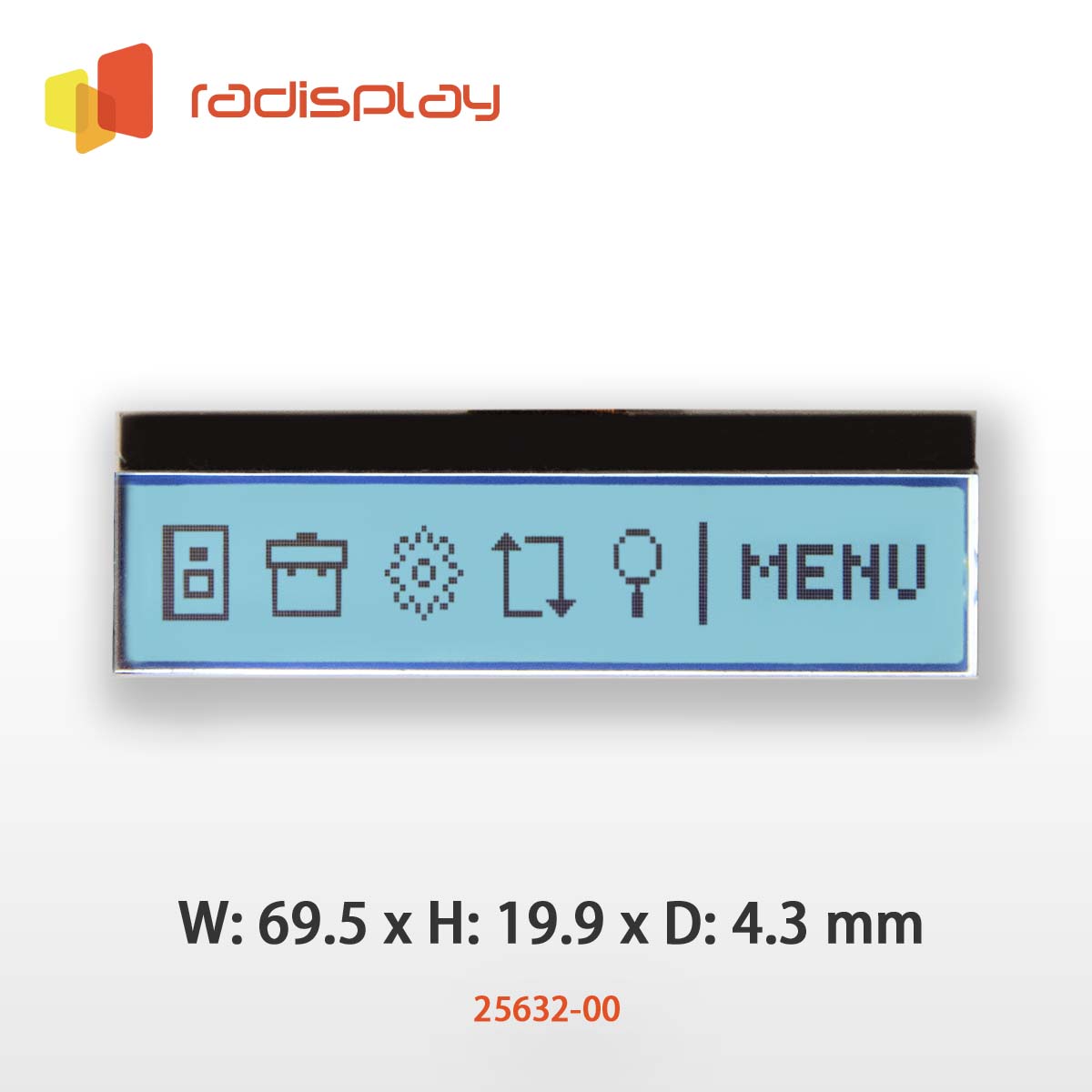

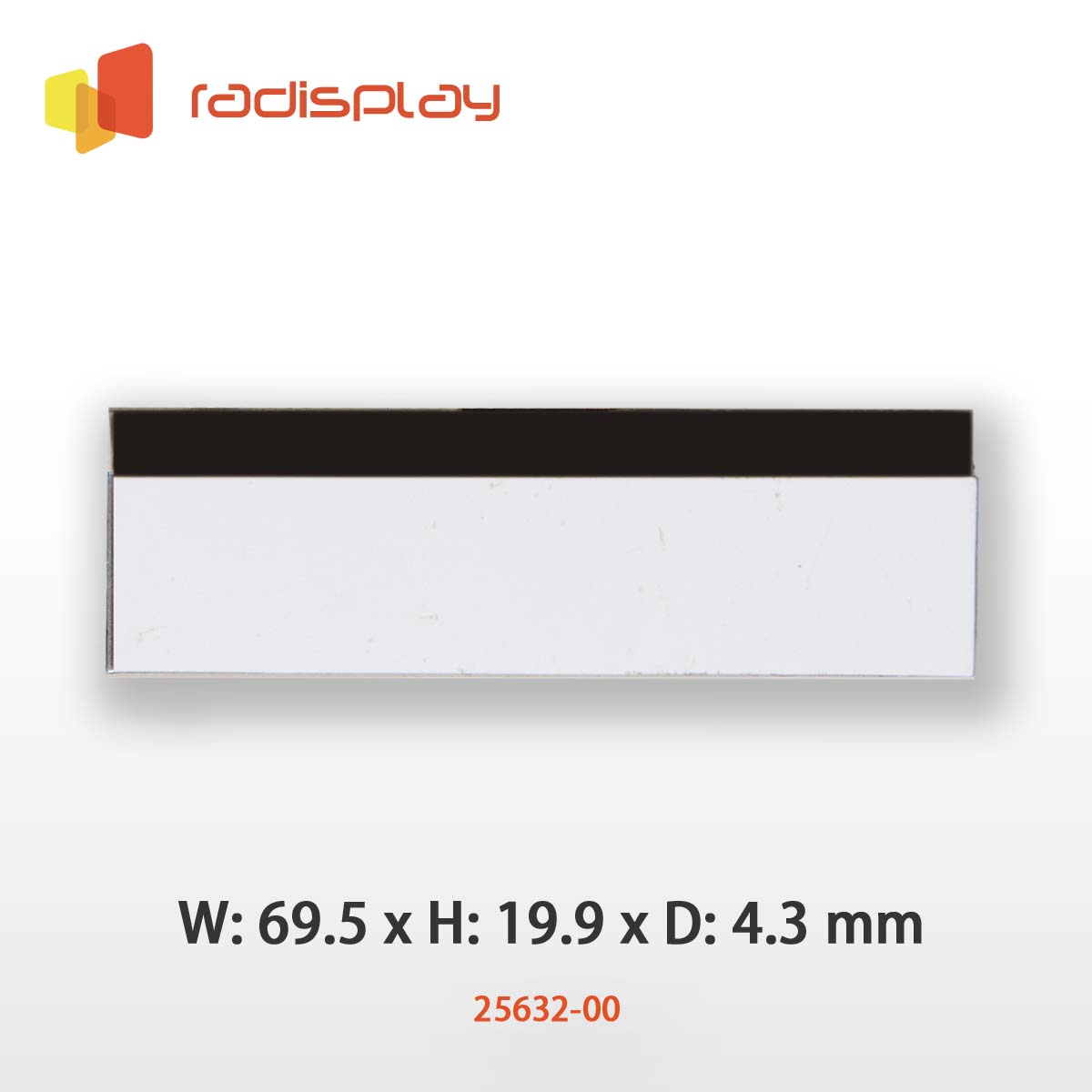

RC25632-00 256x32 Graphic LCD (Chip on Glass)
US $1.00 - US $10.00
Production Lead Time:
30 day(s)
Shipping Method:
FOB Shenzhen HongKong
Brand:
Radisplay
Customised:
Yes
Module size :
69.5 x 19.9 x 4.3 mm
Viewing area:
62.0 x 12.0 mm
Operating temperature:
-20 - 60 ℃
Description
Contact Supplier
Description
RC25632-00 is a 256x32 Graphic LCD display with compact size & easy application .
A wide range of options are available for this model, including:
- Different display color options including Black on yellow, Black on white, White on blue
- Different Backlight colors options available including no backlight
- Different Temperature (Including Extended high temperature)
In addition, a wide range of customized options are available including different backlight structures, different FPC shapes,

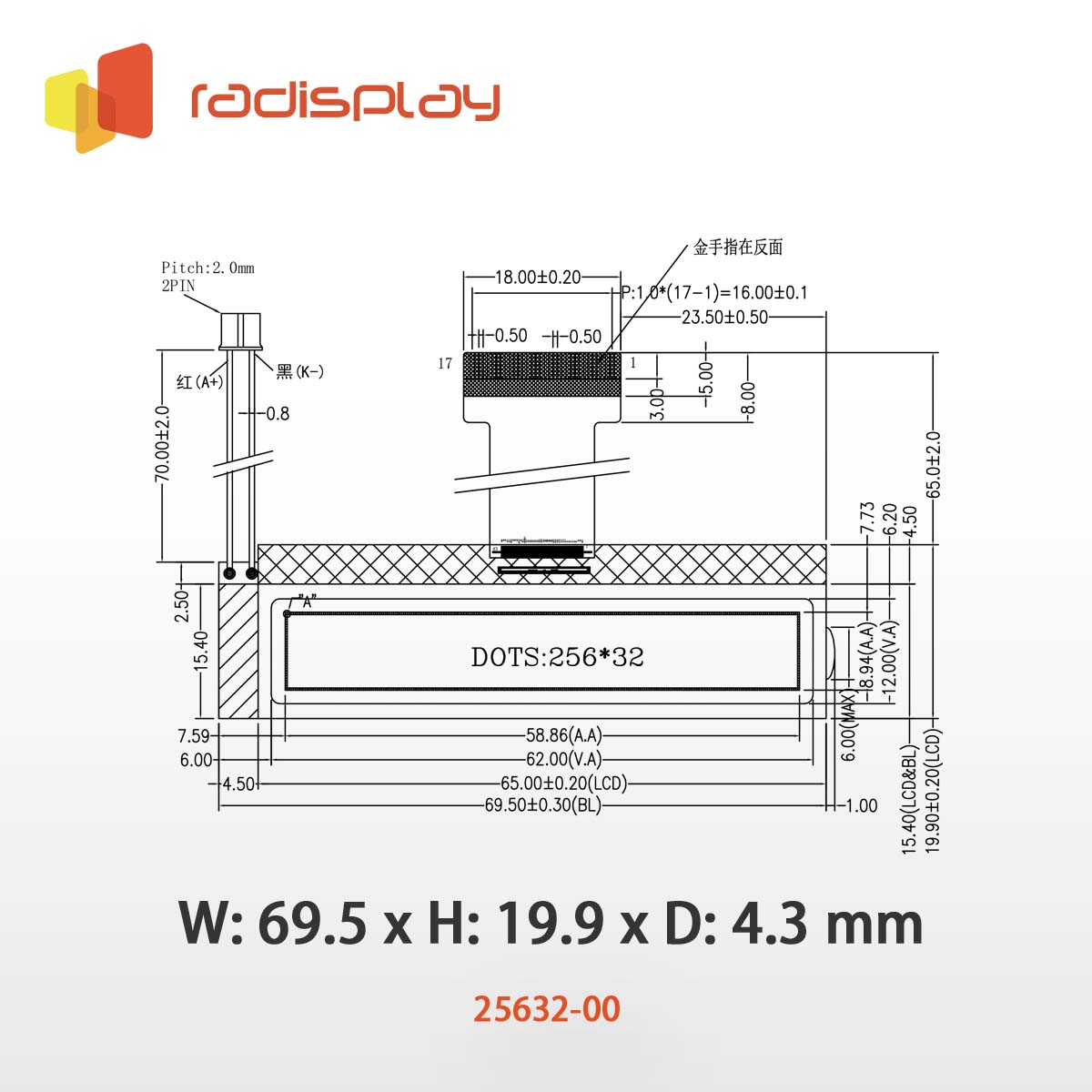

TECHNICAL SPECS (Table) | Module size （W x H x D） | 69.5 x 19.9 x 4.3 mm |
Viewing area （W x H) | 62.0 x 12.0 mm | |
Dot size (W x H) | 0.21 x 0.26 mm | |
Dot pitch (W x H) | 0.23 x 0.28 mm | |
Interface | 4 wire SPI Serial Interface | |
Driver condition | 1/162 Duty , 1/12 Bias | |
Driver IC | ST75256 | |
Operating temperature | -20 - 60 ℃ |
