RCD BS Switch
Production Lead Time:
45 day(s)
Model No.:
BKZ0230SPW
Brand:
Baokezhen / BKZ
Colour:
White
Size:
146 x 86mm
Port:
Hong Kong, Shenzhen
Type of Payment:
T/T, L/C, PayPal
Minimum Order Quantity:
1,000 piece(s)
Description
Contact Supplier
Description

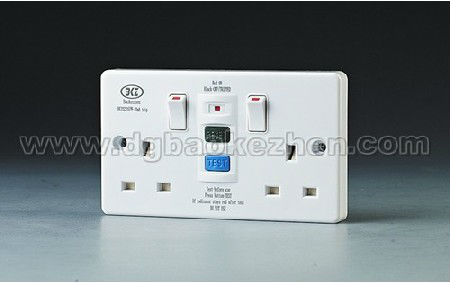

- BKZ0230SPW RCD BS switch, RCD UK switch, RCD British switch.
- Type: latching RCD-passive RCD, double pole.
- The RCD wall socket offers reliable performance over years.
- The insulated housing ensures high safety.
- This RCD wall socket is suitable for various electrical applications.
- Rated voltage: 230V, 50Hz.
- Rated current: 13A.
- Trip current: 30mA.
- Minimum back box depth: 35mm.
- CE, BS7288 and BS1363 certified.
- BS standard.
- Latching RCD (sometimes called passive) – when the power is lost due to an earth fault, the RCD trips out and isolates the circuit it is protecting. Latching RCD’s do not trip during power cuts so they are great for fridges and freezers and also for protecting remote/unmanned areas.
- This would also make them ideal for protecting some heating equipment set to “frost protection”, fish tanks, battery charging, and the protection of remote or unmanned areas.
- RCDs work on the principle "what goes in must come out". They operate by continuously comparing the current flow in both the active (supply) and neutral (return) conductors of an electrical circuit. If the current flow becomes sufficiently unbalanced, some of the current in the active conductor is not returning through the neutral conductor and is leaking to earth.
- Hand held electric power tools, such as drills, saws and similar equipment.
- Tools such as jack-hammers, electric lawn mowers.
- Equipment on construction sites.
- Equipment such as appliances which move while in operation, such as vacuum cleaners and floor polishers.
- Appliances in wet areas such as kitchens, including kettles, jugs, frying pans, portable urns, food mixers/blenders.
- Hand held appliances such as hair dryers, curling wands, electric knives, etc.
- Cord extension leads.
