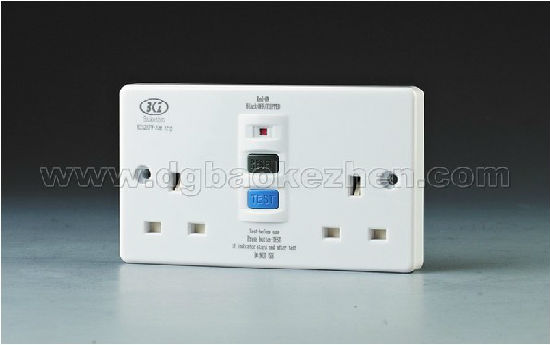

RCD Double Power Socket
Share this page
Production Lead Time:
45 day(s)
Model No.:
BKZ-0230PW
Brand:
Baokezhen / BKZ
Colour:
White
Size:
146 x 86mm
Port:
Shenzhen, Hong Kong
Type of Payment:
T/T, L/C, PayPal
Minimum Order Quantity:
1,000 piece(s)
Package:
Yes
Description
Contact Supplier
Description
This power socket comes with two outlets in one box. It features a rugged construction and incorporates an integrated RCD system which is designed to provide your appliances with ground fault protection. This wall socket makes a safe power option ideal for hand-held electrical appliances and other equipment which moves while in operation.
  • Body material: PC.
  • Double outlets with safety buttons and status light indicator.
  • Rated voltage: 240V-50Hz.
  • Current rating: 13A max.
  • Rated trip current: 30mA.
  • Trip speed: less than 40ms.
  • Type: latching RCD-passive RCD, double pole.
  • Minimum back box depth: 35mm.
  • Standard: CE BS7288, BS1363.
  • Applications: fish tank, battery charger, drill, saw, jack-hammer, electric lawn mower, vacuum cleaner, fridge, freezer, extension lead, hair dryer, kitchen appliances, hand-held electrical appliances and equipment that moves while in operation.
  • Suitable for domestic, commercial and industrial use.
How latching RCDs work:
When the power is lost due to an earth fault, the RCD trips out and isolates the circuit it is protecting. It continuously compares the current flow in both the active (supply) and neutral (return) conductors of the circuit. When the current flow becomes unbalanced, some of the current in the active conductor leaks to earth without returning through the neutral conductor.
