RCD Wall Socket
Production Lead Time:
30 day(s)
Model No.:
BKZ0230SPW
Brand:
Baokezhen / BKZ
Colour:
White
Size:
146 x 86mm
Port:
Hong Kong, Shenzhen
Type of Payment:
T/T, L/C
Minimum Order Quantity:
1,000 pc(s)
Description
Contact Supplier
Description

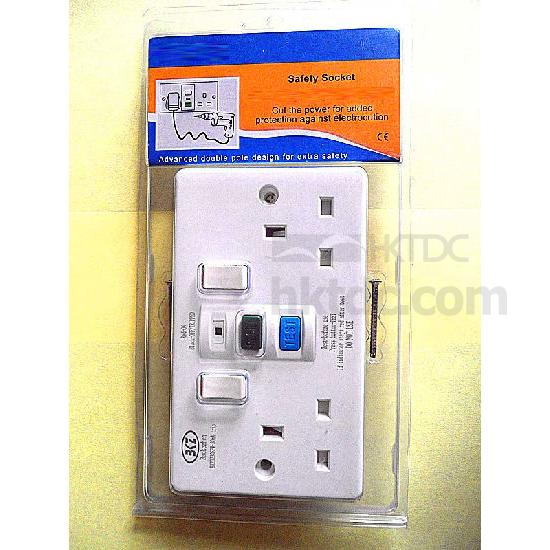

Model: BKZ0230SPW RCD wall socket
RCD safety socket
Type: latching type, passive RCD
Rated Voltage: 240V -50Hz
Current Rating: 13A Max
Rated trip current: 30mA
Trip speed: less than 40ms
Cable capacity: 3*2.5mm2
Body material: PC

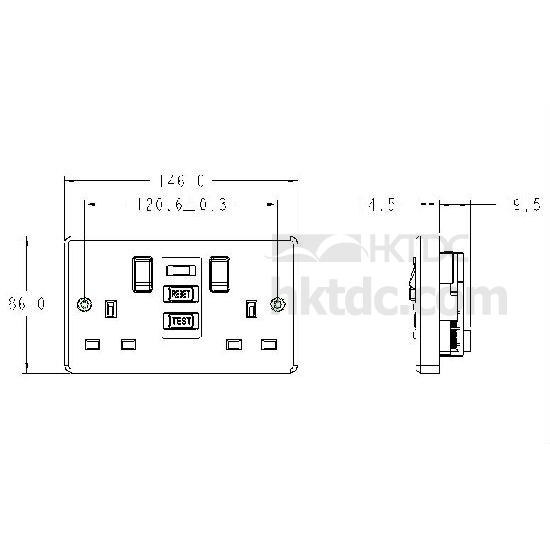

Size: 146*86mm
Standard: CE BS7288 BS1363
With test and Reset buttons, the test button is for safety checks, and manual reset
Provides residual circuit protection
Minimum back box depth:35MM
Latching RCD (Sometimes called Passive) – When the power is lost due to an earth fault, the RCD trips out and isolates the circuit it is protecting. Latching RCD’s do not trip during power cuts so they are great for fridges and freezers and also for protecting remote/unmanned areas. This would also make them ideal for protecting some heating equipment set to “Frost Protection”, fish tanks, battery charging, and the protection of remote or unmanned areas.
RCD safety socket
Type: latching type, passive RCD
Rated Voltage: 240V -50Hz
Current Rating: 13A Max
Rated trip current: 30mA
Trip speed: less than 40ms
Cable capacity: 3*2.5mm2
Body material: PC
Size: 146*86mm
Standard: CE BS7288 BS1363
With test and Reset buttons, the test button is for safety checks, and manual reset
Provides residual circuit protection
Minimum back box depth:35MM
Latching RCD (Sometimes called Passive) – When the power is lost due to an earth fault, the RCD trips out and isolates the circuit it is protecting. Latching RCD’s do not trip during power cuts so they are great for fridges and freezers and also for protecting remote/unmanned areas. This would also make them ideal for protecting some heating equipment set to “Frost Protection”, fish tanks, battery charging, and the protection of remote or unmanned areas.
