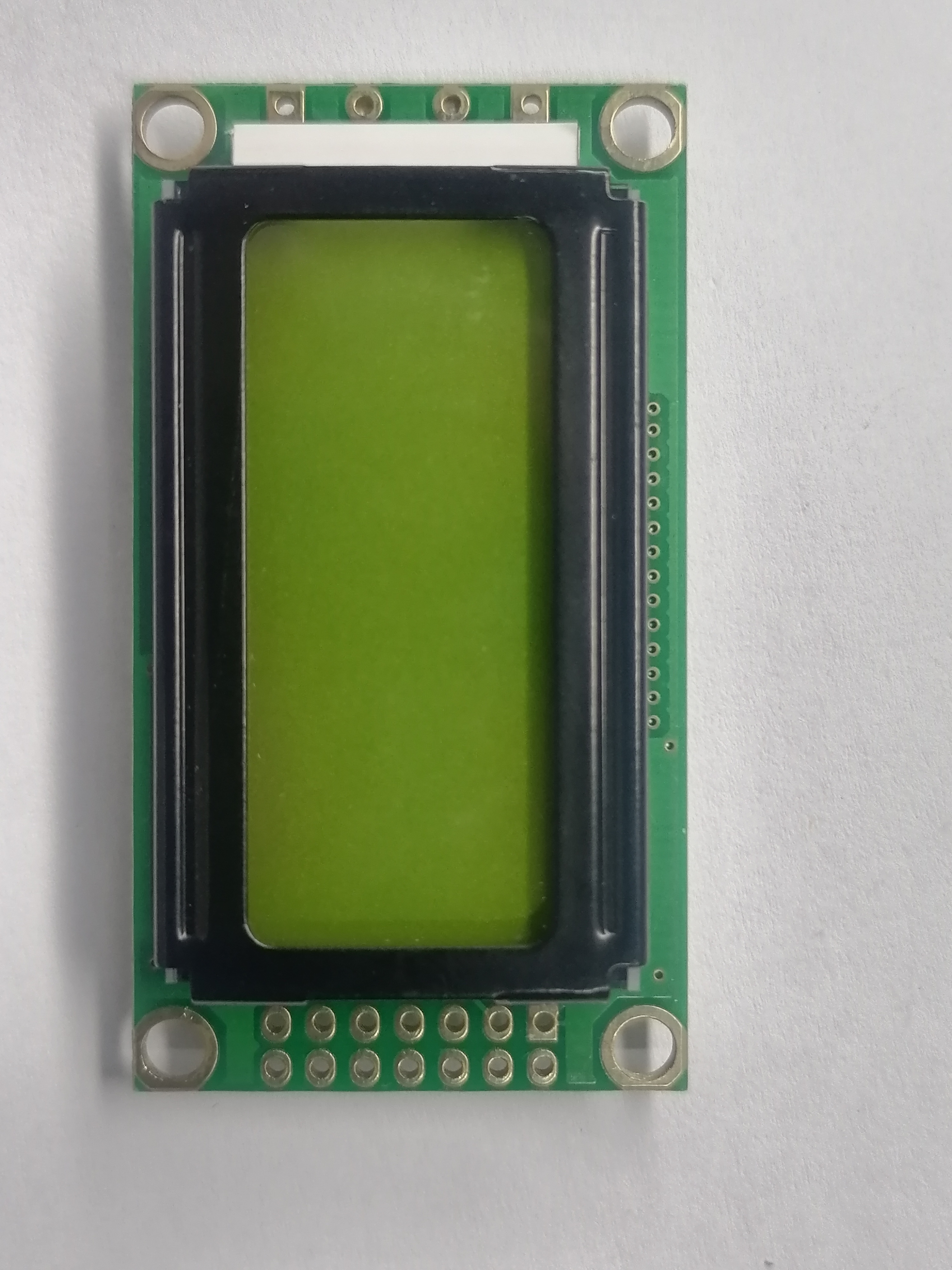

RD0802A Alphanumeric 8x2 Character LCD
US $1.00 - US $10.00
Production Lead Time:
30 day(s)
Shipping Method:
FOB Shenzhen HongKong
Brand:
Radisplay
Customised:
Yes
Module size :
58 x 32 x Max 13.5 mm
Viewing area :
38 x 16 mm
Operating temperature:
-20 - 70 ℃
Description
Contact Supplier
Description
RD0802A is widely used among 8x2 Character LCD displays.
The following color options are most widely ordered:

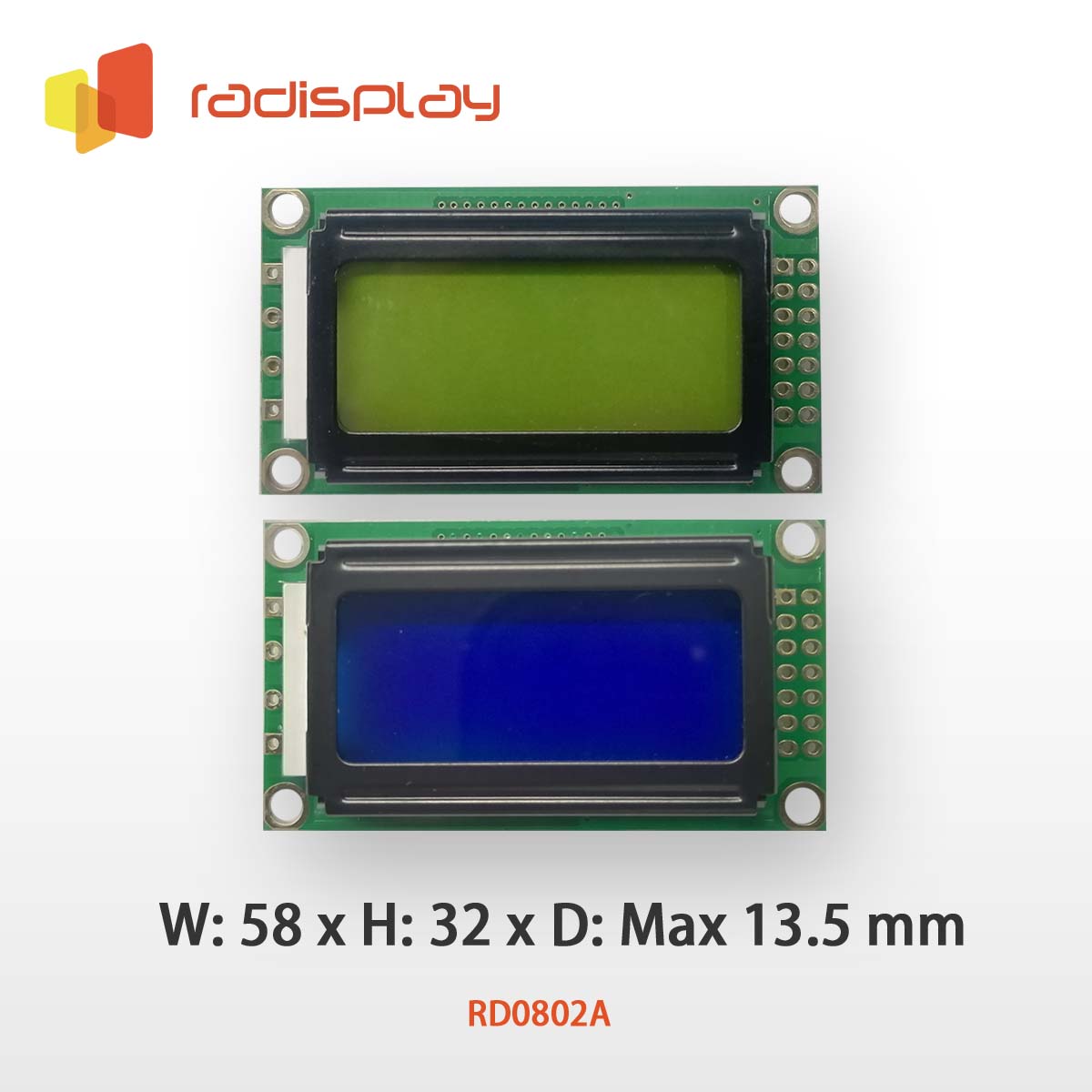

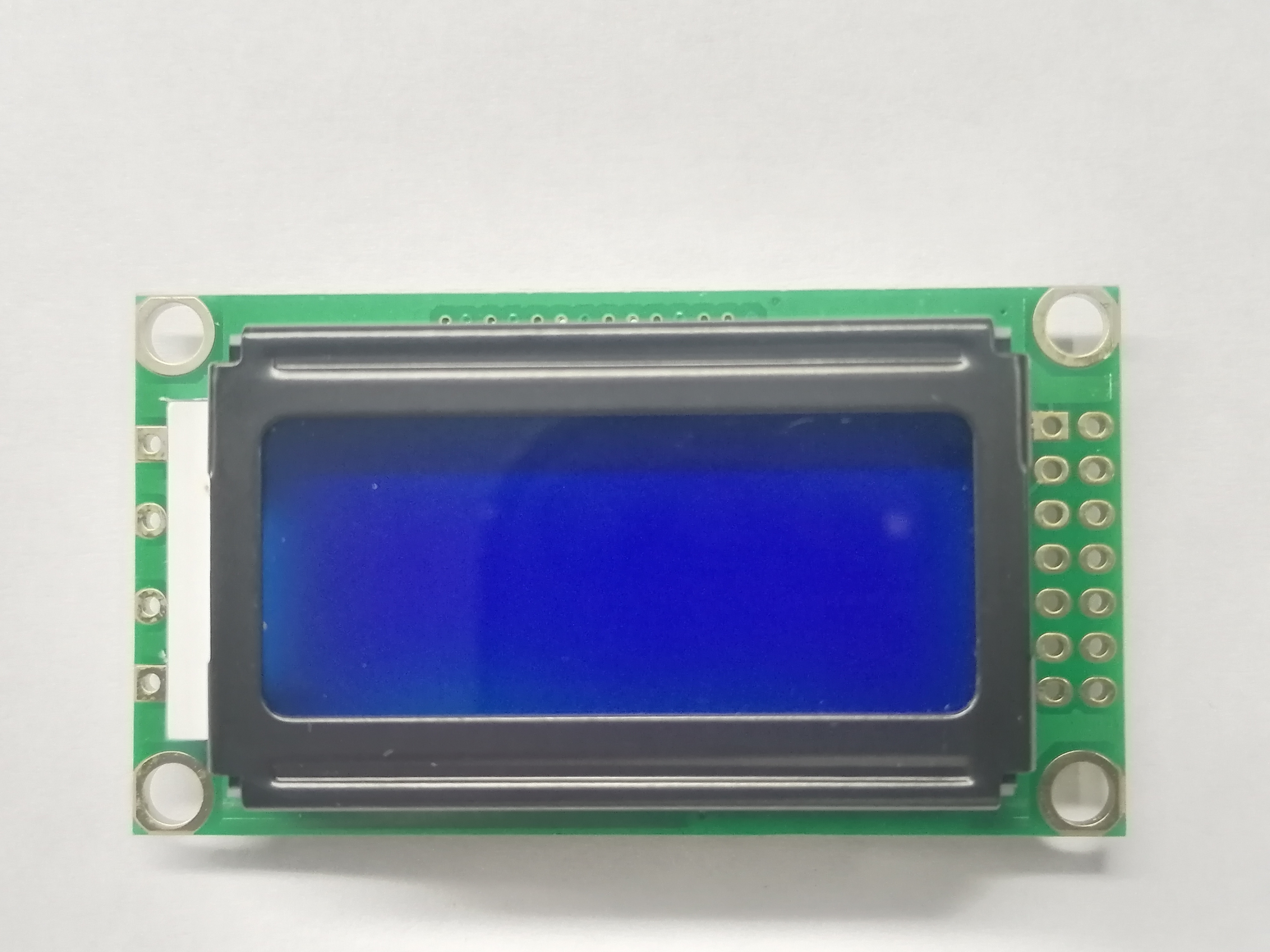

RD0802A-B White on Blue
RD0802A-Y Black on Yellow-Green
RD0802A-G Black on Gray
In addition, a wide range of customized options are available for this model, including:
Different Backlight & Color options (Including black color)
Different Voltage (3.3V, 5.0V and other customized voltage)
Different Interface (Including Serial SPI I2C interface)
Different Temperature (Including Extended high temperature)

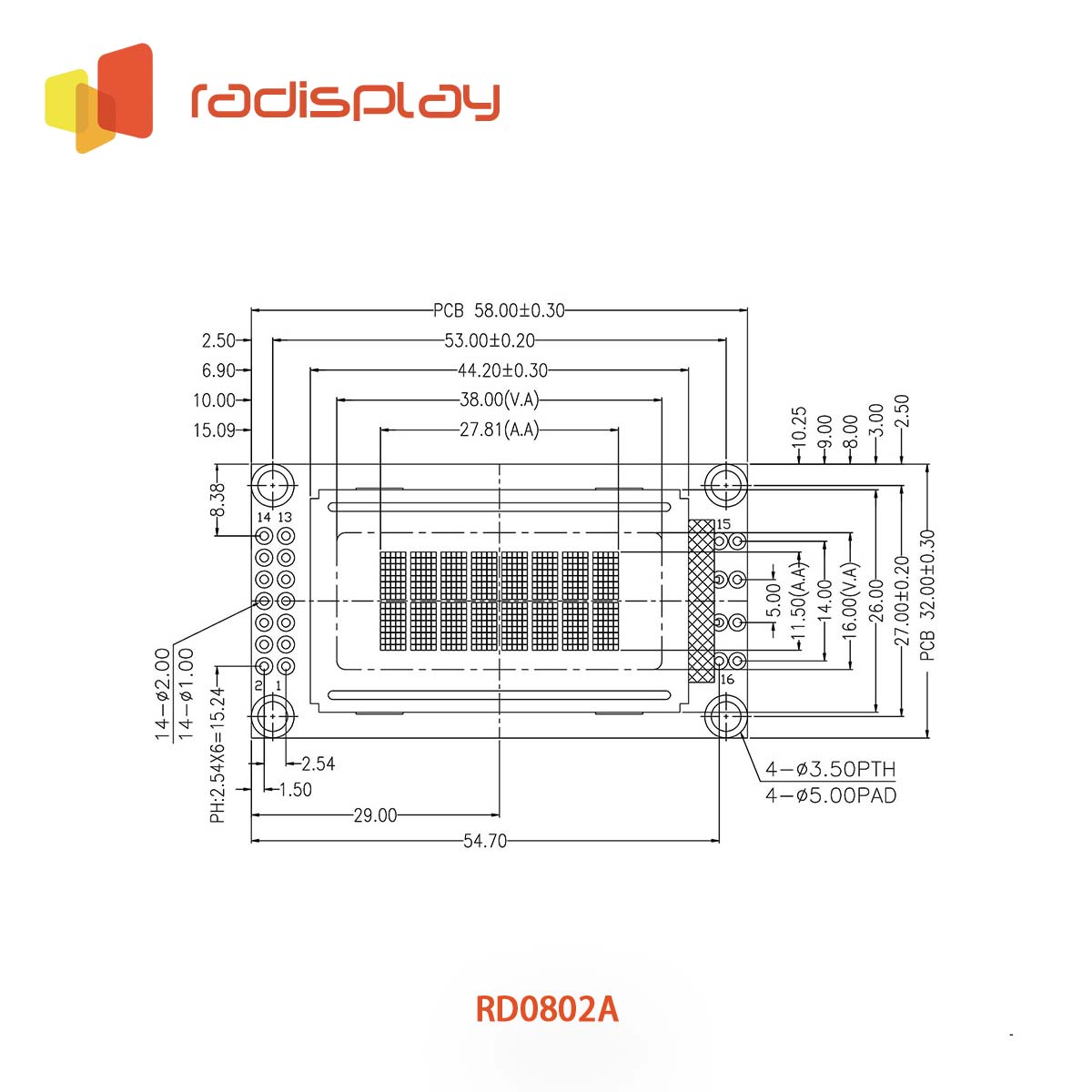

TECHNICAL SPECS (Table) | Module size （W x H x D） | 58 x 32 x Max 13.5 mm |
Viewing area （W x H) | 38 x 16 mm | |
Character size (W x H) | 2.96 x 5.56 mm | |
Dot size (W x H) | 0.56 x 0.66 mm | |
Dot pitch (W x H) | 0.6 x 0.7 mm | |
Interface | 8-bit Parallel interface | |
Driver condition | 1/16 Duty , 1/5 Bias | |
Driver IC | AIP31066 | |
Operating temperature | -20 - 70 ℃ |
