RD12864I Dot matrix 128x64 Graphic LCD
US $1.00 - US $10.00
Production Lead Time:
30 day(s)
Shipping Method:
FOB Shenzhen HongKong
Brand:
Radisplay
Customised:
Yes
Module size:
54 x 50 x 7.7 mm
Viewing area:
43.5 x 28.8 mm
Operating temperature:
-20 - 70 ℃
Description
Contact Supplier
Description

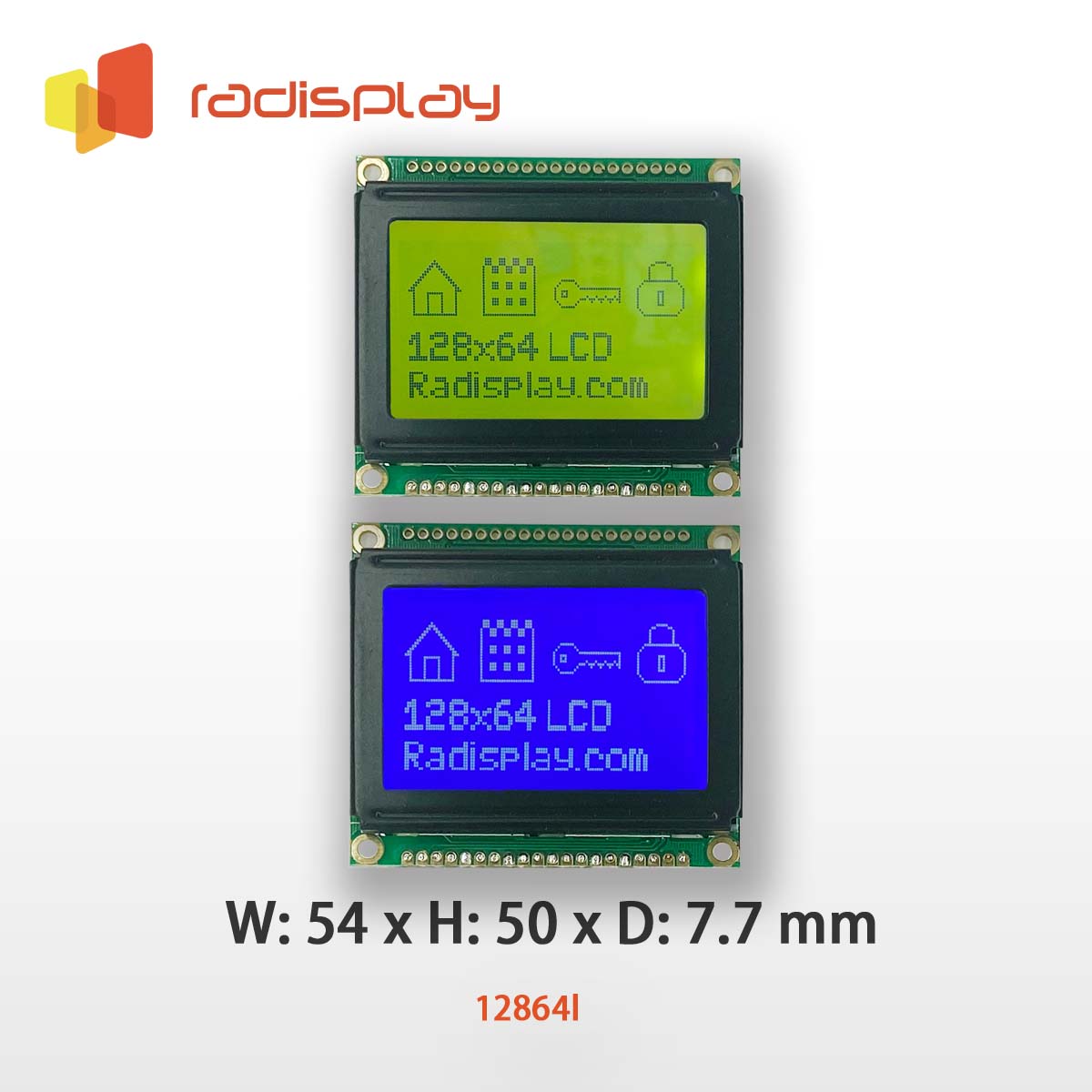

RD12864I is widely used among 128x64 Graphic LCD displays.
The following color options are most widely ordered:
RD12864I-B White on Blue
RD12864I-Y Black on Yellow-Green
RD12864I-G Black on Gray
In addition, a wide range of options are available for this model, including:
Different Backlight
Different Voltage (3.3V, 5.0V and other customized voltage)
Different Interface (Including Serial SPI, I2C interface)
Different Temperature (Including Extended high temperature)

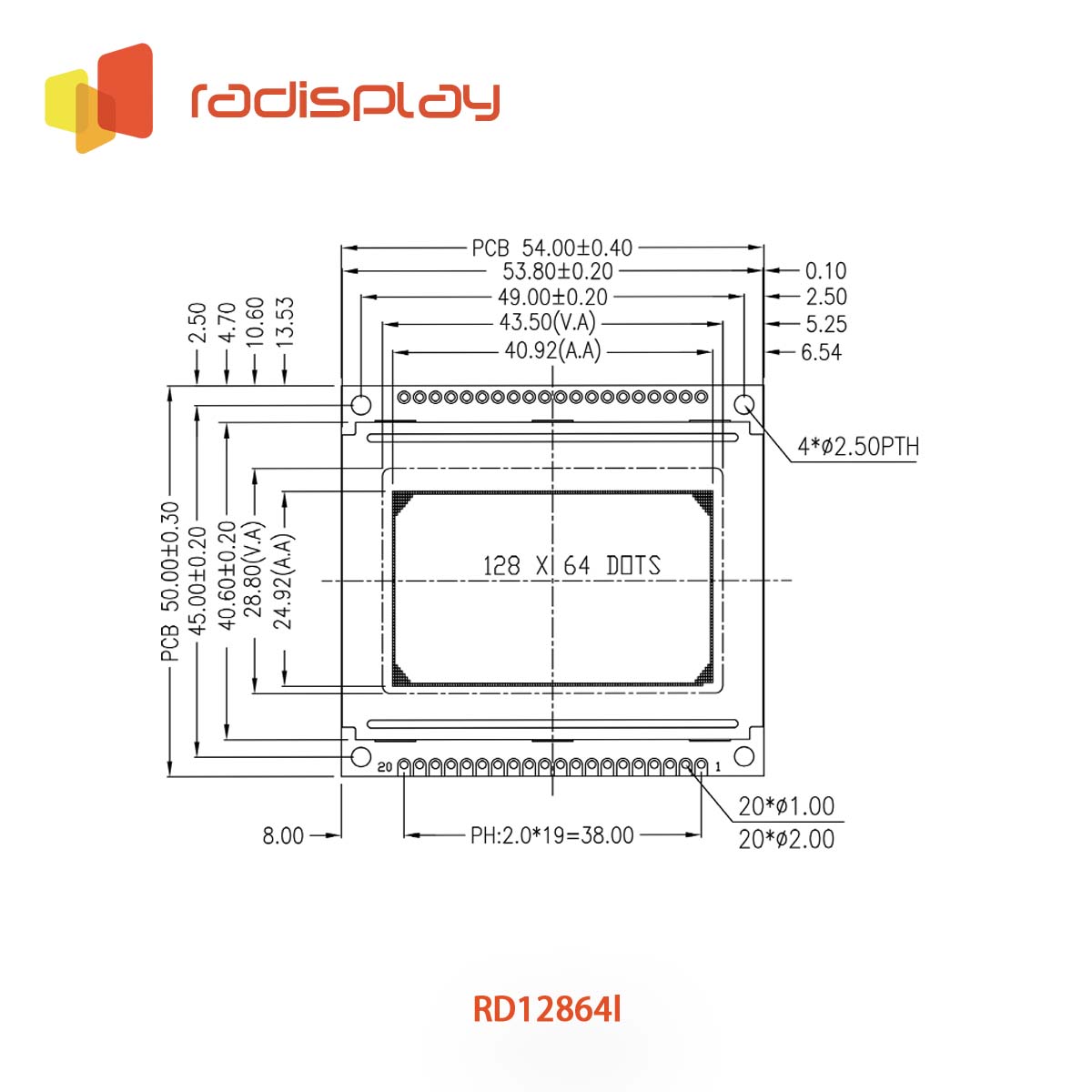

TECHNICAL SPECS (Table) | Module size （W x H x D） | 54 x 50 x 7.7 mm |
Viewing area （W x H) | 43.5 x 28.8 mm | |
Dot size (W x H) | 0.28 x 0.35 mm | |
Dot pitch (W x H) | 0.32 x 0.39 mm | |
Interface | 8-bit Parallel interface | |
Driver condition | 1/64 Duty , 1/9 Bias | |
Driver IC | 0107, 0108 | |
Operating temperature | -20 - 70 ℃ |
