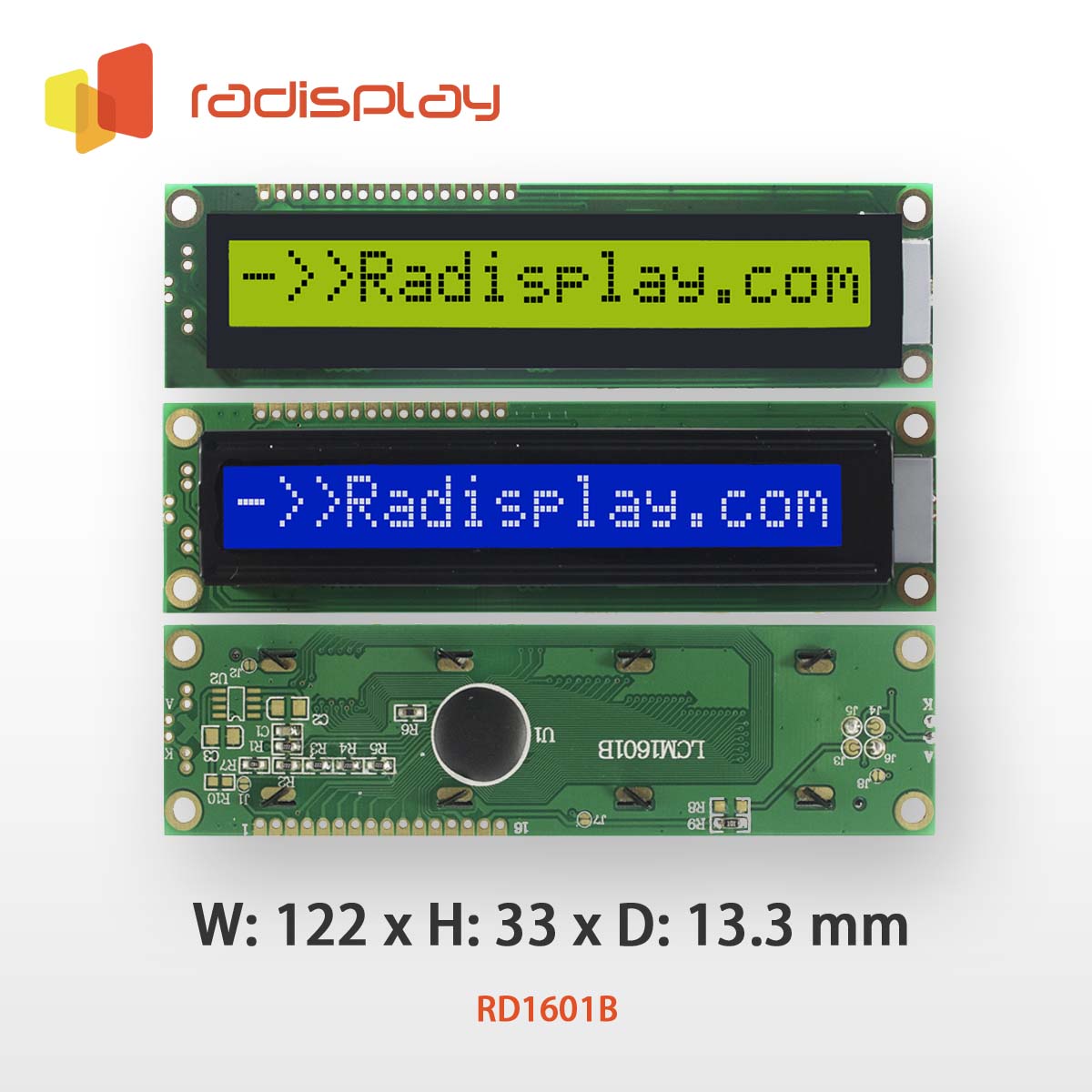

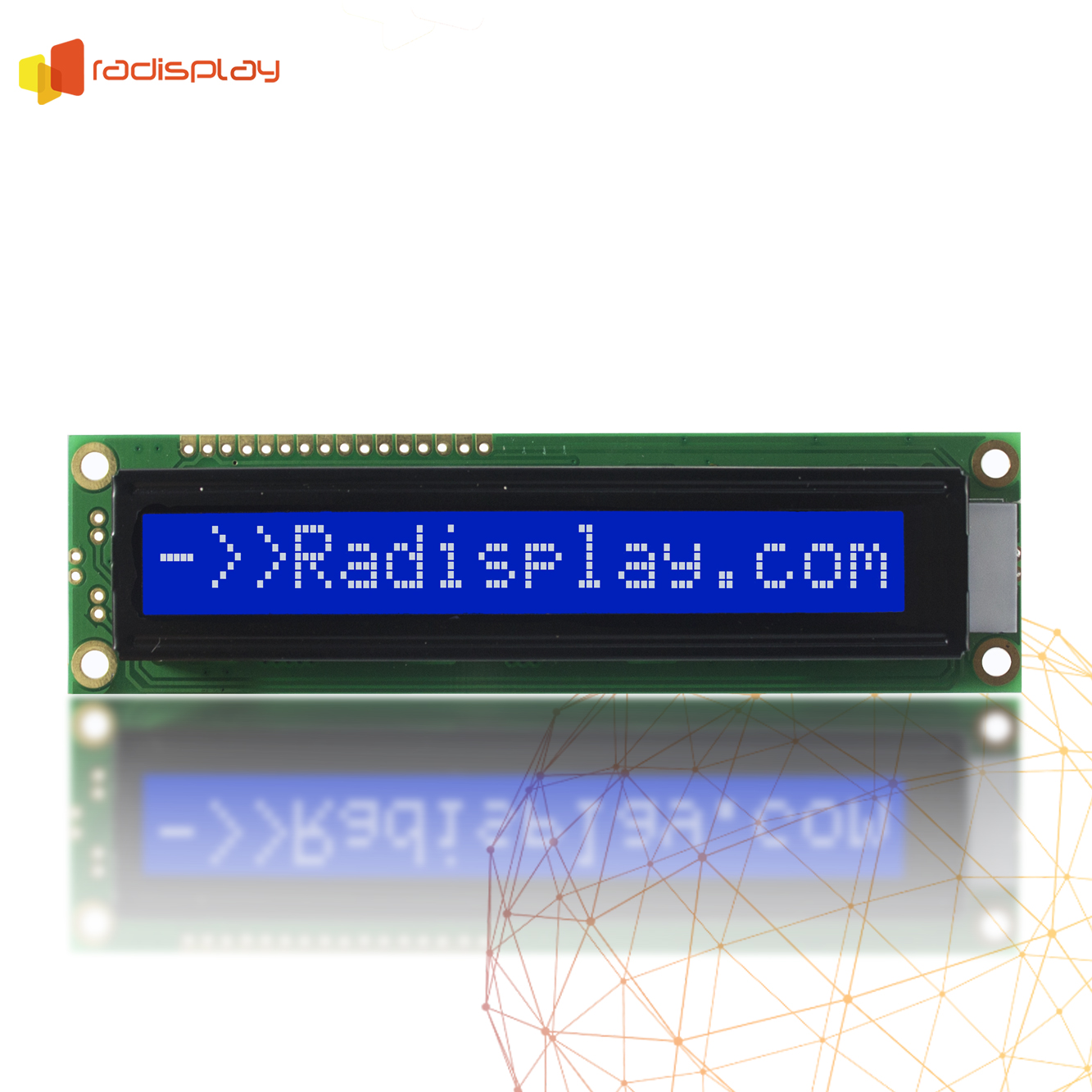

RD1601B large Alphanumeric 16x1 Character LCD
US $1.00 - US $10.00
Production Lead Time:
30 day(s)
Shipping Method:
FOB Shenzhen HongKong
Brand:
Radisplay
Customised:
Yes
Module size :
122 x 33 x 13.3 mm
Viewing area :
Viewing area
Operating temperature:
-20 - 70 ℃
Description
Contact Supplier
Description
RD1601B offers large character size among 16x1 character LCD displays.
The following color options are most widely ordered:
RD1601B-B White on Blue
RD1601B-Y Black on Yellow-Green
RD1601B-G Black on Gray
In addition, a wide range of customized options are available for this model, including:
Different Backlight & Color options (Including black color)
Different Voltage (3.3V, 5.0V and other customized voltage)
Different Interface (Including Serial SPI, I2C interface)
Different Temperature (Including Extended high temperature)

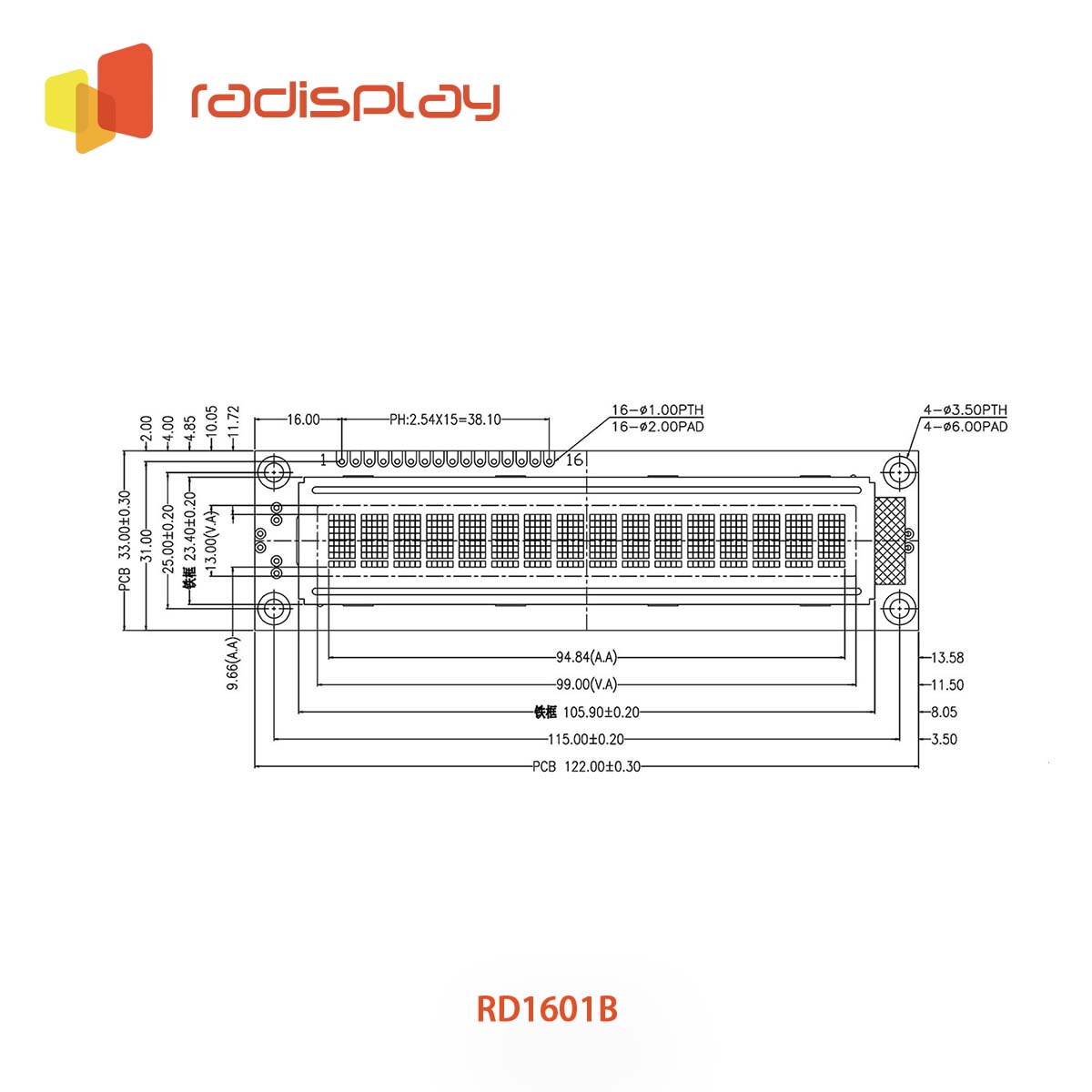

TECHNICAL SPECS (Table) | Module size （W x H x D） | 122 x 33 x 13.3 mm |
Viewing area （W x H) | 99 x13 mm | |
Character size (W x H) | 4.84 x 8.06 mm | |
Dot size (W x H) | 0.92 x 1.10 mm | |
Dot pitch (W x H) | 0.98 x 1.16 mm | |
Interface | 8-bit Parallel interface | |
Driver condition | 1/16 Duty , 1/5 Bias | |
Driver IC | AIP31066 | |
Operating temperature | -20 - 70 ℃ |
