RD1602A VATN Alphanumeric 16x2 Character LCD
US $1.00 - US $10.00
Production Lead Time:
30 day(s)
Shipping Method:
FOB Shenzhen/ HongKong
Brand:
Radisplay
Customised:
Yes
Module size:
80 x 36 x 11.0 mm
Viewing area :
64.5 x 14.5 mm
Operating temperature:
-20 - 70 ℃
Description
Contact Supplier
Description

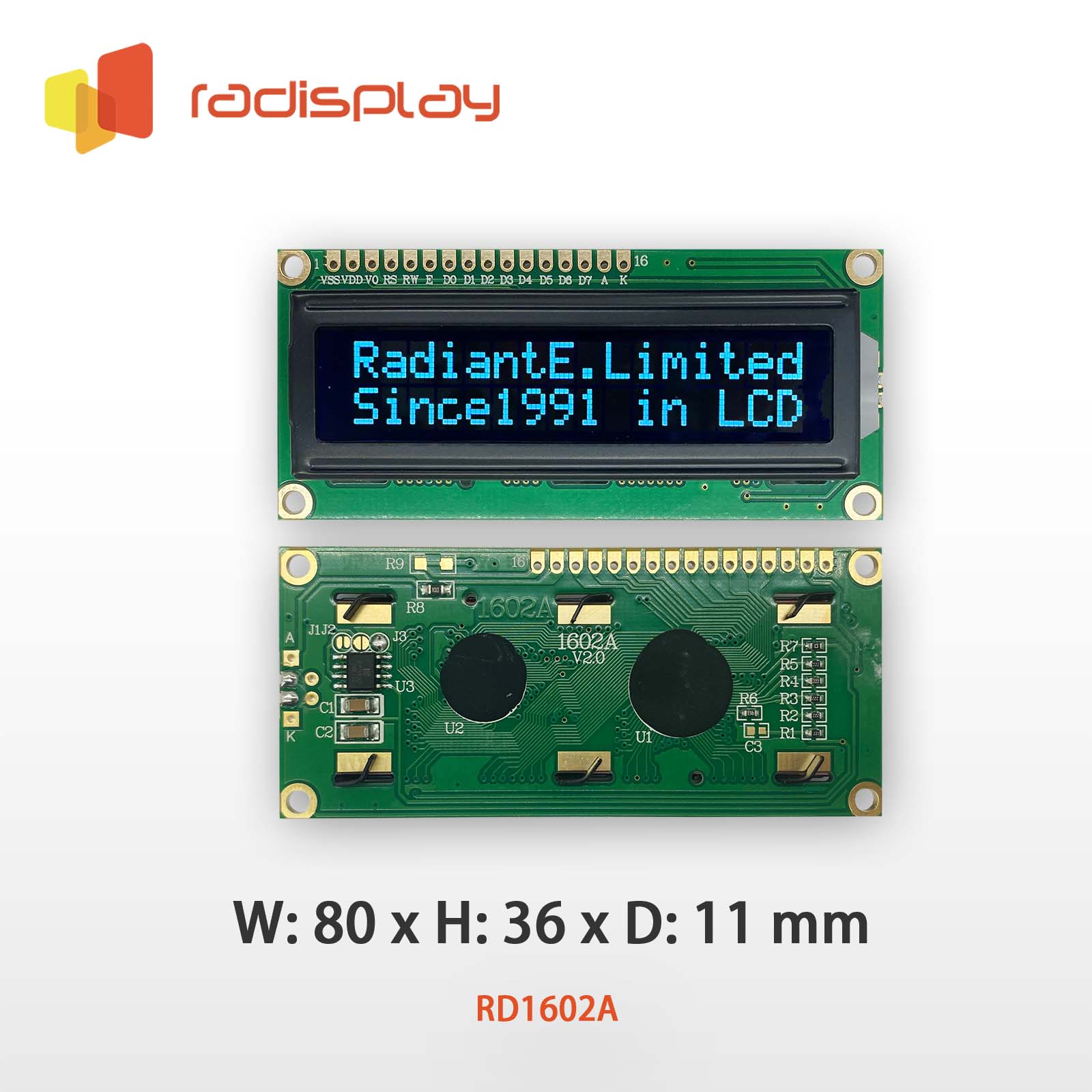

RD1602A VATN Alphanumeric Character LCD offers black background with high contrast for 16x2 display. With different backlight options, RD1602A-8-VA is your perfect choice for upgrade for your exiting 16x2 Character display.
The following color options are available:

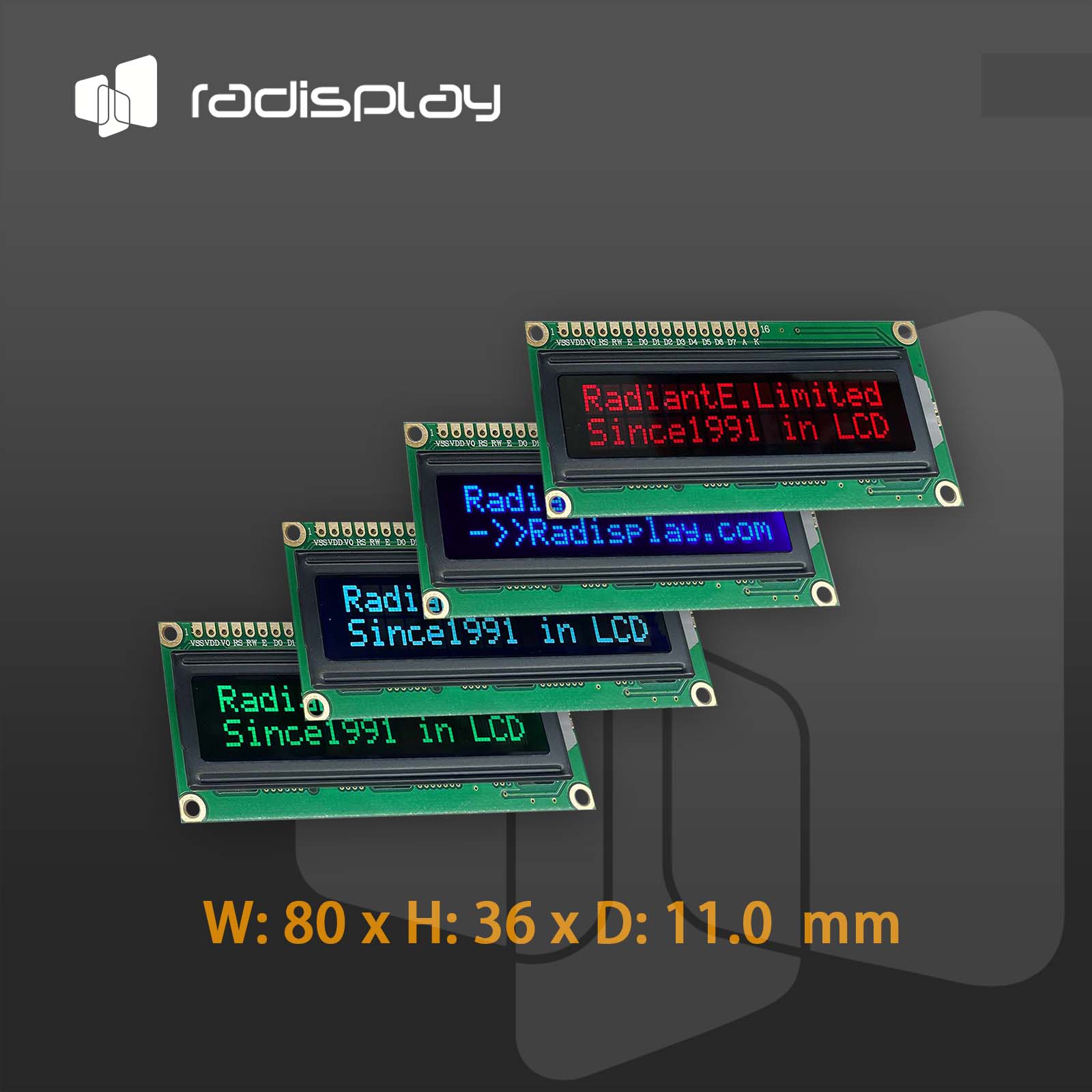

RD1602A-8-VA-01 White on Black

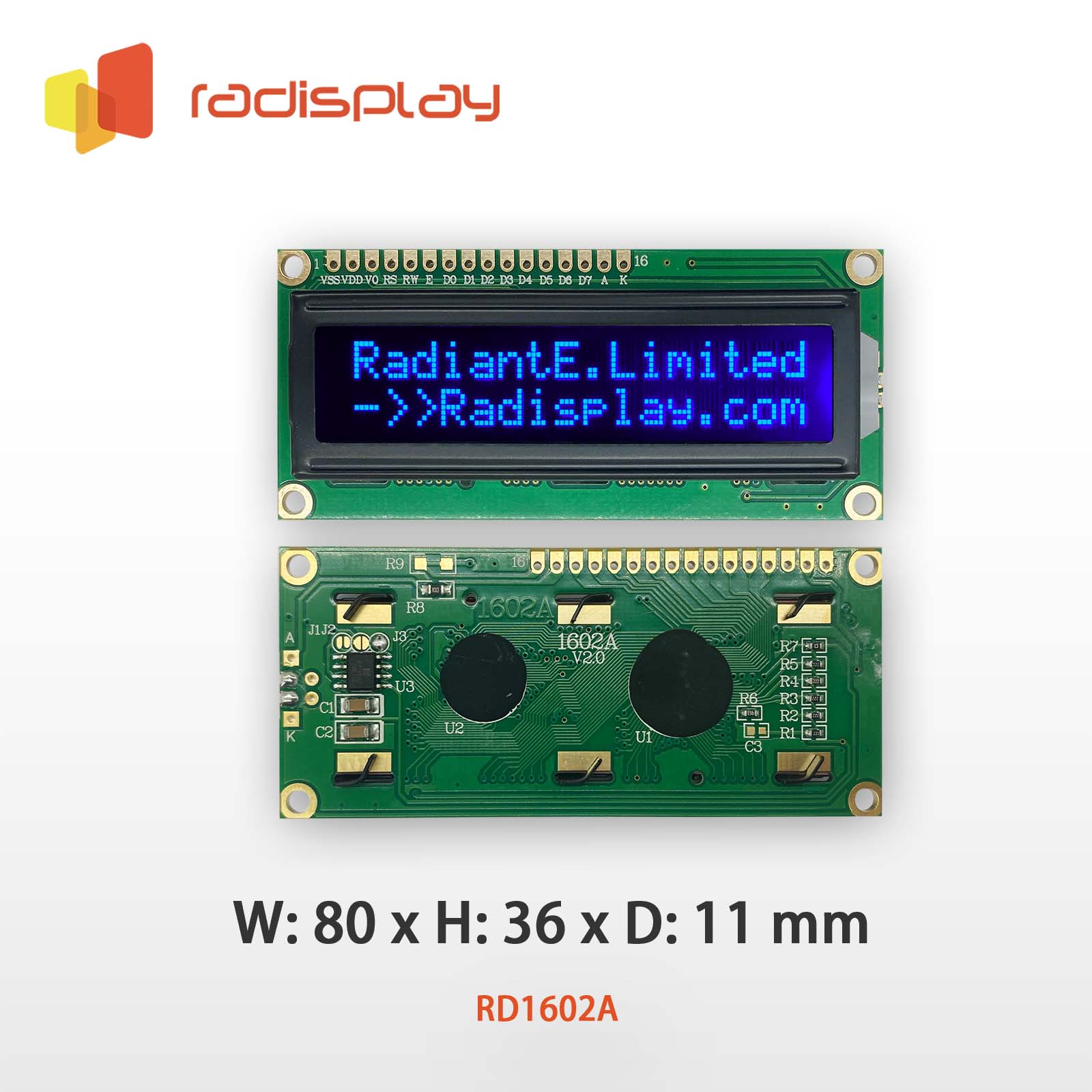

RD1602A-8-VA-02 Blue on Black

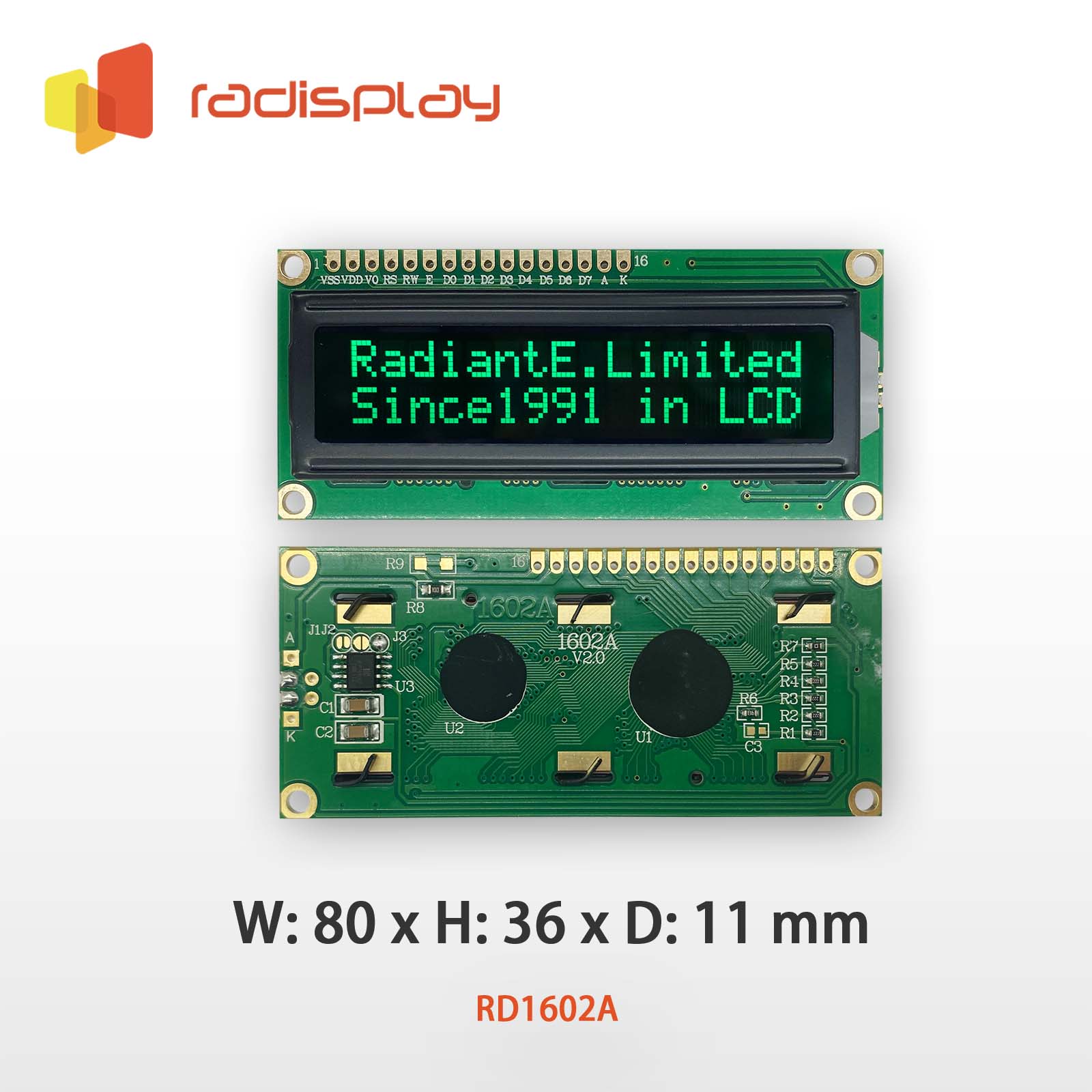

RD1602A-8-VA-03 Green on Black

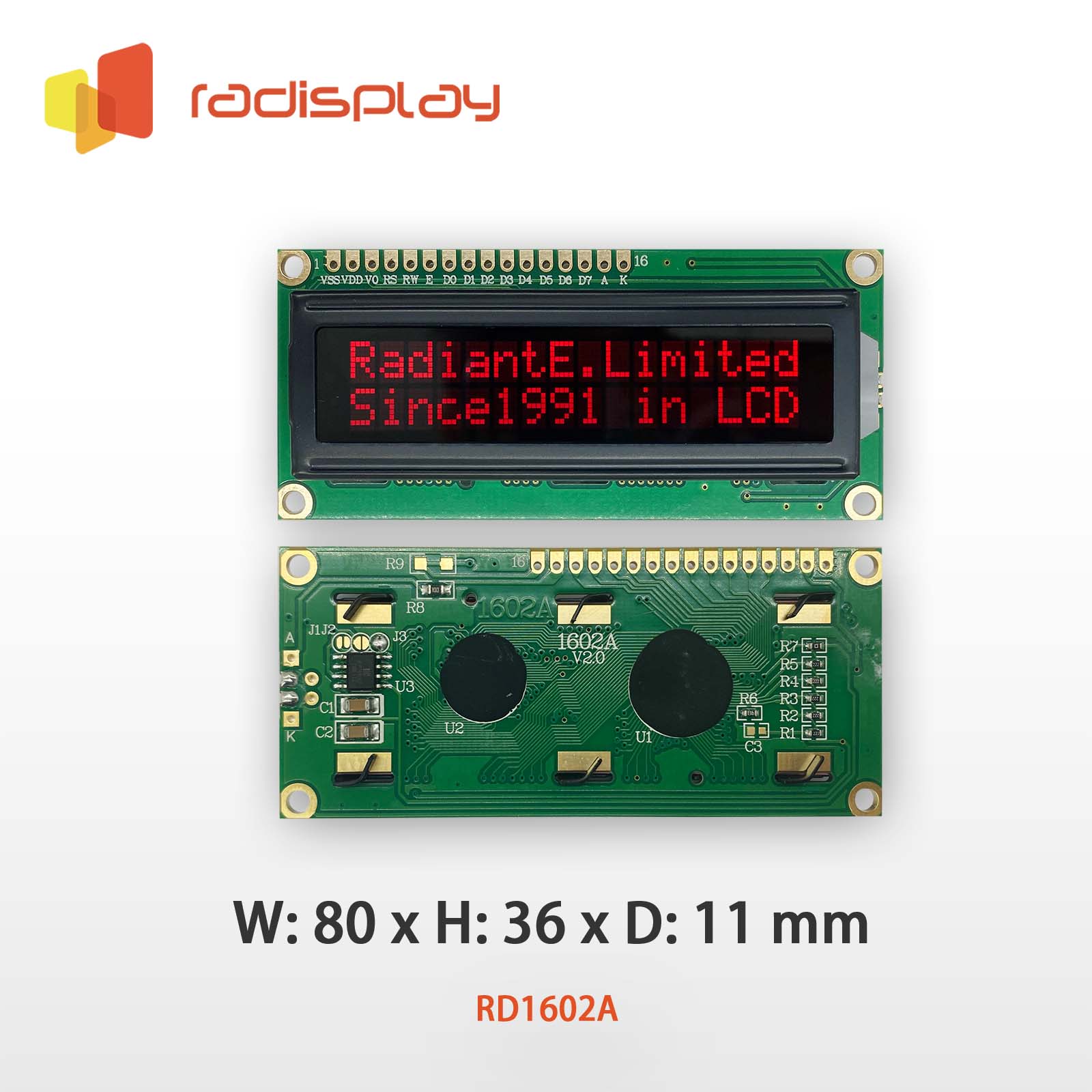

RD1602A-8-VA-04 Red on Black
RD1602A-8-VA-05 Amber on Black
In addition, a wide range of options are available for this model, including:
Different Backlight
Different Voltage (3.3V, 5.0V and other customized voltage)
Different Interface (Including Serial SPI, I2C interface)
Different Temperature (Including Extended high temperature)

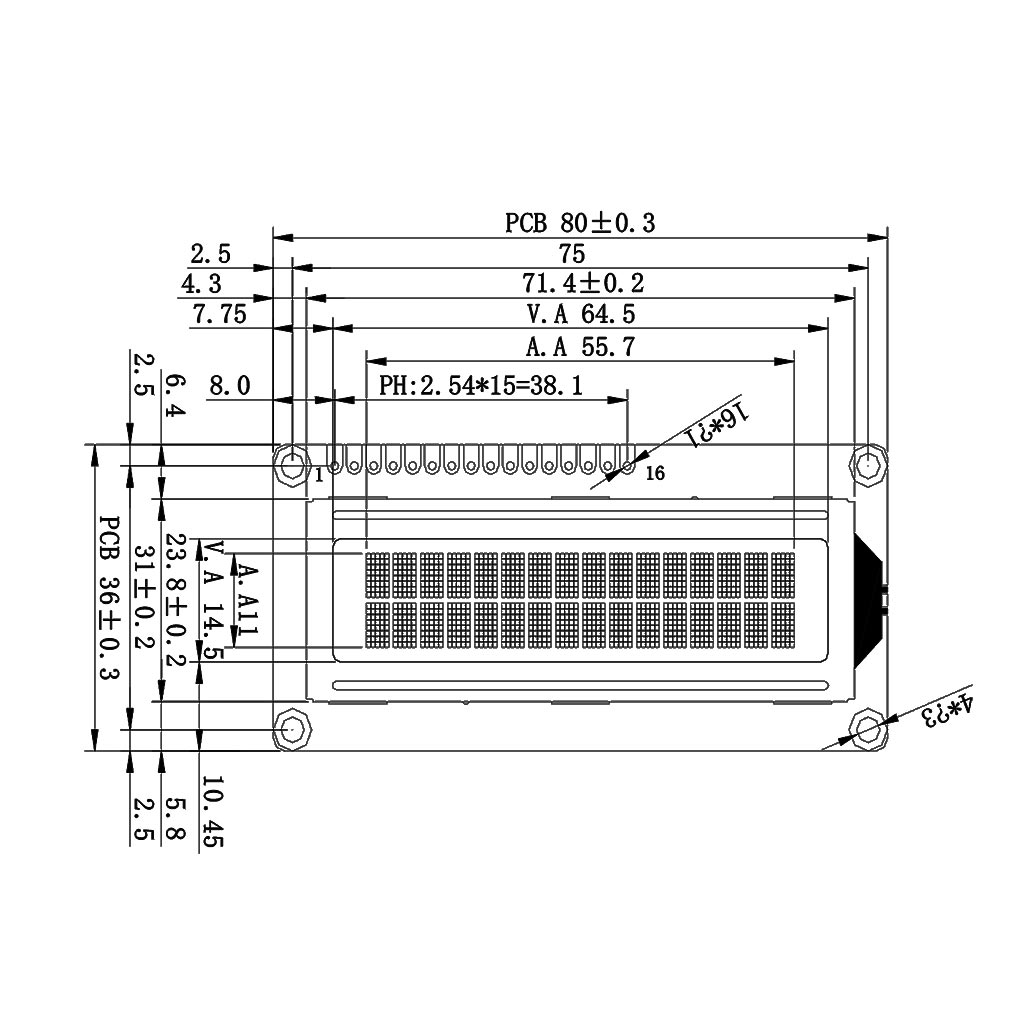

TECHNICAL SPECS (Table) | Module size （W x H x D） | 80 x 36 x 11.0 mm |
Viewing area （W x H) | 64.5 x 14.5 mm | |
Character size (W x H) | 2.9 x 5.15 mm | |
Dot size (W x H) | 0.54 x 0.60 mm | |
Dot pitch (W x H) | 0.59 x 0.65 mm | |
Interface | 8-bit Parallel interface | |
Driver condition | 1/16 Duty , 1/5 Bias | |
Driver IC | AIP31066 | |
Operating temperature | -20 - 70 ℃ |
