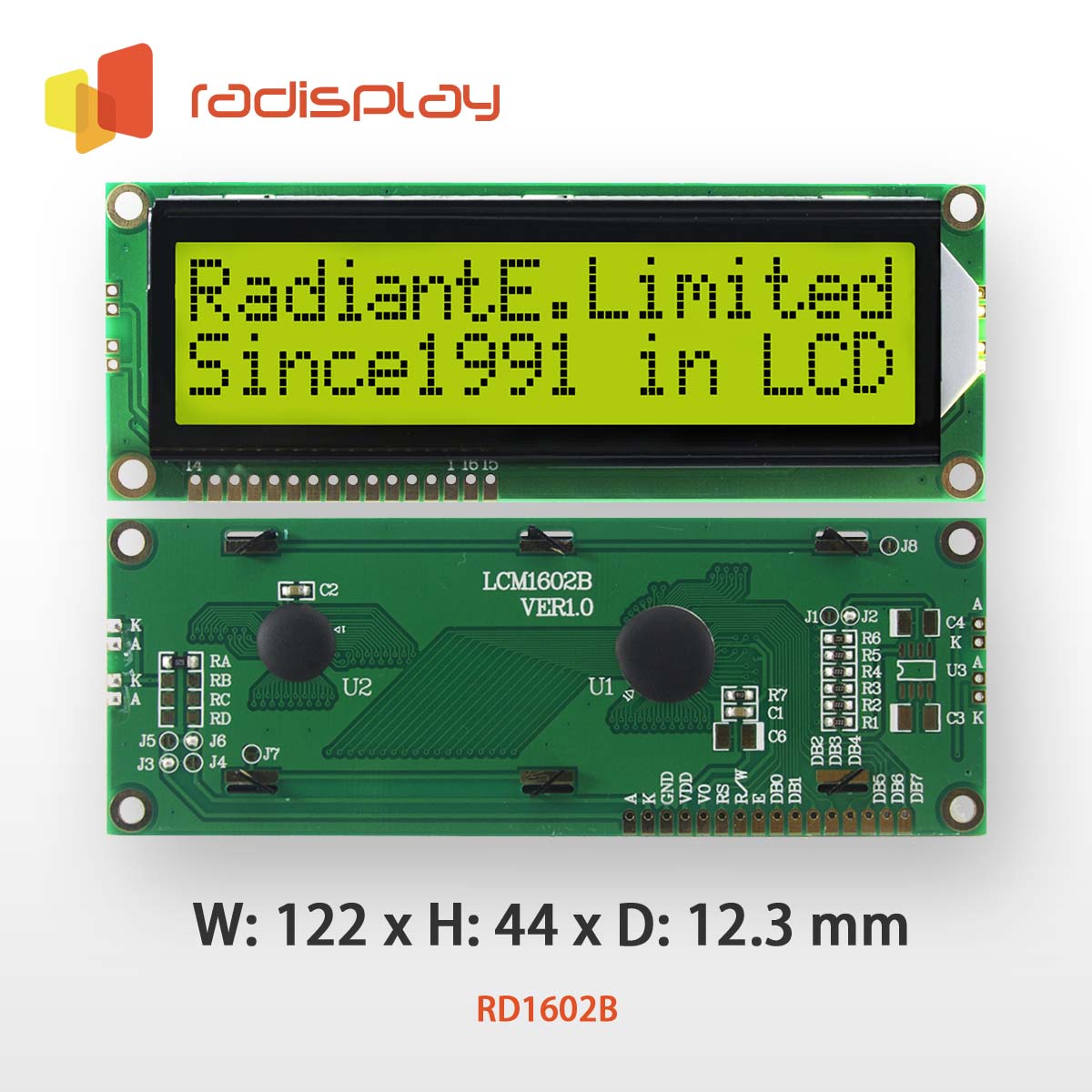

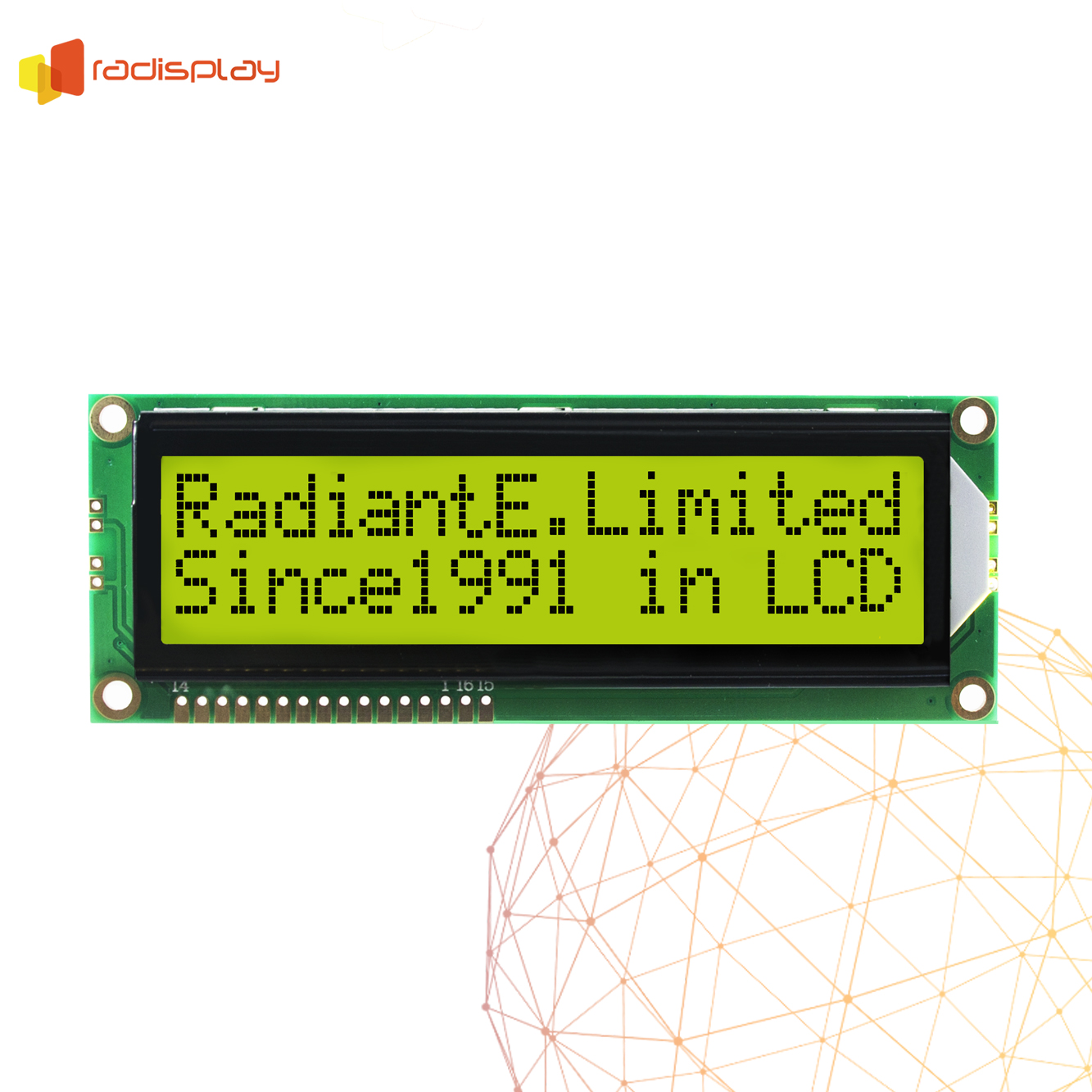

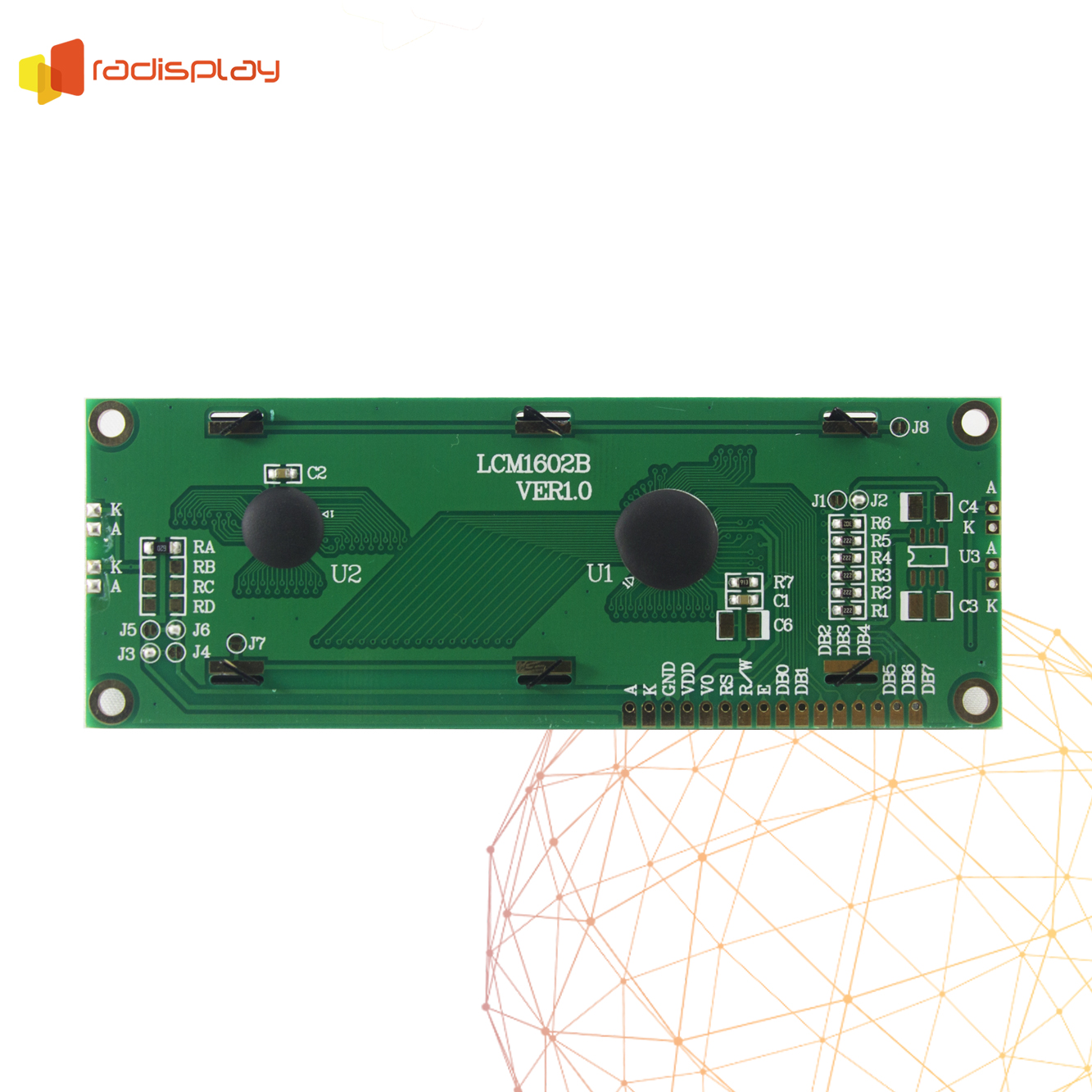

RD1602B large Alphanumeric 16x2 Character LCD
US $1.00 - US $10.00
Production Lead Time:
30 day(s)
Shipping Method:
FOB Shenzhen Hongkong
Brand:
Radisplay
Customised:
Yes
Module size:
122 x 44 x 12.3 mm
Viewing area:
99 x 24 mm
Operating temperature:
-20 - 70 ℃
Description
Contact Supplier
Description
RD1602B offers large character size among 16x2 character standard LCD displays.
The following color options are most widely ordered:
RD1602B-B White on Blue
RD1602B-Y Black on Yellow-Green
RD1602B-G Black on Gray
A wide range of customized options are available for this model, including:
Different Backlight & color options
Different Voltage (3.3V, 5.0V and other customized voltage)
Different Interface (Parallel, Serial SPI, I2C interface)
Different Temperature (Including Extended high temperature)

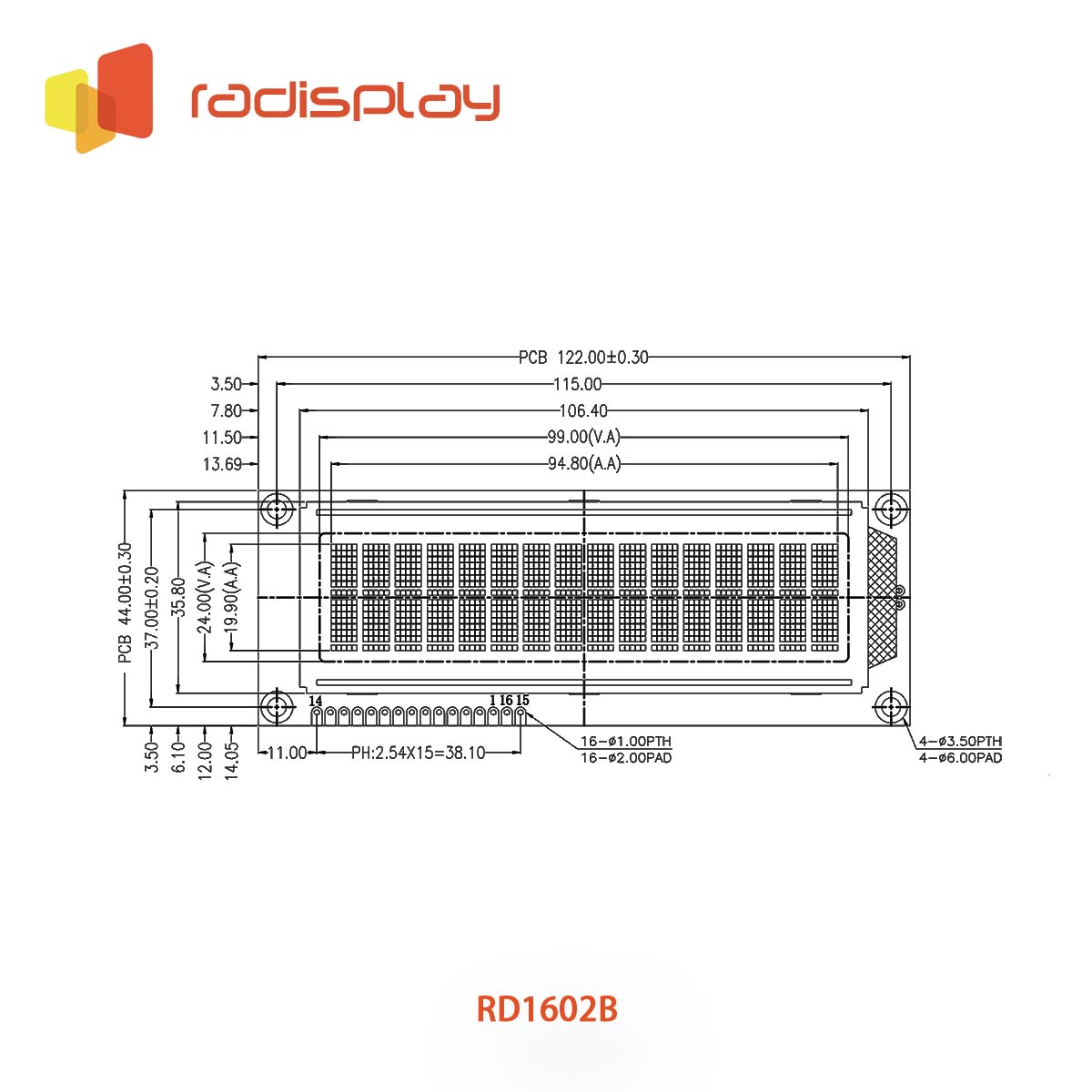

TECHNICAL SPECS (Table) | Module size （W x H x D） | 122 x 44 x 12.3 mm |
Viewing area （W x H) | 99 x 24 mm | |
Character size (W x H) | 4.8 x 7.95 mm | |
Dot size (W x H) | 0.88 x 1.05 mm | |
Dot pitch (W x H) | 0.98 x 1.15 mm | |
Interface | 8-bit Parallel interface | |
Driver condition | 1/16 Duty , 1/5 Bias | |
Driver IC | AIP31066 | |
Operating temperature | -20 - 70 ℃ |
