RD1602E is widely used among 16x2 Character LCD displays.
The following color options are most widely ordered:

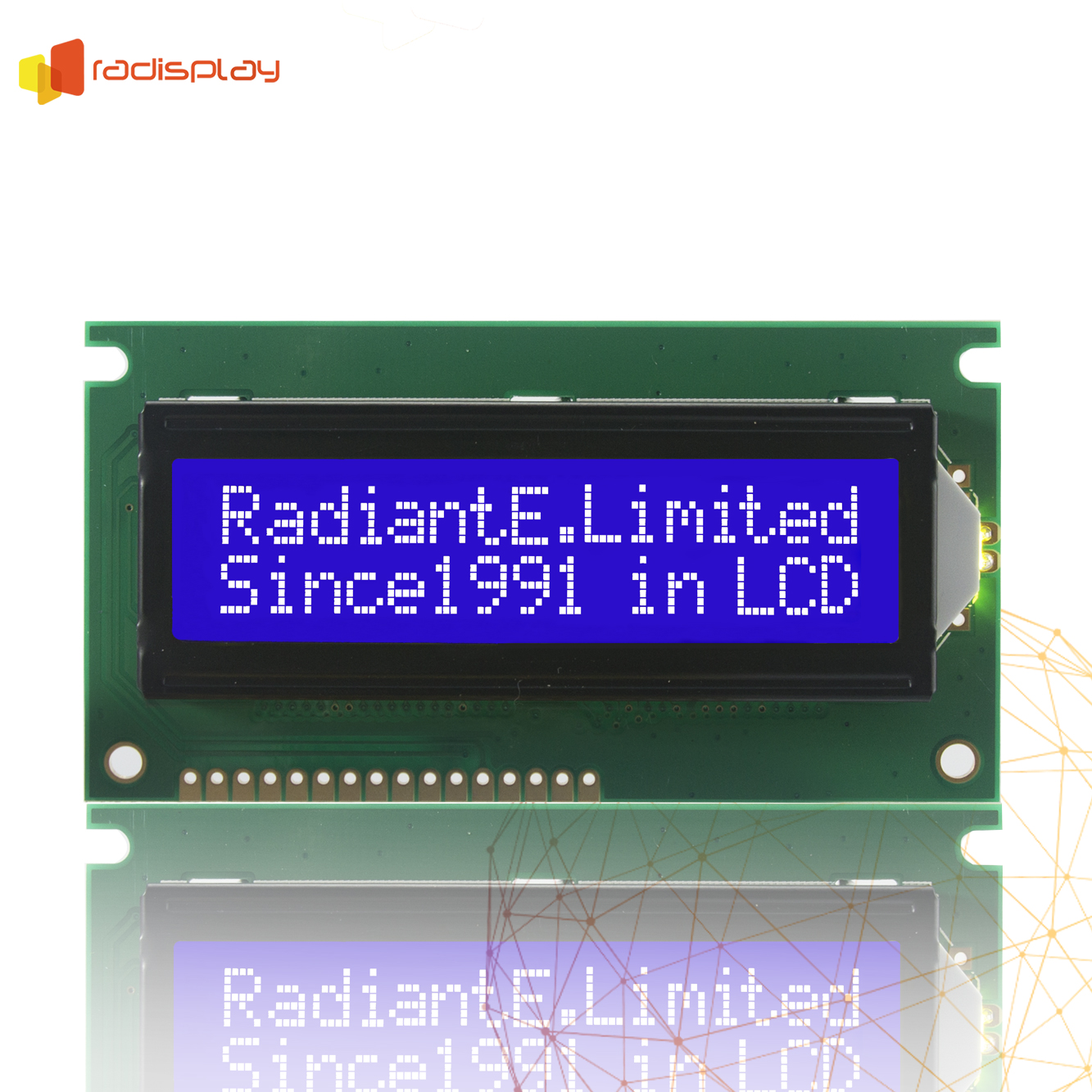

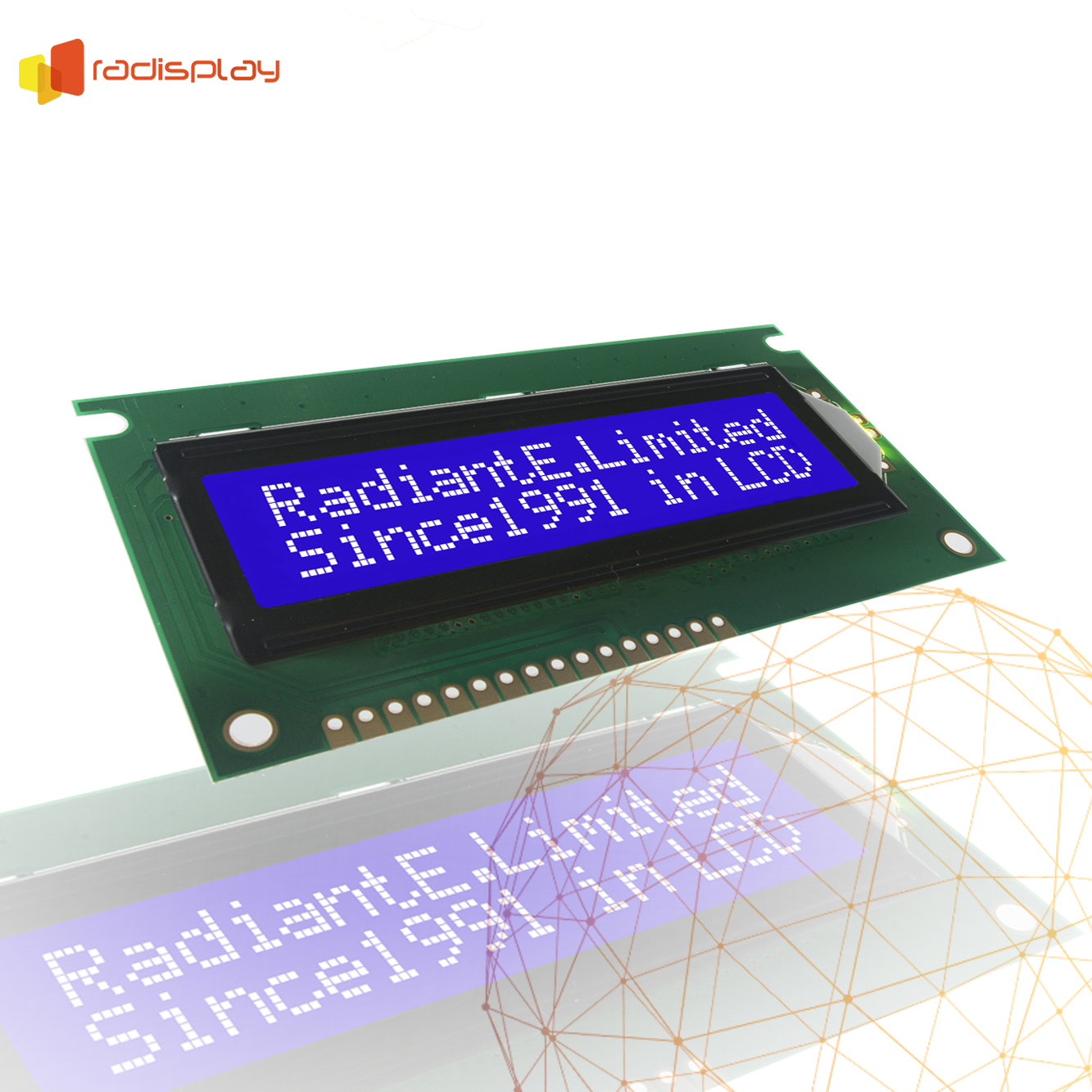

RD1602E-B White on Blue

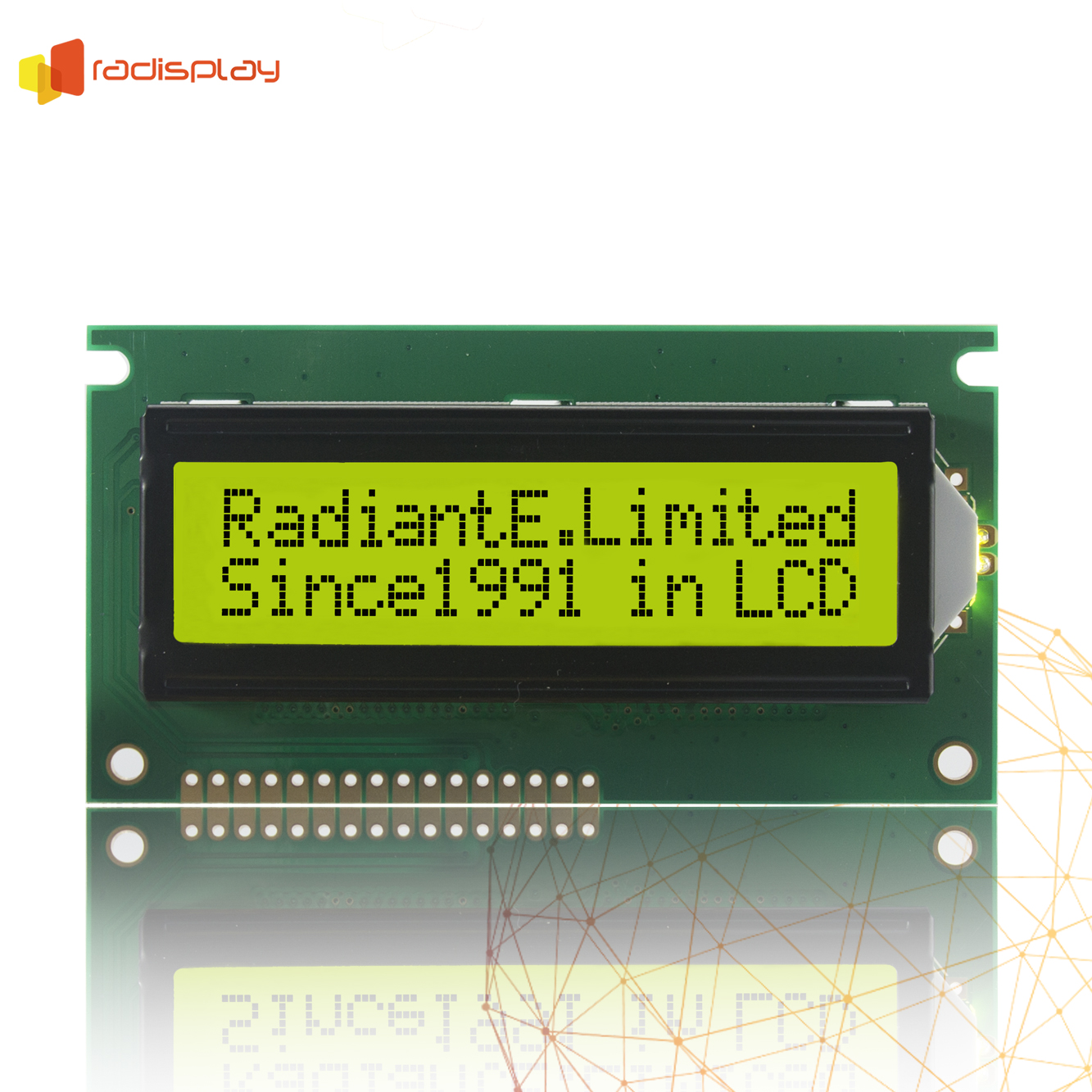

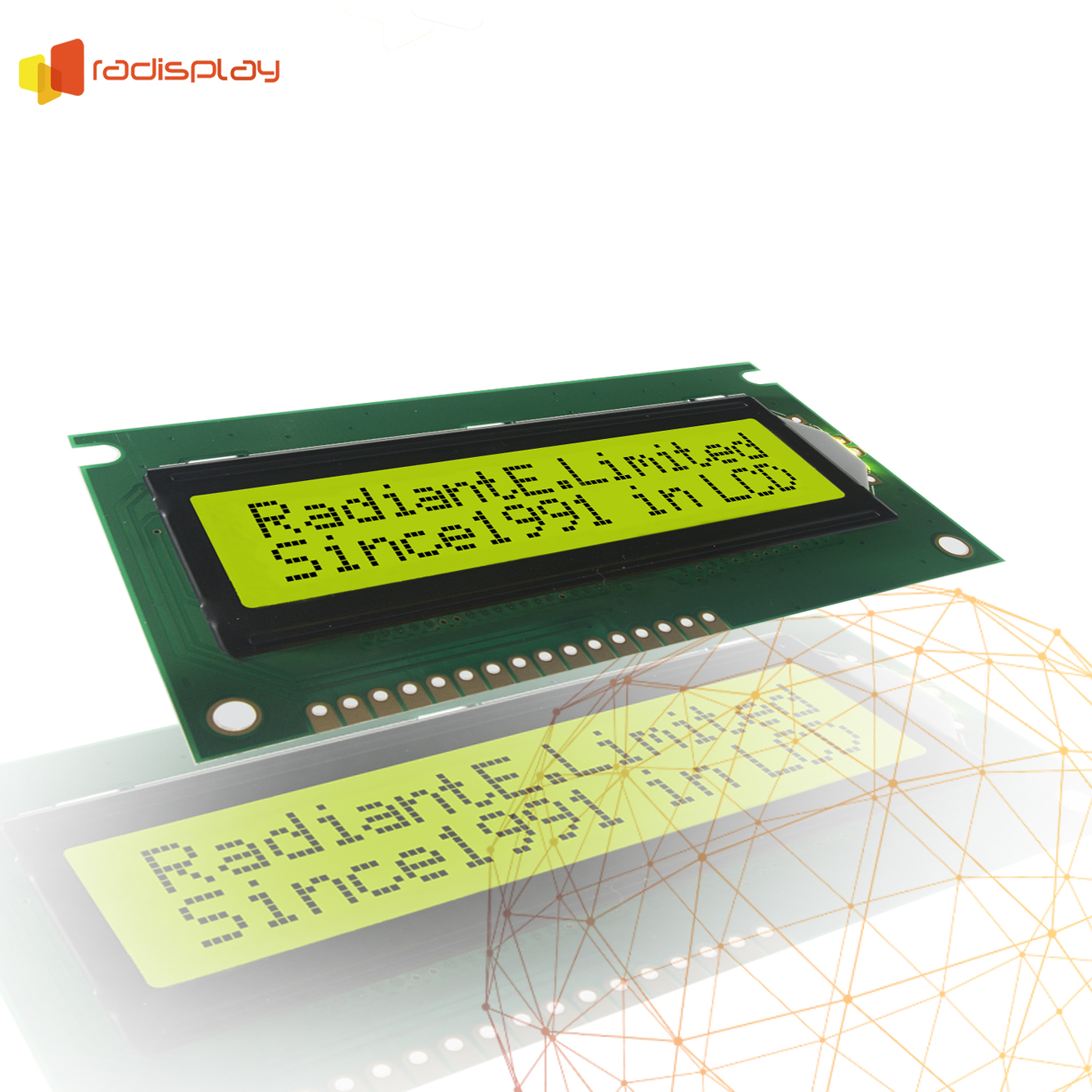

RD1602E-Y Black on Yellow-Green
RD1602E-G Black on Gray
In addition, a wide range of customized options are available for this model, including:
Different Backlight & color options (Including black color)
Different Voltage (3.3V, 5.0V and other customized voltage)
Different Interface (Including Serial SPI, I2C interface)
Different Temperature (Including Extended high temperature)

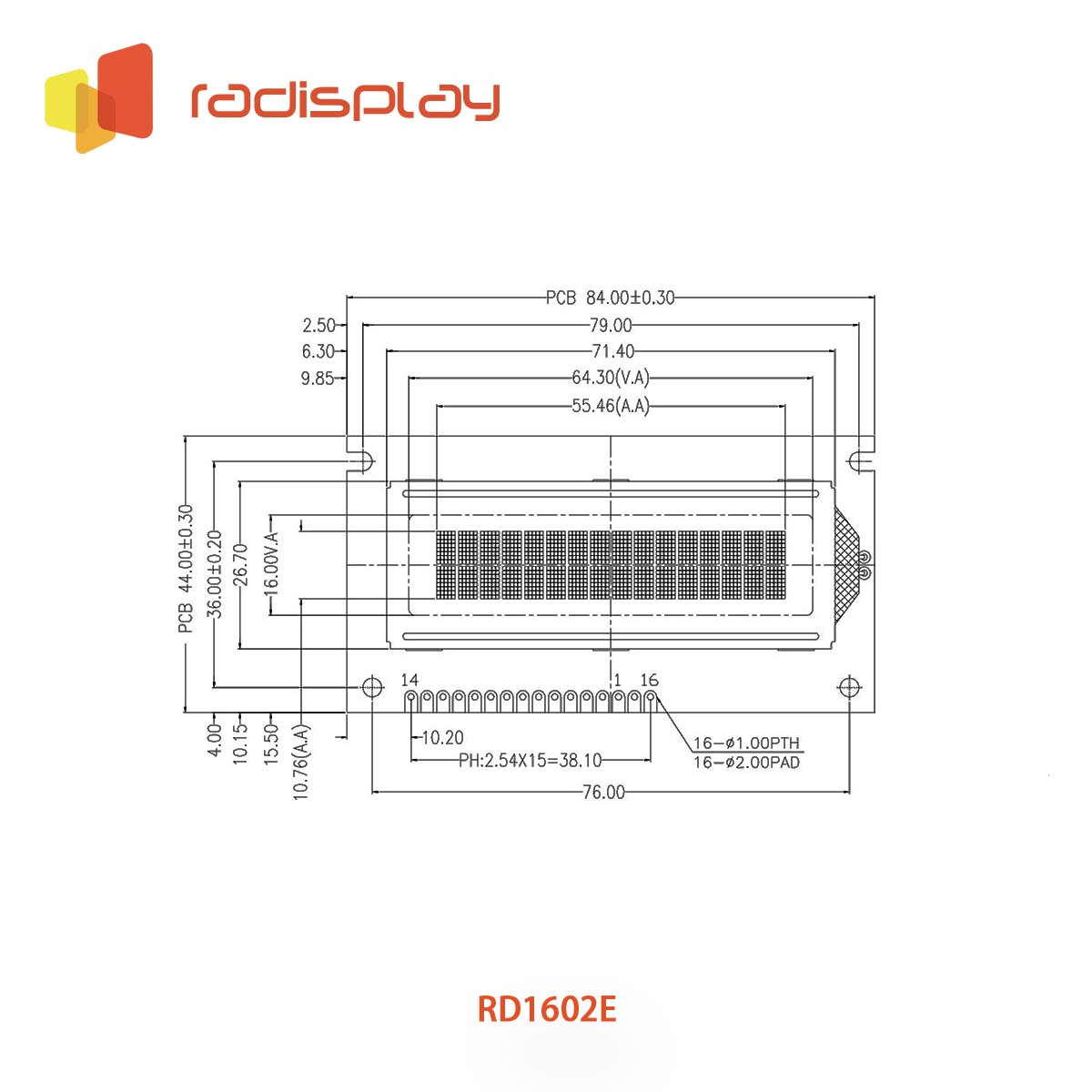

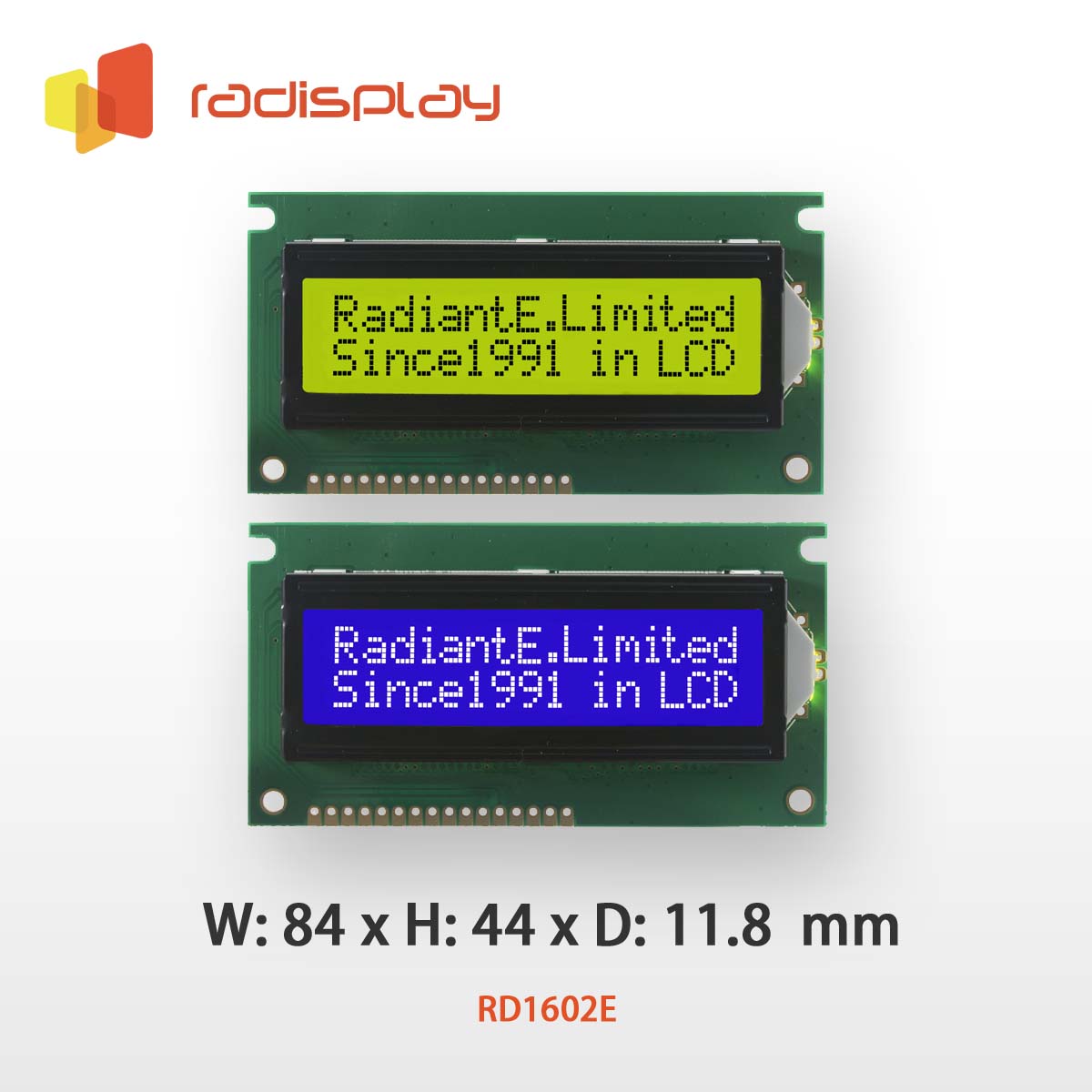

TECHNICAL SPECS (Table) | Module size (W x H x D) | 84 x 44 x 11.8 mm |
Viewing area (W x H) | 64.3 x16 mm | |
Character size (W x H) | 2.96 x 5.16 mm | |
Dot size (W x H) | 0.56 x 0.61 mm | |
Dot pitch (W x H) | 0.60 x 0.65 mm | |

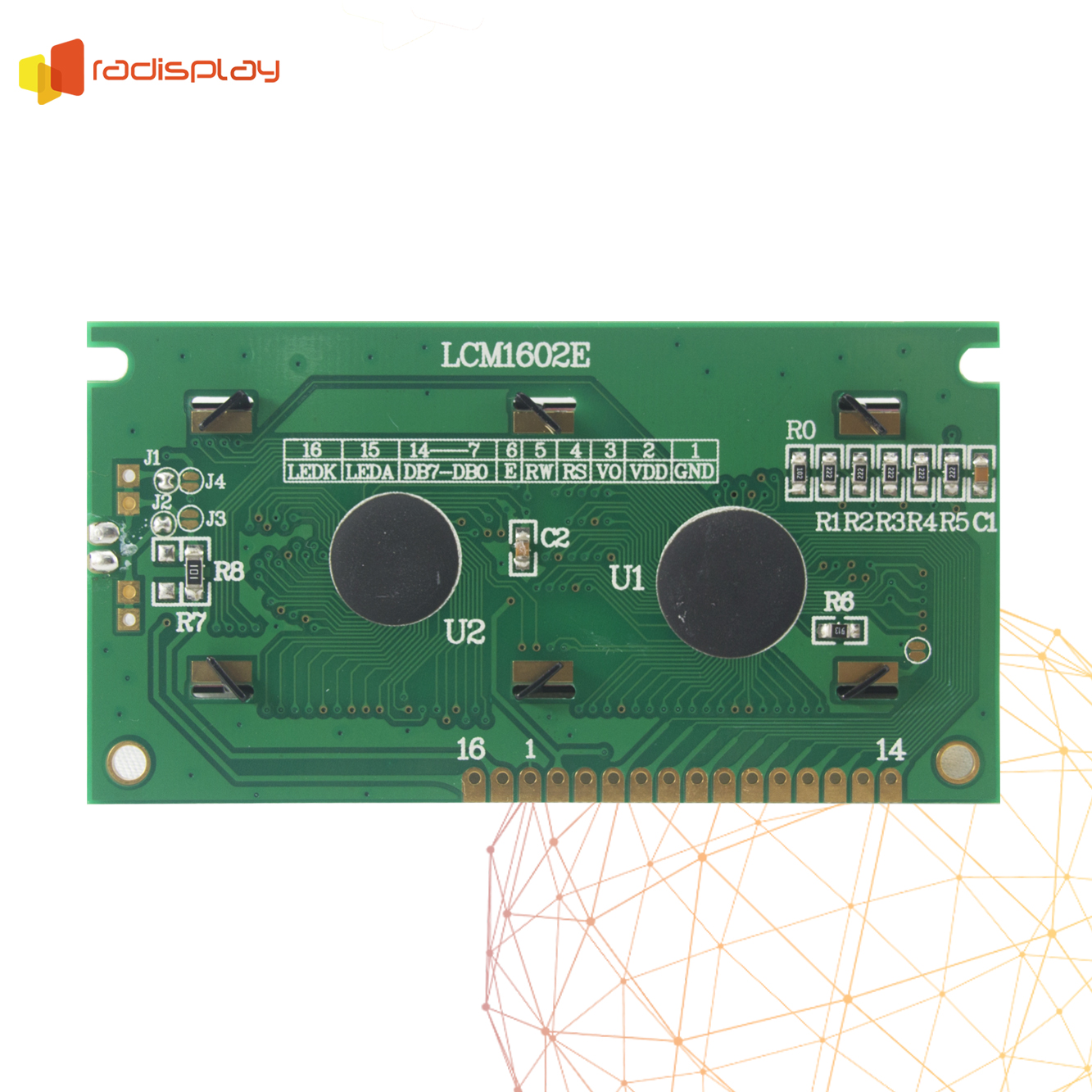

Interface | 8-bit Parallel interface | |
Driver condition | 1/16 Duty , 1/5 Bias | |
Driver IC | AIP31066 | |
Operating temperature | -20 - 70 ℃ |
