RD2002A VATN Alphanumeric 20x2 Character LCD
US $1.00 - US $10.00
Production Lead Time:
30 day(s)
Shipping Method:
FOB Shenzhen HongKong
Brand:
Radisplay
Customised:
Yes
Module size:
116 x 37 x 13.2 mm
Viewing area:
85 x 18.6 mm
Operating temperature:
-20 - 70 ℃
Description
Contact Supplier
Description

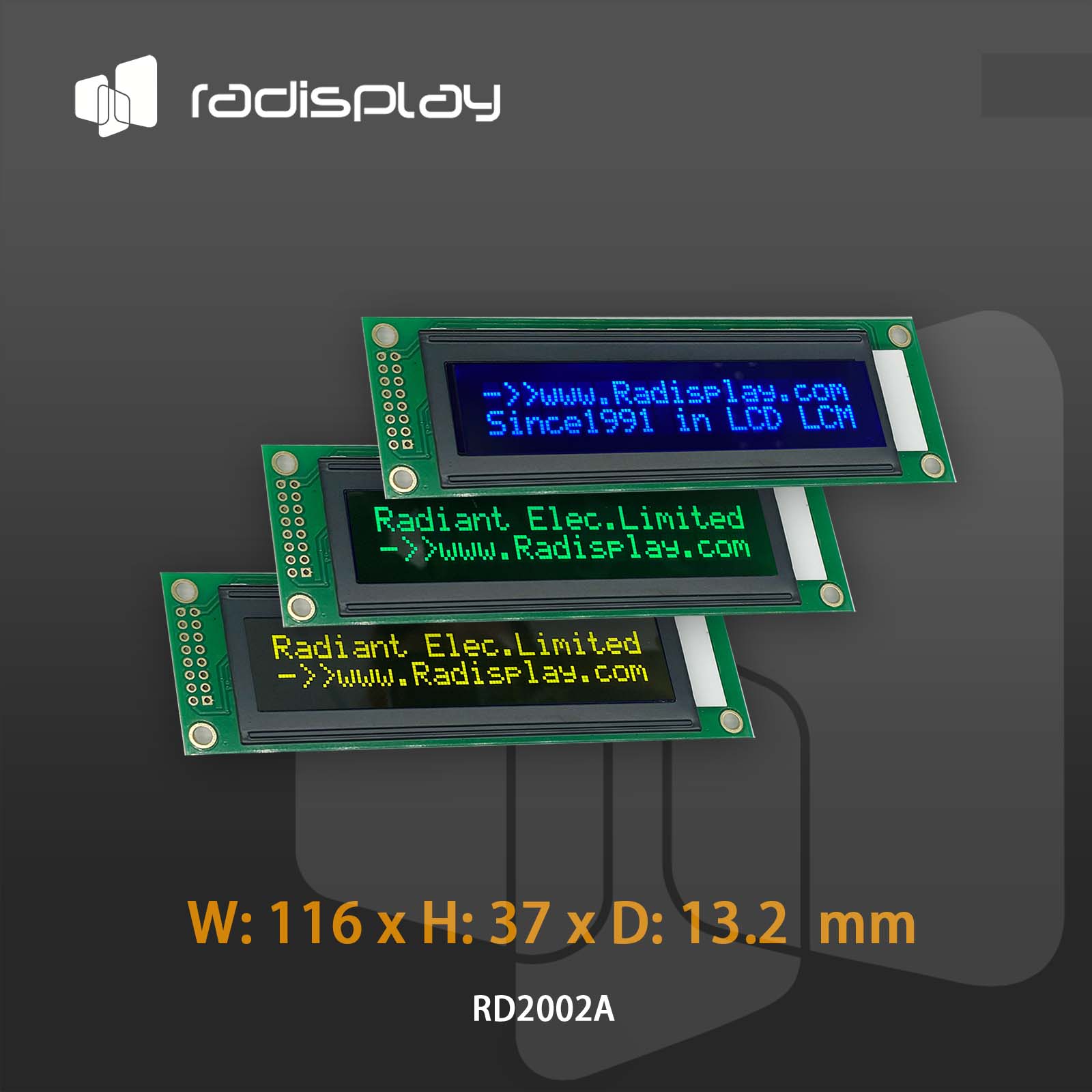

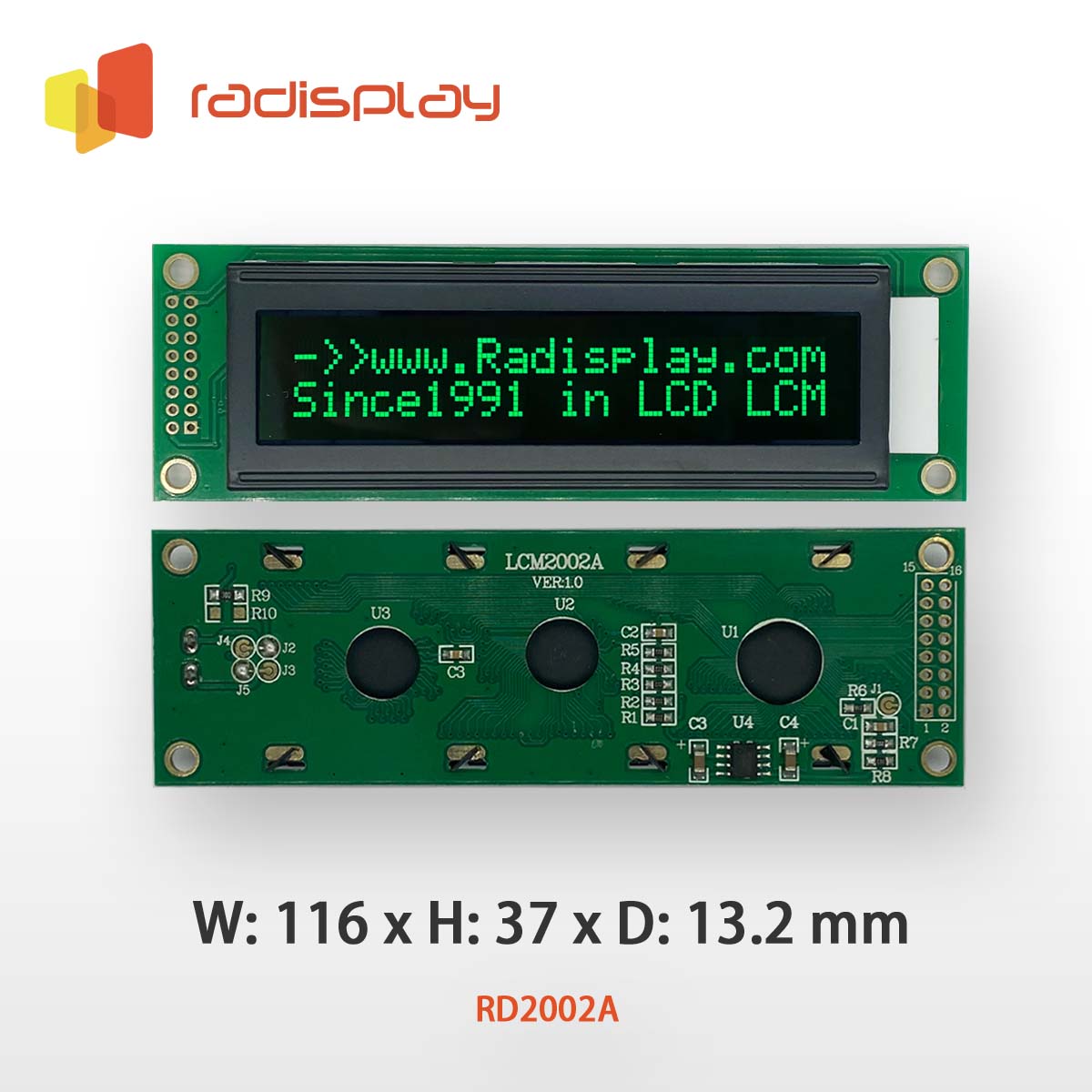

RD2002A VATN Alphanumeric Character LCD offers black background with high contrast for 20x2 display. With different backlight options,RD2002A-VA is your perfect choice for upgrade for your exiting 20x2 Character display.
The following color options are most widely ordered:
RD2002A-VA-01 White on Black

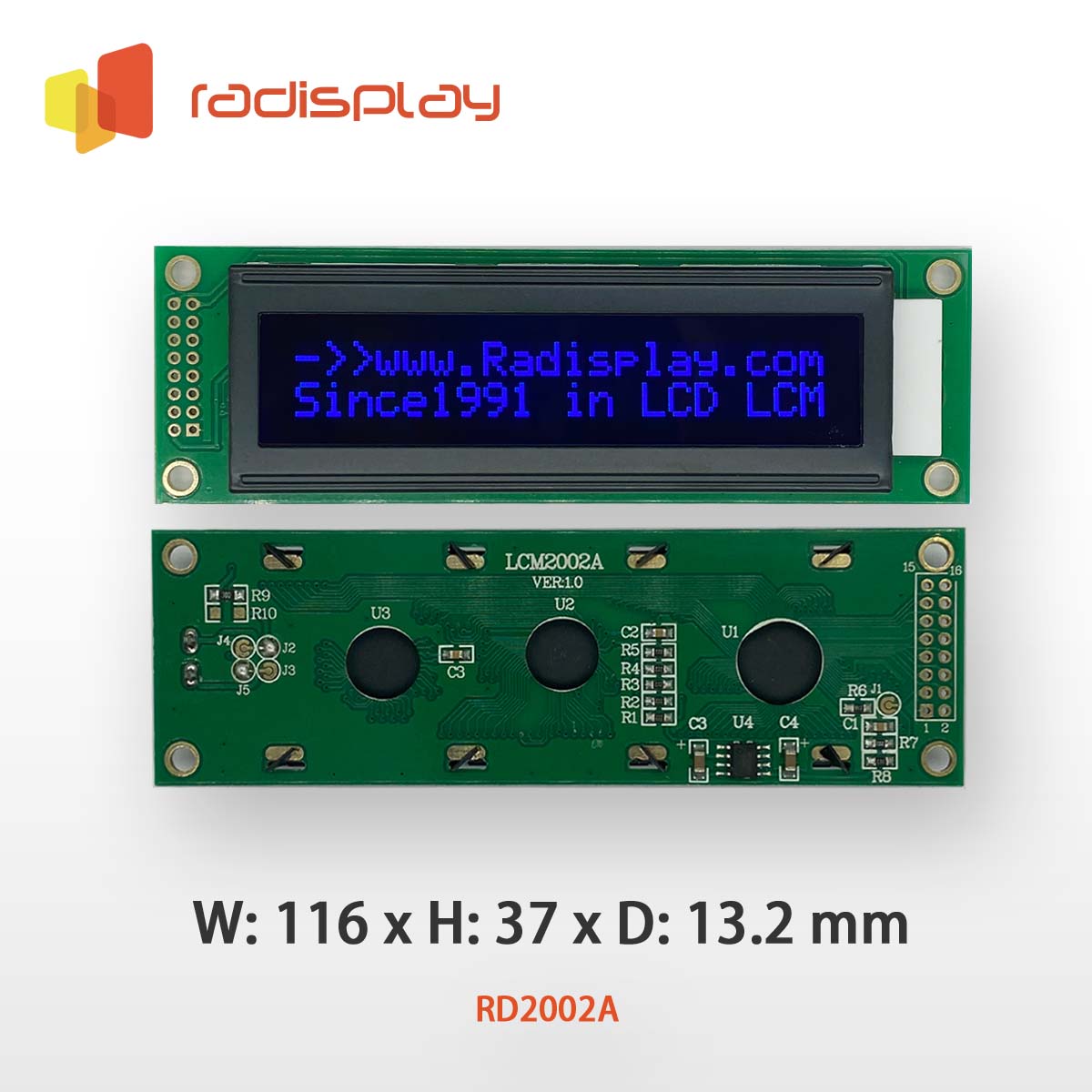

RD2002A-VA-02 Blue on Black
RD2002A-VA-03 Green on Black
RD2002A-VA-04 Red on Black
RD2002A-VA-05 Amber on Black
In addition, a wide range of options are available for this model, including:
Different Backlight
Different Voltage (3.3V, 5.0V and other customized voltage)
Different Interface (Including Serial SPI, I2C interface)
Different Temperature (Including Extended high temperature)

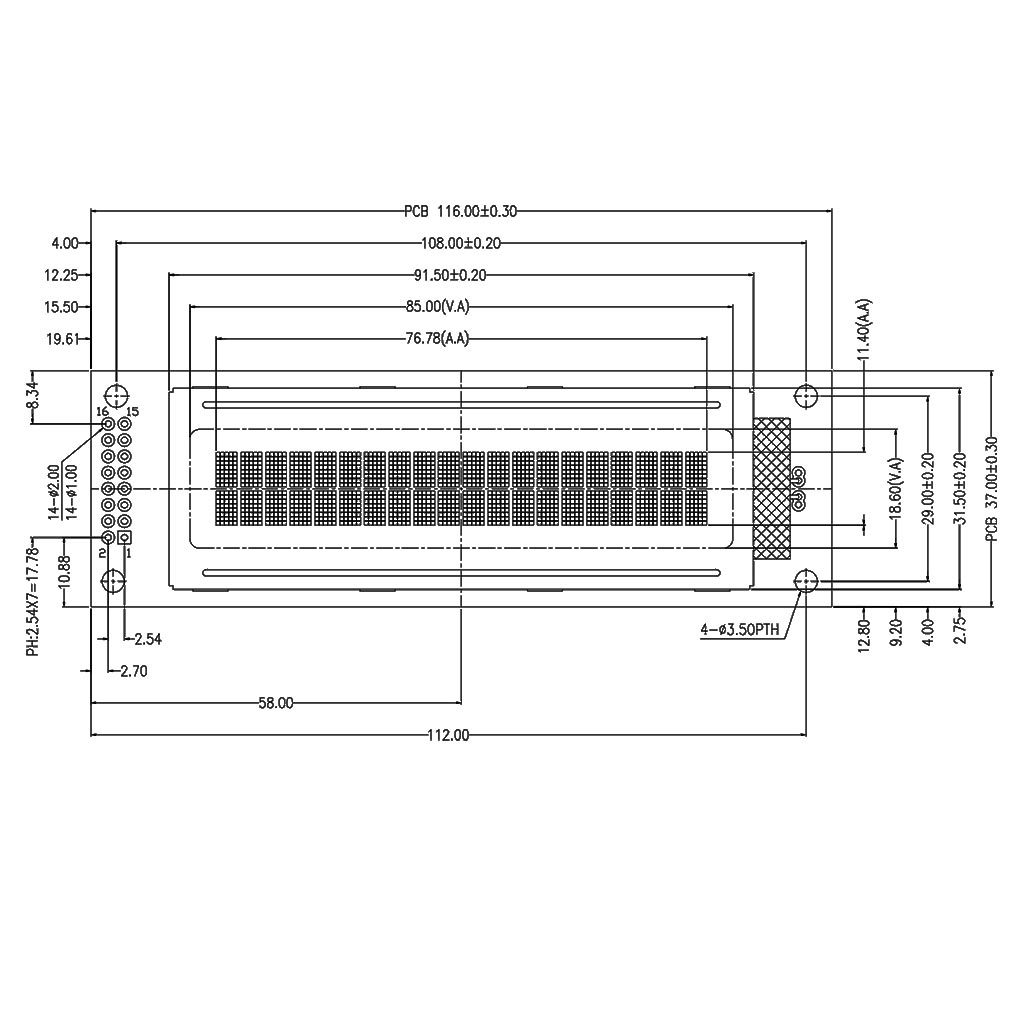

TECHNICAL SPECS (Table) | Module size （W x H x D） | 116 x 37 x 13.2 mm |
Viewing area （W x H) | 85 x 18.6 mm | |
Character size (W x H) | 3.25 x 5.39 mm | |
Dot size (W x H) | 0.61 x 0.63 mm | |
Dot pitch (W x H) | 0.66 x 0.69 mm | |
Interface | 8-bit Parallel interface | |
Driver condition | 1/16 Duty , 1/5 Bias | |
Driver IC | AIP31066 | |
Operating temperature | -20 - 70 ℃ |
