RD2004A-8 Alphanumeric 20x4 Character LCD
US $1.00 - US $10.00
Production Lead Time:
30 day(s)
Shipping Method:
FOB Shenzhen HongKong
Brand:
Radisplay
Customised:
Yes
Module size:
98 x 60 x 13.2 mm
Viewing area :
77 x 25.2 mm
Operating temperature:
-20 - 70 ℃
Driver condition:
1/16 Duty , 1/5 Bias
Description
Certification & Document
Contact Supplier
Description
RD2004A-8 is widely used among 20x4 character LCD displays.
The following color options are most widely ordered:
RD2004A-8-B White on Blue
RD2004A-8-Y Black on Yellow-Green
RD2004A-8-G Black on Gray
In addition, a wide range of options are available for this model, including:
Different Backlight & Color options (Including black color)
Different Voltage (3.3V, 5.0V and other customized voltage)
Different Interface (Including Serial SPI, I2C interface)
Different Temperature (Including Extended high temperature)

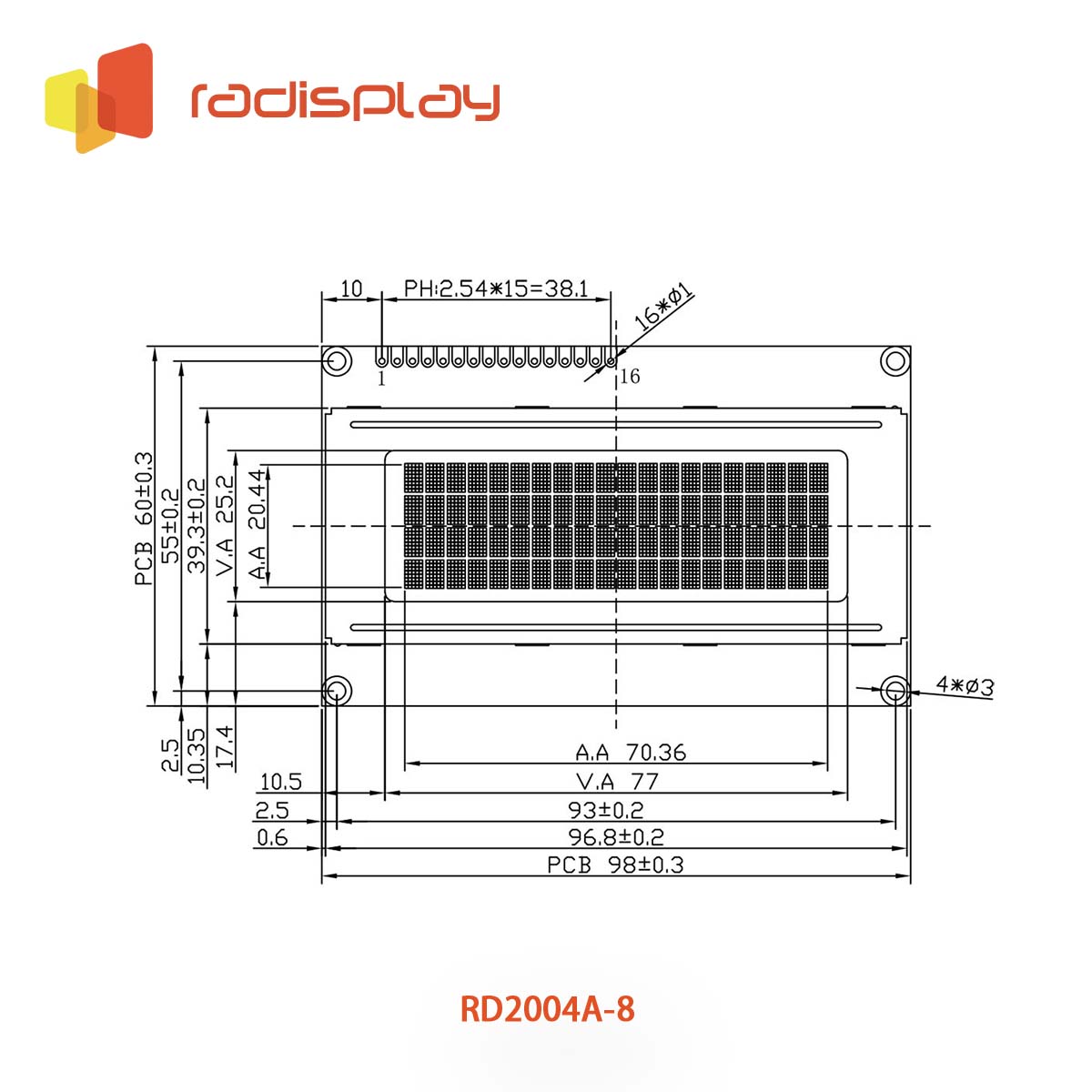

TECHNICAL SPECS (Table) | Module size （W x H x D） | 98 x 60 x 13.2 mm |
Viewing area （W x H) | 77 x 25.2 mm | |
Character size (W x H) | 2.96 x 4.76 mm | |
Dot size (W x H) | 0.56 x 0.56 mm | |
Dot pitch (W x H) | 0.6 x 0.6 mm | |
Interface | 8-bit Parallel interface | |
Driver condition | 1/16 Duty , 1/5 Bias | |
Driver IC | AIP31066 | |
Operating temperature | -20 - 70 ℃ |
Certification & Document
Certificate Name
Issued By
Certificate Type
Valid Date
ROHS
Issued By
SGS
Certificate Type
RoHS
Valid Date
28 Jun 2022
-
28 Jun 2023
REACH
Issued By
SGS
Certificate Type
REACH
Valid Date
04 Jul 2022
-
04 Jul 2023
