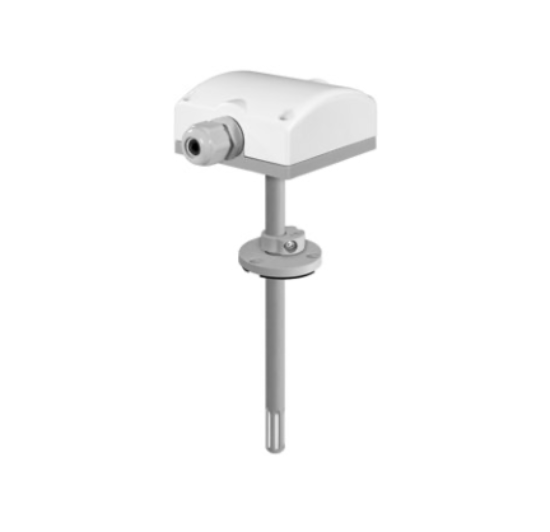

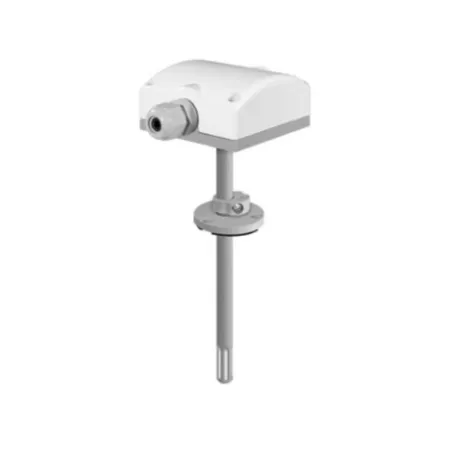

REGIN DTTH4-420 Humidity and temperature transmitter for duct mounting

4…20 mA duct transmitter for temperature and relative humidity measurements in air.

Technical data

Supply voltage :11+(0.02xRL)…30 V DC

Protection class :IP65 (housing)

Mounting :Duct

Insertion length :60…230 mm

Media :Air, non-combustible and non-aggressive gases

Measuring range, temperature:0…50 °C

Output signal, temperature :4...20 mA (4 mA = 0 °C, 20 mA = 50 °C)

Accuracy, temperature :±1 K at 20 °C

Measuring range, humidity :0…100 % RH

Output signal, humidity :4...20 mA (4 mA = 0 % RH, 20 mA = 100 % RH)

Accuracy, humidity :±3 % RH at 20 °C
